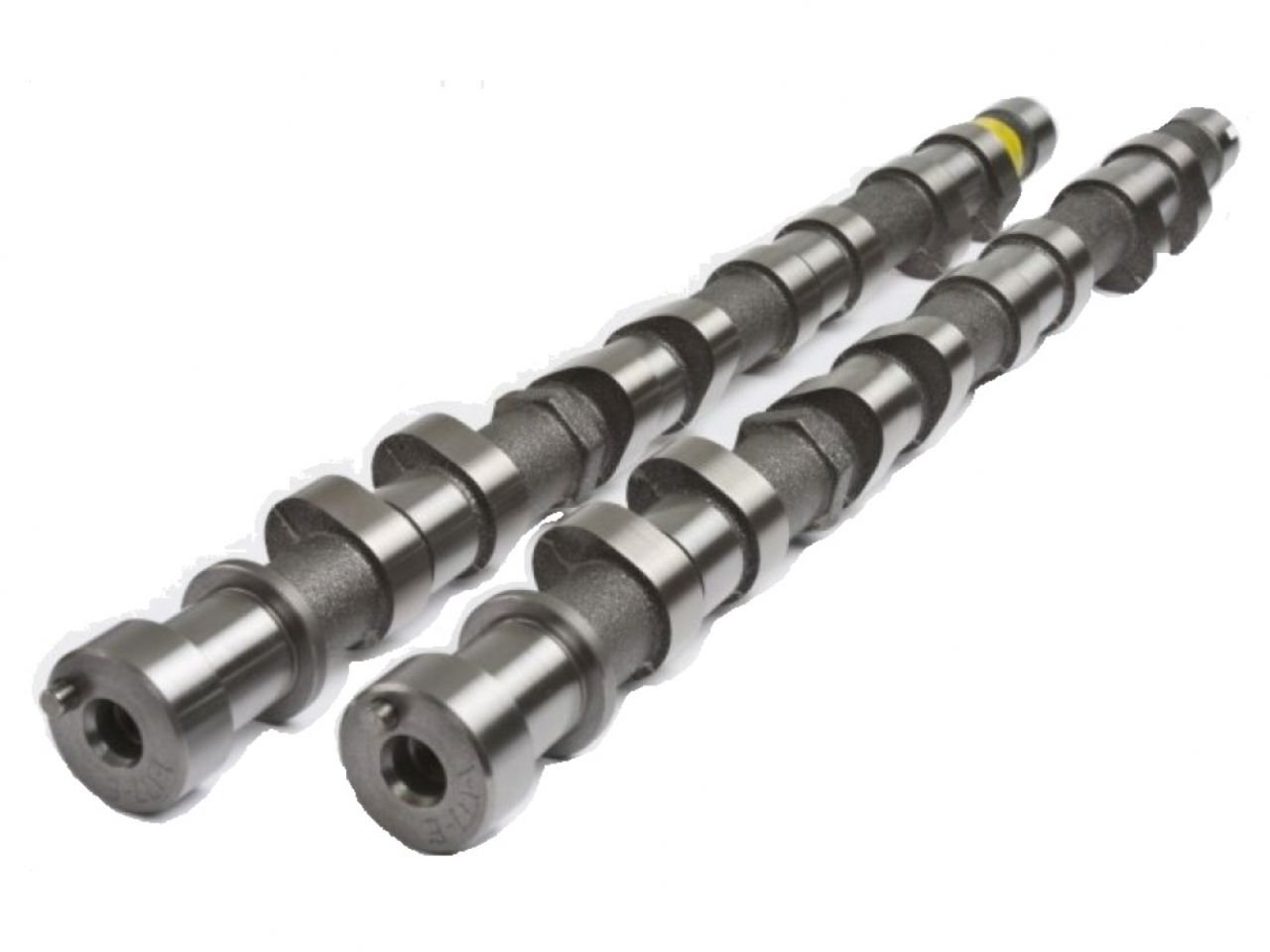

Kelford Cams Mitsubishi 4g63 Eclipse Gst, Gsx, Spyder Gst 1989-1999 Turbo ; 97-99 M
New Range Of High Performance Camshafts.
264/260 Degree advertised duration, 11.00/10.35mm lift cams.The ultimate cam for street, strip and track engines from 300-500hp. These camshafts are stable to 35lb boost and 8000 RPM with our recommended valve springs.
 | |||||||
| Engine Make: | Engine Model: | Part Number: | |||||
| MITSUBISHI | 4G63 VR4 EVO1-3 | 1-TX264 | |||||
| Valve Clearance: | Intake: | Set | at the | ||||
| Exhaust: | Set | at the | |||||
| Cam Lift: | Intake: | 6.36mm | Exhaust: | 5.98mm | |||
| Rocker Ratio: | Intake: | 1.73 | Exhaust: | 1.73 | |||
| Nett Valve Lift: | Intake: | 11.00mm | Exhaust: | 10.35mm | |||
| Advertised Duration @ | 0.10mm | Intake: | 264 | Exhaust: | 260 | ||
| Duration @ | 1.00mm VALVE LIFT | Intake: | 216 | Exhaust: | 216 | ||
| Timing @ | 1.00mm VALVE LIFT | IVO: | 1 BTDC | EVO: | 41 BBDC | ||
| IVC: | 35 ABDC | EVC: | 5 BTDC | ||||
| Suggested Centre Lines: | Intake: | 107 | Exhaust: | 113 | |||
| VALVE | Lift @ TDC | Intake: | 1.10mm | Exhaust: | 0.70 | ||
Vehicle Fitments:
| Year | Make | Model | Submodel |
|---|---|---|---|
| 1996 - 1997 | Eagle | Talon | Base |
| 1993 - 1994 | Eagle | Talon | DL, ES |
| 1995 - 1997 | Eagle | Talon | ESi |
| 1993 - 1997 | Eagle | Talon | TSi |
| 1990 - 1997 | Mitsubishi | Eclipse | Base |
| 1990 - 1999 | Mitsubishi | Eclipse | GSX, GS, GST |
| 1995 - 1999 | Mitsubishi | Eclipse | RS |
| 1996 - 1999 | Mitsubishi | Eclipse | Spyder GST, Spyder GS |
| 1990 - 1994 | Plymouth | Laser | RS, Base |
Kelford Cams Mitsubishi 4g63 Eclipse Gst, Gsx, Spyder Gst 1989-1999 Turbo ; 97-99 M
Sale price$593.75 USD
Regular price$625.00 USD
