KC HiLiTES 50" C-Series C50 LED - Light Bar System - 300W Combo Spot / Spread Beam - for 07-18 Jeep JK 366

KC's 366 50" C Series C50 LED Light Bar & Overhead Mount Bracket Lighting Kit for Jeep Wrangler JK 2007-2018, comes with 50" C Series LED Light Bar and Overhead Mount Bracket, for 300w of LED power in a combo 12° Spot and 30° beam patterns.
FEATURES
-50" 300W C-SERIES LED Light Bar
-Precision reflectors with forward facing LEDs
-Combo Beam Pattern: 12° Spot & 30° Spread
-Extruded Aluminum Housings
-GORE® Membrane Barrier
LIGHT PERFORMANCE
-Raw Lumens: 27,000 lm
-Lux @ 10 Meters: 3,200 lx
-Candela: 320,000 cd
-Beam Distance (Meters): 1,131m
SPECIFICATIONS
-Wattage: 300W
-LED Source: CREE LED
-Color Temperature: 6000K
-Amp Draw: 25.0A
-Voltage: 9V-32V
-IP Rating: IP67
-Product Dimensions: L - 51.38" x H - 3.09" x D - 3.40"
PARTS INCLUDED
-(1) KC 338 50" C-Series LED Light Bar
-(1) Above Windshield Mount Bracket Set with complete hardware
HIGH PERFORMANCE MEETS AFFORDABILITY
C-Series light bar features an extruded aluminum housing, aluminum core PCBs with thermal management and lexan lenses. What you get is a perfect balance of affordable performance with maximum efficiency, stability and reliability.

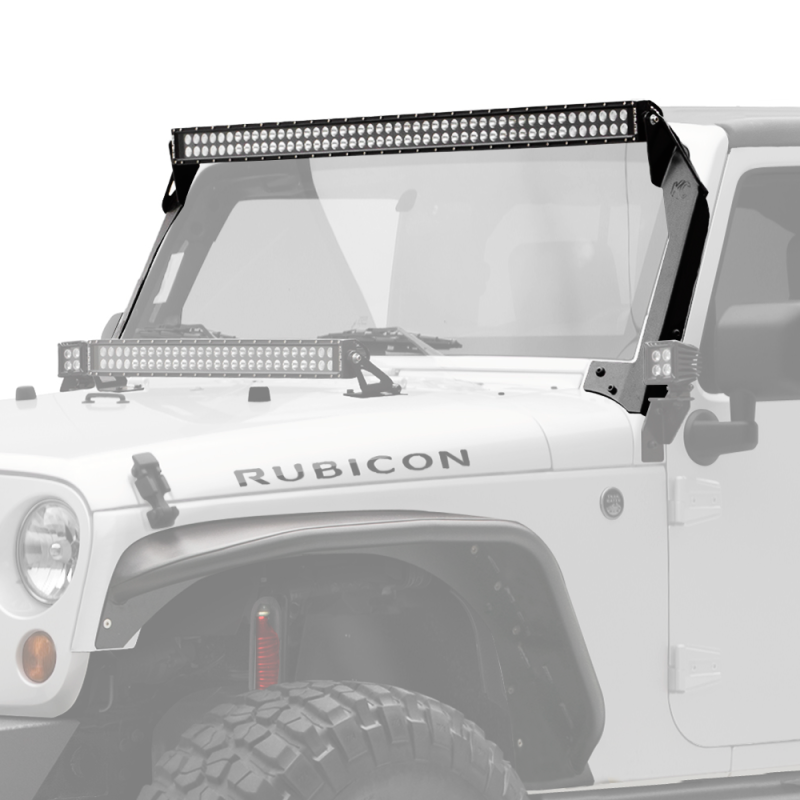

EASY INSTALL OVERHEAD MOUNT BRACKET KIT FOR JEEP WRANGLER JK
This lighting kit comes with both the 50" C Series LED Light Bar and the Overhead Mount Bracket to provide a turnkey lighting solution that's easily mounts to factory bolts on 07-16 Jeep JK vehicles.
COMBO BEAM PATTERN AND ADVANTAGES
When it comes to total road coverage the C-Series LED light bar features a combo beam with perfectly angled 12° Spot & 30° Spread reflectors, for maximum forward distance and increased peripheral illumination along road edges.
DESIGNED FOR DURABILITY
Off road race tested, the C-Series was designed to handle the harshest environments. Featuring a IP67 rated housing and GORE® Membranes, the C-Series is resistant to moisture and dust.
-50" 300W C-SERIES LED Light Bar
-Precision reflectors with forward facing LEDs
-Combo Beam Pattern: 12° Spot & 30° Spread
-Extruded Aluminum Housings
-GORE® Membrane Barrier
LIGHT PERFORMANCE
-Raw Lumens: 27,000 lm
-Lux @ 10 Meters: 3,200 lx
-Candela: 320,000 cd
-Beam Distance (Meters): 1,131m
SPECIFICATIONS
-Wattage: 300W
-LED Source: CREE LED
-Color Temperature: 6000K
-Amp Draw: 25.0A
-Voltage: 9V-32V
-IP Rating: IP67
-Product Dimensions: L - 51.38" x H - 3.09" x D - 3.40"
PARTS INCLUDED
-(1) KC 338 50" C-Series LED Light Bar
-(1) Above Windshield Mount Bracket Set with complete hardware
HIGH PERFORMANCE MEETS AFFORDABILITY
C-Series light bar features an extruded aluminum housing, aluminum core PCBs with thermal management and lexan lenses. What you get is a perfect balance of affordable performance with maximum efficiency, stability and reliability.
EASY INSTALL OVERHEAD MOUNT BRACKET KIT FOR JEEP WRANGLER JK
This lighting kit comes with both the 50" C Series LED Light Bar and the Overhead Mount Bracket to provide a turnkey lighting solution that's easily mounts to factory bolts on 07-16 Jeep JK vehicles.
COMBO BEAM PATTERN AND ADVANTAGES
When it comes to total road coverage the C-Series LED light bar features a combo beam with perfectly angled 12° Spot & 30° Spread reflectors, for maximum forward distance and increased peripheral illumination along road edges.
DESIGNED FOR DURABILITY
Off road race tested, the C-Series was designed to handle the harshest environments. Featuring a IP67 rated housing and GORE® Membranes, the C-Series is resistant to moisture and dust.
Vehicle Fitments:
Year | Make | Model | Submodel |
---|---|---|---|
2010 | Jeep | Wrangler | Islander |
2007 - 2017 | Jeep | Wrangler | Sahara, Unlimited Rubicon, Unlimited Sahara, Rubicon |
2016 | Jeep | Wrangler | Sport S, Unlimited Sport S, Unlimited Black Bear, 75th Anniversary, Unlimited 75th Anniversary |
2010 - 2017 | Jeep | Wrangler | Sport, Unlimited Sport |
2012 | Jeep | Wrangler | Unlimited |
2011 | Jeep | Wrangler | Unlimited 70th Anniversary, 70th Anniversary |
2012 - 2015 | Jeep | Wrangler | Unlimited Altitude |
2015 | Jeep | Wrangler | Unlimited Hard Rock |
2010 - 2012 | Jeep | Wrangler | Unlimited Mountain |
2017 | Jeep | Wrangler | Unlimited Winter Edition, Unlimited Smoky Mountain |
2007 - 2011 | Jeep | Wrangler | Unlimited X, X |
2014 | Jeep | Wrangler | Willys Wheeler, Unlimited Willys Wheeler |
2009 | Jeep | Wrangler | X-S |
2018 | Jeep | Wrangler JK | Sahara, Unlimited Sport S, Unlimited Sport, Unlimited Rubicon, Sport, Unlimited Sahara, Rubicon, Sport S |
