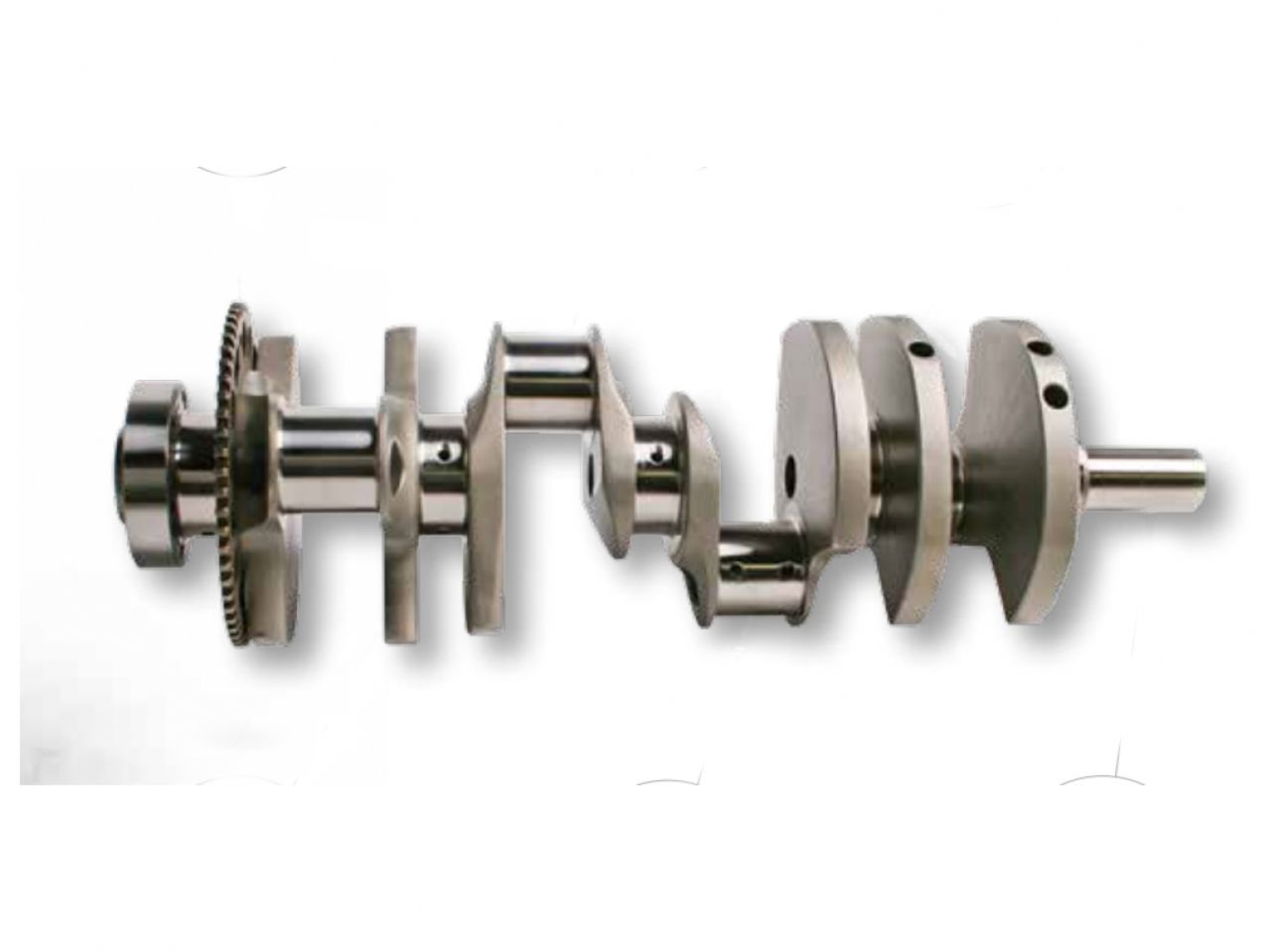

K1 Technologies Mitsubishi 4G63 Lt WGT Billet Crank 100mm Stroke
K1 Technologies crankshafts offerworld-class performance at an affordable price. Our crankshafts are made from 4340 forged steel and core hardened to reduce stress and optimize tensile strength. Each crank is designed with counterweights placed for optimalload reduction and ease of balancing.
Features
- 4340 Forged Steel - Strength, toughness and resistance to impact
- Core hardened using nitride hardening process - Less chance of running deformation
- Magnetic Particle Inspection - Ability to see flaws that may cause s stress riser
- Straight oiling to journals - Alleviates issues with rod bearing failures
- Stress relieved - No bending or distortion in the engine.
- Exceptional journal finish - Longer bearing life
- Wide Pin-End Widths - Supports wrist pin to minimize failures
K1 Technologies Mitsubishi Crankshafts
- Manufactured from forged or billet premium 4340 steel
- Engineered specifically for high-stress racing applications
- Engineered specifically for high-stress racing applications
- Nitrided for improved strength and bearing life
- Large fillet radii for improved strength
- Straight hole oiling system for improved lubrication
- Size tolerances held to +/-.0001".
MITSUBISHI 4G63 7 BOLT
| Description | Stroke |
Main Journal Diameter |
Rod Pin Diameter |
Flange |
Weight (Lbs) |
Footnote |
| Mitsubishi 4G63 Lightweight Billet Crankshaft | 100.000 | 57 | 45 | 7 Bolt | 30 | Lightweight |
Vehicle Fitments:
| Year | Make | Model | Submodel |
|---|---|---|---|
| 1993 - 1994 | Eagle | Talon | DL, ES |
| 1995 - 1998 | Eagle | Talon | ESi |
| 1990 - 1998 | Eagle | Talon | TSi, Base |
| 1990 - 1997 | Mitsubishi | Eclipse | Base |
| 1990 - 1999 | Mitsubishi | Eclipse | GSX, GS, GST |
| 1995 - 1999 | Mitsubishi | Eclipse | RS |
| 1996 - 1999 | Mitsubishi | Eclipse | Spyder GS, Spyder GST |
| 1991 - 1992 | Mitsubishi | Galant | GS, GSX, Base, GSR, LS, VR-4 |
| 2005 - 2006 | Mitsubishi | Lancer | Evolution MR, LS Diamond, Evolution RS |
| 2003 - 2006 | Mitsubishi | Lancer | LS, ES, OZ Rally, Evolution |
| 2004 - 2006 | Mitsubishi | Lancer | Ralliart, DE |
| 2006 | Mitsubishi | Lancer | SE, Evolution SE |
| 2004 | Mitsubishi | Lancer | Sportback Ralliart, Sportback |
| 1990 - 1994 | Plymouth | Laser | Base, RS |
K1 Technologies Mitsubishi 4G63 Lt WGT Billet Crank 100mm Stroke
Sale price$1,627.83 USD
Regular price$1,883.36 USD
