Mishimoto Jeep Wrangler JK Baffled Oil Catch Can, 2007-2011

Jeeps are built to go places that dont always involve asphalt. While these machines are made for exciting adventures, its important to pay attention to your engine and make sure that youre able to take your Jeep anywhere, anytime, for as long as you want. We are here to help with our 2007-2011 Jeep Wrangler 3.8L V6 Baffled Oil Catch Can Kit.

Using our standard 2 oz. can, this kit will reduce the amount of harmful blow-by oil that coats your intake tracts and cakes your valves with carbon deposits. Internal air diverters slow incoming air for more effective air/oil separation as a 50-micron bronze filter helps filter that air and an internal aluminum baffle prevents any caught content from being recirculated back into the system.

With the off-roader in mind, our two-piece, 2.5mm thick steel bracket was specially engineered to withstand a heavy amount of movement and abuse. The mounting location is secure on the chassis, so you wont have to be concerned about your bracket sustaining damage due to chassis movement.

• Direct-fit bracket mounts can in serviceable location
• Thick 2.5mm bracket wont bend, rattle, or break under heavy abuse
• Internal air diverter increases air turbulence to improve oil separation
• Helps maintain proper octane levels to reduce potential detonation
• High-quality O-ring ensures a tight seal
• Filters and cans are fully serviceable

Specification

Inlet: 1/2" NPT
Outlet: 1/2" NPT
Drain Plug Thread Size: 3/8" NPT
Capacity: 2 oz.

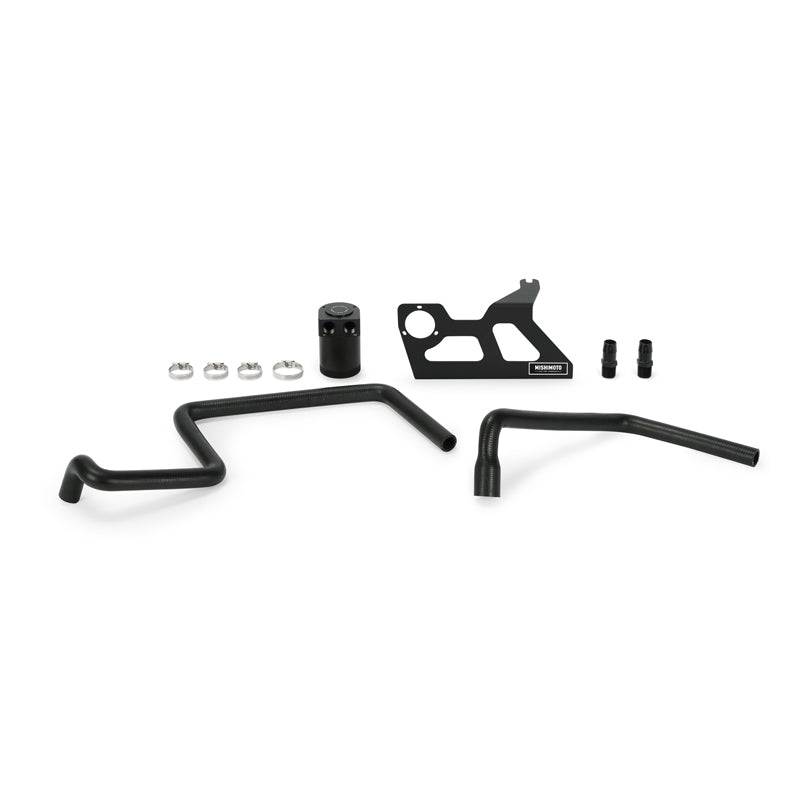

Purchase Includes: (1) Application-Specific Mounting Bracket
(1) Black, Anodized 6061 Aluminum Catch Can
(2) Silicone Hoses
(2) Plastic Barbed Fittings
(4) Worm Gear Clamps
(1) Bronze Filter
(1) Air Diverter
(1) Internal Baffle & Rod
(1) 3/8" NPT Plug
(1) Large O-Ring
Mounting Hardware
Fits: Jeep Wrangler, 2007-2011
Engine Codes: 3.8L EGH V6
Chassis Codes: JK
Materia:l 6061 Aluminum
Install Torque Specs :22 in-lbs (2.5N*M) recommended for all worm-gear clamps. These clamps have an operating range of 18-27 in-lbs 2-3N*M. Do not exceed the maximum torque rating of 27 in-lbs (3N*M).
Note:This kit has been confirmed to fit with the sPOD system.

This catch can has not been confirmed to fit with other aftermarket products such as air compressors or vacuum pump relocation kits (except for sPOD system).

After installation, Mishimoto recommends checking the contents of the baffled catch cans every 500 miles until a baseline is established. Oil blow-by accumulation will vary with ambient temperatures and driving conditions. It is important that the contents of the can do not rise above the internal baffle
