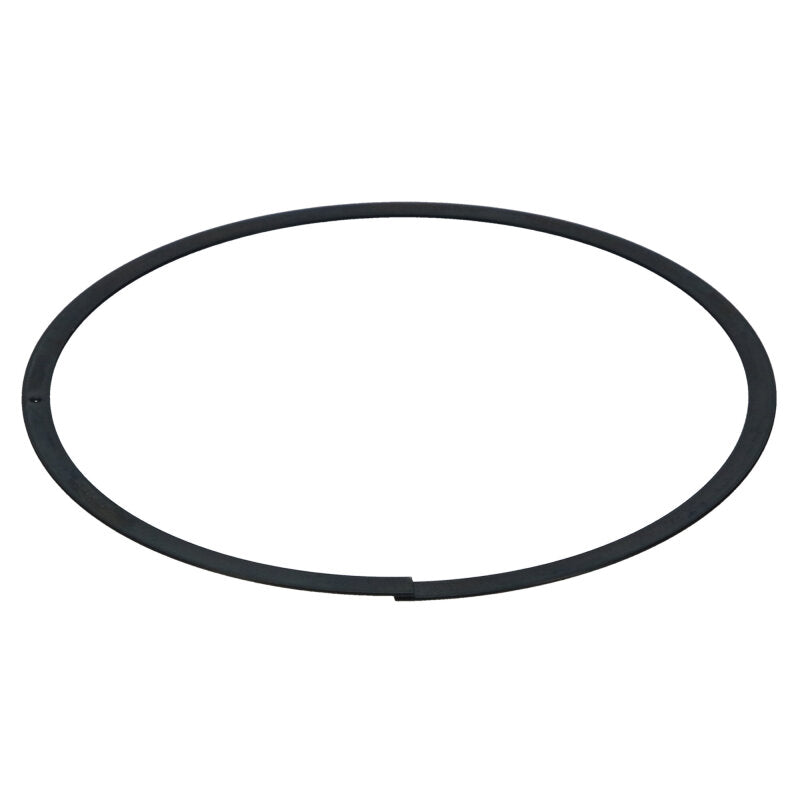

JE Pistons Oil Rail Support Ring 3.999in-4.029in Bore 4000-162

JE Piston Rings

Engine Piston Oil Rail Support Ring

JE Oil Rail Supports feature a special locking detent to prevent rotation of the oil rail and keep the rail support gap 90? from the pin bore opening on the piston. This JE exclusive feature prevents the rail from rotating in the oil ring groove. Oil Rail Supports prevent the oil ring rails from spiraling off of pistons with short compression distances.

Piston Oil Rail Support, 3.999 in. Min Bore, 4.029 in. Max Bore, 0.162in. Radial Depth, Each.
