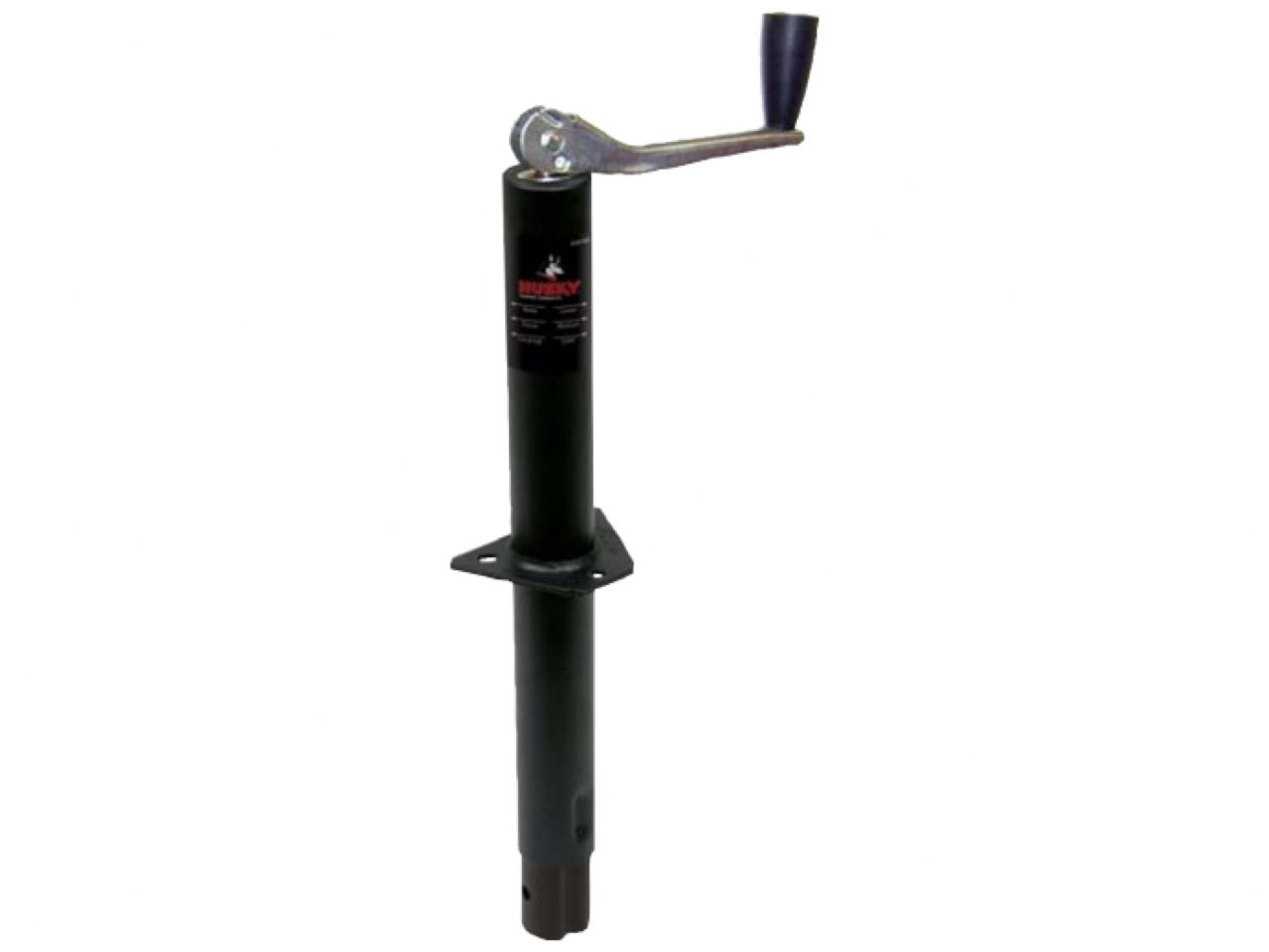

Husky Towing Jack 5000# Top Wind A-Fra

Husky A-frame trailer jacks are designed in two styles: top-wind and side-wind, for use with all trailers. All Husky A-frame jacks come with a mounting bracket for easy bolt-on or weld-on mounting through A-frame mounted couplers.

Husky jacks are available in a variety of weights (up to 5,000 lbs.) and adjustments (up to 11” adjustment) to meet all trailer needs. Finished in a durable powder coat finish and zinc plating.

Jack Specifications:

Dim. A Fully Retracted: 21-1/2”

Dim. B: 20-1/8”

Dim. C: 10-11/16”

Dim. D:  9-7/16”

Dim. E Fully Retracted: 1-1/4”

Dim. F Outer Tube O.D.: 2-3/16”

Dim. G Inner Tube O.D.:  2”
