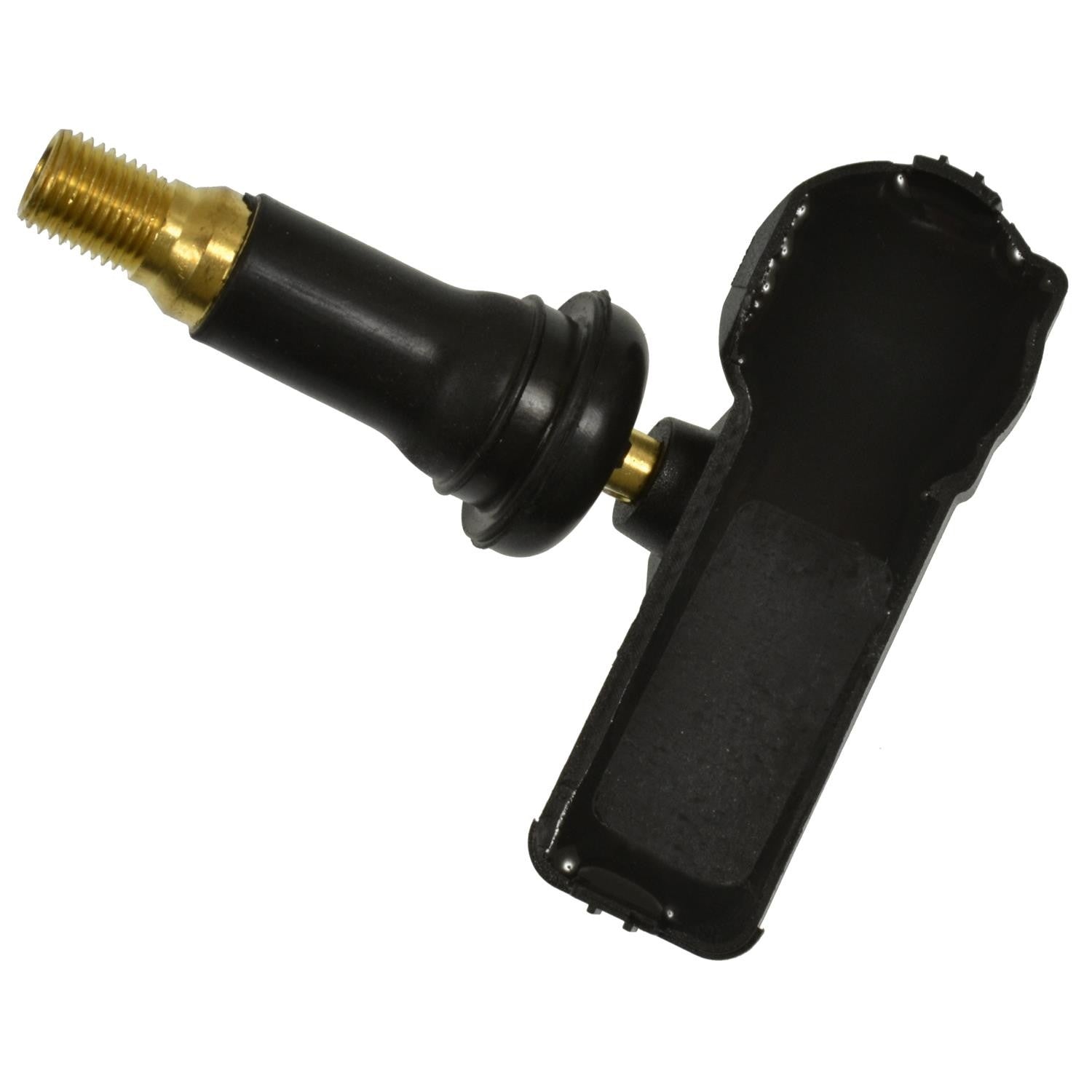

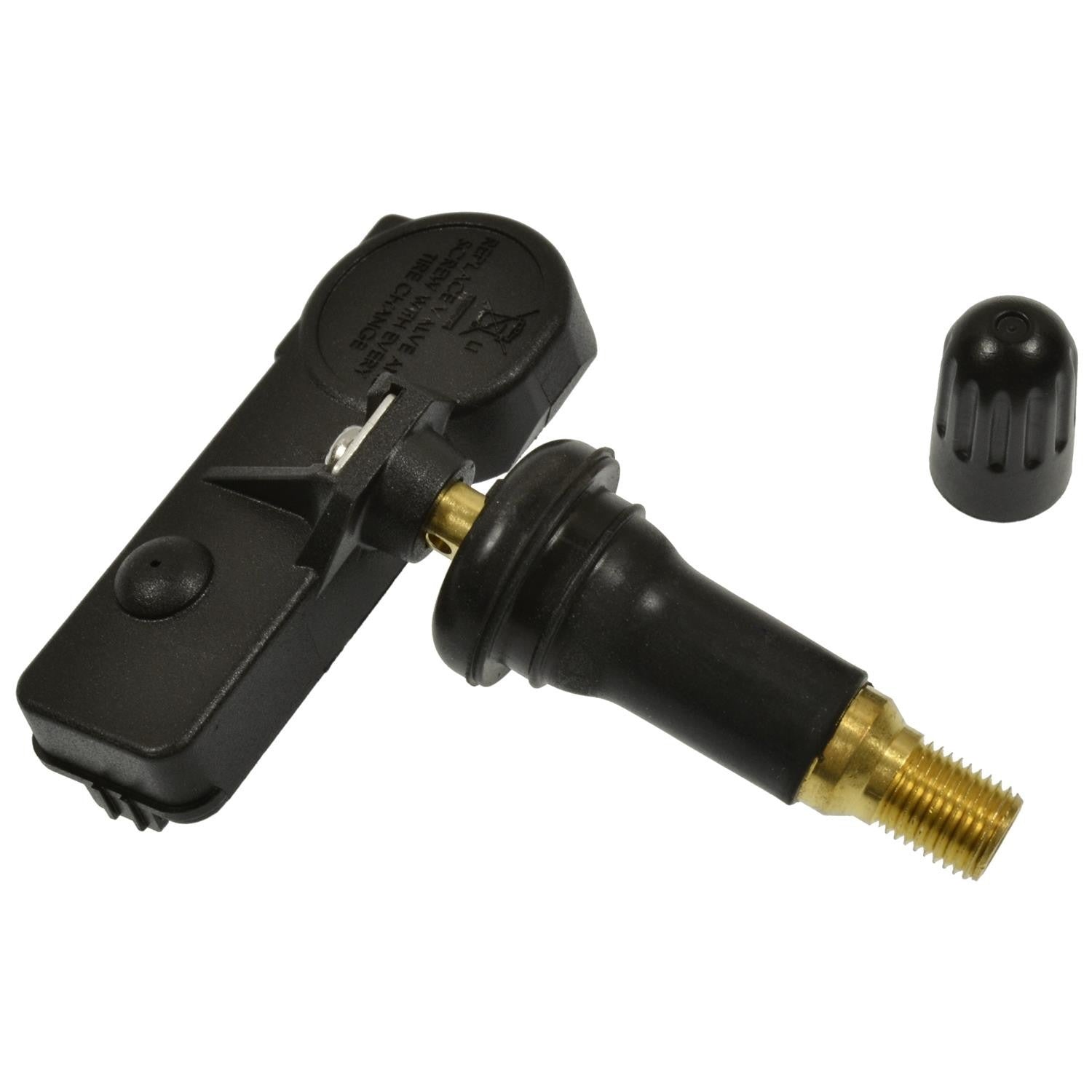

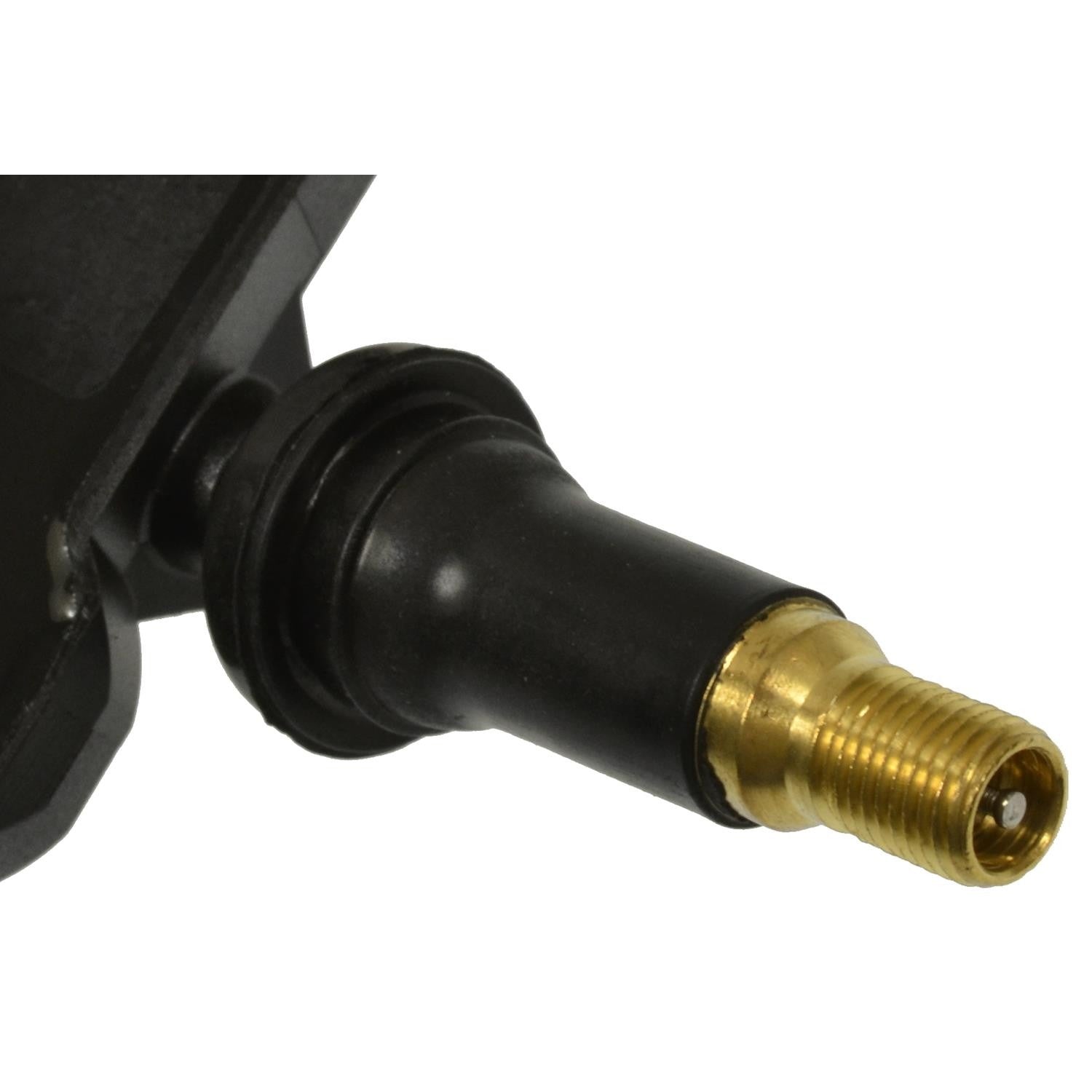

Intermotor Tire Pressure Monitoring System Sensor TPM93RA
Sensor used to monitor the tire pressure. (TPM93RA) by Intermotor
Pre-programmed at the factory with exact OE protocol, so itââ¬â¢s ready to be installed and OE-relearned out of the box. Designed and manufactured to meet or exceed OE performance in compliance with all SAE2657 specifications. Undergoes extensive testingââ¬â¬�including operational temperature, thermal shock, extreme temperature, humidity, frost, proof pressure, rapid deflation, contamination, salt fog, drop, centrifugal force vehicle speed, mechanical vibration testsââ¬â¬�to ensure durab. Validated at independent lab during 168-hour on-vehicle live test. Military-grade lithium battery ensures maximum battery life and sensor performance. Low-power wakeup timer and periodic reset driven by Low-Frequency Output (LFO) maximizes shelf life, extends battery life, and maintains optimum performance levels. Z-axis or duel XY-axis accelerometers on IC chip ensure more precise readings on tire positions and rotational direction. Externalââ¬â¬Scrystal oscillator provides frequency stability and more accurate frequency ranges, ensuring more reliable communications between sensors and vehicle receiver.
Vehicle Fitments:
| Year | Make | Model | Submodel |
|---|---|---|---|
| 2014 - 2016 | Subaru | Forester | 2.5i Touring, 2.0XT Touring, 2.5i Limited, 2.5i Premium, 2.5i Convenience, 2.0XT Limited, 2.5i, 2.0XT Premium |
| 2008 | Subaru | Forester | Anniversary Edition, X L.L. Bean Edition, Sports 2.5 XT, 2.5 X, 2.5 XS, 2.5 XT, Sports 2.5 X, 2.5 XS Premium |
| 2013 | Subaru | Forester | X Convenience |
| 2009 - 2013 | Subaru | Forester | X Touring, X Limited, X Premium |
| 2009 - 2016 | Subaru | Forester | XS, XSL |
| 2008 - 2013 | Subaru | Forester | XT Limited |
| 2010 - 2013 | Subaru | Forester | XT Premium |
| 2010 - 2012 | Subaru | Forester | XT Sports |
| 2011 - 2013 | Subaru | Forester | XT Touring |
| 2008 - 2016 | Subaru | Forester | XT, X |
| 2008 | Subaru | Impreza | 2.0R |
| 2009 - 2010 | Subaru | Impreza | 2.5 GT |
| 2010 - 2011 | Subaru | Impreza | 2.5i Premium |
| 2008 - 2011 | Subaru | Impreza | 2.5i, Outback Sport |
| 2014 - 2016 | Subaru | Impreza | I Limited |
| 2013 - 2016 | Subaru | Impreza | I Sport, i |
| 2012 - 2016 | Subaru | Impreza | Limited, Base, Premium, Sport Limited, Touring, Sport Premium |
| 2009 - 2012 | Subaru | Impreza | R |
| 2008 - 2015 | Subaru | Impreza | Sport |
| 2010 - 2014 | Subaru | Impreza | WRX Limited |
| 2009 - 2014 | Subaru | Impreza | WRX Premium |
| 2011 - 2014 | Subaru | Impreza | WRX STI Limited |
| 2010 | Subaru | Impreza | WRX STI Special Edition, WRX SE, 2.5i Limited, WRX GT |
| 2008 - 2014 | Subaru | Impreza | WRX, WRX STI |
| 2011 | Subaru | Impreza | XV |
| 2008 | Subaru | Legacy | 2.0, Touring, 3.0 |
| 2013 - 2014 | Subaru | Legacy | 2.5i Convenience |
| 2008 - 2016 | Subaru | Legacy | 2.5i Limited, 2.5i |
| 2009 - 2016 | Subaru | Legacy | 2.5i Touring |
| 2009 | Subaru | Legacy | 3.0 R, 3.0 R Premier, 2.0R |
| 2010 - 2013 | Subaru | Legacy | 3.6R |
| 2010 - 2016 | Subaru | Legacy | 3.6R Limited, 2.5i Premium |
| 2010 - 2012 | Subaru | Legacy | 3.6R Premium, 2.5GT |
| 2015 - 2016 | Subaru | Legacy | 3.6R Touring |
| 2009 - 2015 | Subaru | Legacy | Base |
| 2008 - 2013 | Subaru | Legacy | GT |
| 2008 - 2009 | Subaru | Legacy | GT spec.B, 2.5i Special Edition, 3.0 R Limited, GT Limited |
| 2008 - 2015 | Subaru | Legacy | Limited |
| 2015 | Subaru | Legacy | Premium |
| 2014 | Subaru | Legacy | R, 2.5i Sport |
| 2010 - 2014 | Subaru | Legacy | Sport |
| 2013 - 2014 | Subaru | Outback | 2.5i Convenience |
| 2008 - 2016 | Subaru | Outback | 2.5i Limited, 2.5i |
| 2010 - 2016 | Subaru | Outback | 2.5i Premium, 3.6R Limited |
| 2009 | Subaru | Outback | 2.5i Special Edition, 3.0 R Limited, 3.0 R Premier |
| 2010 | Subaru | Outback | 2.5i Sport |
| 2012 - 2016 | Subaru | Outback | 2.5i Touring |
| 2010 - 2014 | Subaru | Outback | 3.6R |
| 2010 - 2012 | Subaru | Outback | 3.6R Premium |
| 2015 - 2016 | Subaru | Outback | 3.6R Touring |
| 2008 - 2015 | Subaru | Outback | Base, Limited |
| 2015 | Subaru | Outback | Premium |
| 2008 - 2009 | Subaru | Outback | XT Limited |
| 2008 | Subaru | Outback | XT, 2.5 XT, Touring, Premier, 3.0 R, R L.L. Bean Edition, 2.5i L.L. Bean Edition, 2.5i Limited L.L. Bean Edition |
| 2008 - 2014 | Subaru | Tribeca | Limited, Base |
| 2009 - 2014 | Subaru | Tribeca | Premier |
| 2008 | Subaru | Tribeca | Premiere |
| 2010 - 2012 | Subaru | Tribeca | Premium, Touring |
| 2012 - 2021 | Subaru | WRX | Base |
| 2018 - 2020 | Subaru | WRX | CVT, 6 Man |
| 2013 - 2021 | Subaru | WRX | Limited |
| 2015 - 2021 | Subaru | WRX | Premium |
| 2014 | Subaru | WRX | SE |
| 2017 - 2020 | Subaru | WRX | Sport, Sport-tech |
| 2012 - 2016 | Subaru | WRX | STI |
| 2013 - 2021 | Subaru | WRX STI | Base |
| 2015 | Subaru | WRX STI | Launch Edition |
| 2015 - 2021 | Subaru | WRX STI | Limited |
| 2019 | Subaru | WRX STI | S209 |
| 2016 | Subaru | WRX STI | Series.HyperBlue |
| 2017 - 2020 | Subaru | WRX STI | Sport |
| 2013 - 2020 | Subaru | WRX STI | Sport-tech |
| 2018 - 2020 | Subaru | WRX STI | STI |
| 2014 | Subaru | WRX STI | Tsurugi Edition |
| 2018 | Subaru | WRX STI | Type RA |
| 2015 | Subaru | XV Crosstrek | Base |
| 2014 - 2015 | Subaru | XV Crosstrek | Hybrid, Hybrid Touring |
| 2013 - 2015 | Subaru | XV Crosstrek | Touring, Limited, Premium, Sport |
