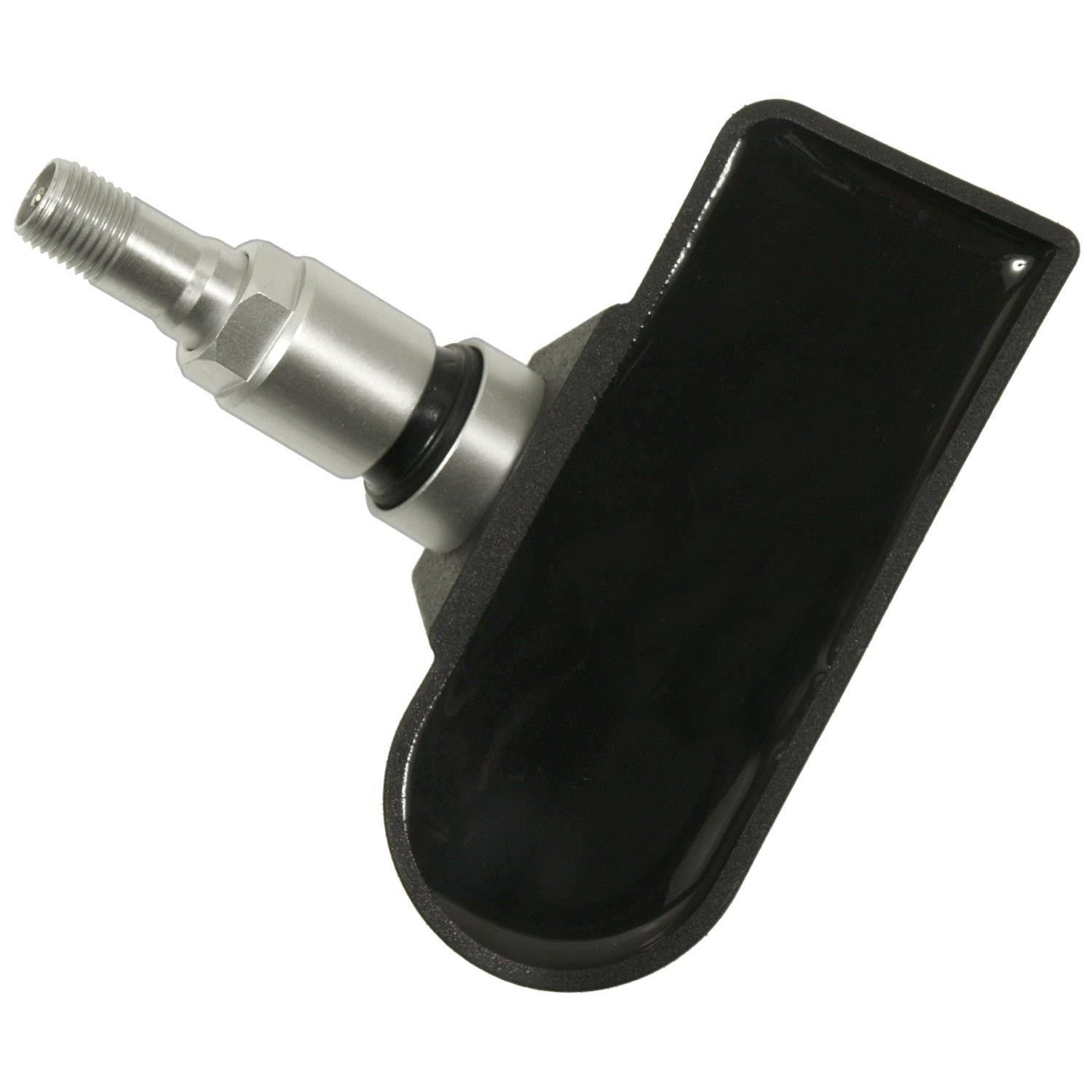

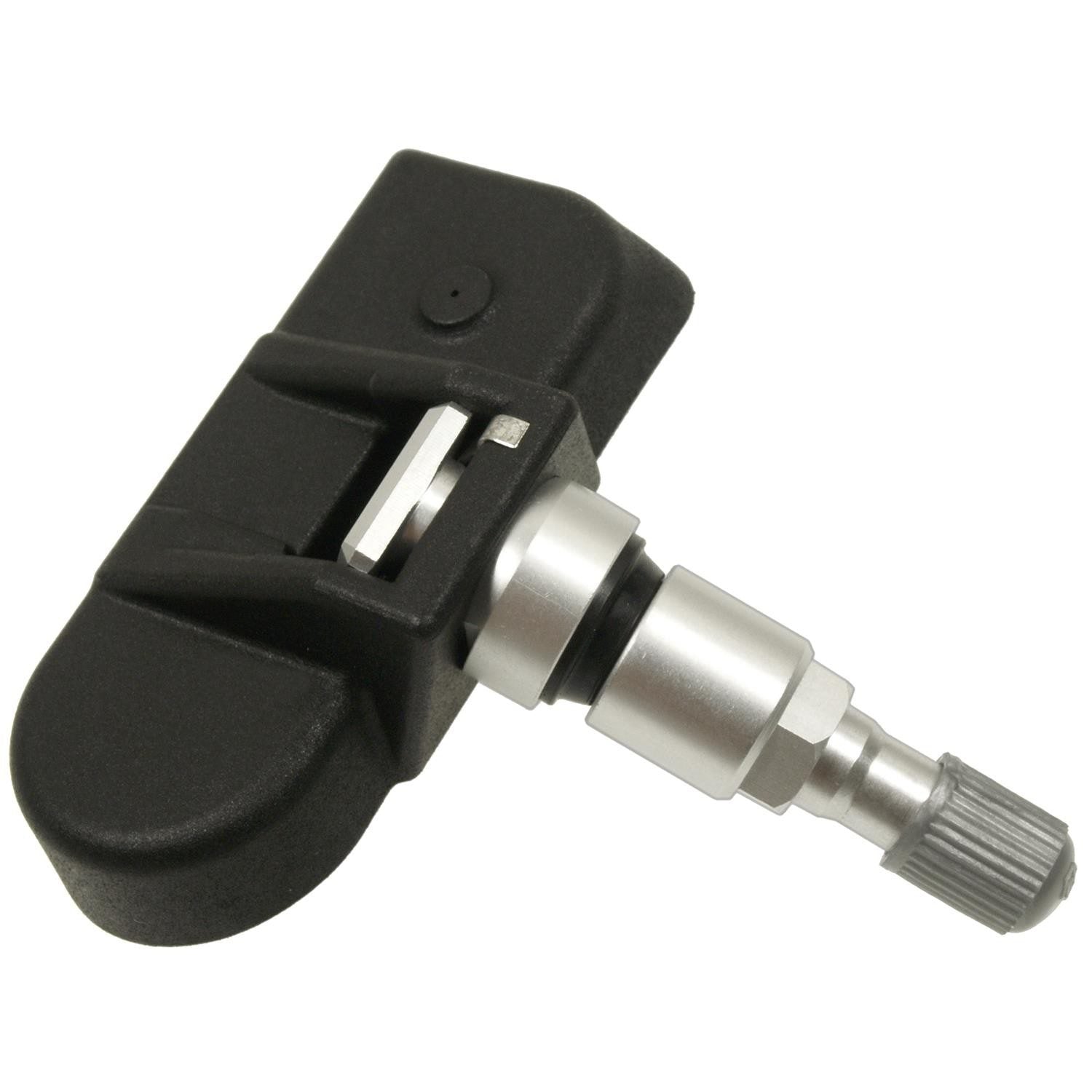

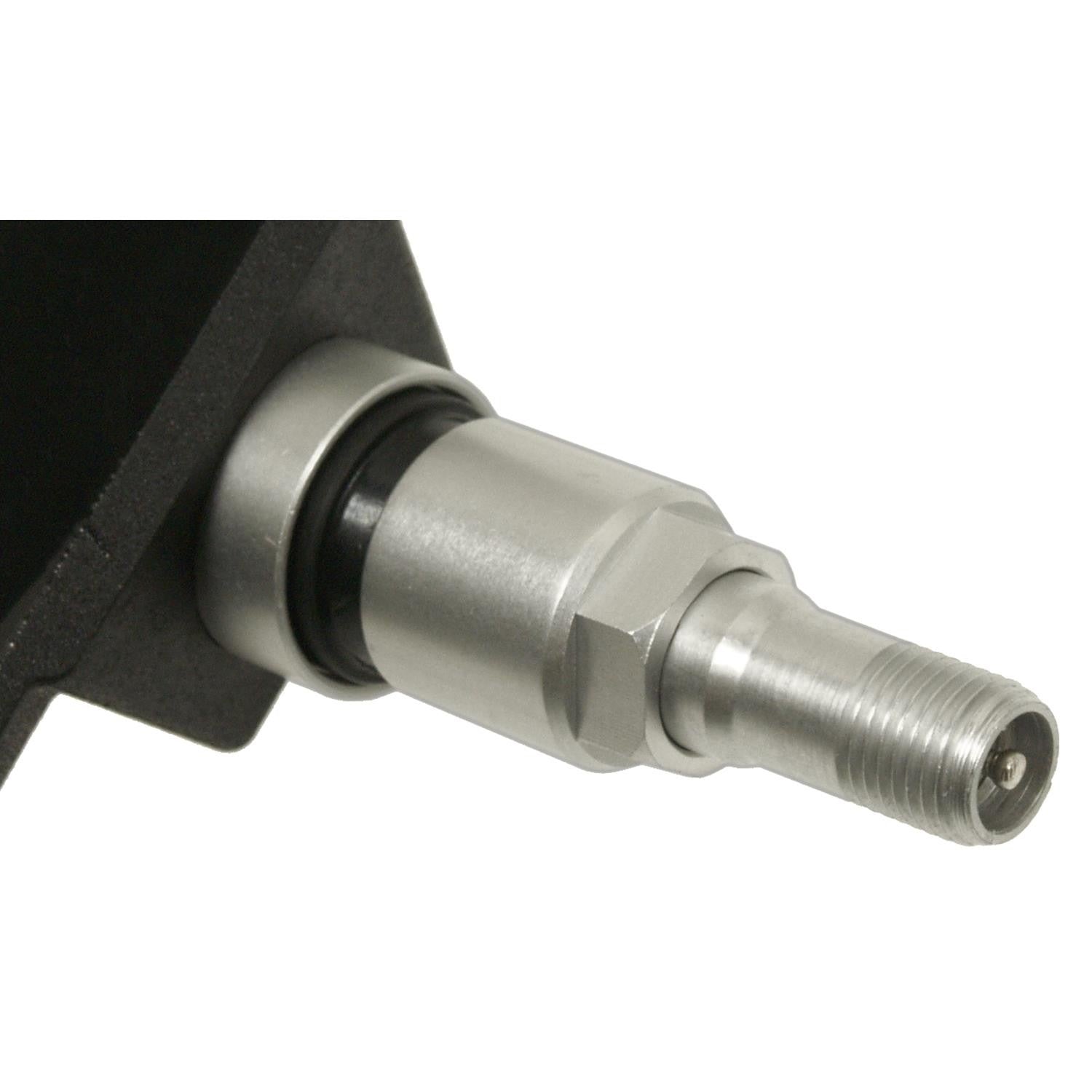

Intermotor Tire Pressure Monitoring System Sensor TPM58A

Sensor used to monitor the tire pressure. (TPM58A) by Intermotor
Pre-programmed at the factory with exact OE protocol, so itââ¬â¢s ready to be installed and OE-relearned out of the box. Designed and manufactured to meet or exceed OE performance in compliance with all SAE2657 specifications. Undergoes extensive testingââ¬â¬�including operational temperature, thermal shock, extreme temperature, humidity, frost, proof pressure, rapid deflation, contamination, salt fog, drop, centrifugal force vehicle speed, mechanical vibration testsââ¬â¬�to ensure durab. Validated at independent lab during 168-hour on-vehicle live test. Military-grade lithium battery ensures maximum battery life and sensor performance. Low-power wakeup timer and periodic reset driven by Low-Frequency Output (LFO) maximizes shelf life, extends battery life, and maintains optimum performance levels. Z-axis or duel XY-axis accelerometers on IC chip ensure more precise readings on tire positions and rotational direction. Externalââ¬â¬Scrystal oscillator provides frequency stability and more accurate frequency ranges, ensuring more reliable communications between sensors and vehicle receivers.
Vehicle Fitments:
Year | Make | Model | Submodel |
---|---|---|---|
2005 - 2008 | Jaguar | S-Type | R, Base |
2005 - 2006 | Jaguar | S-Type | Sport |
2006 | Jaguar | S-Type | VDP Edition |
2005 - 2009 | Jaguar | Super V8 | Base |
2006 | Jaguar | Super V8 | Portfolio |
2004 - 2009 | Jaguar | Vanden Plas | Base |
2007 - 2008 | Jaguar | X-Type | Base |
2008 | Jaguar | X-Type | Luxury |
2007 | Jaguar | X-Type | Sport |
2016 | Jaguar | XE | Pure Tech, S, R-Sport, Pure |
2013 - 2014 | Jaguar | XF | 3.0L |
2013 - 2015 | Jaguar | XF | 3.0L AWD |
2010 - 2014 | Jaguar | XF | Base |
2012 - 2015 | Jaguar | XF | Portfolio |
2010 - 2015 | Jaguar | XF | Premium |
2009 - 2013 | Jaguar | XF | Premium Luxury |
2015 | Jaguar | XF | Sport, 2.0T, 3.0L AWD Sport, 3.0L AWD Luxury, 2.0T Luxury |
2009 - 2015 | Jaguar | XF | Supercharged, Luxury |
2010 - 2015 | Jaguar | XFR | Base |
2013 - 2015 | Jaguar | XFR-S | Base |
2010 - 2011 | Jaguar | XJ | L Supersport, L Supercharged, Supersport, Base, Supercharged, L |
2011 | Jaguar | XJ | Portfolio, Premium Luxury |
2003 - 2009 | Jaguar | XJ8 | Base |
2005 - 2009 | Jaguar | XJ8 | L |
2003 | Jaguar | XJ8 | Sport |
2003 - 2009 | Jaguar | XJR | Base |
2007 - 2015 | Jaguar | XK | Base |
2014 | Jaguar | XK | Touring |
2005 - 2006 | Jaguar | XK8 | Base |
2006 | Jaguar | XK8 | Victory Edition |
2005 - 2015 | Jaguar | XKR | Base |
2008 - 2009 | Jaguar | XKR | Portfolio |
2006 | Jaguar | XKR | Victory Edition |
2012 - 2015 | Jaguar | XKR-S | Base |
2014 | Jaguar | XKR-S | GT |
2006 | Land Rover | LR3 | Base |
2009 | Land Rover | LR3 | HSE Lux |
2006 - 2009 | Land Rover | LR3 | SE, HSE |
2006 - 2009 | Land Rover | Range Rover | Supercharged, HSE |
2008 | Land Rover | Range Rover | Westminster Edition |
2008 | Land Rover | Range Rover Sport | LE |
2006 - 2009 | Land Rover | Range Rover Sport | Supercharged, HSE |
