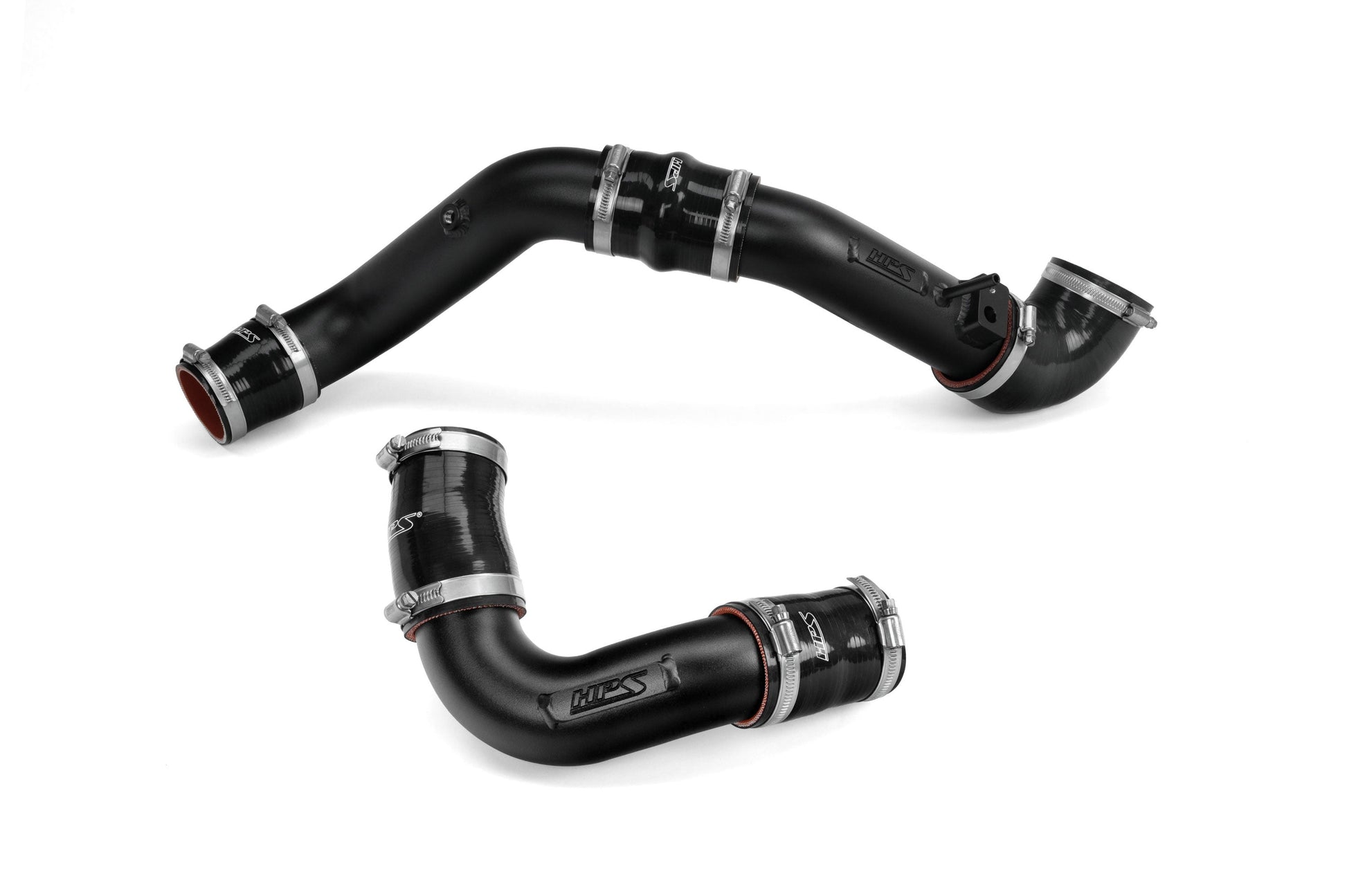

Intercooler Charge Pipe Kit, 2023-2024 Honda Civic Type R 2.0L Turbo, 17-156 Black

Product Highlights

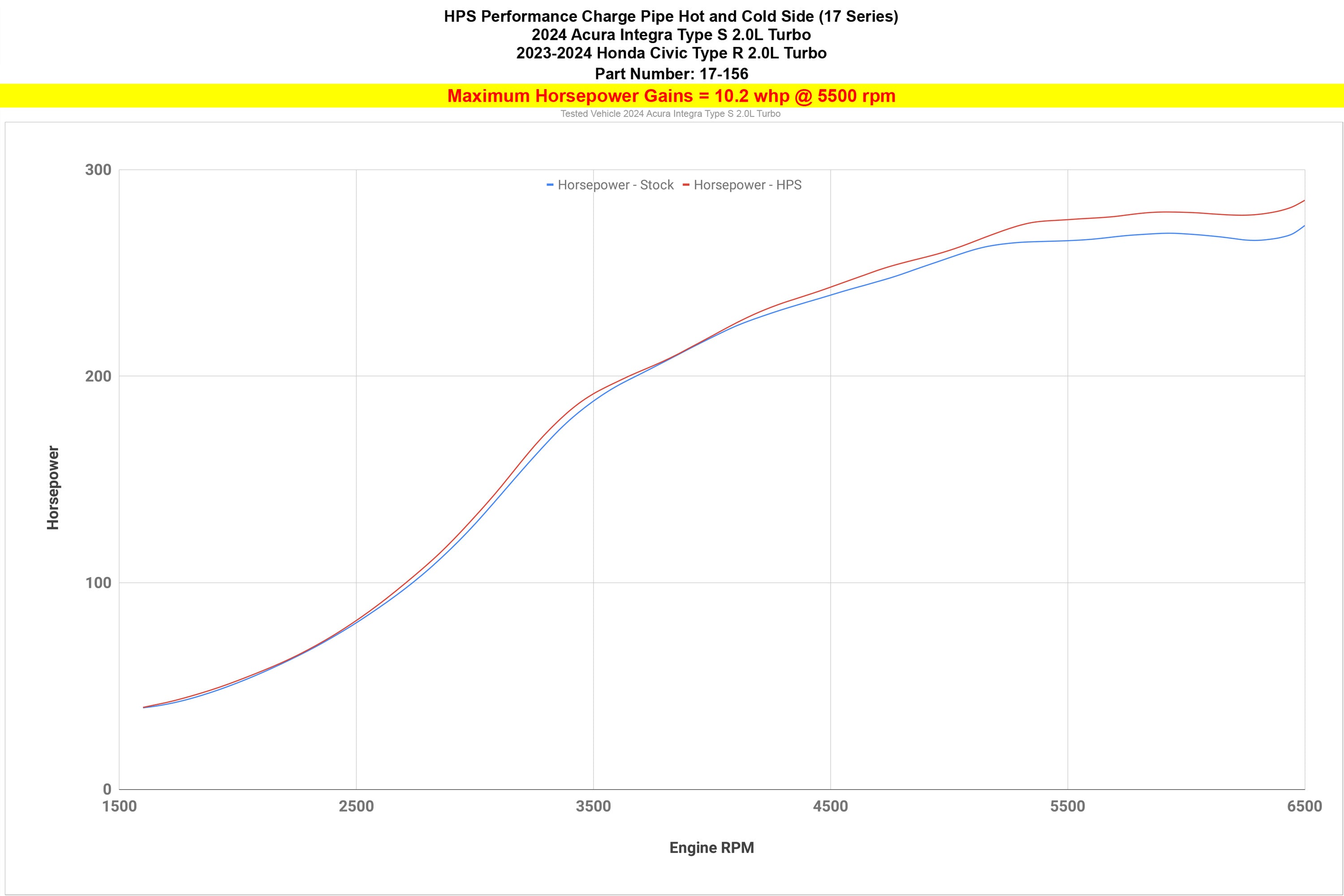

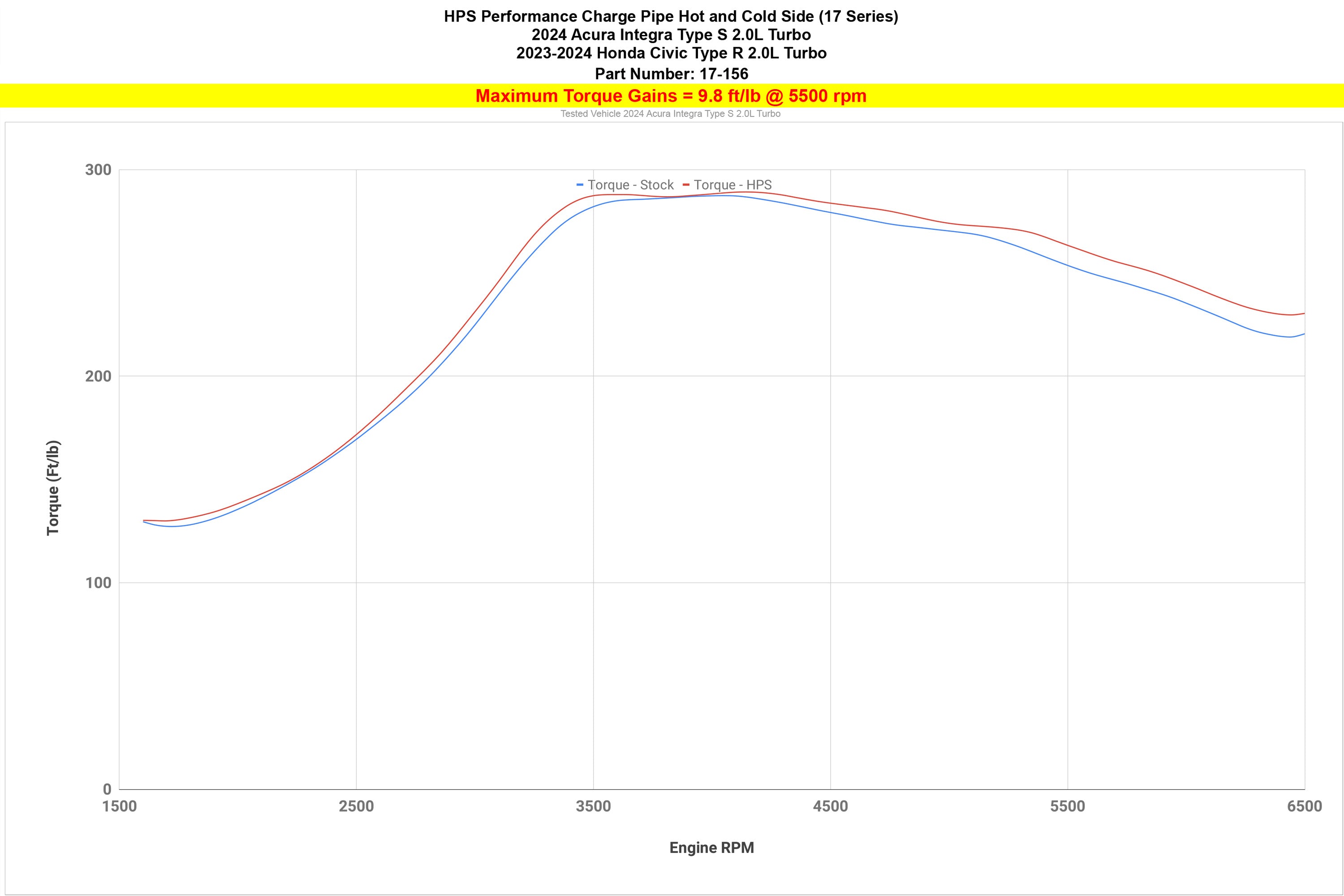

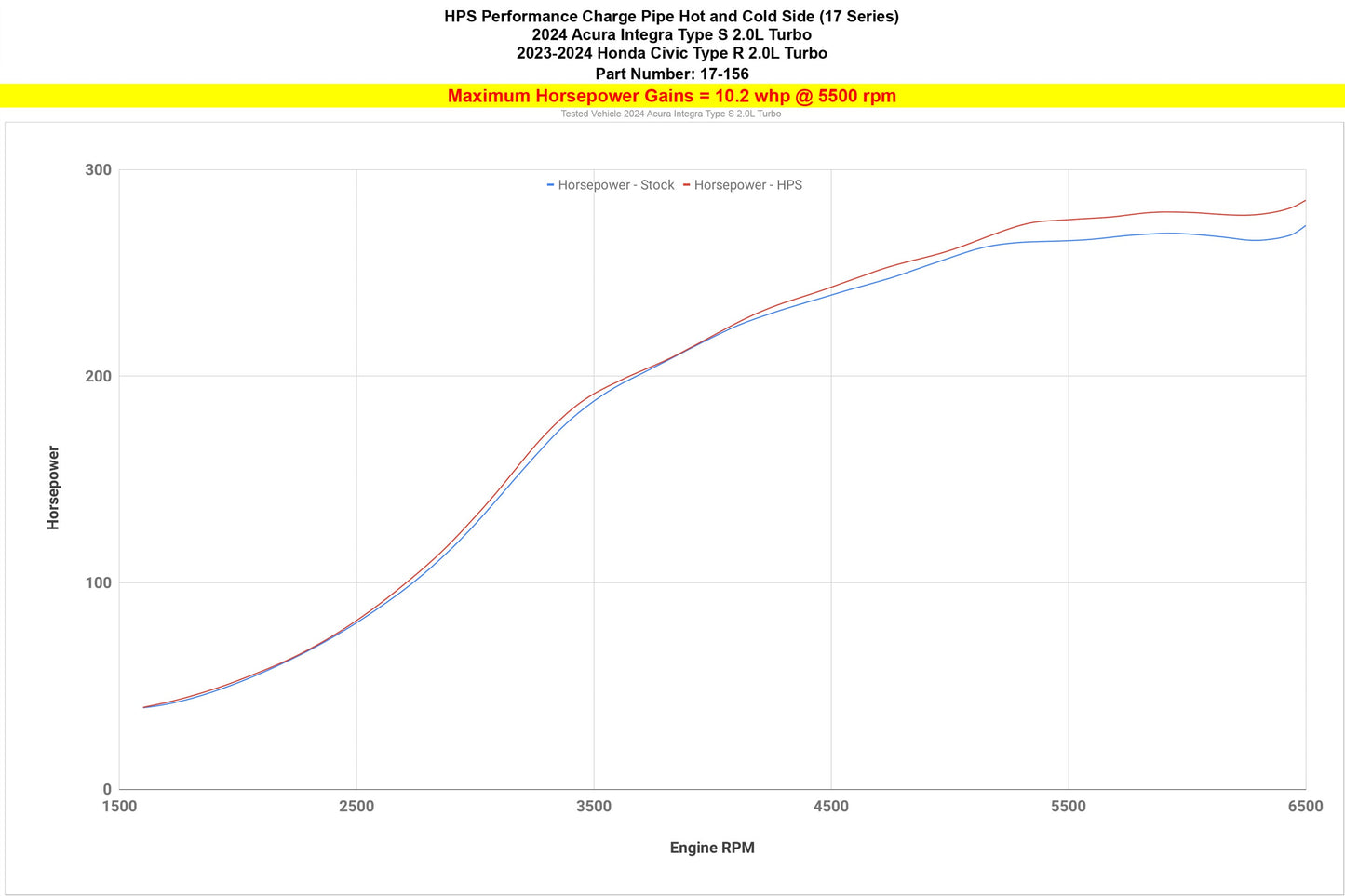

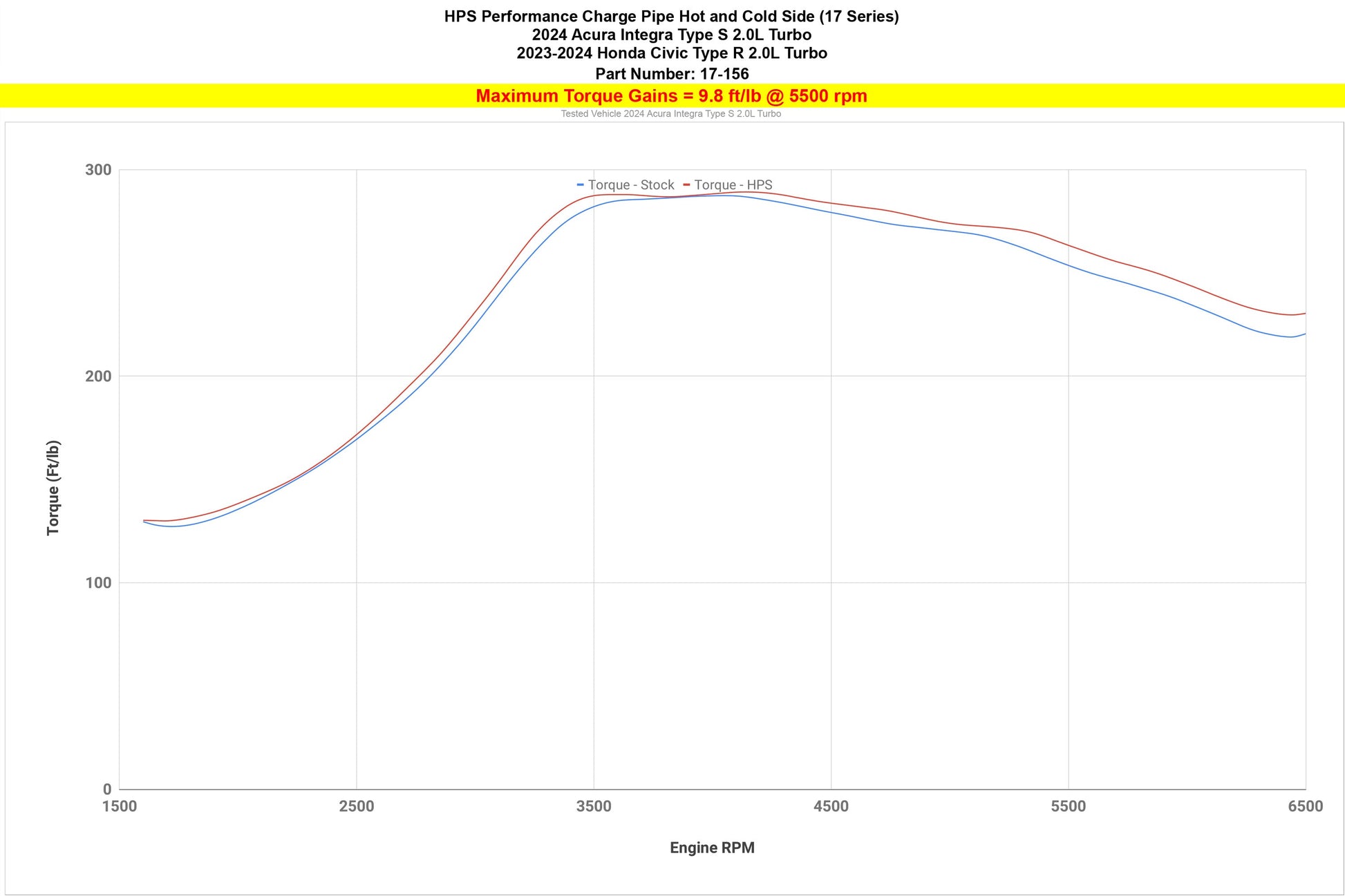

- Increase horsepower +13 Whp , torque +16.6 Ft/lbs. Boost up performance gains without re-tuning the ECU.

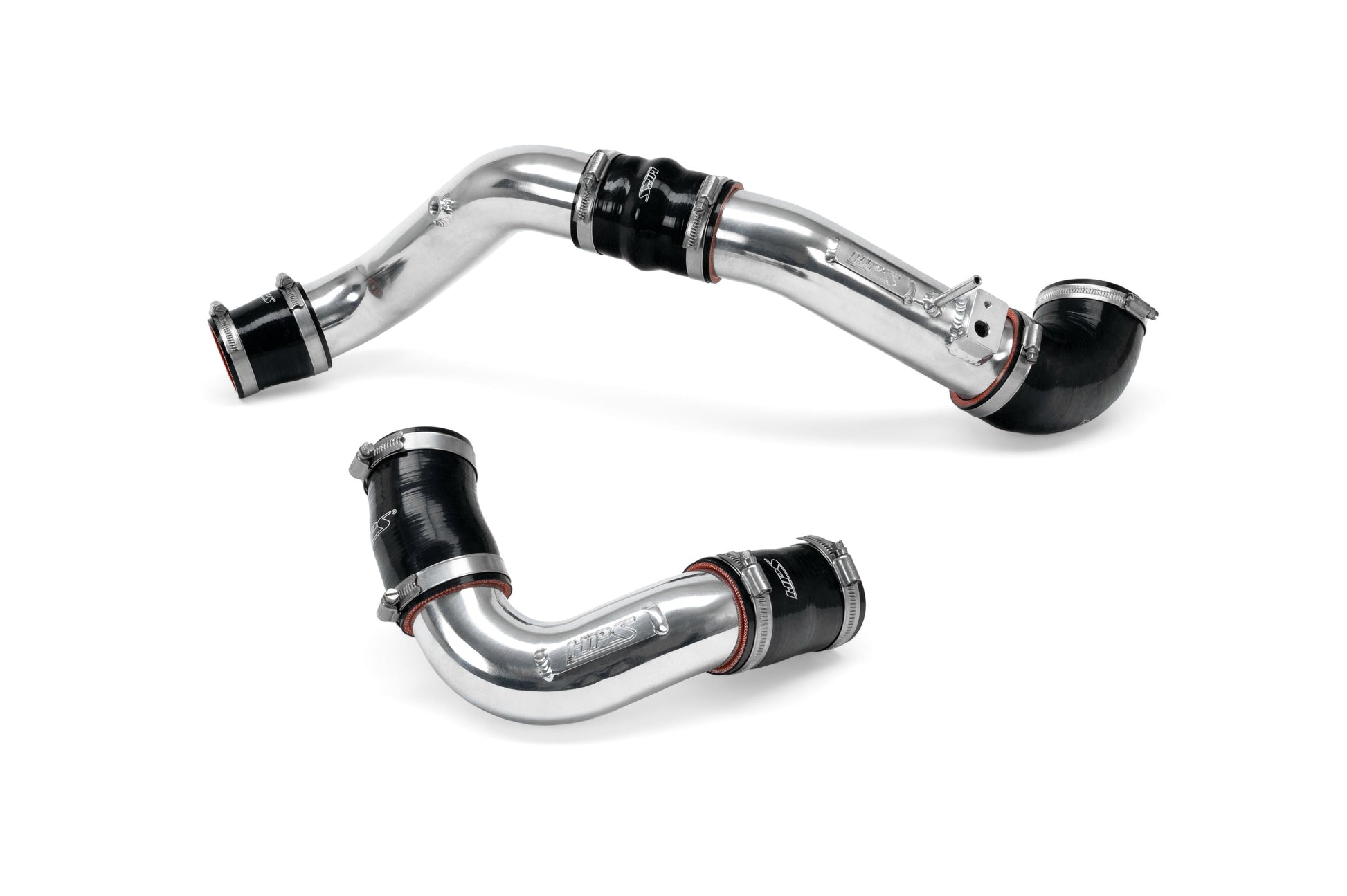

- Replaces and upgrades your stock intercooler piping with high flow aluminum tubing.
- 2.5" cold side and 2.25" hot side mandrel-bent aluminum tubing for optimized air flow.
- Minimize the risk of boost leaks while providing better throttle response and acceleration.
- The bead rolled pipe ends prevent couplers from popping off under boost.
- Easy to install with simple hand tools. No modification is required during the installation
- Replaces OEM part numbers 17282-5BF-A01, 17292-5BF-A01, 17294-5BF-A00, 17295-RPY-G01.
- Essential performance upgrade for 6th Gen Honda Civic Type R FL5 2.0L Turbo

Vehicle Application
2024 Honda Civic Type R 2.0L Turbo (FL5)
2023 Honda Civic Type R 2.0L Turbo (FL5)

Features and Benefits

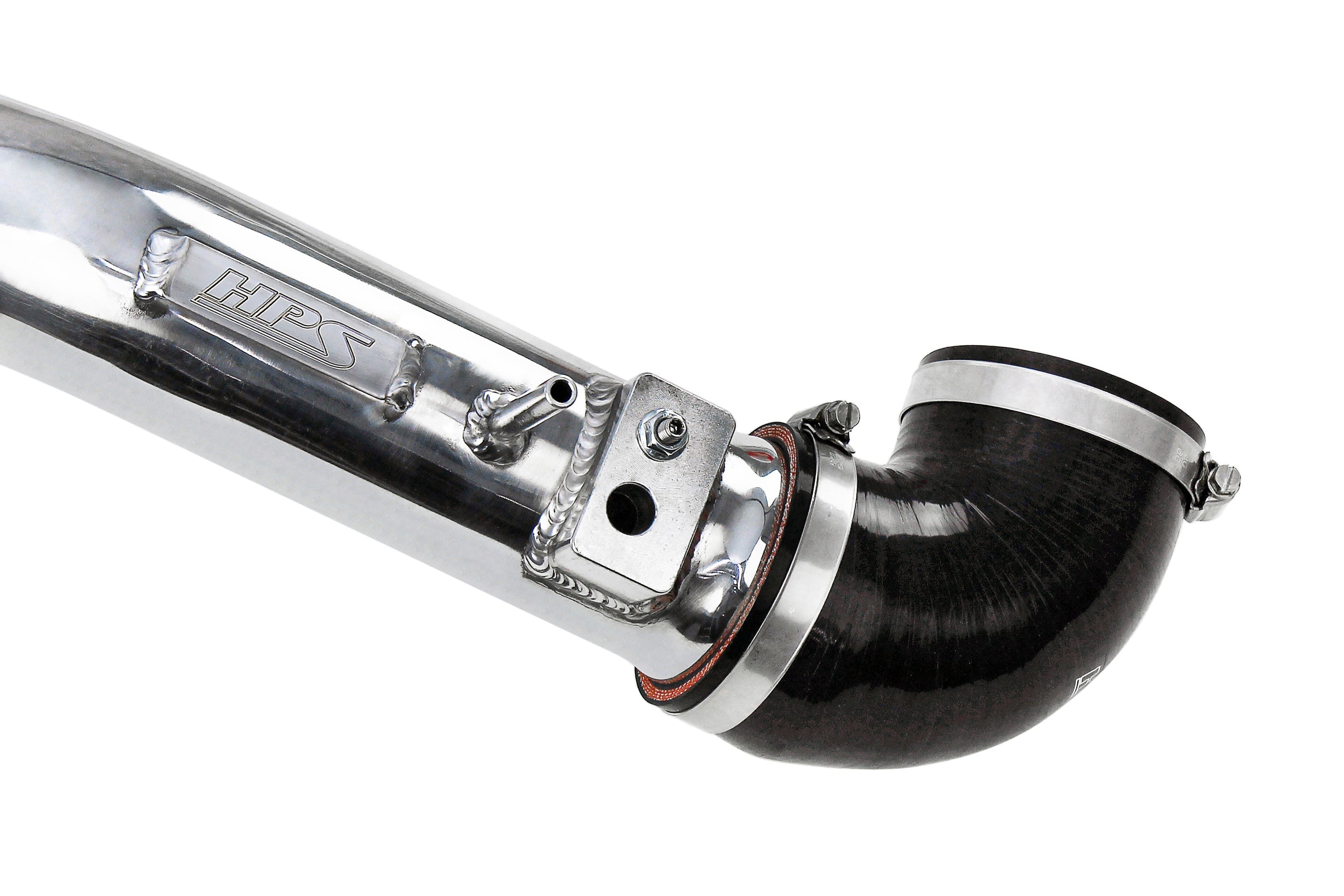

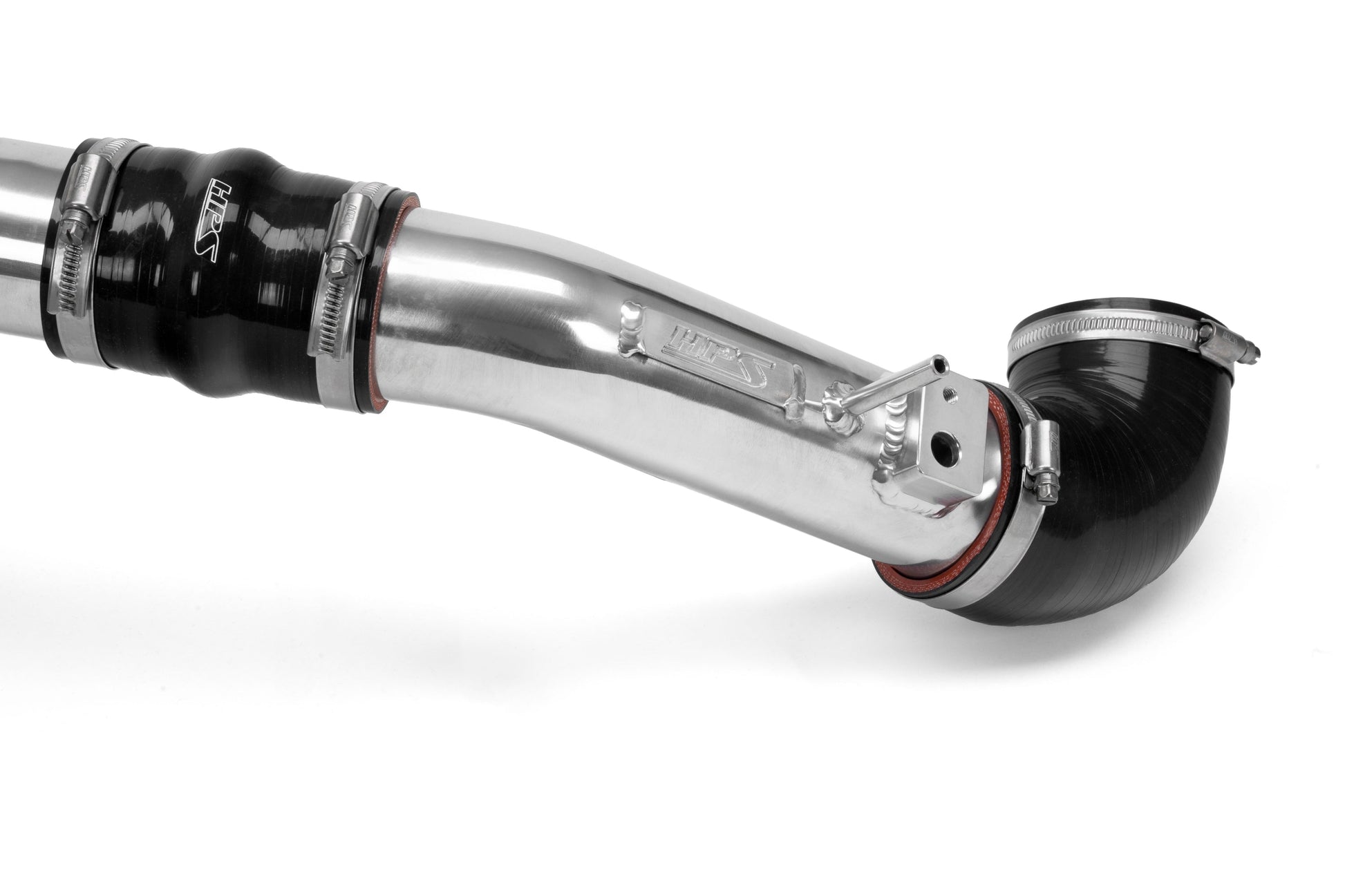

The HPS Performance Charge Pipe Kit, part number 17-156, is a high-quality aftermarket upgrade designed specifically for the Honda Civic Type R FL5 K20C1 Turbo. This kit is engineered to replace the factory charge pipe system, providing significant performance improvements for your vehicle. With a larger 2.5-inch diameter on the cold side and a 2.25-inch diameter on the hot side, the enhanced airflow and reduced restriction increases the engine output by 13 horsepower and 16.6 lb-ft of torque, resulting in improved throttle response, acceleration, and overall engine performance. Constructed with durability in mind, the HPS Performance Charge Pipe Kit is made from 6061 mandrel-bent aluminum to withstand high temperatures and pressure levels, delivering long-lasting performance and resistance to cracking or leaking even under the most demanding driving conditions. To facilitate the installation of sensors and other accessories, a 1/8" NPT bung is included into the design of the upper cold-side charge pipe.

In addition to the enhanced performance, the HPS Performance Charge Pipe Kit for Honda Civic FL5 also offers improved reliability. The included 4-ply reinforced oil resistant silicone couplers and embossed stainless steel hose clamps ensure a secure and leak-free connection. These couplers are designed to handle high boost pressures, resist degradation from oil, and provide excellent heat resistance while the stainless steel hose clamps offer a tight fit that prevents slipping or loosening. This kit is designed to be a direct bolt-on replacement, making installation straightforward and hassle-free. All the necessary hardware and components are included, ensuring a proper and secure fit. With its larger diameter charge pipes, durable construction, and included oil resistant silicone couplers and stainless steel hose clamps, this kit offers improved throttle response, increased horsepower, and a more exhilarating drive with the HPS Performance Charge Pipe Kit installed in your Civic Type R FL5.

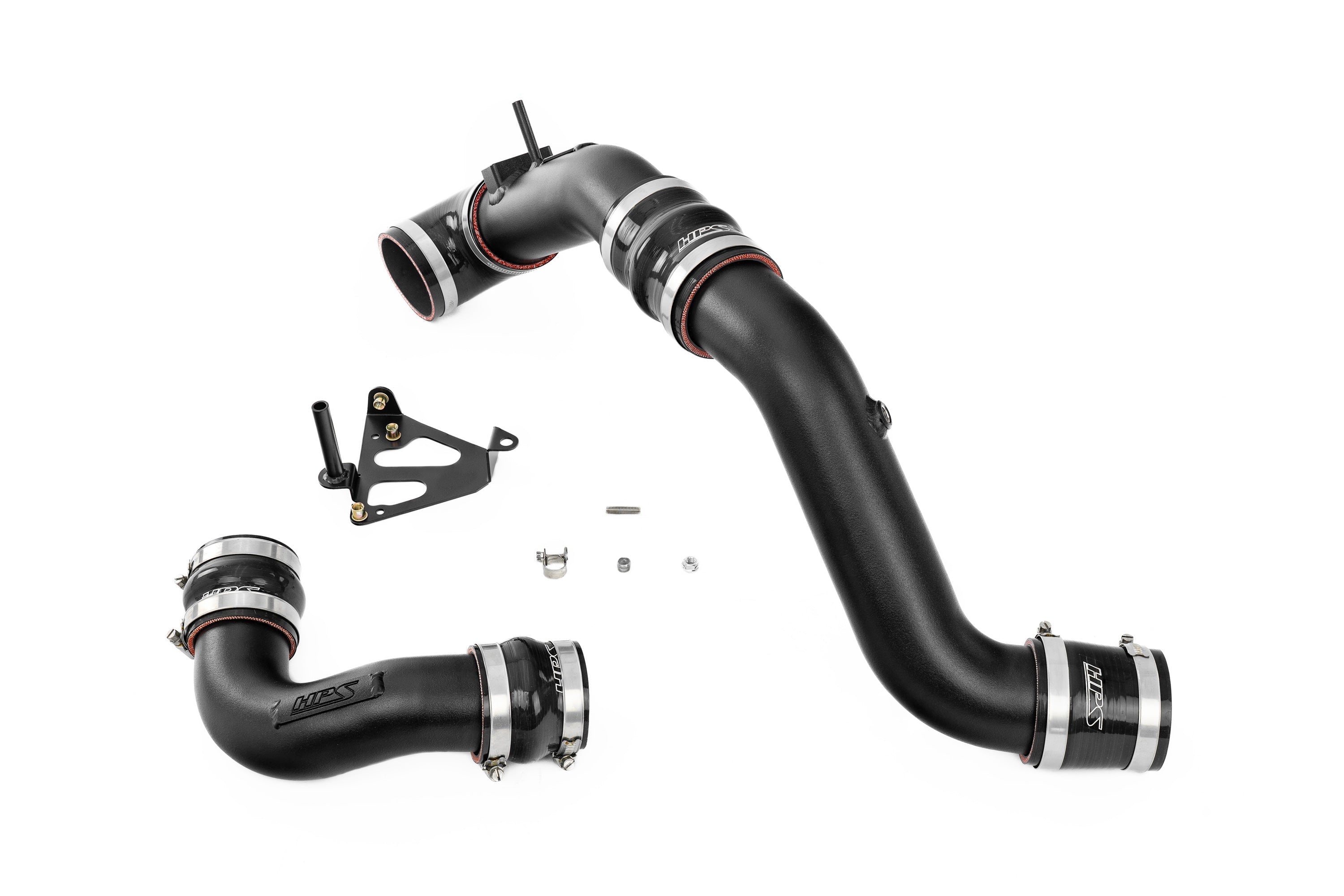

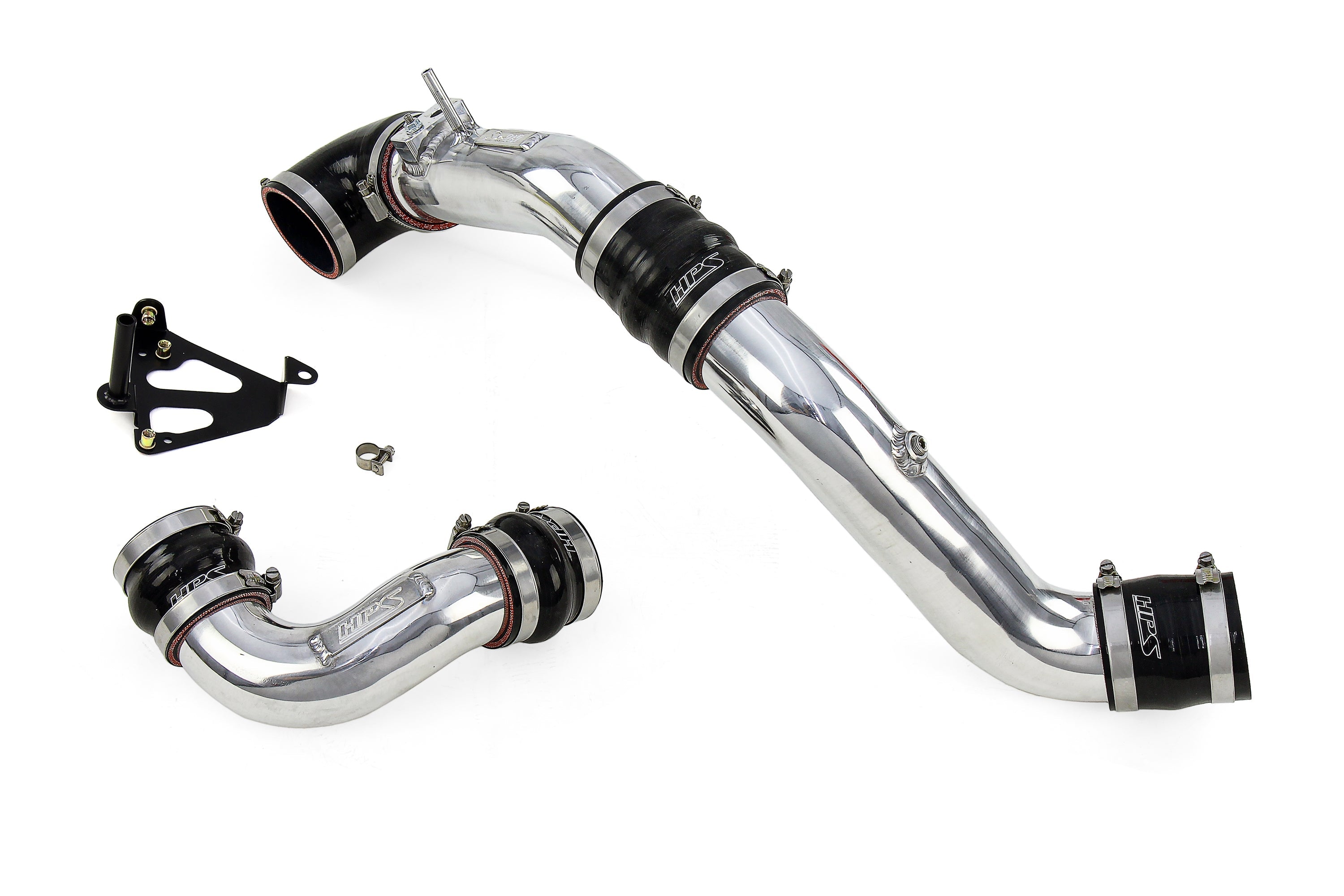

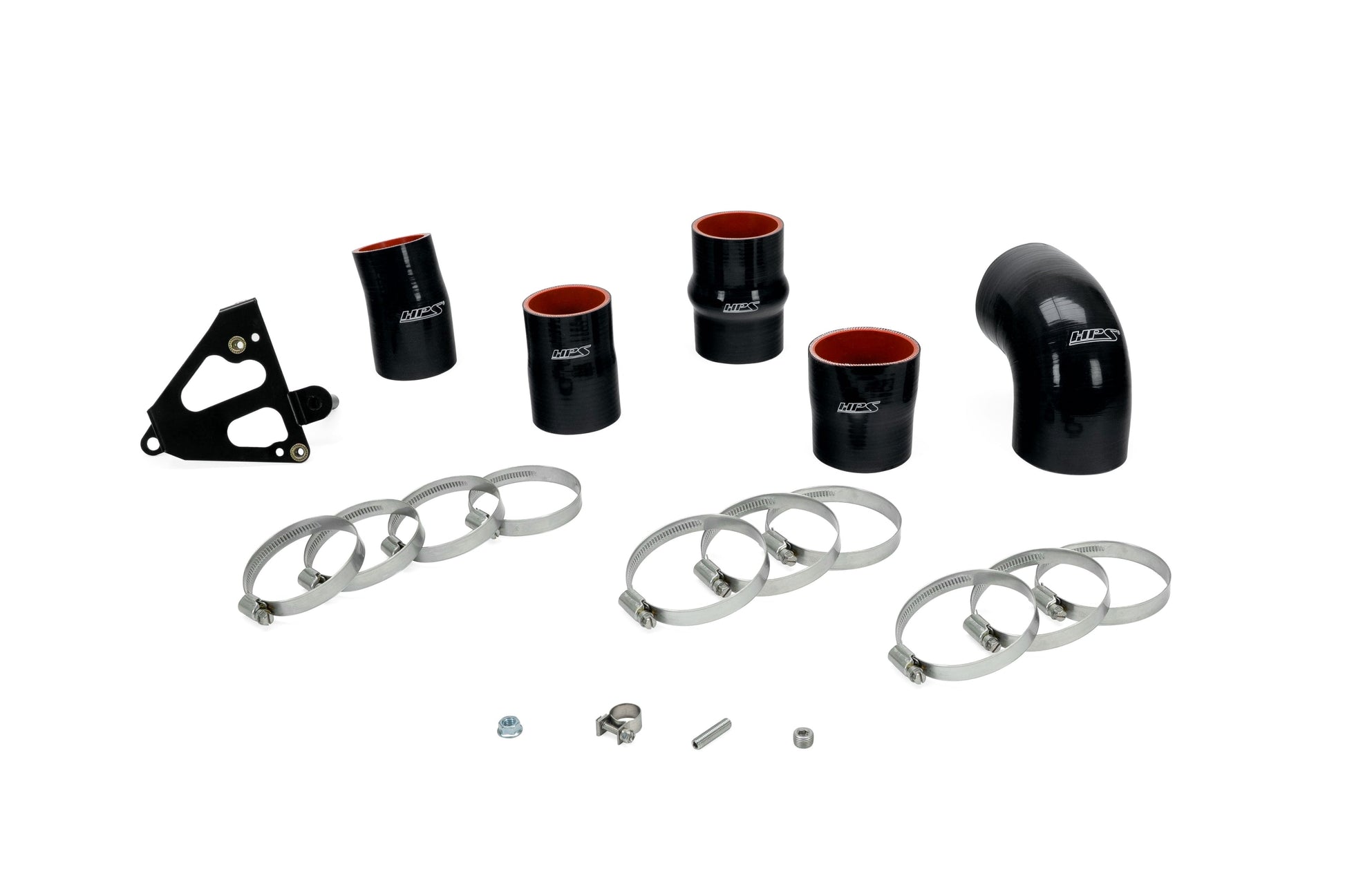

Included in the kit
- Aircraft grade aluminum tubing
- HPS Performance 100% Stainless Steel Hose Clamps
- HPS Performance High Temperature Reinforced Silicone Hoses with Oil-Resistant Layer
- Mounting hardware
- Installation Instruction

Additional Information
- Product Type: Intercooler Charge Pipe (Cold and Hot Side)
- Part Number: 17-156
- Warranty: 2 Years
- Street Legal In All US States: No
- California Restricted: Not legal for sale or use in California
- TUV Approved (Europe): No
- Weight: 6 lbs
- Shipping Box Dimension: 16 inch x 10 inch x 5 inch
