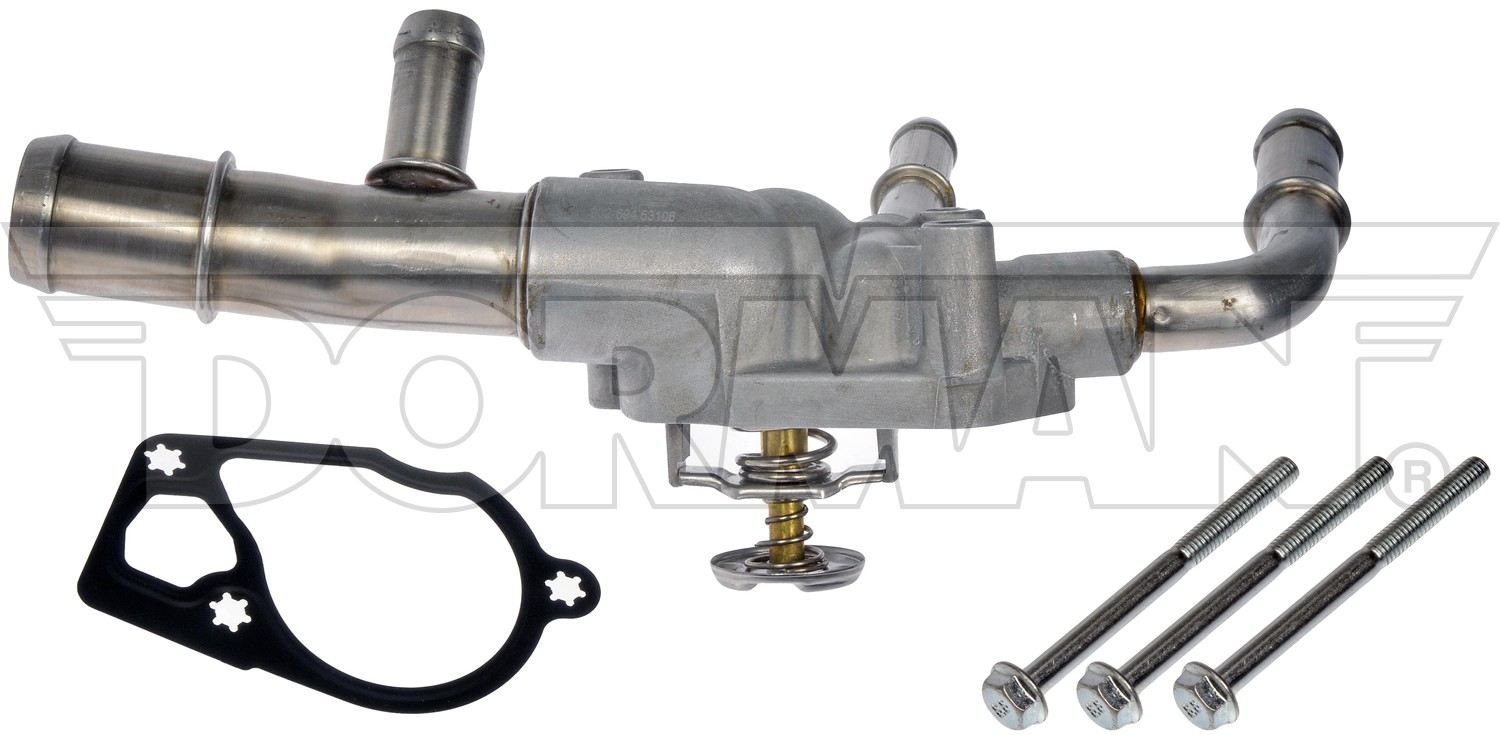

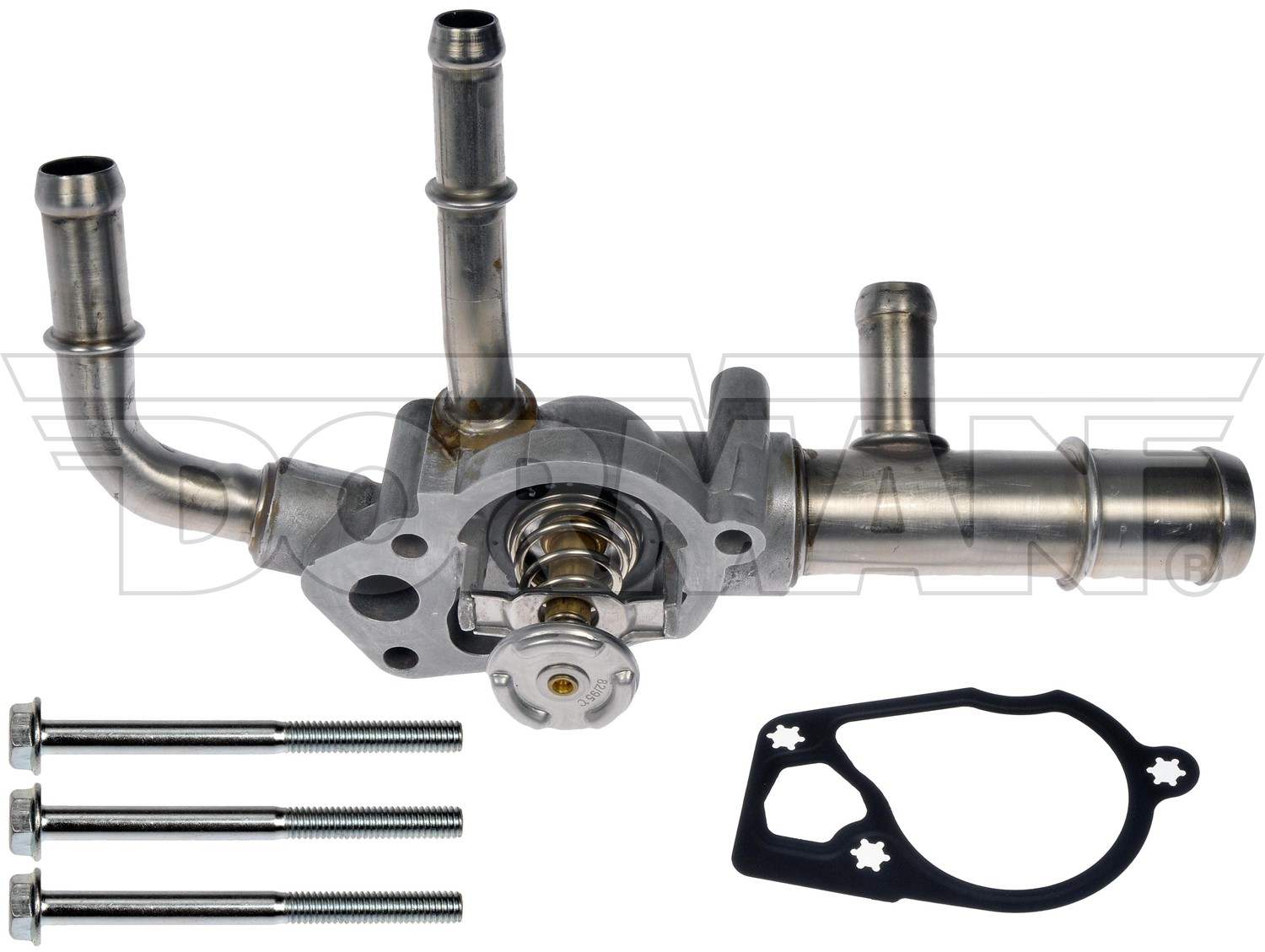

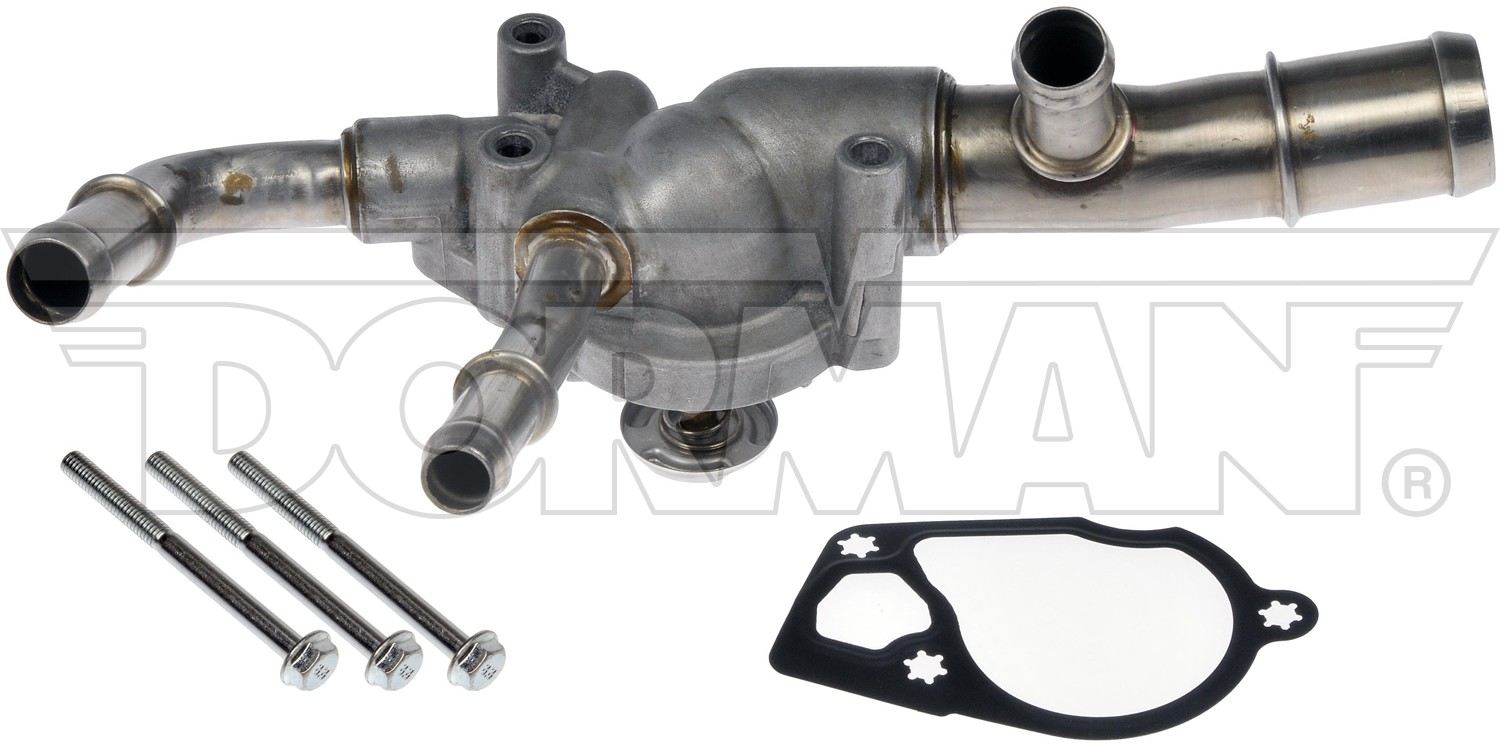

Dorman Integrated Thermostat Housing Assembly

This replacement engine coolant thermostat housing is engineered to match the fit and durability of the stock thermostat housing on specified vehicles. It is designed to withstand extreme temperature changes to extend service life.

• Ideal replacement - this engine coolant thermostat housing directly replaces the original housing on specified vehicle years, makes and models
• Durable construction - this part is specifically designed to withstand extreme temperature changes and resist cracking and leaking
• Cost-effective and reliable - offers original manufacturer quality at lower cost than getting replacement at dealer
• Industry-leading design - professionally engineered by the aftermarket leader in replacement thermostat housings

Application Summary: Buick 2016-10, Cadillac 2019-10, Chevrolet 2019-08, GMC 2017-10, Pontiac 2009-07, Saturn 2010-07

Specifications

Bleeder Hole: No

Bolt Hole Center To Bolt Hole Center: 2.835 In.; 1.66 In.; 3.65 In.

Bolt Hole Quantity: 3

Color: Natural

Flange Length: 2.55 In.

Flange Thickness: 0.5 In.

Flange Width: 4.14 In.

Gasket or Seal Included: Yes

Gasket Type: Gasket

Grade Type: Regular

Inside Diameter: 0.515 In.; 0.664 In.; 0.588 In.; 1.165 In.;

Material: Metal

Mounting Hardware Included: No

Outlet Port Quantity: 4

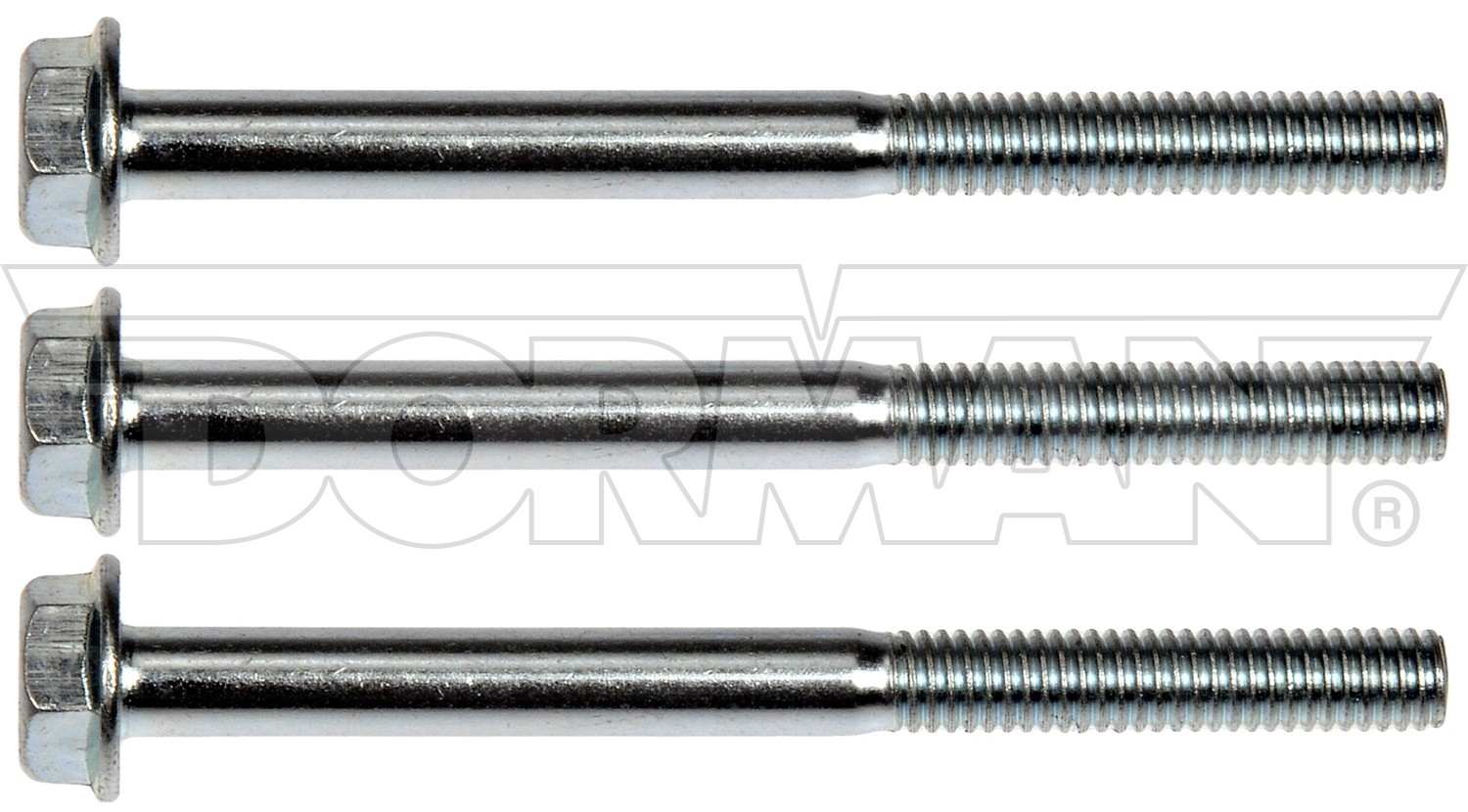

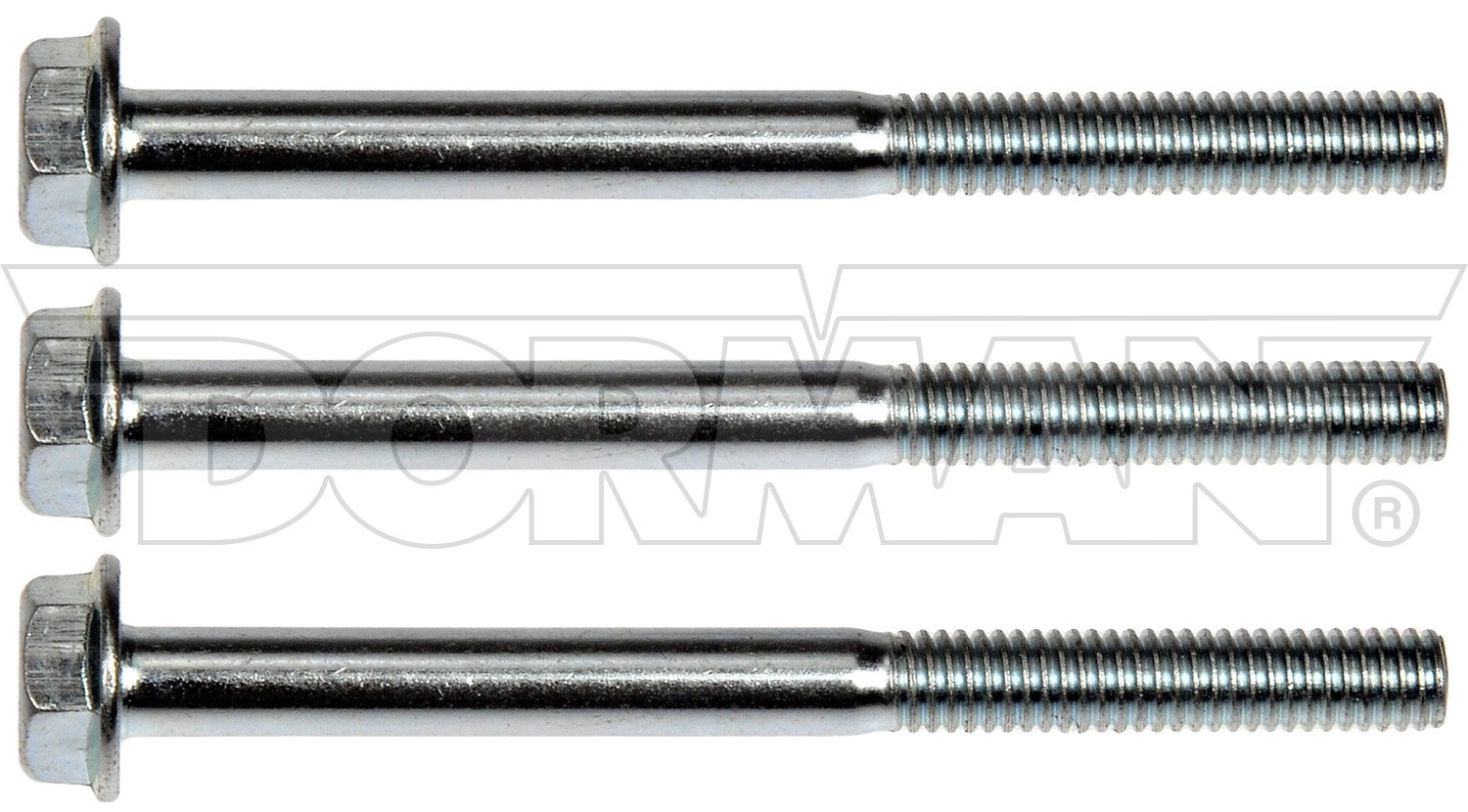

Package Contents: 1 Thermostat Housing; Gasket; 1 Thermostat; 3 Bolts

Package Quantity: 1

Packaging Type: Box

Selling Package Quantity UOM: Piece

Thermostat Included: Yes

Thermostat Opening Temperature: 180 Deg. F.

Vehicle Fitments:
