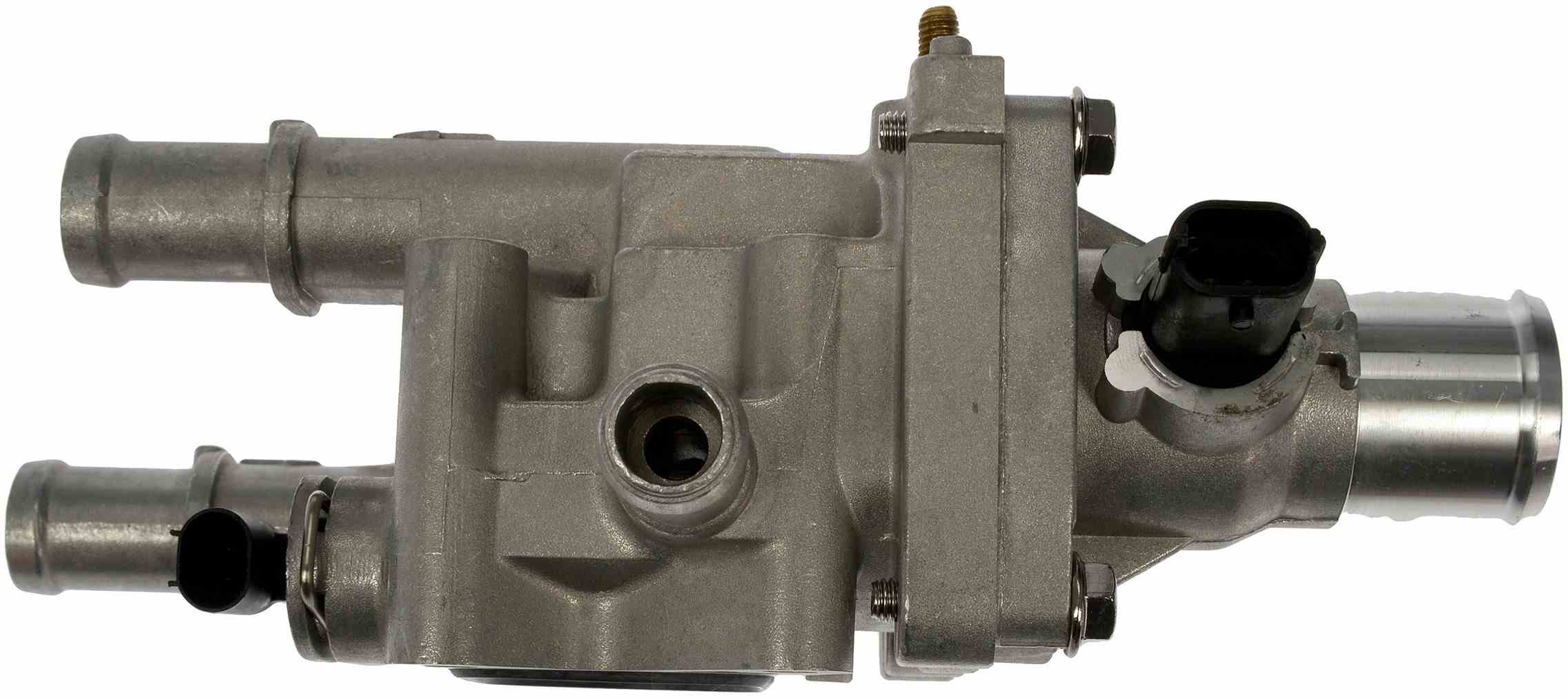

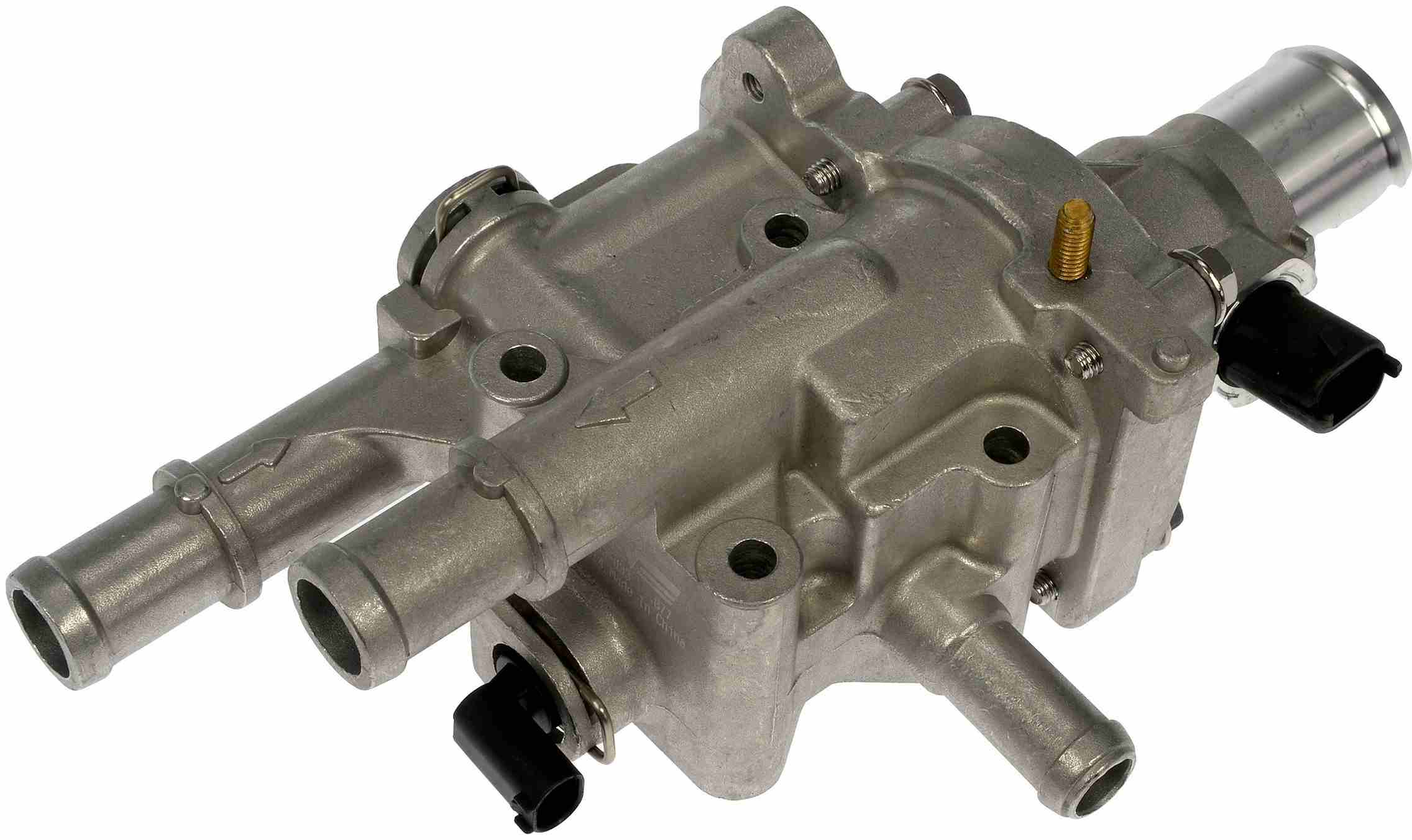

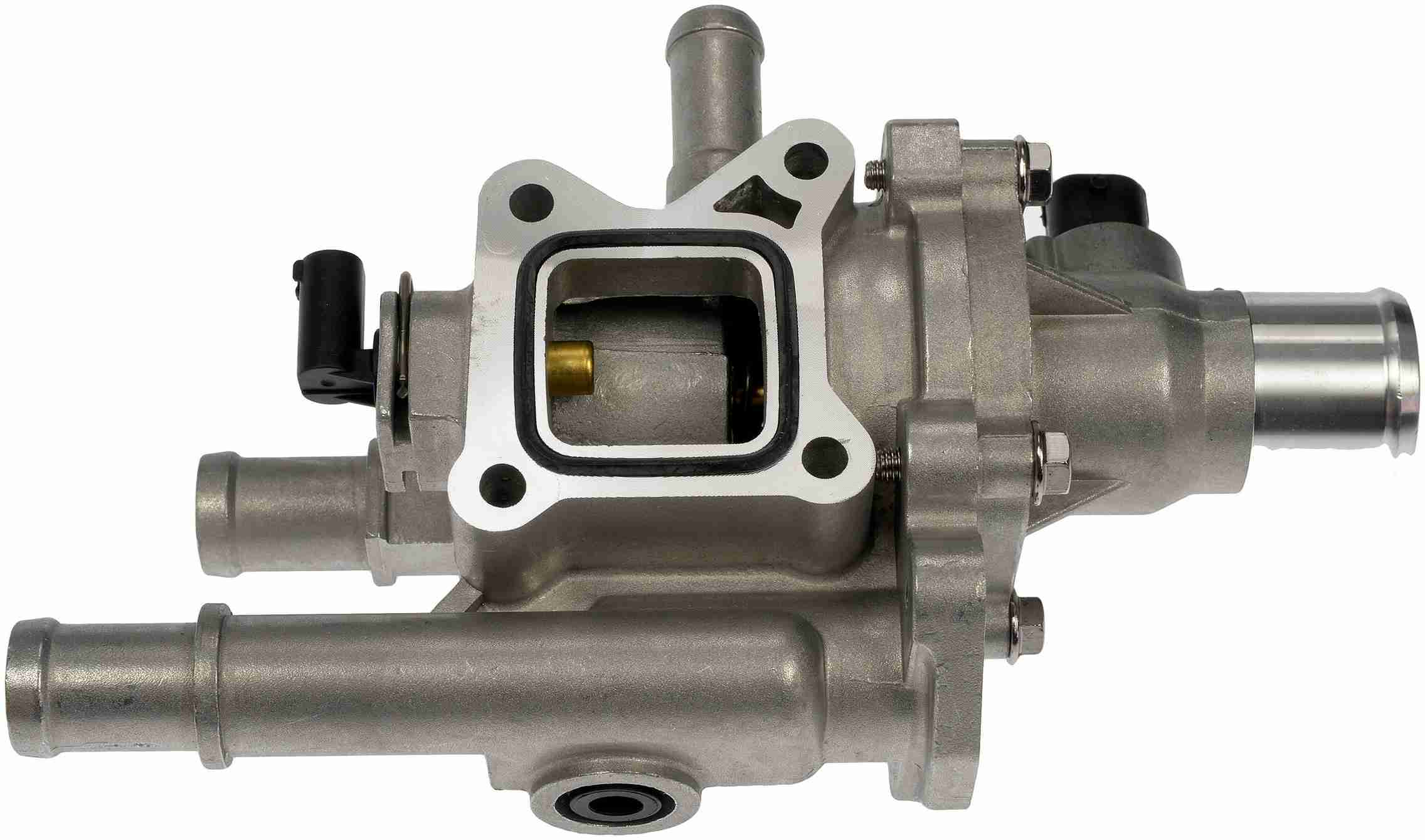

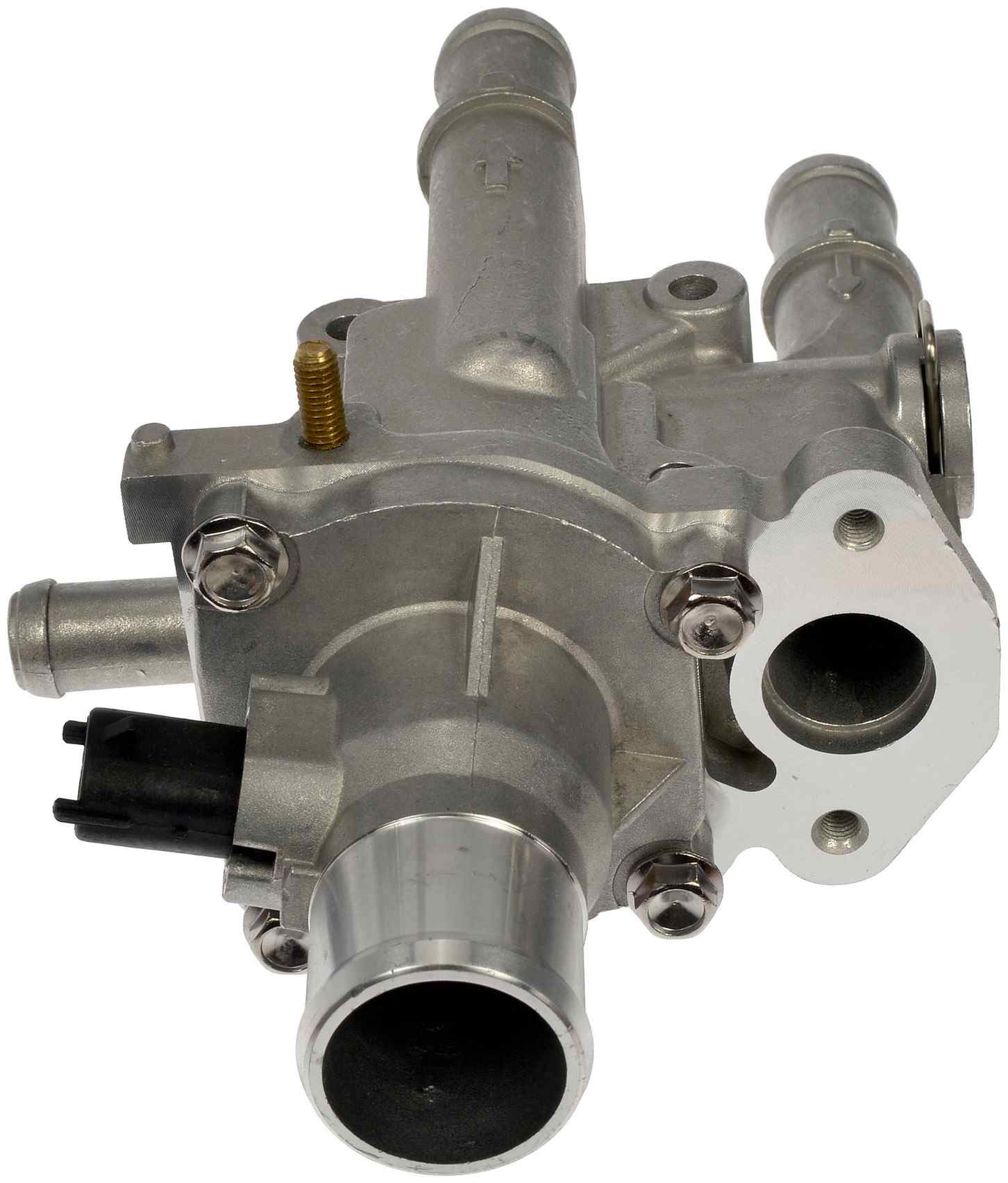

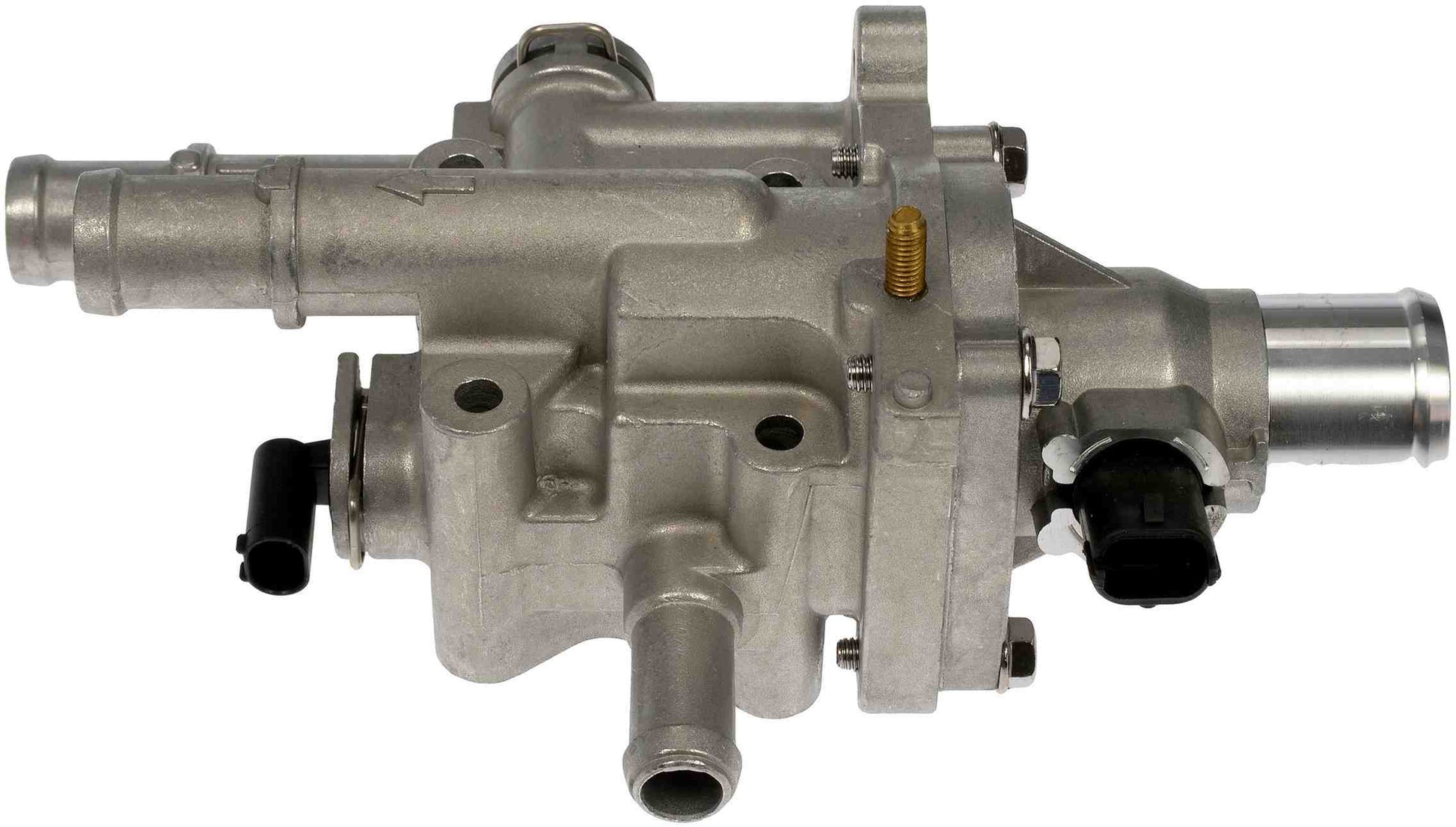

Dorman Integrated Thermostat Housing Assembly With Sensor

Our coolant thermostat housing assembly is thoroughly designed for improved durability and resistance. The original assembly typically requires replacement due to the weak plastic construction; which eventually leads to cracks in the small diameter tube and shallow gasket groove. Our OE FIX addresses this common failure mode by upgrading the assembly's housing material from plastic to metal to prevent premature failure of the gasket area and to eliminate cracks in the diameter tube. Additionally, the Dorman Coolant Thermostat Housing Assembly is available as a complete kit, featuring an integrated sensor, thermostat, gasket, and O-ring for a complete repair.

• Direct replacement for a proper fit every time
• Designed to withstand extreme changes in temperature that frequently causes the original housing to become brittle and eventually crack and leak
• Includes necessary components for a complete repair
• Quality tested to ensure a trouble-free installation and conformance to product standards

Application Summary: Chevrolet 2018-10

Specifications

Bleeder Hole:  No

Bolt Hole Quantity:  4

Color:  Natural

Flange Length:  2.125

Flange Thickness:  2.25 In.

Flange Width:  2.25

Gasket or Seal Included:  Yes

Gasket Type:  Rubber

Grade Type:  Standard

Material:  Metal

Mounting Hardware Included:  No

Outlet Port Quantity:  4

Package Contents:  Thermostat Housing, Thermostat housing with Sensor, Thermostat, Temp Sensor, Gasket, O-ring

Package Quantity:  1

Packaging Type:  Box

Selling Package Quantity UOM:  Piece

Vehicle Fitments:
