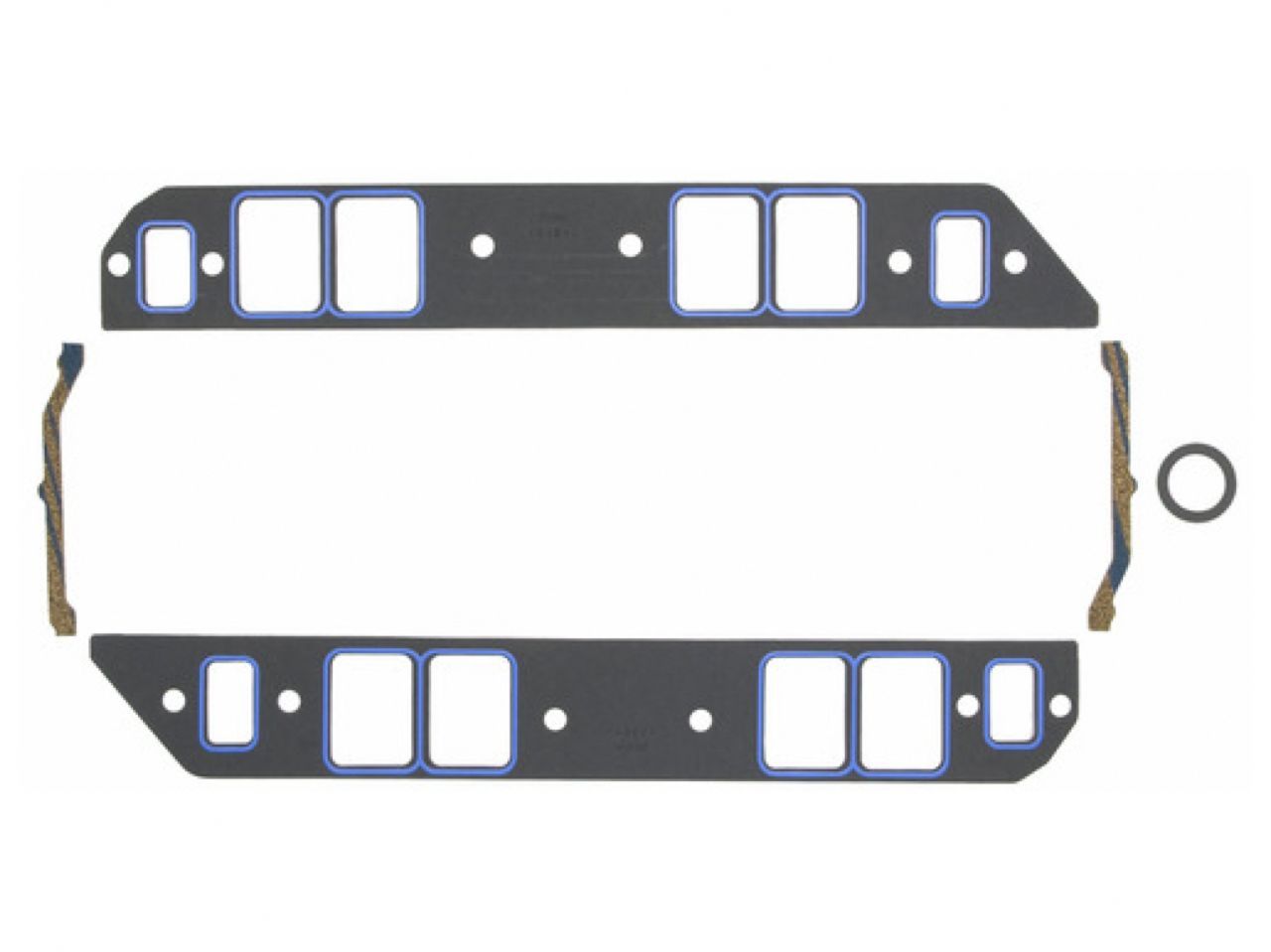

FelPro Intake Manifold Gasket Set

Fel-Pro® Performance Gaskets deliver reliable sealing under grueling racing conditions.

Features:

Fel-Pro performance intake manifold gaskets have been tested with virtually all aftermarket cylinder head and intake manifold combinations.

Performance intake manifold gaskets designed without a metal core, to allow engine builders to trim the gasket for exact fit on modified ports.

No exhaust crossover openings or blocking shields.

Printoseal® elastomeric sealing beads to provide extra sealing strength around the intake port.

Not intended for use in emission controlled vehicles.

For use with cast iron and aluminum cylinder heads.

Specifications:

• Part Type: Intake Manifold Gasket Set
• Mfg.: GM Performance
• Engine Family: Chevrolet V8 Big Block
• Engine Displacement: 396, 402, 427, 454, 502, 510, 540, 572
• Port Size (in.): 1.796 x 2.48
• Port Shape: Rectangle
• Thickness (in.): 0.060
• Materials/Construction: Composite w/Printoseal®
• Application Notes: Cast iron & aluminum heads w/conventional port and bolt locations - Fits most aftermarket manifolds w/Rectangular ports w/o upper bolts at intake ports
• Product Notes: No exhaust crossover openings or blocking shields; w/o Upper bolt holes; Brodix BB-1, 2, 3, 4, 5
