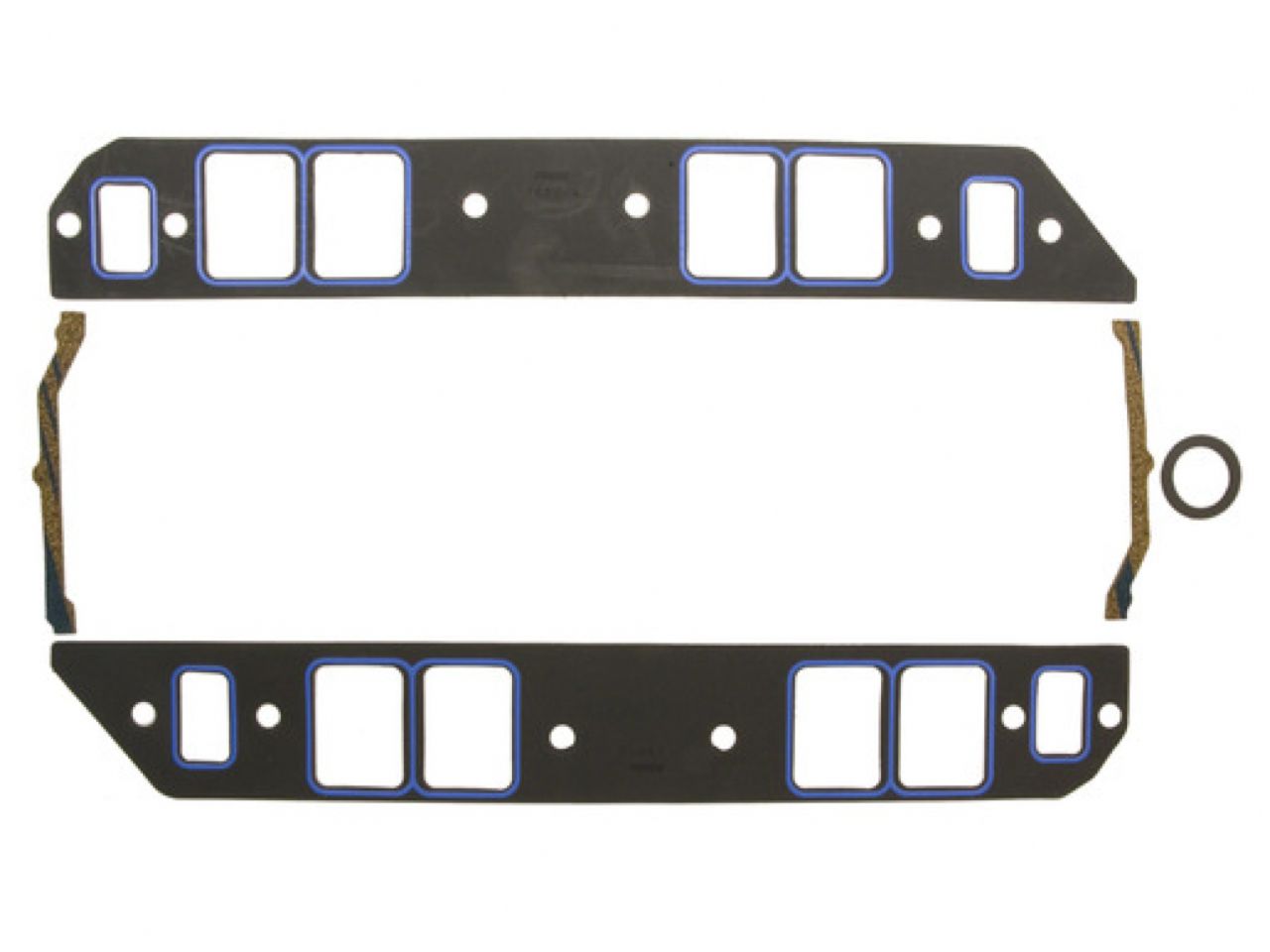

FelPro Intake Manifold Gasket Set

Fel-Pro® Performance Gaskets deliver reliable sealing under grueling racing conditions

• Fel-Pro performance intake manifold gaskets have been tested with virtually all aftermarket cylinder head and intake manifold combinations.

• Performance intake manifold gaskets designed without a metal core, to allow engine builders to trim the gasket for exact fit on modified ports.

• No exhaust crossover openings or blocking shields

• Printoseal® elastomeric sealing beads to provide extra sealing strength around the intake port.

• Not intended for use in emission controlled vehicles.

• For use with cast iron and aluminum cylinder heads

Specifications

Part Type: Intake Manifold Gasket Set

Mfg.: GM Performance

Engine Family: Chevrolet V8 Big Block

Engine Displacement: 396, 402, 427, 454, 502, 510, 540, 572

Port Size (in.): 1.796 x 2.48

Port Shape: Rectangle

Thickness (in.): 0.045

Materials/Construction: Composite w/Printoseal®

Application Notes: Cast iron & aluminum heads w/conventional port and bolt locations - Fits most aftermarket manifolds w/Rectangular ports w/o upper bolts at intake ports
