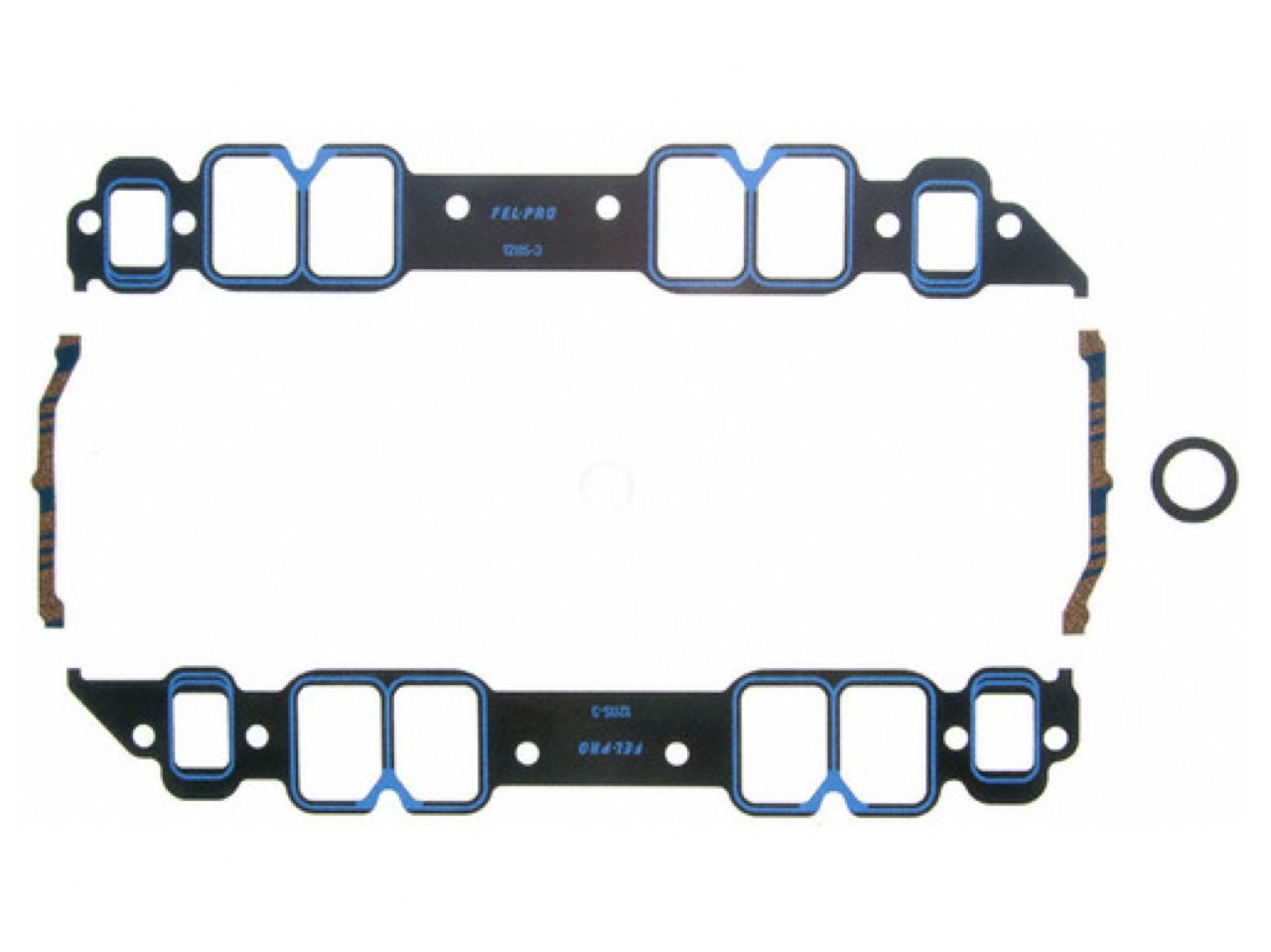

FelPro Intake Manifold Gasket Set

Fel-Pro® Performance Gaskets deliver reliable sealing under grueling racing conditions

Features:

Fel-Pro performance intake manifold gaskets have been tested with virtually all aftermarket cylinder head and intake manifold combinations.

Designed for high-vacuum applications, this solid metal core intake gasket prevents movement of the gasket into the intake port, which can lead to engine power loss.

Ideal for circle track racing running restrictor plates, drag cars running throttle stops, and long service life engines such as those in street applications.

Printoseal® elastomeric sealing beads to provide extra sealing strength around the intake port.

Not intended for use in emission controlled vehicles.

Specifications:

• Part Type:Intake Manifold Gasket Set
• Mfg: GM Performance
• Engine Family: Chevrolet V8 Big Block
• Engine Displacement: 396, 402, 427, 454, 502, 510, 540, 572
• Port Size (in.): 1.82 x 2.54
• Port Shape: Rectangle
• Thickness (in.): 0.065
• Materials/Construction: Steel core laminate w/coating, w/Printoseal®
• Application Notes: Cast iron & aluminum heads w/conventional port and bolt locations - Fits most aftermarket manifolds w/Rectangular ports w/upper bolts at intake ports - Added durability for street or marine use
• Product Notes: No exhaust crossover openings or blocking shields; w/Upper bolt holes; Brodix BB-1, 2, 2X, 3, 4
