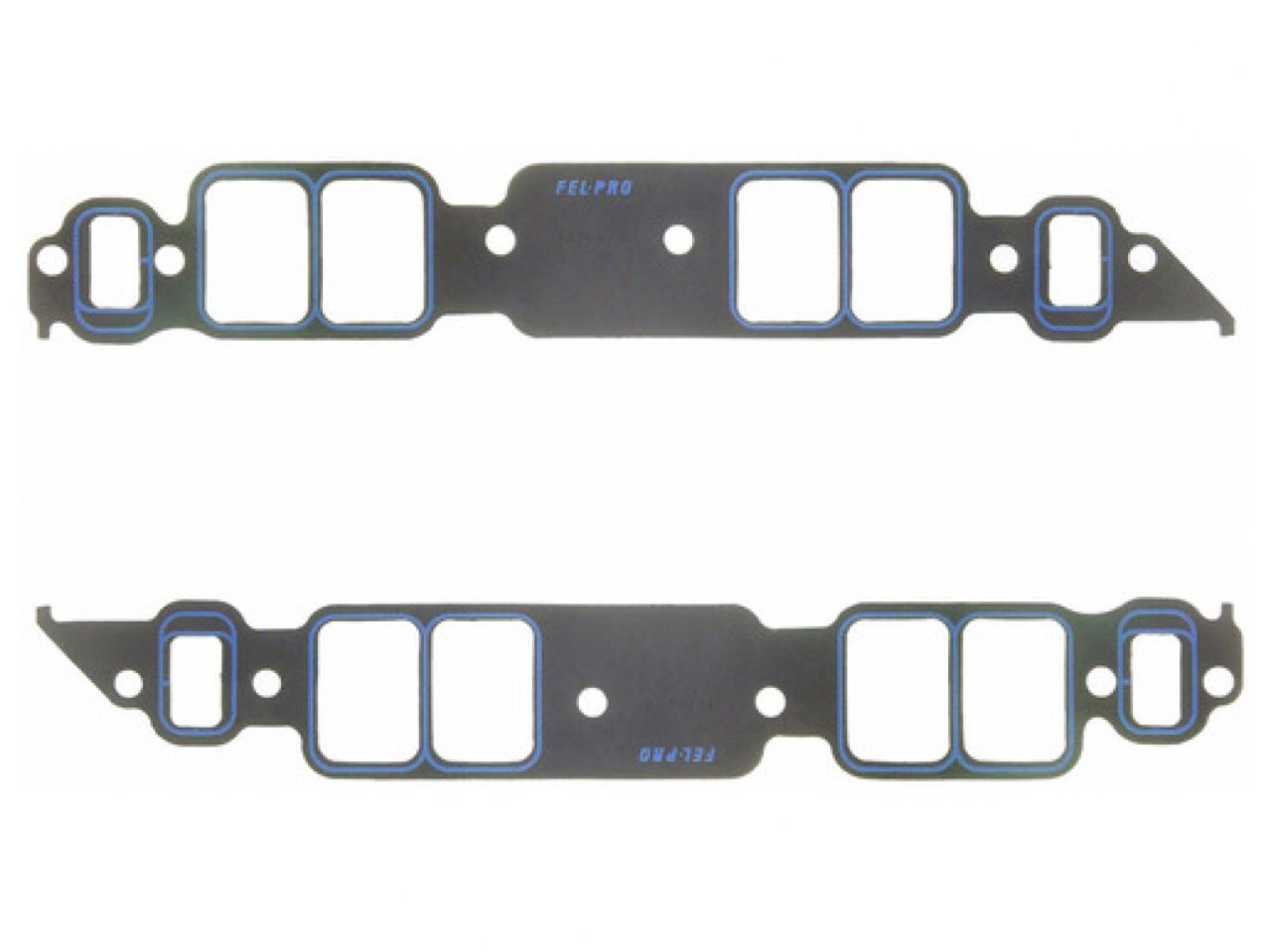

FelPro Intake Manifold Gasket Set

Fel-Pro® Performance Gaskets deliver reliable sealing under grueling racing conditions

Features:

Fel-Pro® Performance head gaskets accommodate the high cylinder pressures and cylinder head movement associated with performance engines.

The latest development in Fel-Pro Performance head gasket technology is the PermaTorque®MLS (multi-layer steel) series.

Strategically located sealing beads surround the combustion chamber and coolant passages concentrating clamp load to prevent leakage.

Retains sealing integrity in engines that experience significant scrubbing and movement due to dissimilar materials (such as aluminum heads on a cast iron

Not intended for use in emission controlled vehicles.

Specifications:

• Part Type: Intake Manifold Gasket Set
• Mfg: GM Performance
• Engine Family: Chevrolet V8 Big Block
• Engine Displacement: 396, 402, 427, 454, 502, 510, 540, 572
• Port Size (in.): 1.82 x 2.54
• Port Shape: Rectangle
• Thickness (in.): 0.065
• Materials/Construction: Steel core laminate w/coating, w/Printoseal®
• Application Notes: Cast iron & aluminum heads w/conventional port and bolt locations - Fits most aftermarket manifolds w/Rectangular ports w/o upper bolts at intake ports - Added durability for street or marine use
• Product Notes: No exhaust crossover openings or blocking shields; w/o Upper bolt holes
