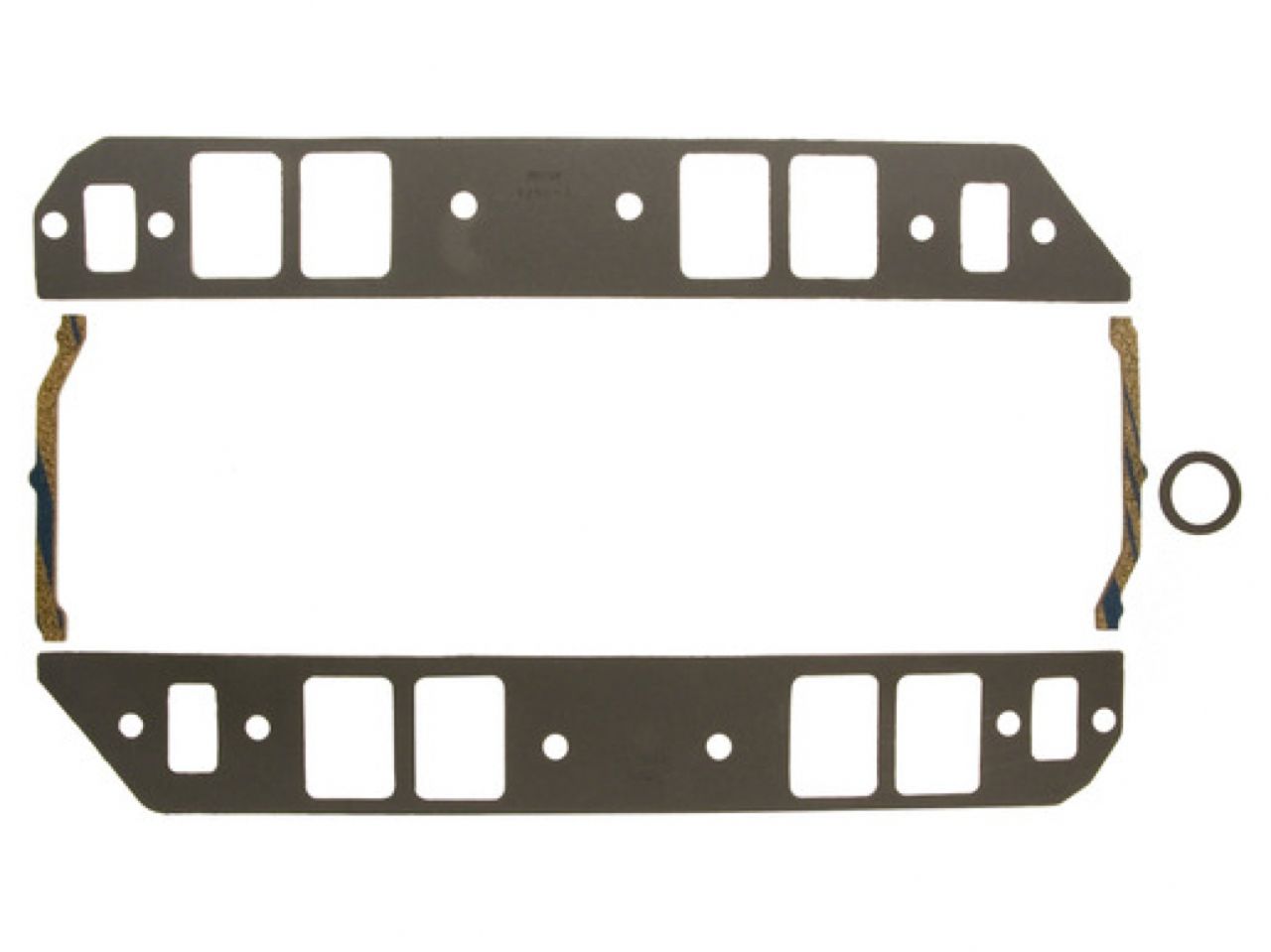

FelPro Intake Manifold Gasket Set

Fel-Pro® Performance Gaskets deliver reliable sealing under grueling racing conditions

• Fel-Pro performance intake manifold gaskets have been tested with virtually all aftermarket cylinder head and intake manifold combinations.
• Performance intake manifold gaskets designed without a metal core, to allow engine builders to trim the gasket for exact fit on modified ports.
• No exhaust crossover openings or blocking shields
• For use with cast iron and aluminum cylinder heads
• Not intended for use in emission controlled vehicles.

Specifications

• FEL-PRO PERFORMANCE
  • Part Type: Intake Manifold Gasket Set
  • Mfg.: GM Performance
  • Engine Family: Chevrolet V8 Big Block
  • Engine Displacement: 396, 402, 427, 454, 502, 510, 540, 572
  • Port Size (in.): 1.796 x 2.48
  • Port Shape: Rectangle
  • Thickness (in.): 0.030
  • Materials/Construction: Composite w/coating
  • Application Notes: Cast iron & aluminum heads w/conventional port and bolt locations - Fits most aftermarket manifolds w/Rectangular ports w/o upper bolts at intake ports
  • Product Notes: No exhaust crossover openings or blocking shields; w/o Upper bolt holes; Brodix BB-1, 2, 3, 4, 5
