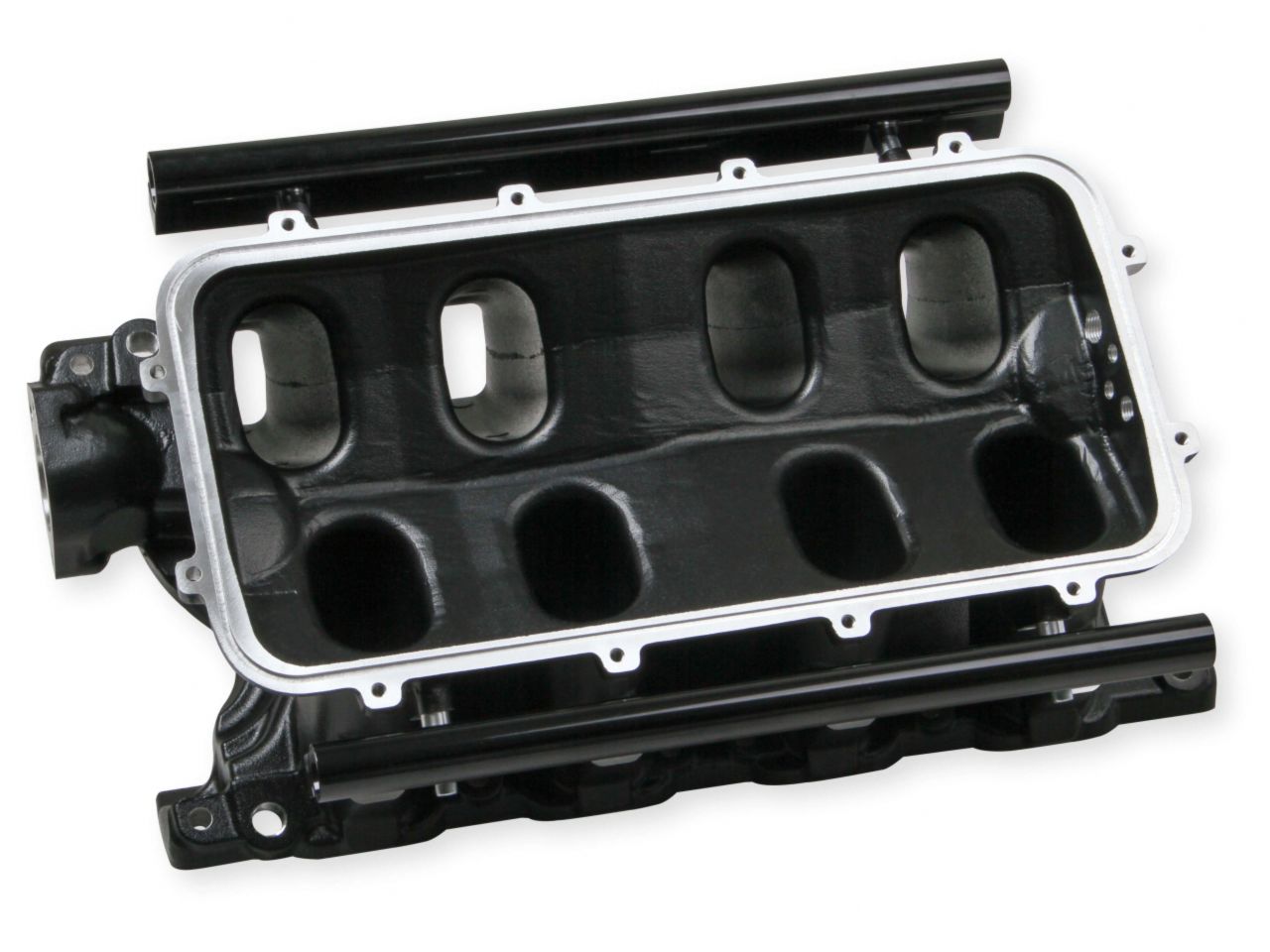

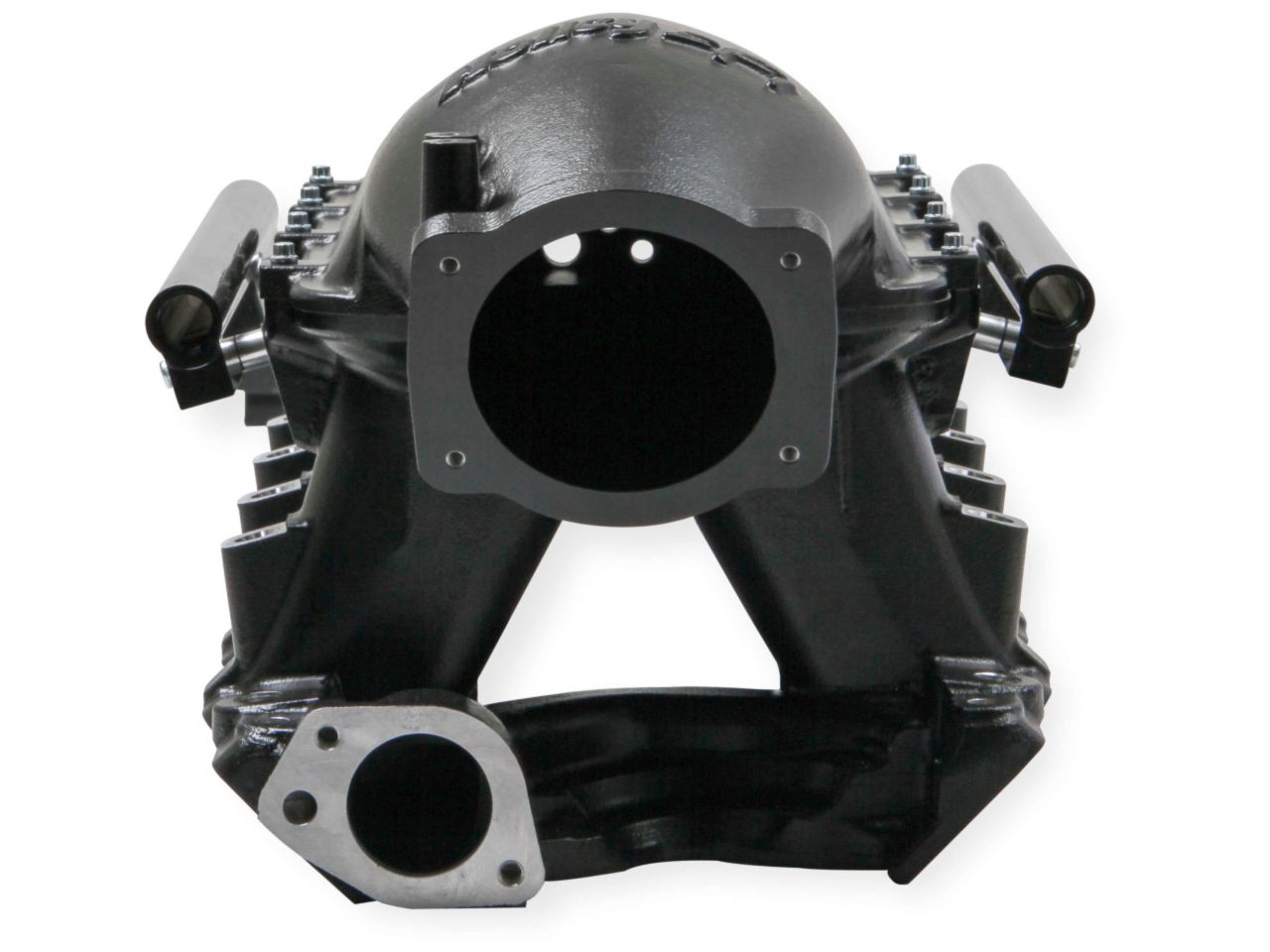

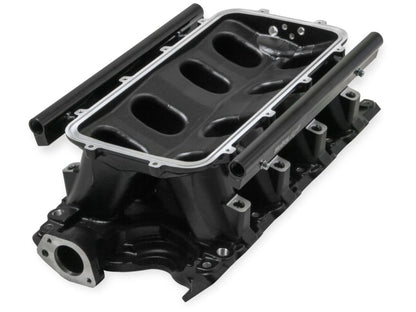

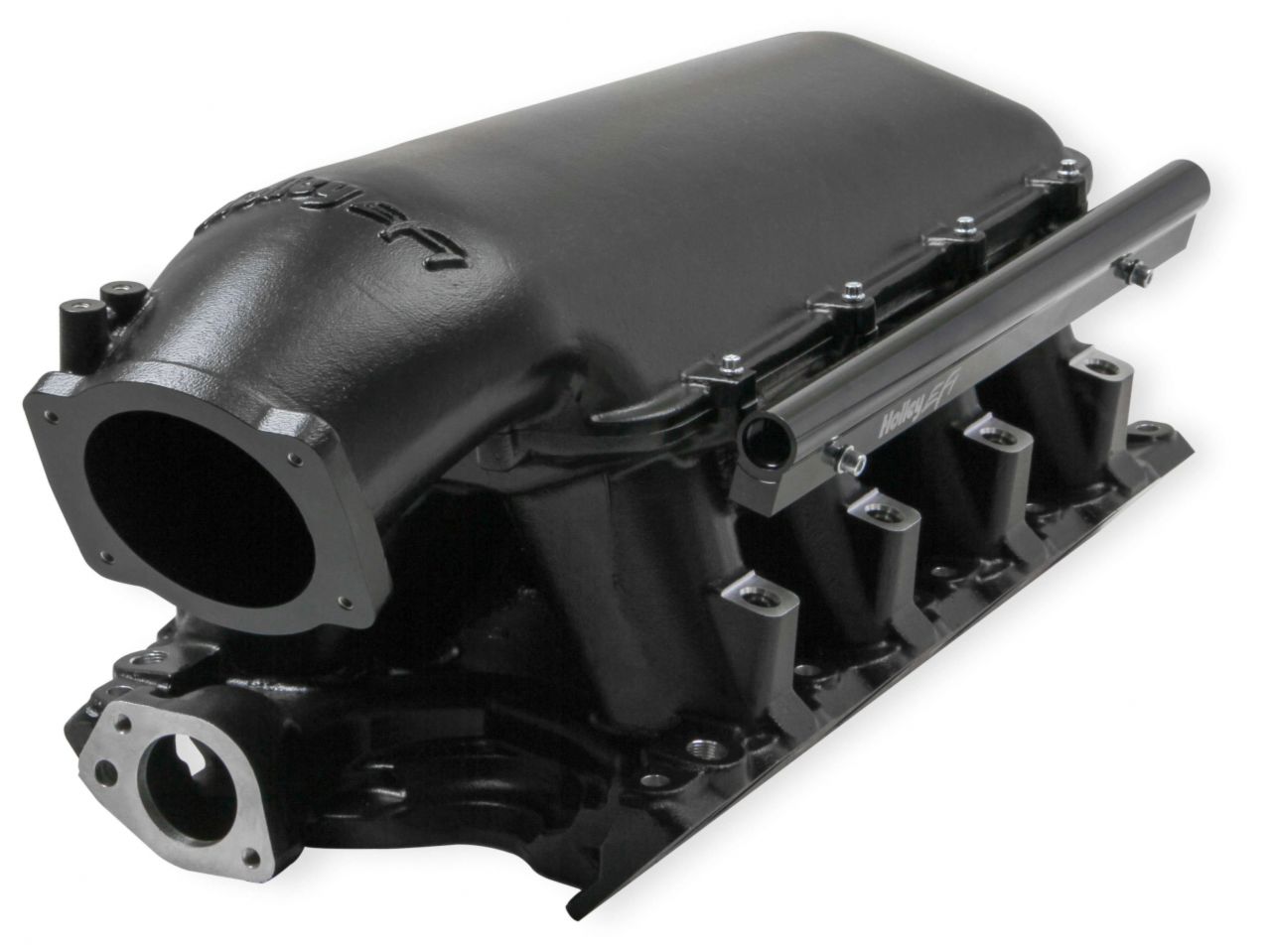

Holley Black 351W Ford Hi-Ram EFI Manifold

Black 351W Ford Hi-Ram EFI Manifold

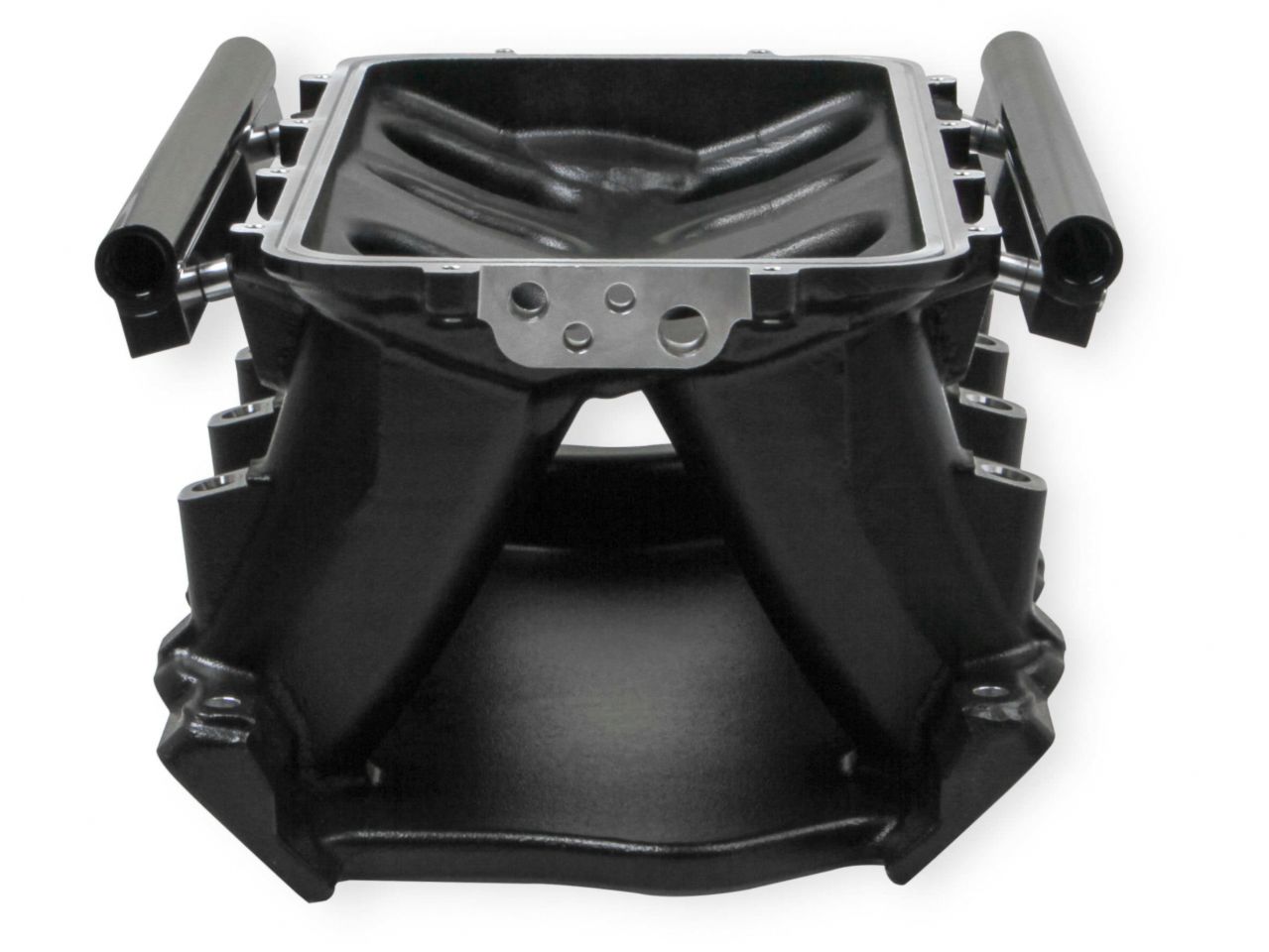

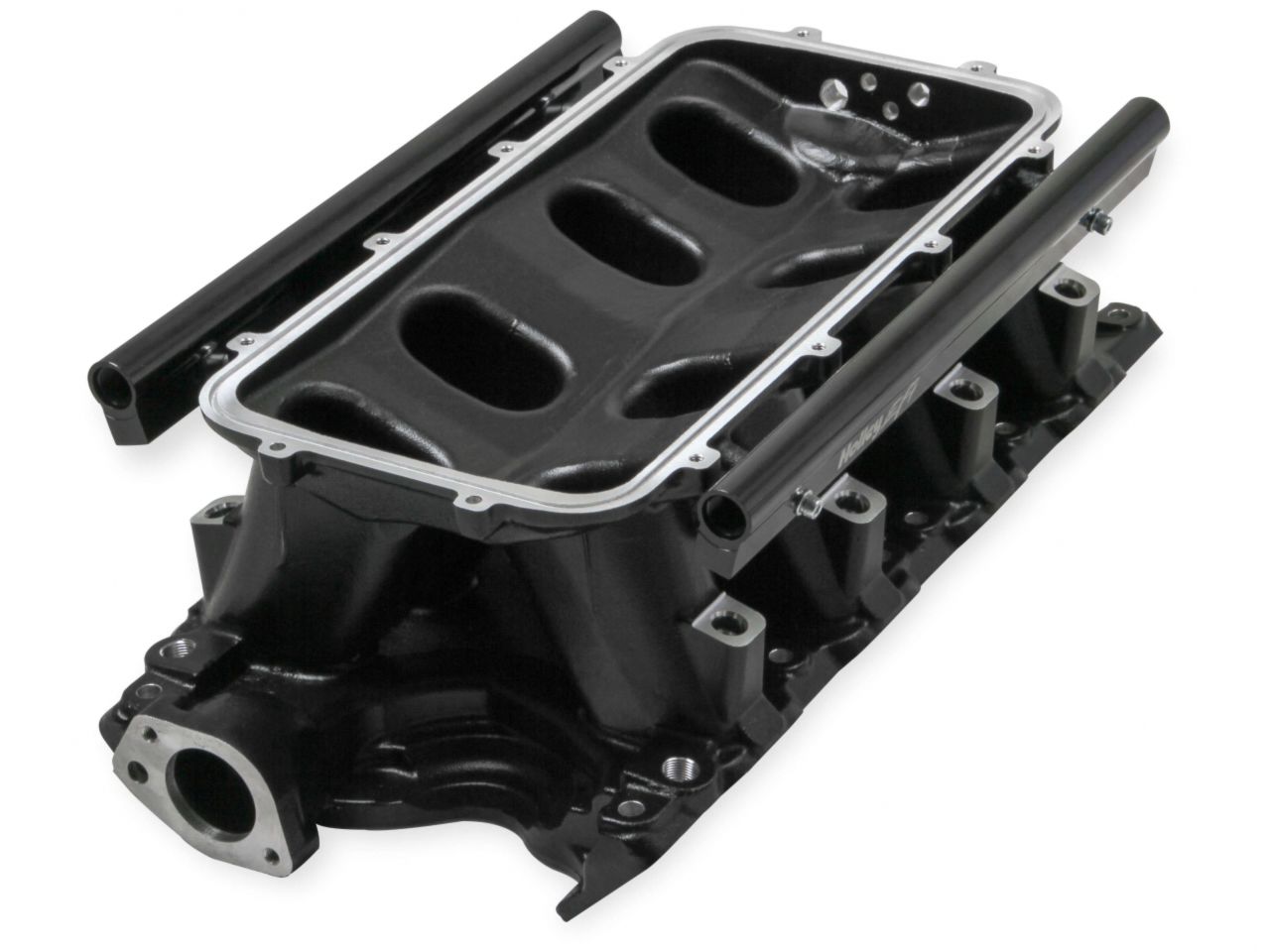

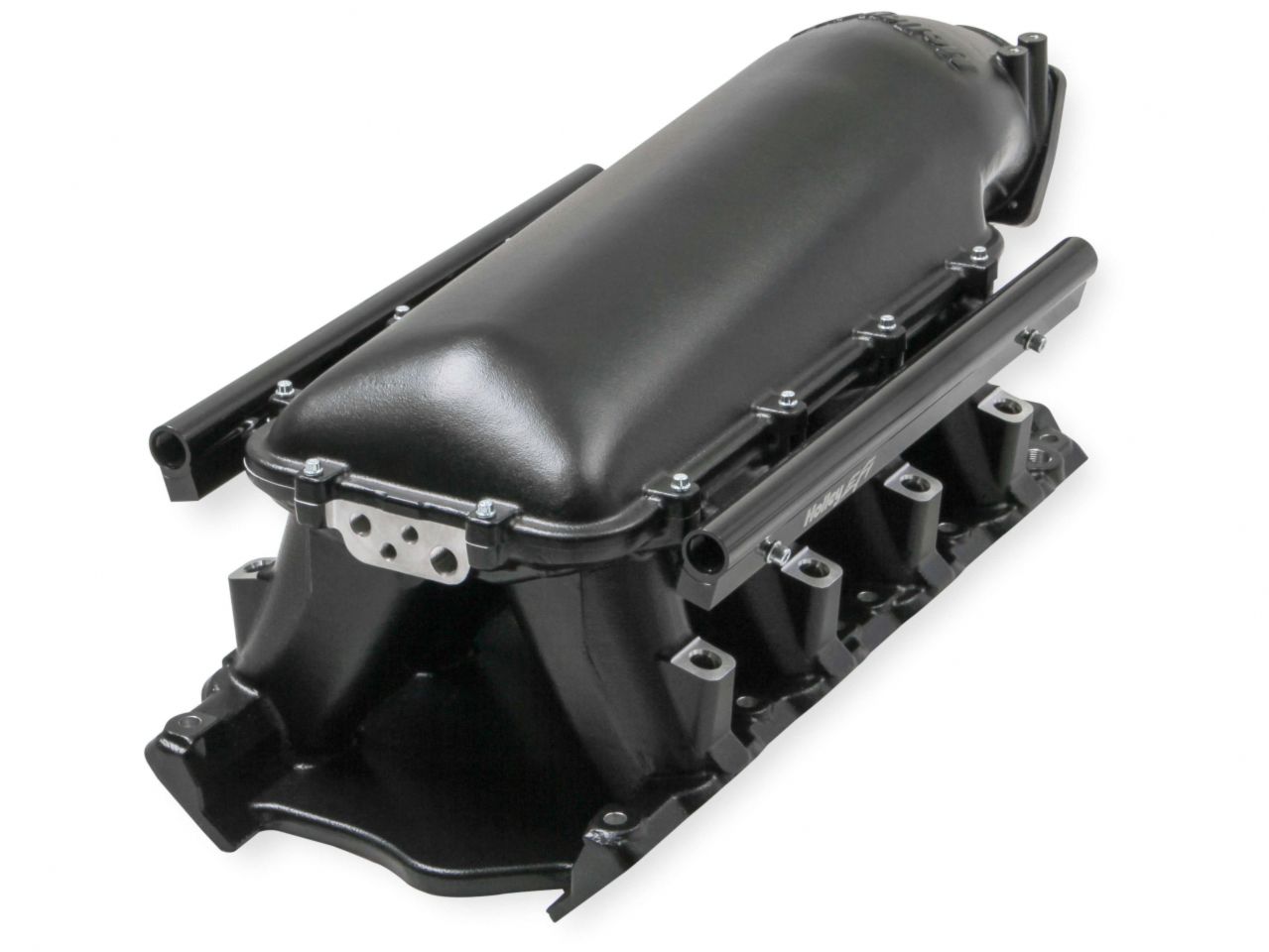

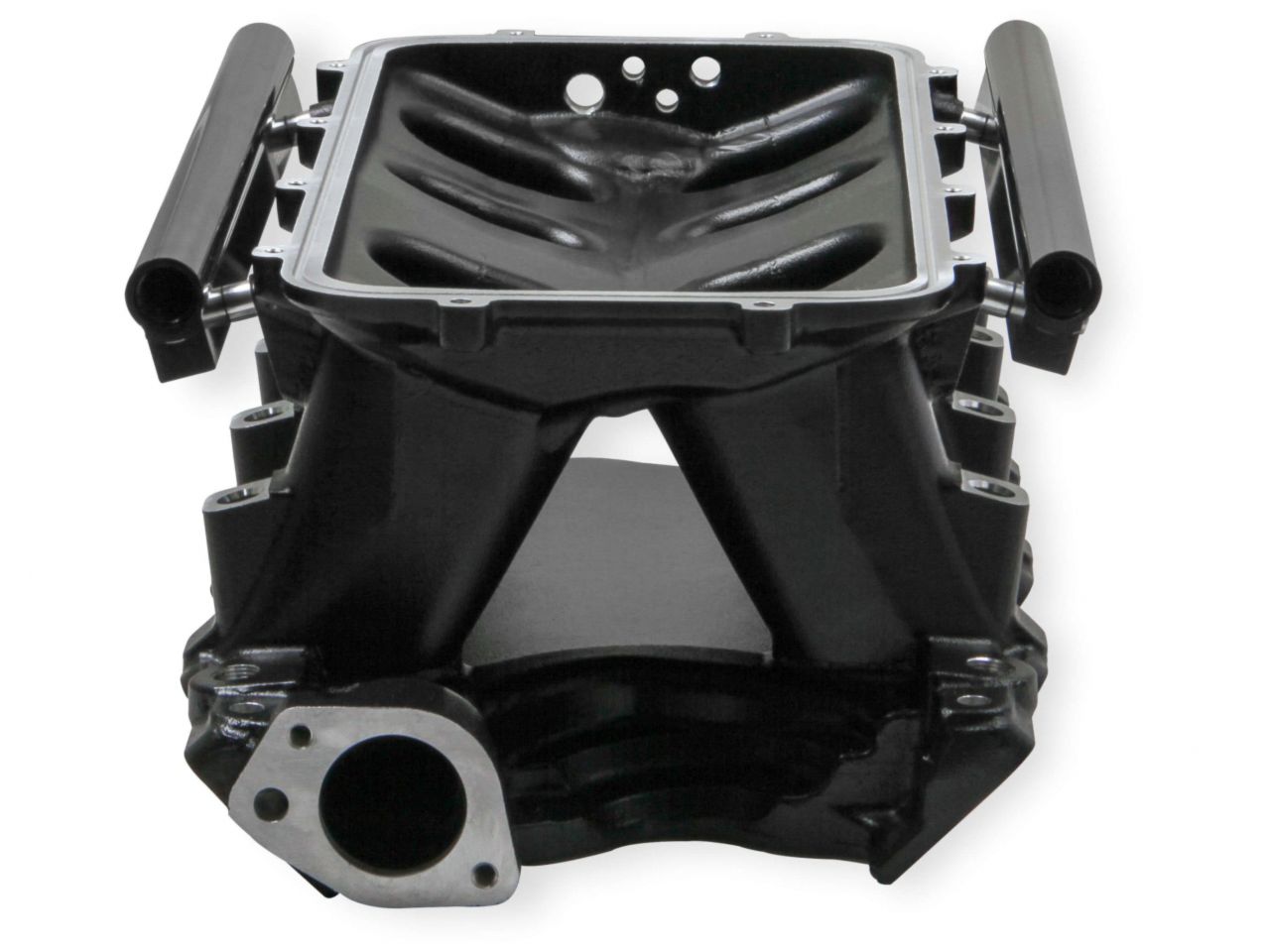

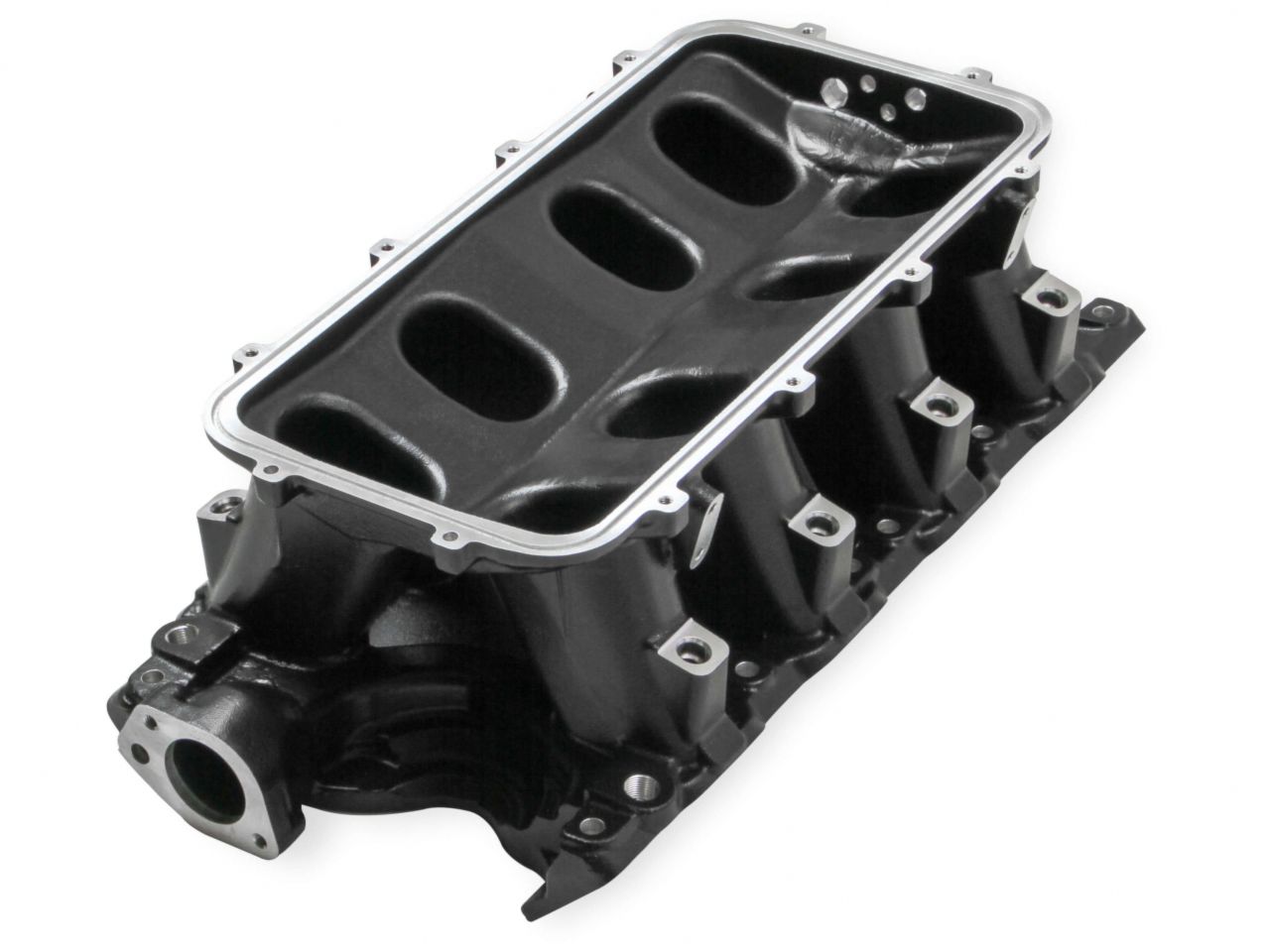

The EFI Hi-Ram manifold line has a new addition for the 351W Ford application. This manifold comes with a 105MM LS throttle body flange top, a 105mm LS throttle body top is also available. The runner length and tapered cross section design will perform well for a wide range of engine combinations. The engineering team also redesigned the water crossover passage to allow room for distributor phasing. Aggressive, bold, race–bred styling will make bad intentions clear for drag race, muscle car, marine, off–road, sandrails, pulling trucks, track, street–rod applications and more.

• Manifold is designed for a 9.5" deck height.

• Manifold Width is 11.32".

• Runner length and the tapered cross–section designed to perform well for a wide range of engine configurations.

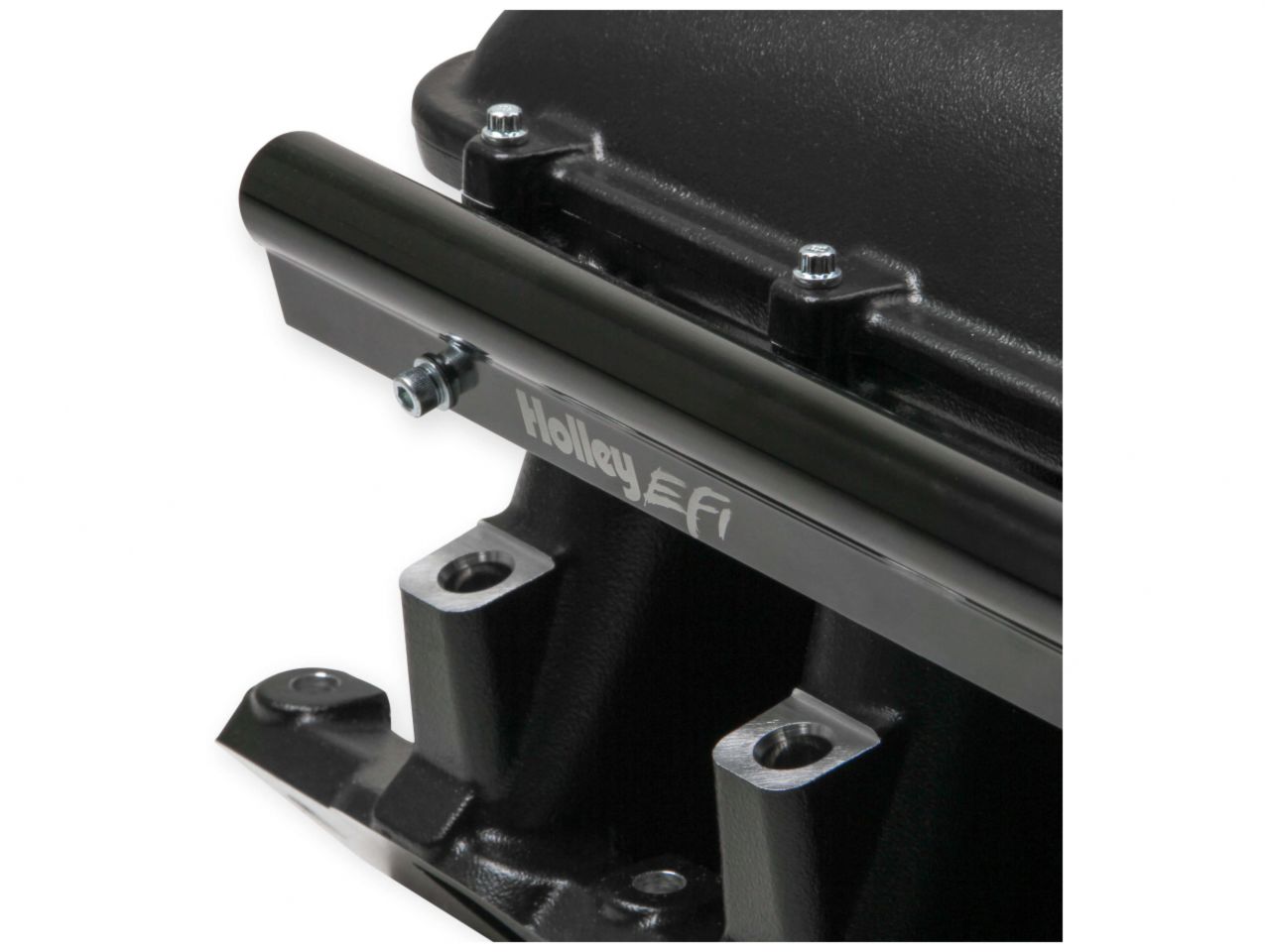

• EFI fuel rails are machined for –8AN O–ring Fittings with passages large enough to accommodate high fuel flows and dampen pressure pulsations in the fuel system and come standard with EFI Hi–Ram kits.

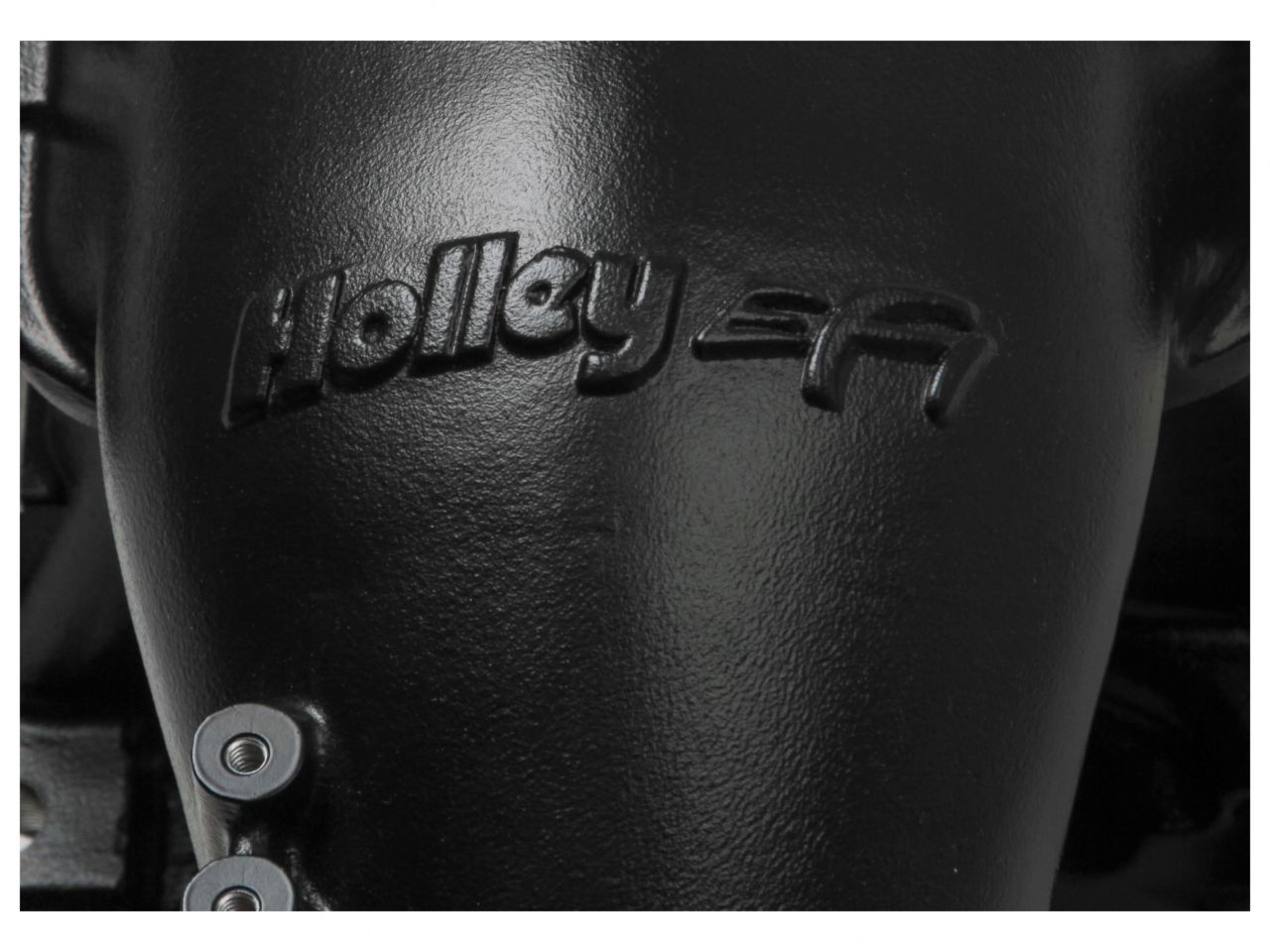

• Cast aluminum construction with black finish.

Features:

• The 351W manifold is available to work with 105MM GM LS throttle bodies

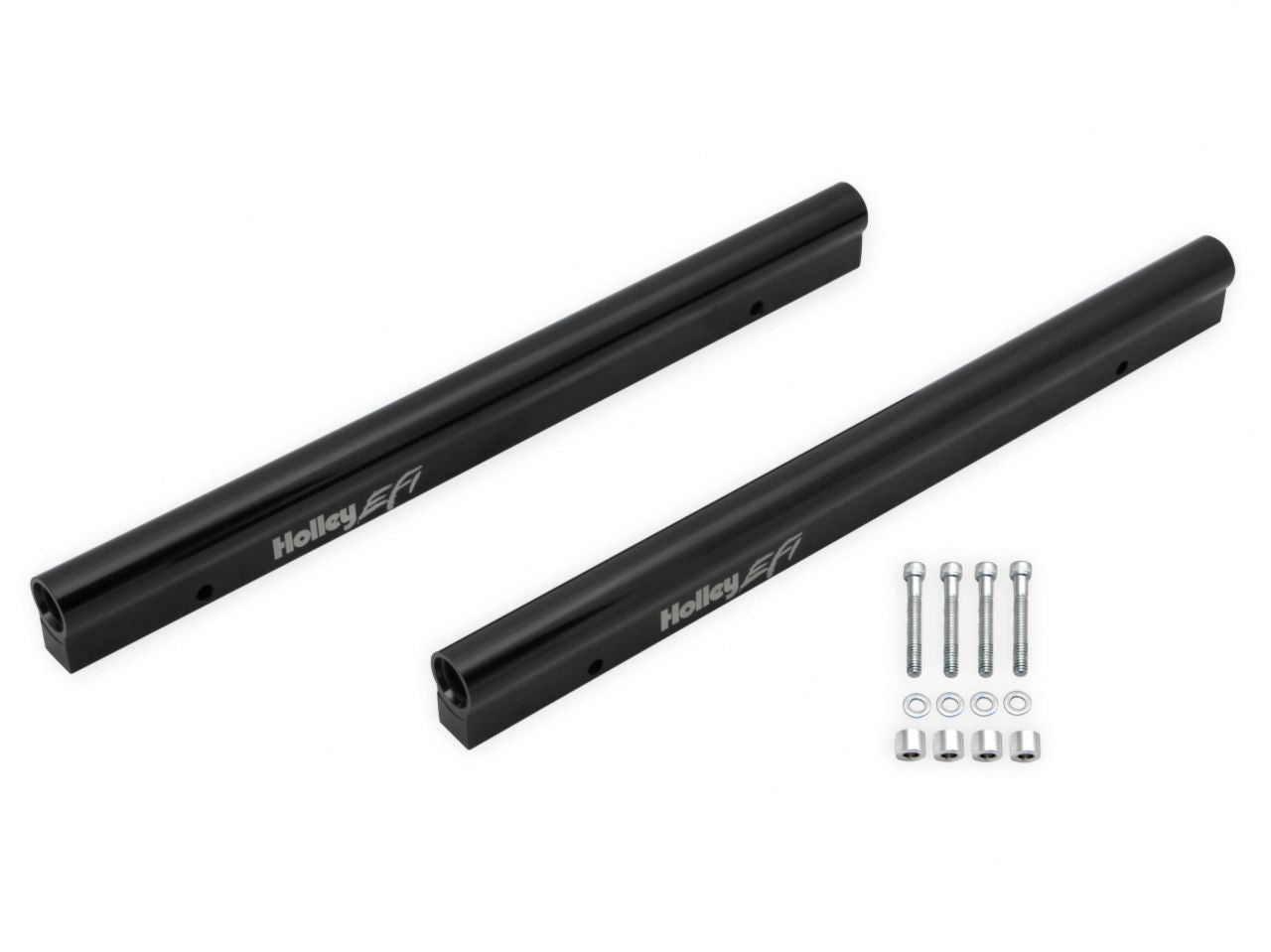

• EFI fuel rails are machined for -8AN o-ring fittings with passages large enough to accommodate high fuel flows and dampen pressure pulsations in the fuel system and come standard with EFI Hi-Ram kits.

• Plenum Top Gasket Type – 3/32” Round O-ring Cord

• Manifold is designed for a 9.5" deck height.

• Black Finish

Specifications

Construction: Cast

Emission Code: 3

Engine: Ford 351W

Finish: Black

Flange Style: EFI

Fuel System Type: EFI

Manifold Type: Hi-Ram

Port Size: 2.00" x 1.190"

Product Type: Manifold

RPM Power Band: 1500-7000

Throttle Bore: 105mm
