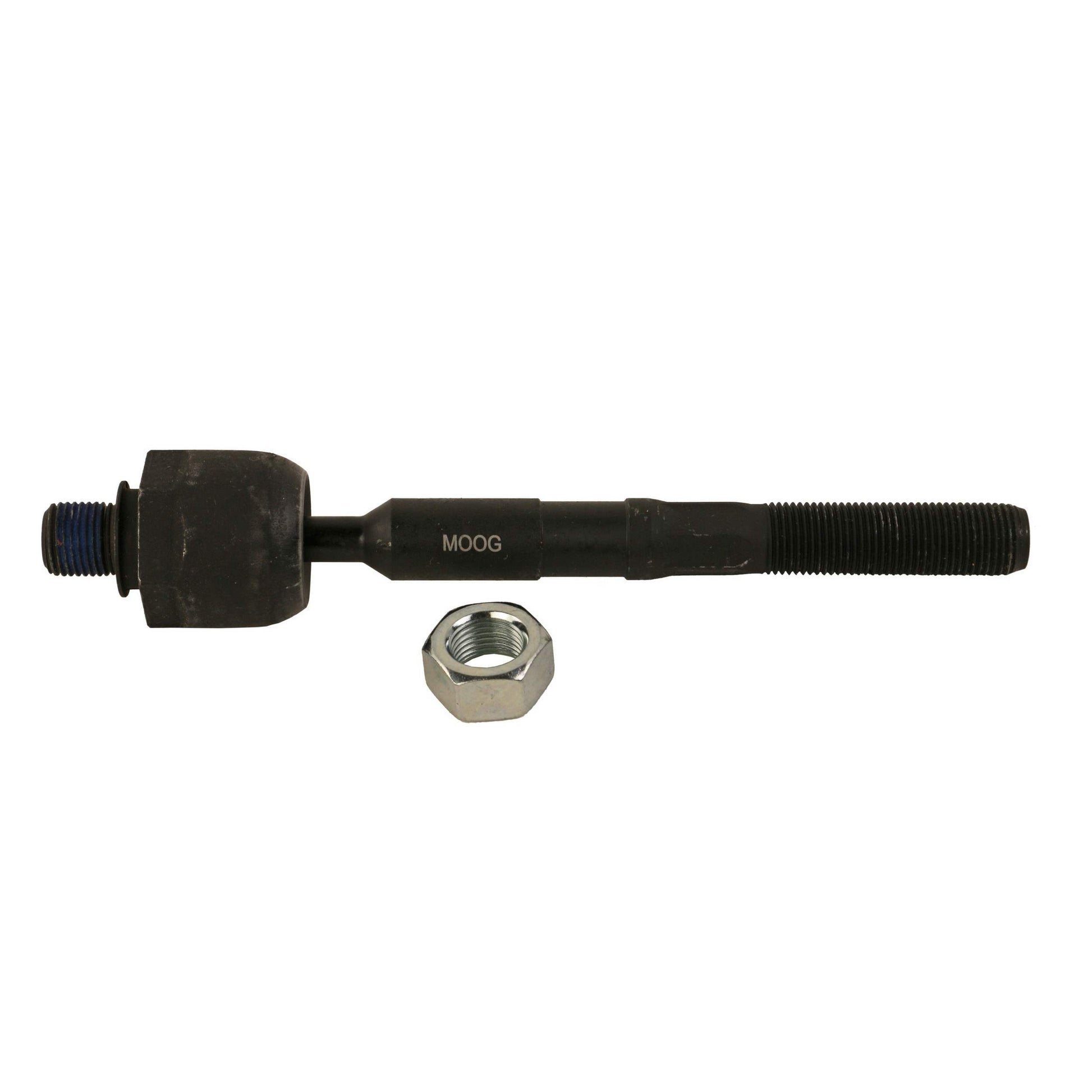

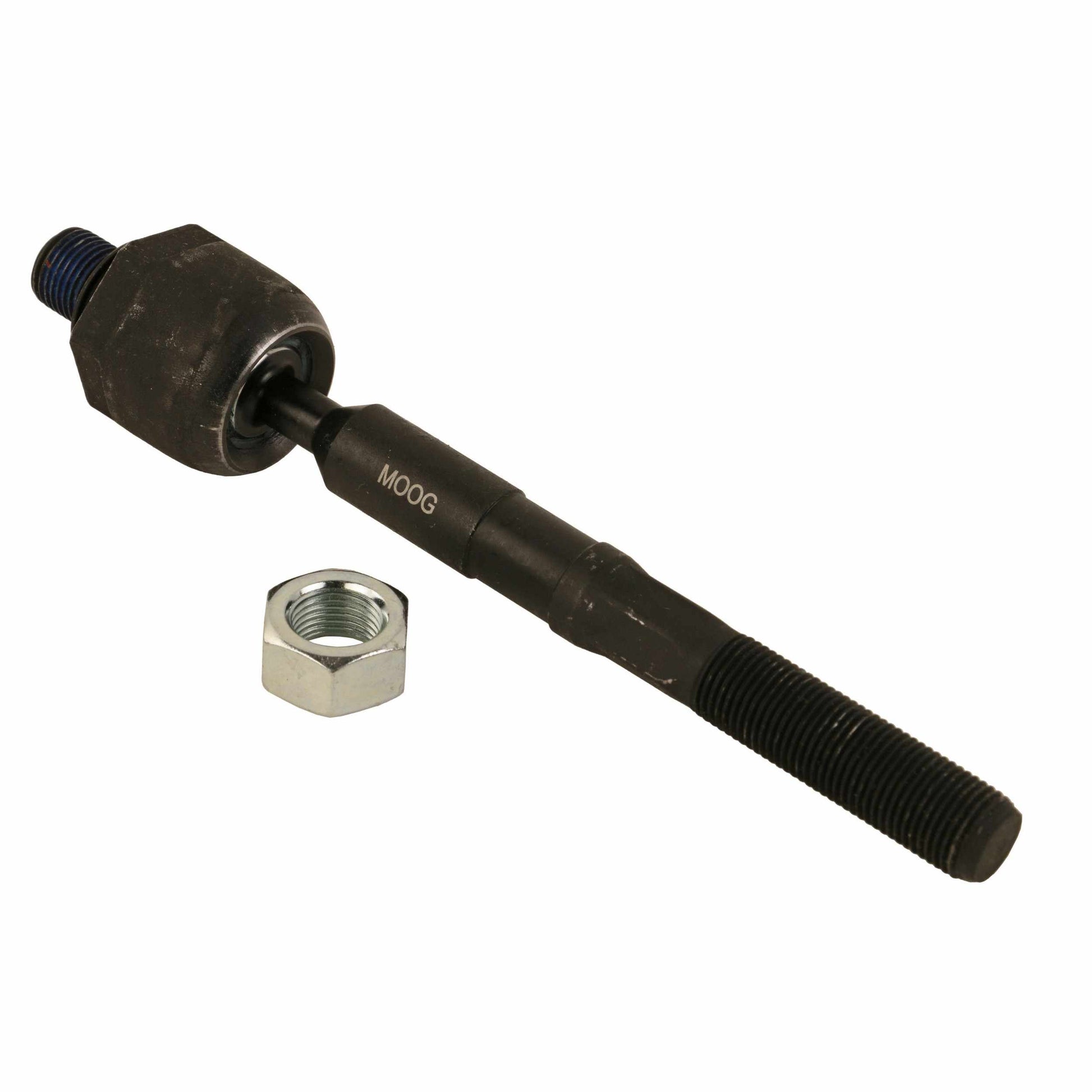

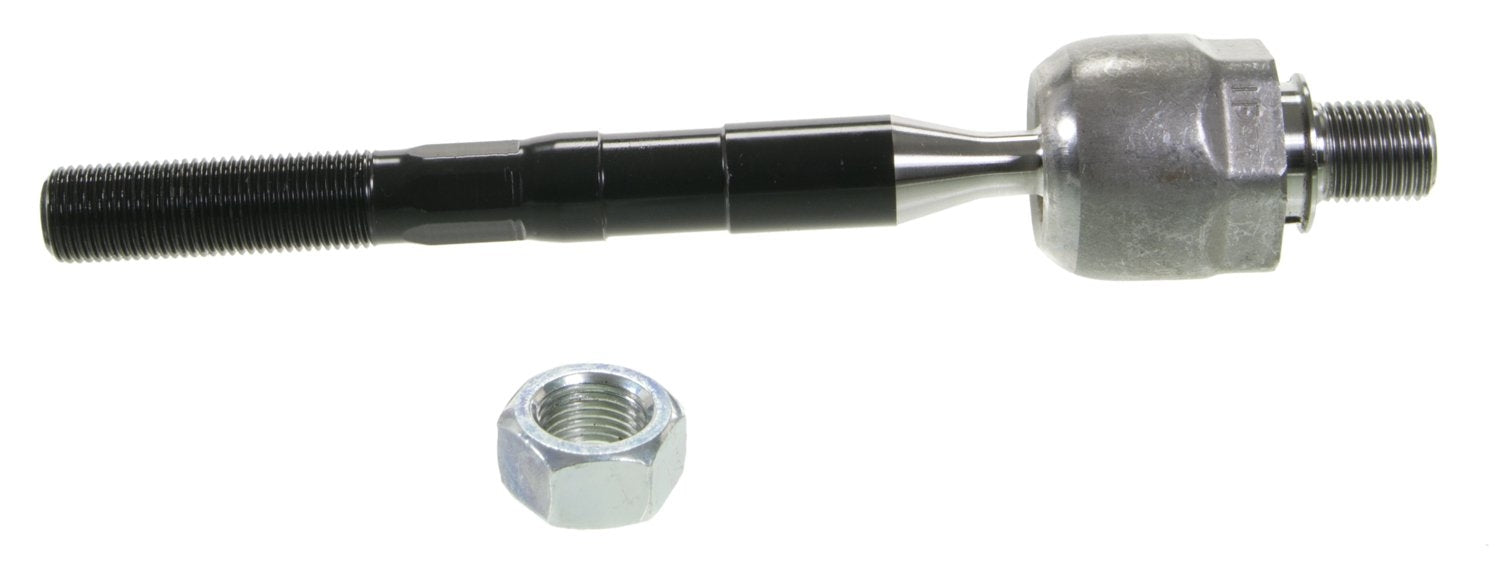

Moog Inner Tie Rod End

MOOG® Problem Solver® products incorporate proven design and engineering features for like new steering, ease of installation and longer life. MOOG is the preferred steering and suspension brand of professional technicians and NASCAR crew chiefs.

• Loose or worn chassis parts can lead to premature tire wear
• Engineered to meet or exceed OE part performance
• Stud design is optimized to provide ideal stud swing and strength for each application.
• Wrench flats on housing and stud provide easy installation and alignment adjustment.
• Assembled in the USA

Specifications

• Tie Rods

  • Length (in): 7.670
  • Outer Tie Rod Thread: M16-1.5
  • Shaft Diameter (in): 0.649
  • Rack End Thread: M16-1.5
  • Rack End Type (Male / Female): MALE
  • Specification Image Reference: INNERTIEROD.tif
  • End 1 Thread Pitch (MM): 1.5
  • End 2 Thread Diameter (MM): 16.0
  • End 2 Thread Pitch (MM): 1.5

Application

• Hyundai Santa Fe 2012-2007 Inner
• Kia Sorento 2013-2011 Inner

Vehicle Fitments:
