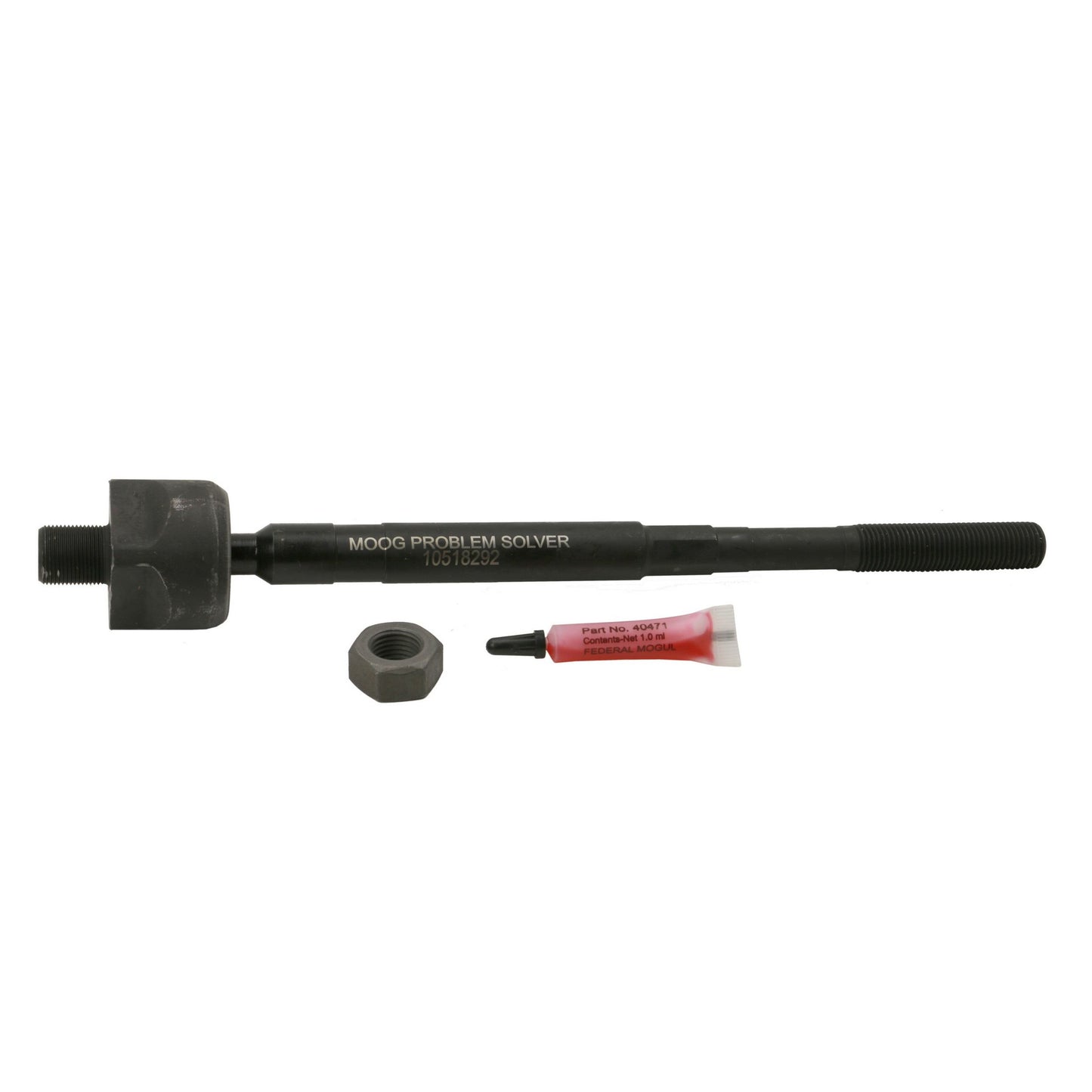

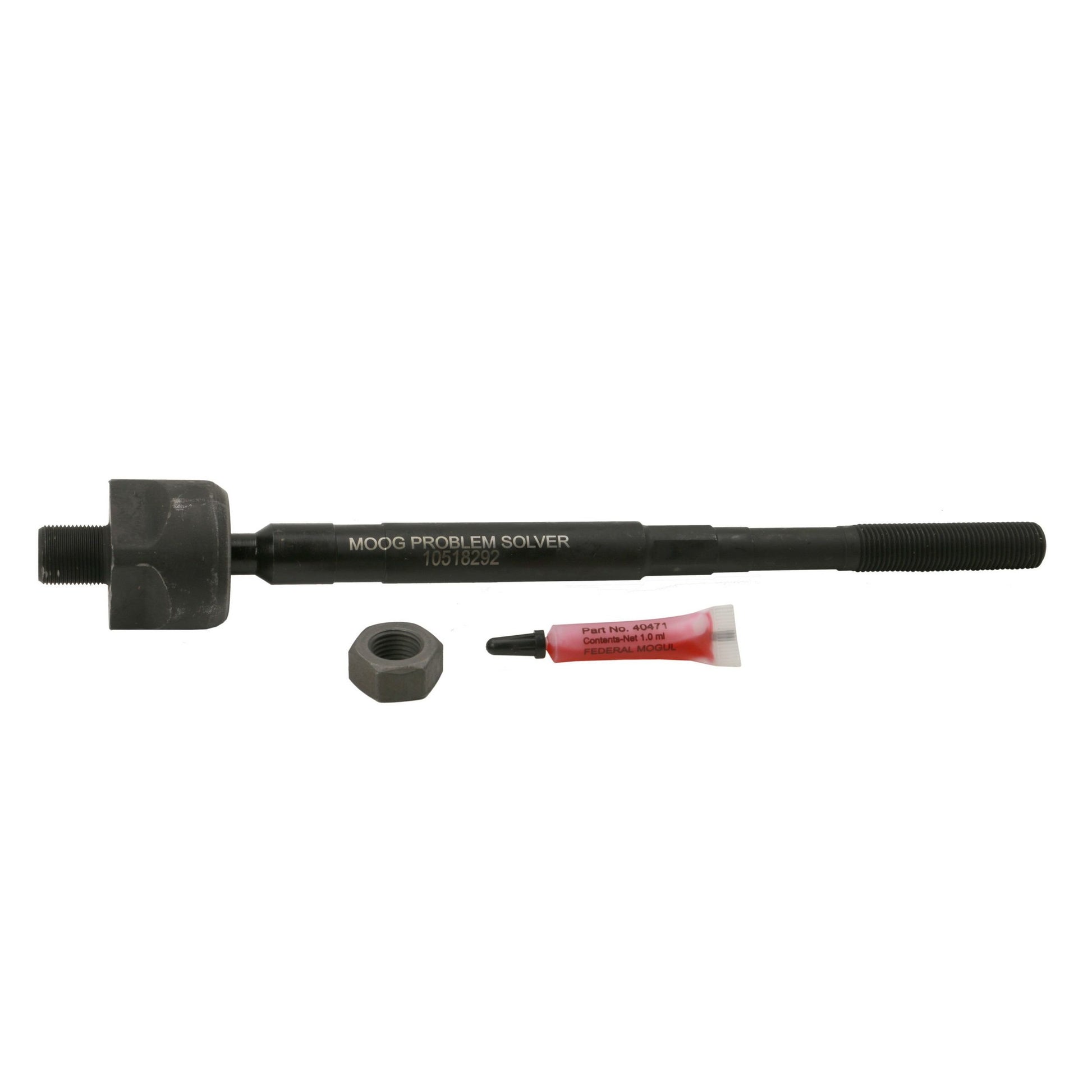

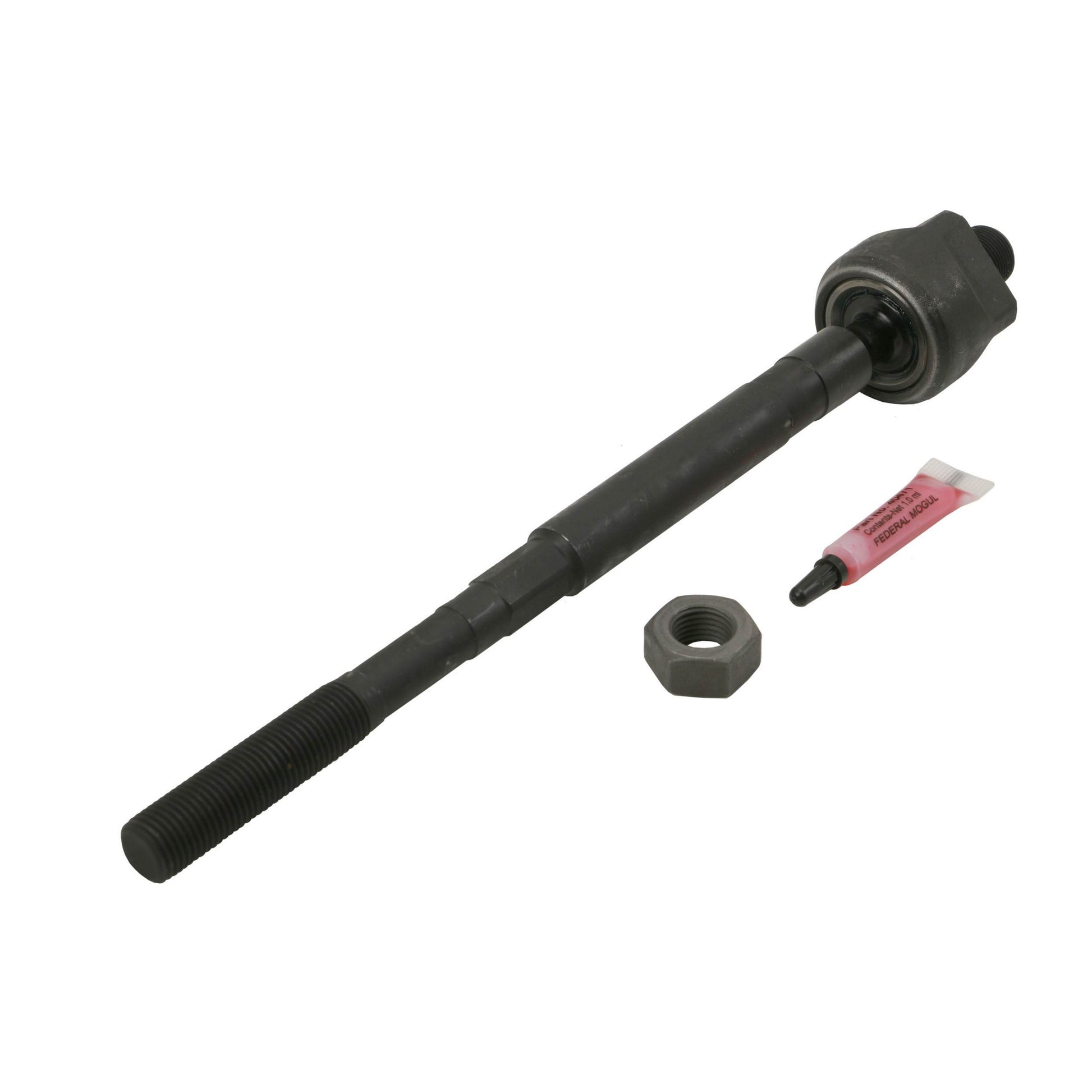

Moog Inner Tie Rod End
Tie Rod End
MOOG® Problem Solver® products incorporate proven design and engineering features for like new steering, ease of installation and longer life. MOOG is the preferred steering and suspension brand of professional technicians and NASCAR crew chiefs.
- Loose or worn chassis parts can lead to premature tire wear
- Exclusive cover plate protects against contaminants leaking into the bearing surface
- Greaseable socket design allows new lubricant to flush contaminants from the assembly, reducing corrosion and wear
- Patent pending Sunoloy coated metal bearings provide smooth stud swing technicians and drivers prefer
- Patented cover plate design allows for tighter tolerances vs traditional designs for a more durable part
- Powdered metal gusher bearing design enables grease to flow through bearing to stud for reduced friction and enhanced strength
Tie Rods Specifications
Length (in): 10.230
Outer Tie Rod Thread: M14-1.5
Shaft Diameter (in): 0.472
Rack End Thread: M16-1.0
Rack End Type (Male / Female): MALE
End 1 Thread Pitch (MM): 1.0
End 2 Thread Diameter (MM): 16.0
End 2 Thread Pitch (MM): 1.0
Vehicle Fitments:
| Year | Make | Model | Submodel |
|---|---|---|---|
| 2005 - 2007 | Nissan | Murano | SL, SE, S |
Moog Inner Tie Rod End
Sale price$33.35 USD
