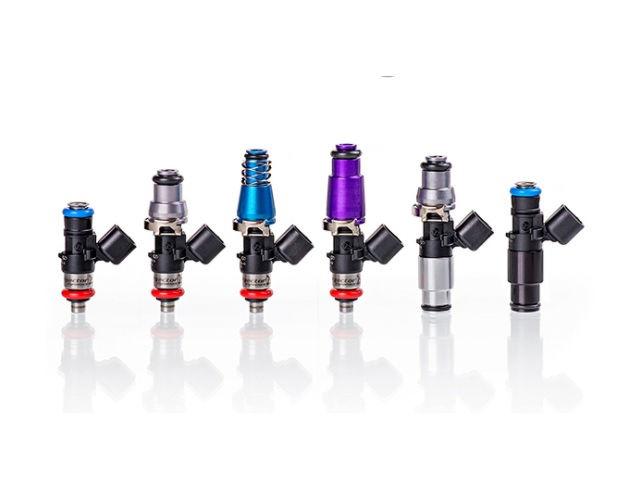

Injector Dynamics ID1700x, for GS300 / 2JZ-GE (non turbo) applications. 11mm (blue)

SKU: 0MH65 | MPN:  1700.60.11.D.6
Usually Ships in 10-14 Days
Sale price$1,827.00 USD

The ID1700x is the most recent offering from the partnership of Injector Dynamics and Bosch Motorsport. The ID1700x was designed to fill the gap between the ID1300x and the ID2000, and like the ID1300x, it features corrosion resistant internals making it compatible with all known automotive fuels.
A unique magnetic circuit, resulting from a lengthy development program, makes the ID1700x immune to voltage and pressure sensitivity problems that plague other high impedance high flow injectors. The ID1700x excels at high pressures typical of current automotive systems, and will perform flawlessly in these applications.

Application Notes

The ID1700x was designed to be an all fuel compatible injector, capable of very high flow rates. As such, it will most often be used to deliver E85 to boosted engines, or occasionally, gasoline in extreme high horsepower applications. Neither of these applications requires extended linearity at low flow rates, and so this was given a proportionately lower priority during the design process.

The ID1700x will deliver flawless stoichiometric idle and cruise mixtures on E85, but like the ID2000, should not be expected to do so on gasoline.

If you need flawless drivability on gasoline, the ID1300x will provide this, and is capable of approximately 150hp per injector on E85.

Basic Specifications

Nominal Flow Rate - 1725cc/min @ 3.0 Bar (43.5 psi) Using Iso-Octane at 52 Degrees C (125 Degrees F)
Maximum Differential Fuel Pressure - 7.0 Bar (101.5 psi)
Fuel Compatibility - Compatible with Methanol/Ethanol/All Known Hydrocarbon Fuels.
Electrical Connector - USCAR



Vehicle Fitments:

Year Make Model Submodel
1991 - 1993 Dodge Stealth ES
1991 - 1996 Dodge Stealth R/T, Base, R/T Turbo
1993 - 2005 Lexus GS300 Base
2001 - 2005 Lexus IS300 Base
2002 - 2005 Lexus IS300 Sportcross
1992 - 2000 Lexus SC300 Base
1991 - 1999 Mitsubishi 3000GT SL, VR-4, Base
1995 - 1996 Mitsubishi 3000GT Spyder VR-4, Spyder SL
1993 - 1997 Toyota Land Cruiser Base
1987 - 1998 Toyota Supra Base
1987 - 1992 Toyota Supra Turbo
1993 - 1998 Toyota Supra Twin Turbo
