Pertronix Ignition Tune-Up Kits

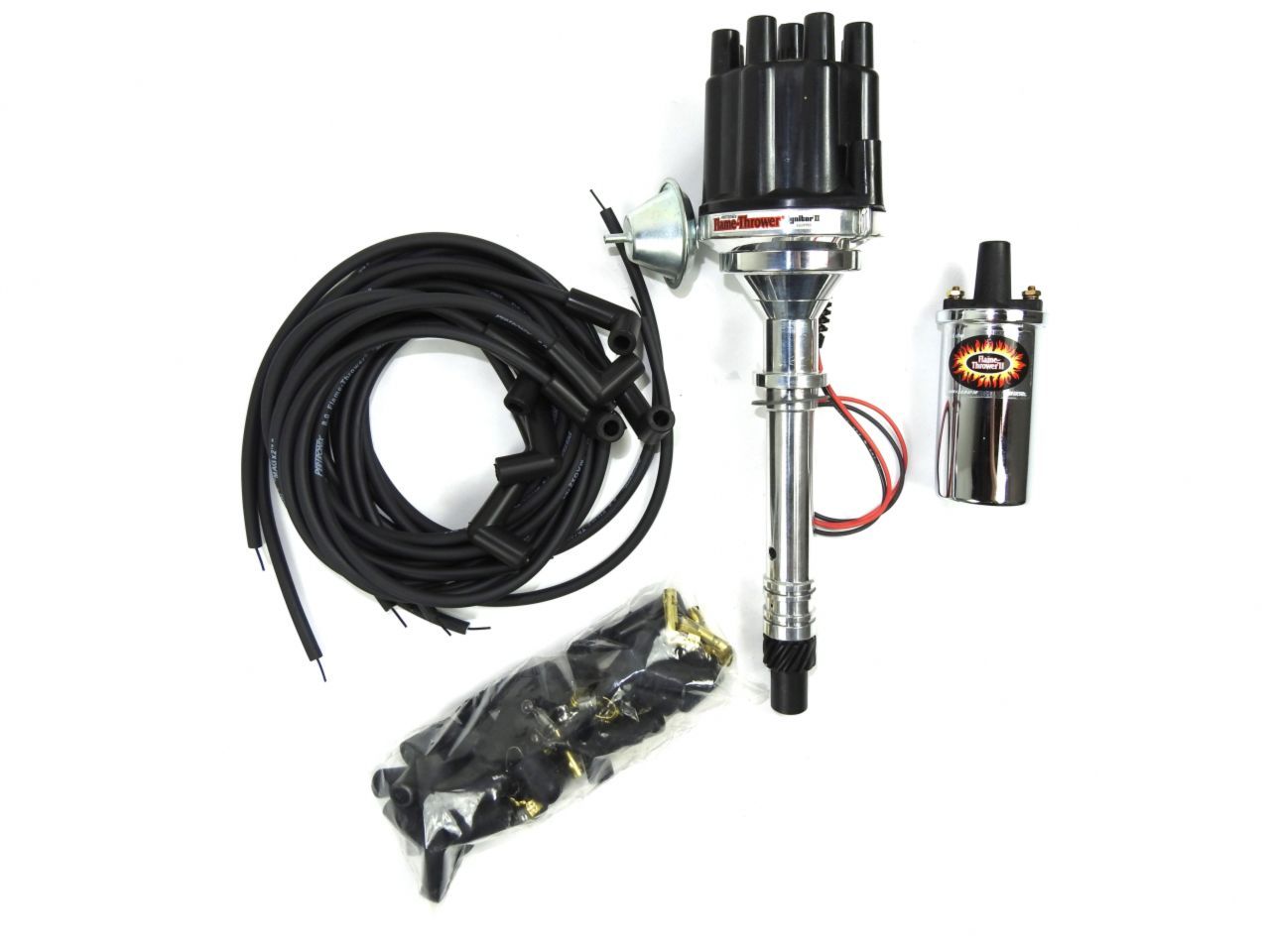

Pertronix Bundle001 Ignition Kit includes Chevy SB/BB Billet Plug n Play Distributor with Black Female Cap, Flame-Thrower II Chrome Coil, Flame-Thrower MAGx2 Universal Black Spark Plug Wires with 90 degree plug boot ends
Plug n' Play billet distributors are designed for maximum ignition performance at a price you can afford. Our distributors ship with Ignitor II technology modules. Replace your outdated points, electronic distributor or bulky HEIs with this performance proven system. Simply install the distributor in the engine, connect two wires and start it up! For even more performance, consider adding one of our compatible Flame-Thrower II coils for increased spark energy and higher RPM potential. The lineup includes the Flame-Thrower II canister style coils as well as our HC and HV E-core style coils.
Features:
• Precision CNC machined 6061-T6 billet aluminum housings are lightweight yet offer maximum strength.
• Our Billet distributors ship with Ignitor II modules factory installed.
• Each billet distributor is hand polished and buffed to a high luster.
• Tempered distributor shaft has low torsion displacement for accurate timing and extended operational life.
• Upper ball bearing and extra long oil impregnated bronze lower bushing work together to reduce friction and provide shaft and advance mechanism stability reducing high RPM vibration.
• Integrated Ignitor II electronic ignition with variable dwell maintains peak energy throughout the entire RPM range, reducing misfires while improving engine performance.
• Develops on average 4 times more available energy between 3000 and 5000 RPM, and 2 times more available plug voltage.
• Peak current level is reached just prior to spark for maximum energy without the heat build-up, increasing coil and module life.
• Adjusts spark timing at higher RPMs to compensate for the inherent electronic delay.
• Senses startup and develops more energy for quicker, easier starting.
• Built in reverse polarity and over current protection shuts down the system, preventing component damage.
• Cobalt magnets and Hall Effect trigger for stable timing and precise spark distribution.
• Compensates for inherent electronic delay by adjusting the spark timing throughout the entire RPM range.
• Synchronized peak current and spark timing reduces heat build-up.
• Compatible with most Capacitive Discharge Systems.
Highlights: Coil
• 45,000 volts.
• Available chrome plated or black for that "stock look".
• For use with inductive or CD ignition systems.
• Low 0.6 Ohm primary resistance.
• Legal in all 50 states and Canada. (C.A.R.B. E.O. #D-57-21)
Flame-Thrower II coils feature a very low resistance which make them the ideal coil for Ignitor II ignition systems as well as many other high performance ignitions. Low resistance and improved turns ratio help to produce up to 45,000 volts. This higher voltage enables you to run larger spark plug gaps for added power and better fuel economy. These coils are also compatible with most capacitive discharge boxes including our own Second Strike.
• 45,000 volts.
• Available chrome plated or black for that "stock look".
• For use with inductive or CD ignition systems.
• Low 0.6 Ohm primary resistance.
• Legal in all 50 states and Canada. (C.A.R.B. E.O. #D-57-21)
Highlights: Ignition Wires
• Two current paths for reliability and redundancy. -Primary path: Spiral wound stainless steel alloy. -Secondary path: Carbon impregnated fiberglass center core.
• Low 500 ohm per foot resistance.
• 8mm Silicone jacket to resist high temperatures, moisture, oil and chemicals.
• EPDM (Ethylene Propylene Diene Methylene) inner insulation for superior heat resistance and prevention of arcing and voltage leaks.
• Fiberglass reinforcing braid for added strength and flexibility.
8mm Custom fit MAGx2 wires are available for many popular applications equipped with Flame-Thrower or original GM HEI distributors. Our custom wire sets have factory terminated ends for a superior connection and perfect fit, without cuttting, crimping and splicing.
Features:
• Two current paths for reliability and redundancy. -Primary path: Spiral wound stainless steel alloy. -Secondary path: Carbon impregnated fiberglass center core.
• Low 500 ohm per foot resistance.
• 8mm Silicone jacket to resist high temperatures, moisture, oil and chemicals.
• EPDM (Ethylene Propylene Diene Methylene) inner insulation for superior heat resistance and prevention of arcing and voltage leaks.
• Fiberglass reinforcing braid for added strength and flexibility.
