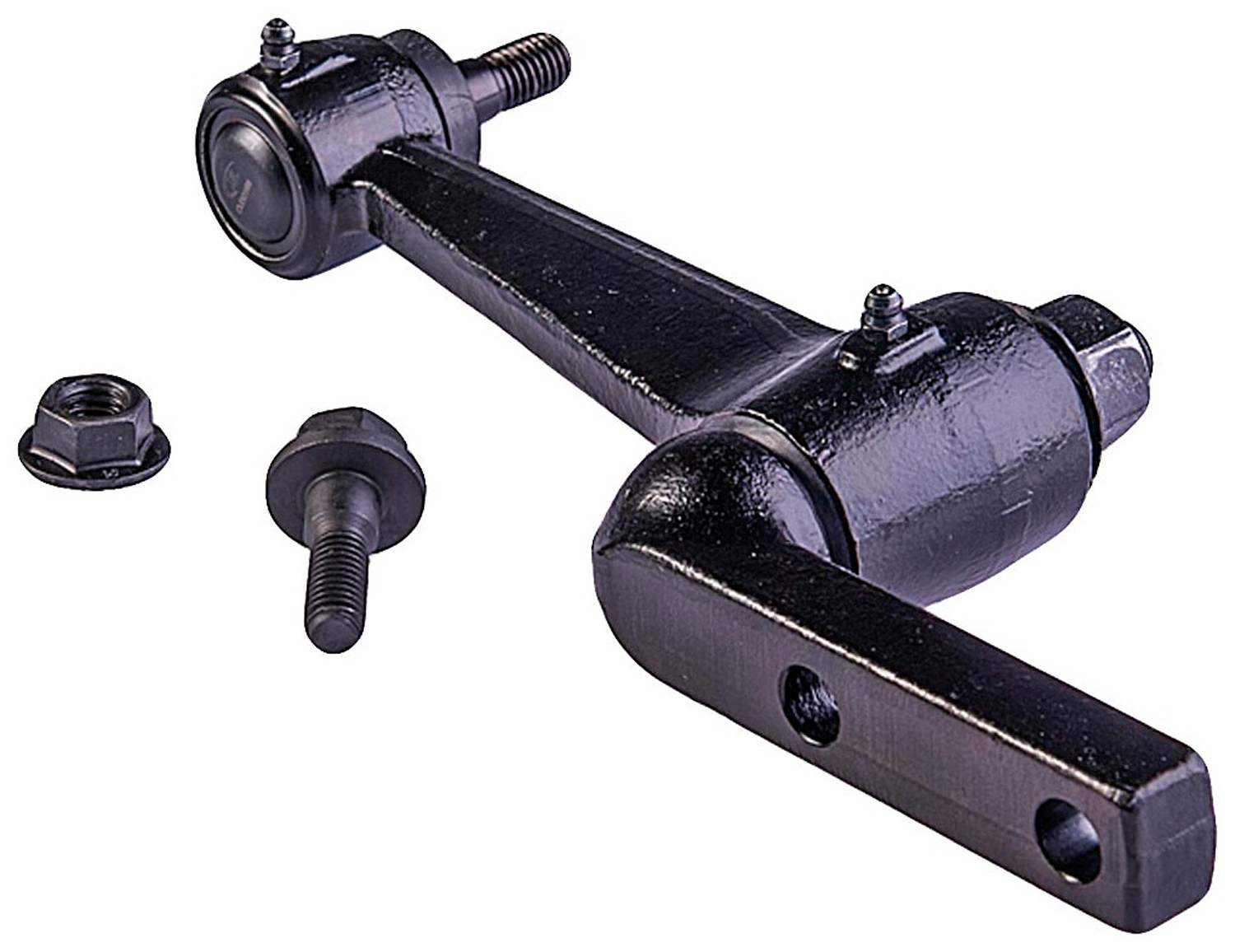

Dorman Idler Arm
This extended life steering idler arm is built for smooth performance and superior durability. Featuring a hardened stud, highly polished ball, a maintenance-free polymer bearing, I.C.E. synthetic grease and premium corrosion resistance.
- Extended-life construction - this idler arm is built with features to deliver smooth performance and extended durability for demanding drivers
- Superior ball stud - hardened ArmourGrade stud with highly polished EverSmooth ball
- Low-friction bearing - UltraFlow normalized forged housing with I.C.E. synthetic grease and low-friction polymer bearing
- Premium corrosion resistance - WeatherShield external coating to resist corrosion
Application Summary: Chevrolet Astro 2005-90, GMC Safari 2005-90
Product Specifications
- Arm Attachment Type: Taper
- Arm Stud Thread Diameter: 12 mm
- Bracket Hole Quantity: 2
- Bracket Included: No
- Castle Nut Included: No
- Color: Black
- Finish: Coated
- Grade Type: Premium
- Grease Fitting Included: Yes
- Length: 157.5 mm
- Material: Steel
- Mount Hole Diameter: 12.1 mm
- Mounting Hardware Included: Yes
- Package Contents: 1 Idler Arm, 1 Nut, 1 Bolt
Vehicle Fitments:
| Year | Make | Model | Submodel |
|---|---|---|---|
| 1990 - 1995 | Chevrolet | Astro | CL, CS |
| 1996 - 2005 | Chevrolet | Astro | LS |
| 1990 - 2005 | Chevrolet | Astro | LT, Base |
| 1993 | GMC | Safari | GT |
| 1995 - 2002 | GMC | Safari | SL |
| 1990 - 2005 | GMC | Safari | SLT, Base, SLE |
| 1990 - 1998 | GMC | Safari | SLX |
Dorman Idler Arm
Sale price$61.15 USD
