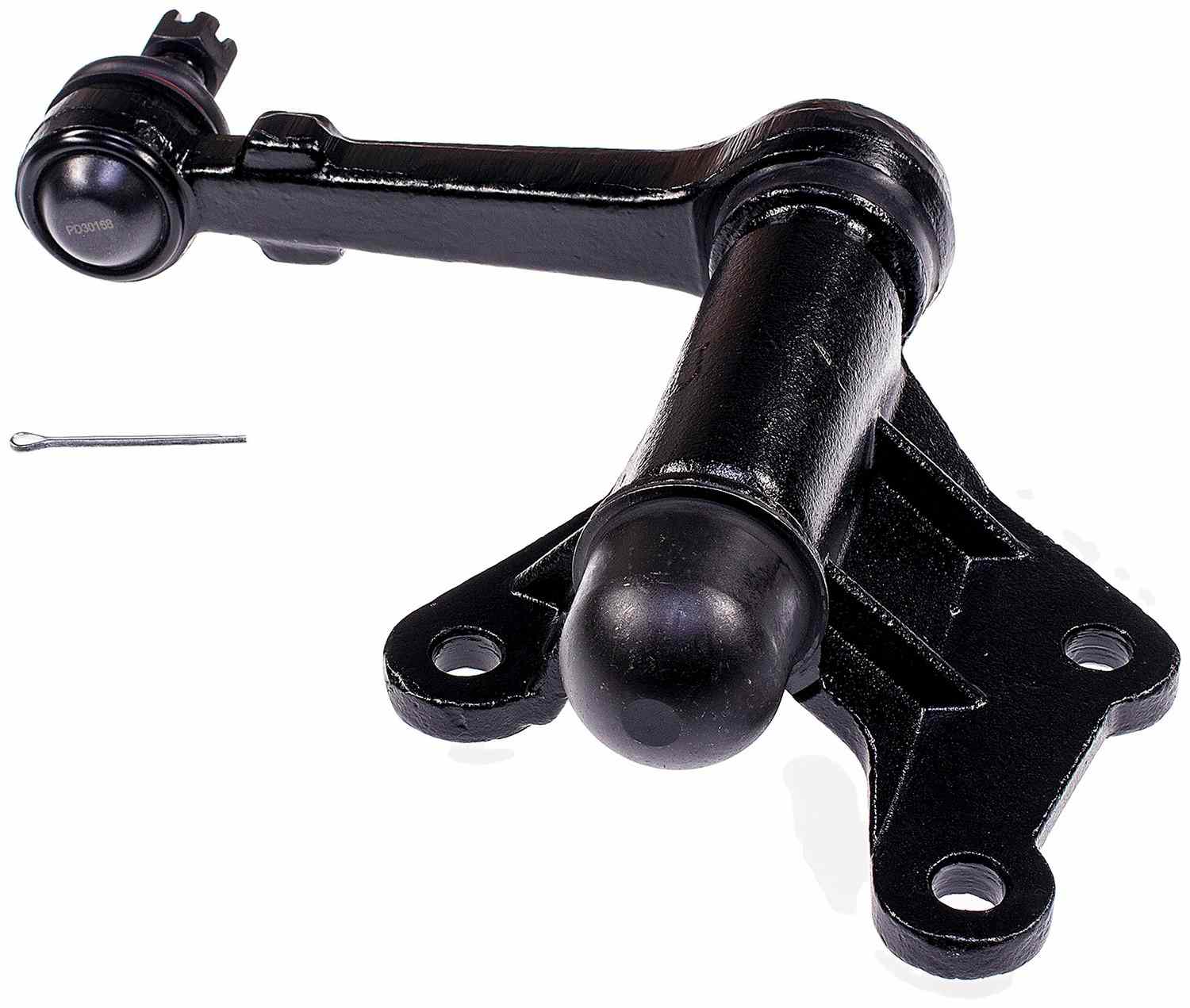

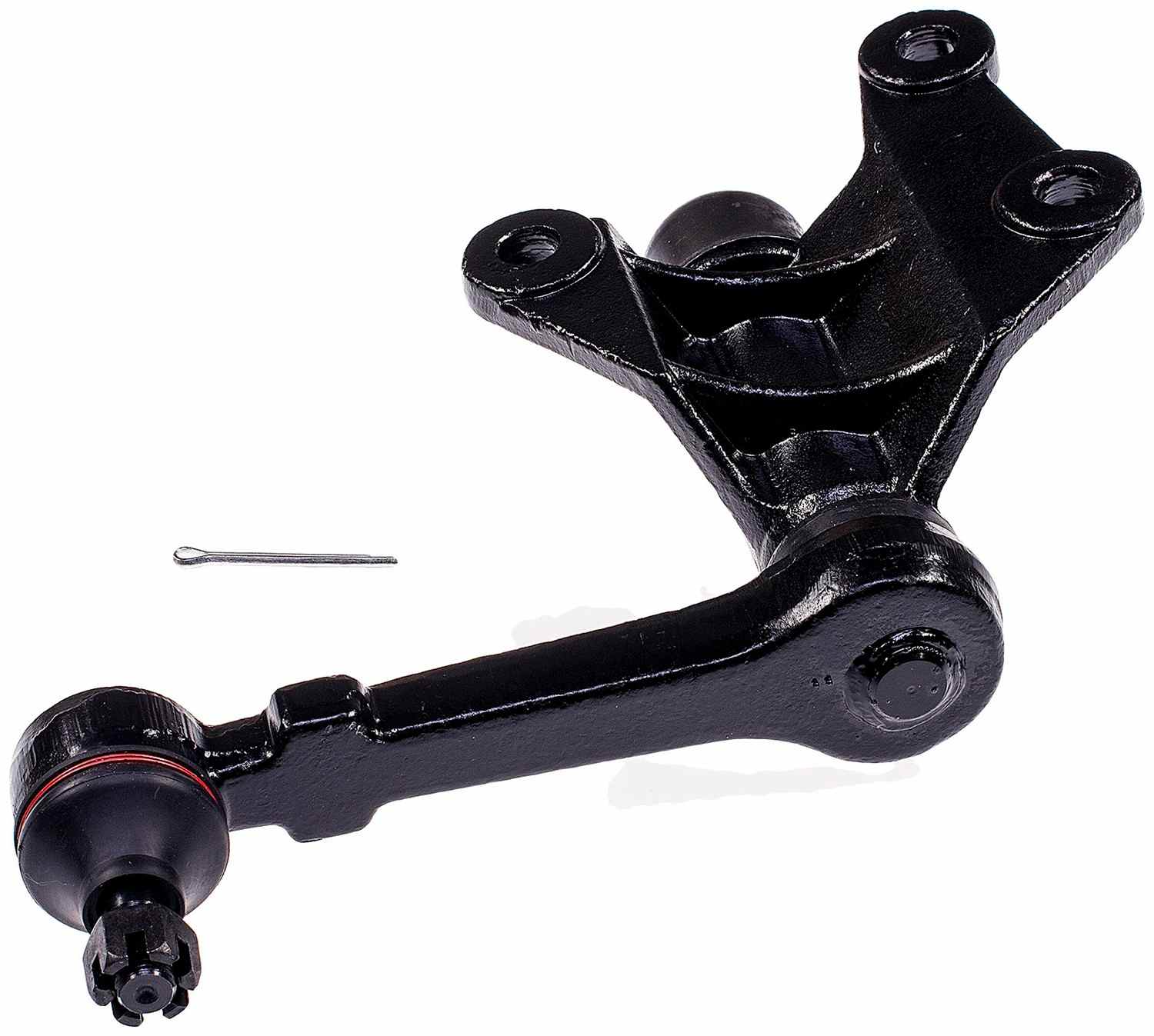

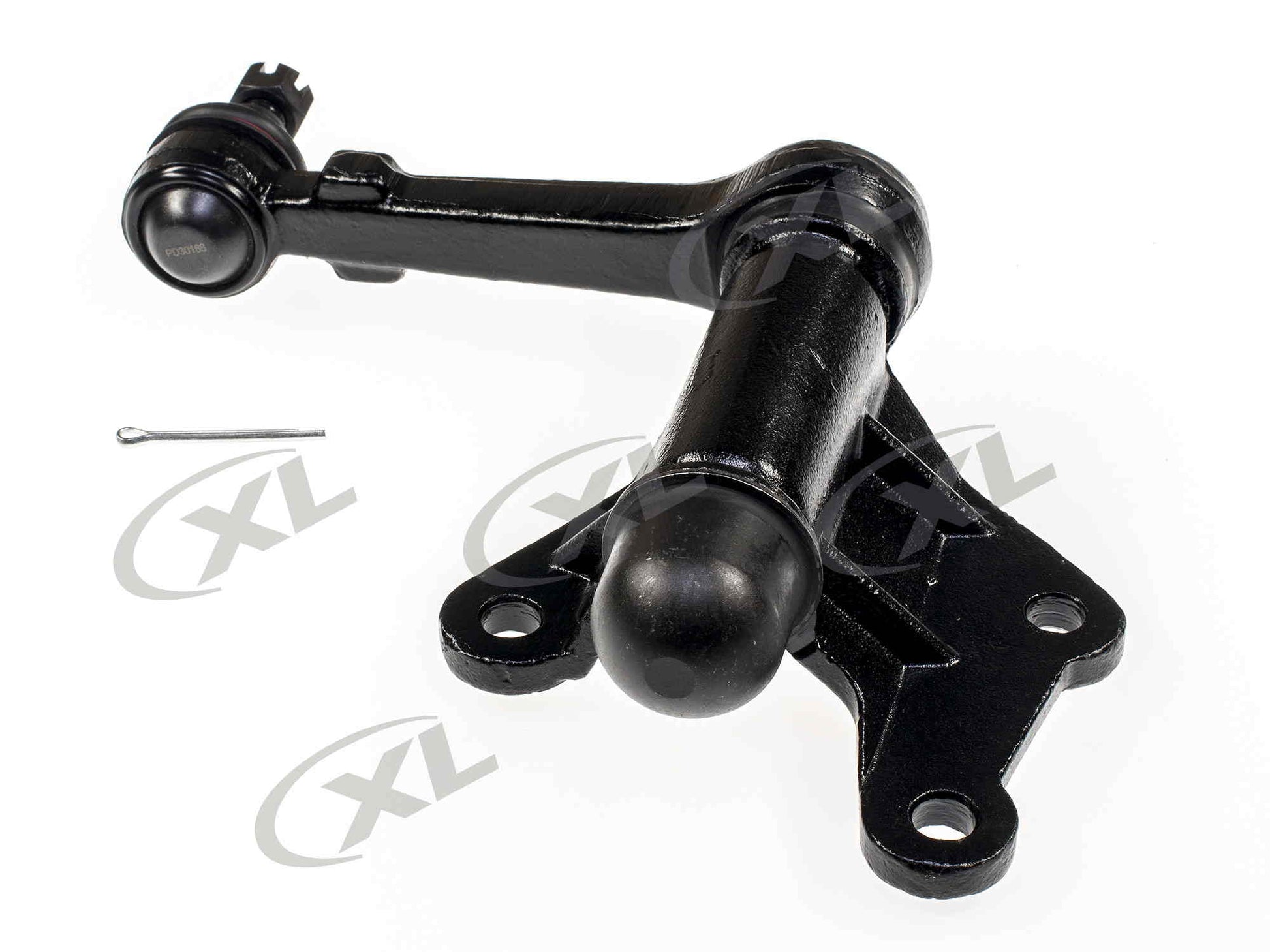

Dorman Steering Idler Arm

This extended life steering idler arm is built for smooth performance and superior durability. Featuring a hardened stud, highly polished ball, a maintenance-free polymer bearing, I.C.E. synthetic grease and premium corrosion resistance.

• Extended-life construction - this idler arm is built with features to deliver smooth performance and extended durability for demanding drivers
• Superior ball stud - hardened ArmourGrade stud with highly polished EverSmooth ball
• Low-friction bearing - UltraFlow normalized forged housing with I.C.E. synthetic grease and low-friction polymer bearing
• Premium corrosion resistance - WeatherShield external coating to resist corrosion

Application Summary: Toyota 4Runner 1995-92, Toyota Pickup 1995-92, Toyota T100 1998-93

Product Specifications

• Arm Attachment Type: Taper
• Arm Stud Thread Diameter: 12 mm
• Bracket Hole Quantity: 3
• Bracket Stud Thread Diameter: 14 mm
• Castle Nut Included: Yes
• Color: Black
• Finish: Coated
• Grade Type: Premium
• Grease Fitting Included: No
• Length: 158 mm
• Material: Steel
• Mount Hole Diameter: 12.5 mm
• Mounting Hardware Included: Yes
• Package Contents: Idler Arm, Castle Nut, Cotter Pin

Vehicle Fitments:
