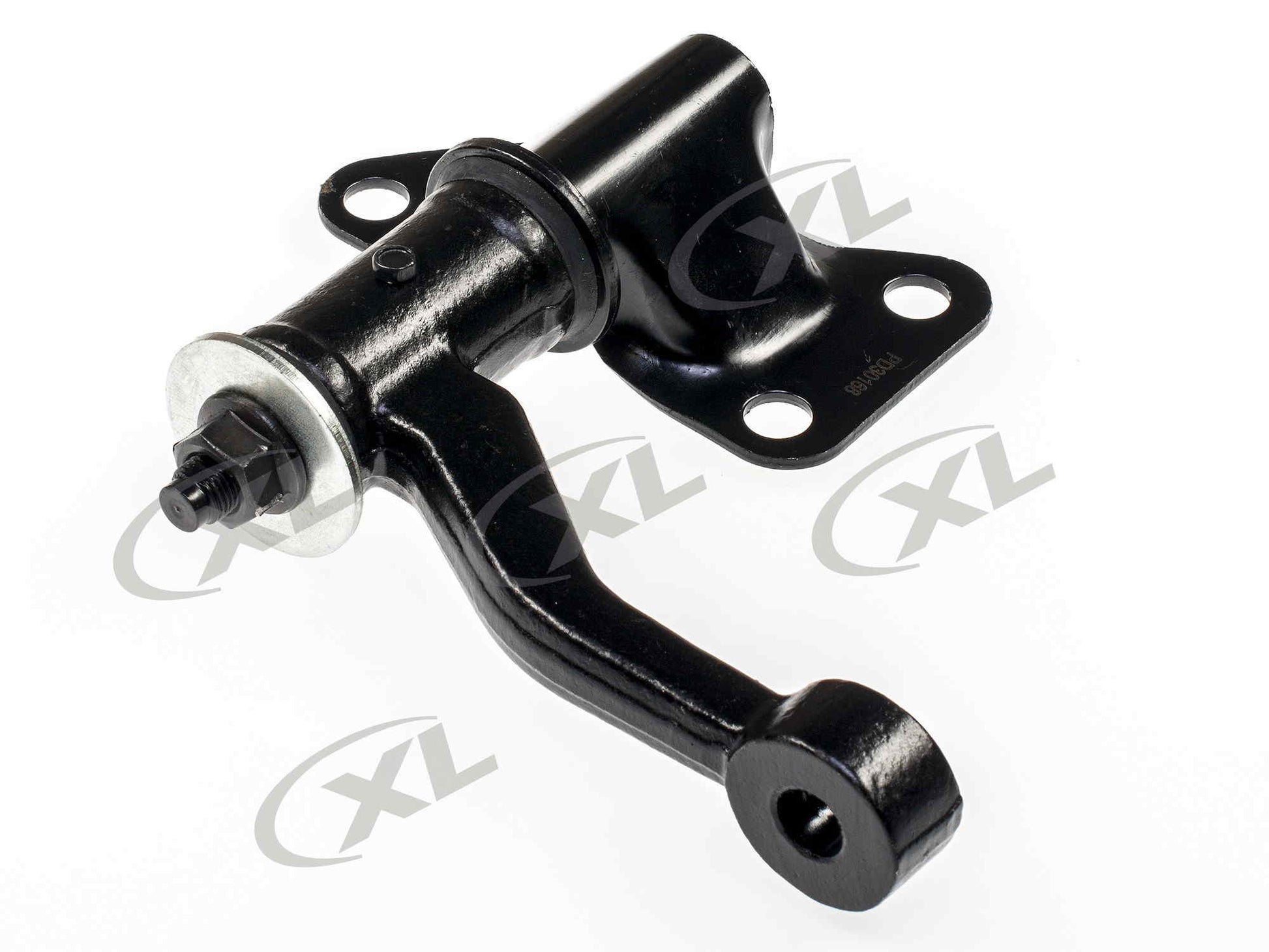

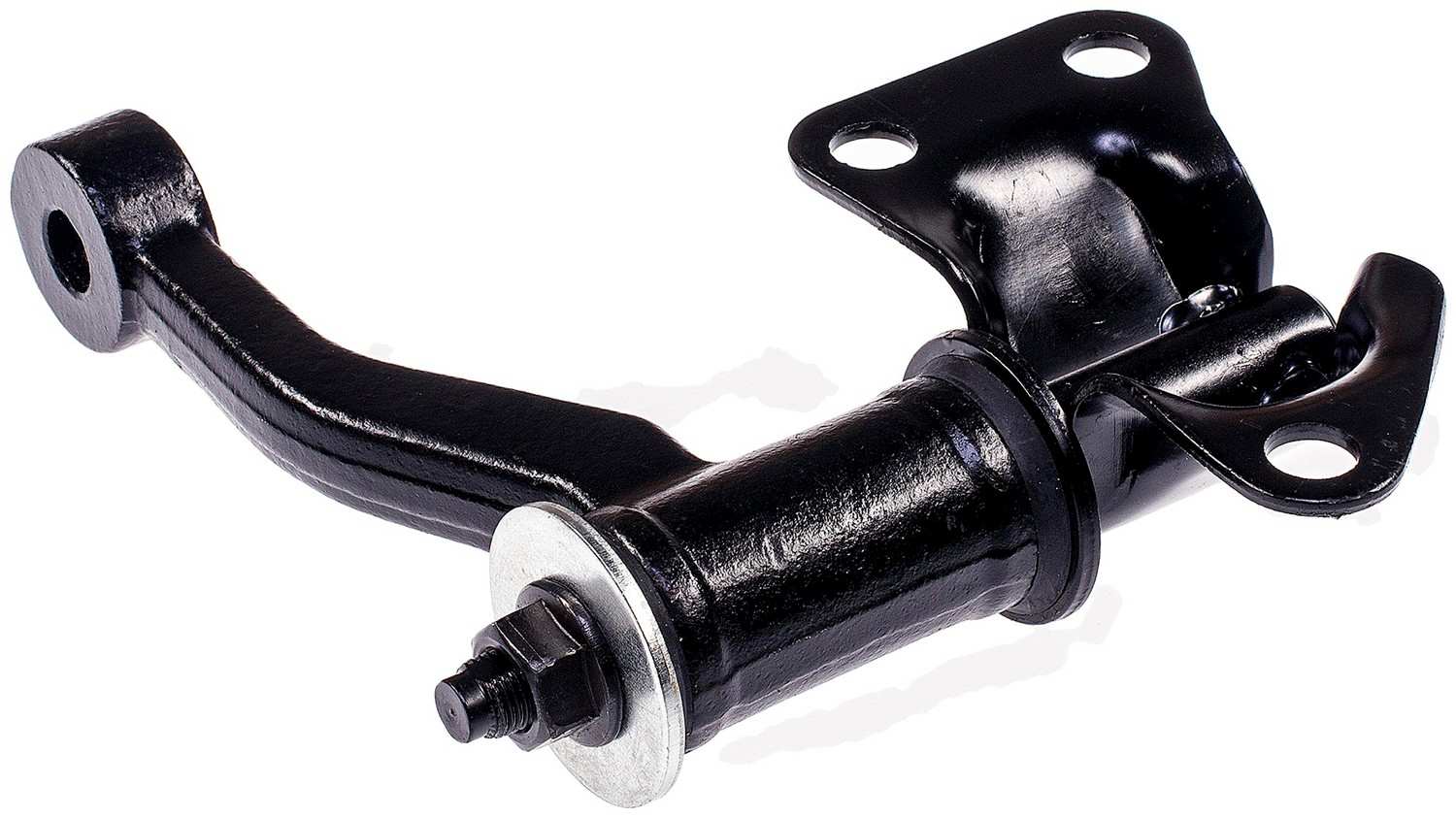

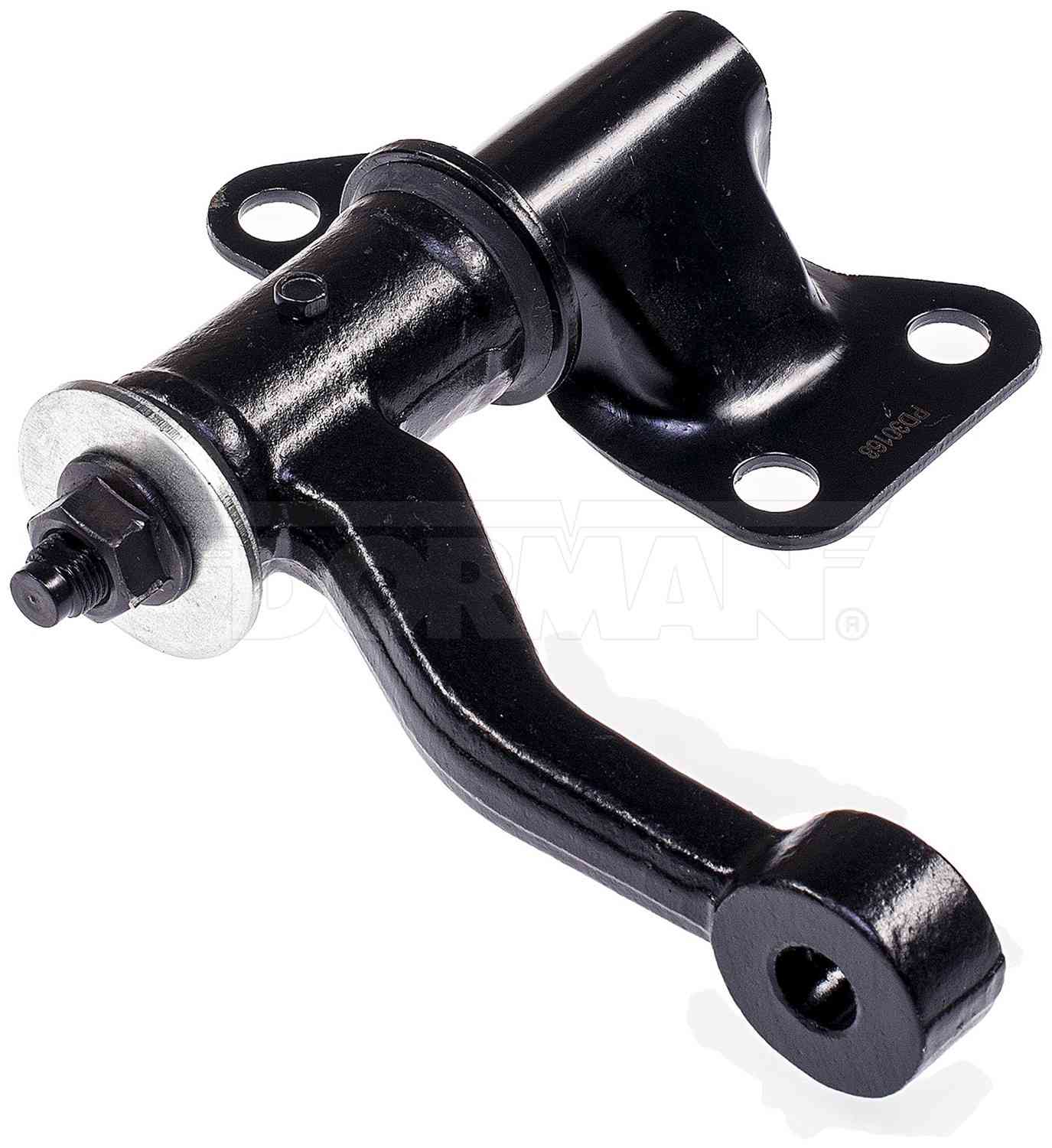

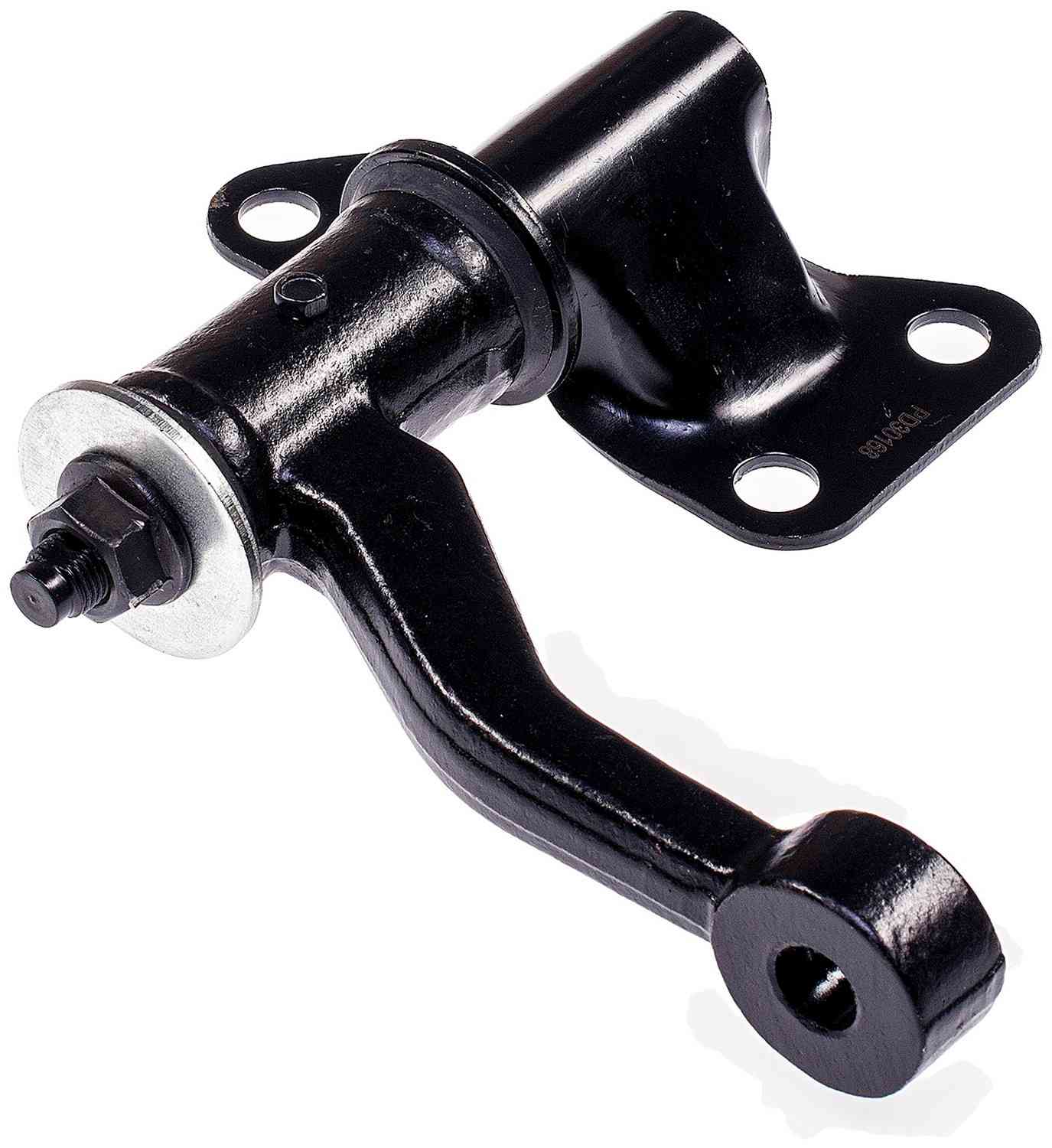

Dorman Steering Idler Arm Assembly

This extended life steering idler arm is built for smooth performance and superior durability. Featuring a hardened stud, highly polished ball, a maintenance-free polymer bearing, I.C.E. synthetic grease and premium corrosion resistance.

• Extended-life construction - this idler arm is built with features to deliver smooth performance and extended durability for demanding drivers
• Superior ball stud - hardened ArmourGrade stud with highly polished EverSmooth ball
• Low-friction bearing - UltraFlow normalized forged housing with I.C.E. synthetic grease and low-friction polymer bearing
• Premium corrosion resistance - WeatherShield external coating to resist corrosion

Application Summary: Nissan Frontier 2004-98, Nissan NP300 2014-10, Nissan Xterra 2004-00

Product Specifications

• Arm Attachment Type: Mounting Hole
• Arm Stud Thread Diameter: 13.3 mm
• Bracket Hole Quantity: 3
• Bracket Included: Yes
• Bracket Stud Thread Diameter: 0 mm
• Castle Nut Included: Yes
• Color: Black
• Finish: Coated
• Grade Type: Premium
• Grease Fitting Included: No
• Length: 128.5 mm
• Material: Steel
• Mount Hole Diameter: 12.8 mm
• Mounting Hardware Included: Yes
• Package Contents: Idler Arm; Castle Nut; Cotter Pin; Grease Plug

Vehicle Fitments:
