ICON 21-UP BRONCO SASQUATCH 2-3" LIFT STAGE 3 SUSPENSION SYSTEM TUBULAR K40013T

ICO 2.5 Series Coilover Kits

Suspension Lift Kit

APPLICATION NOTE #134: LIFT HEIGHTS & APP NOTES BASED ON SASQUATCH EQUIPPED VEHICLES

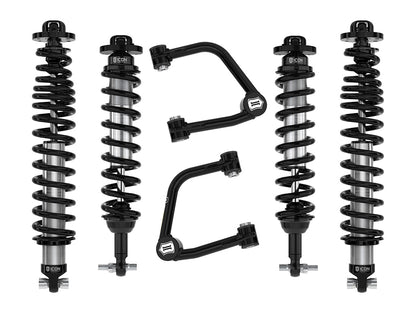

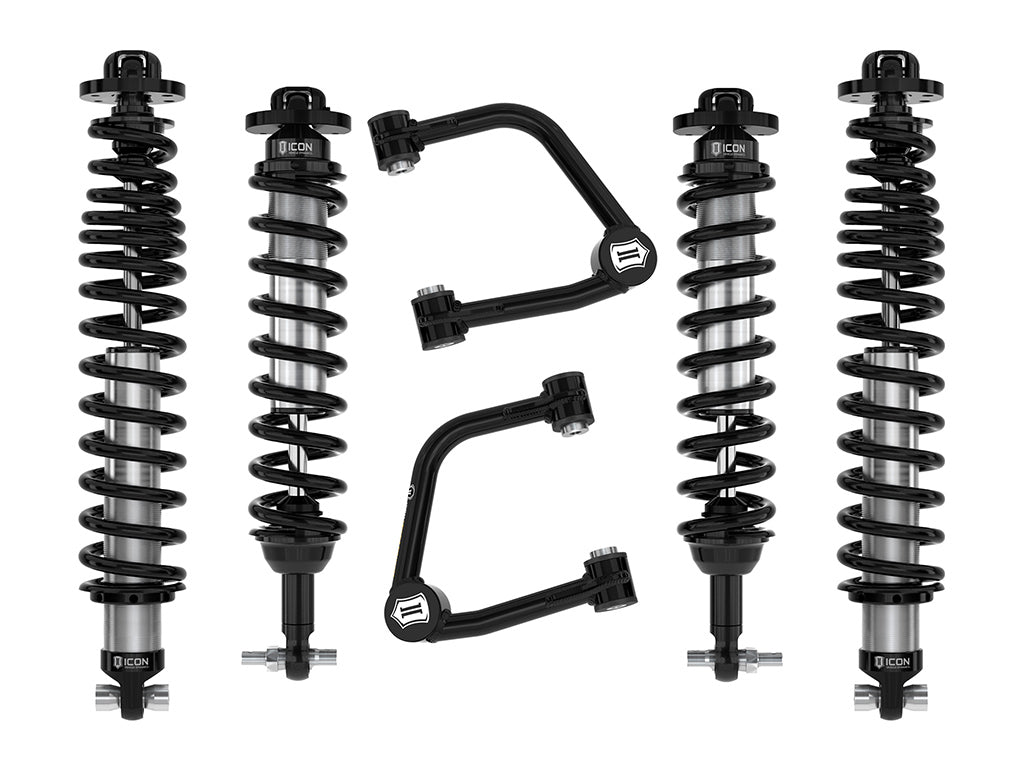

The ICON Vehicle Dynamics Stage 3 Suspension System for the 2021-UP Ford Bronco features our precision-manufactured, custom valved internal reservoir coilover shocks to yield the maximum travel possible along with superior ride quality and suspension performance both on and off-road. These coilovers also allow for the adjustment of ride height to yield 2-3 of front lift and 1.25-2.25 of rear lift over stock 4-door Broncos with the Sasquatch Package. To accommodate the increased travel and lift height afforded by the ICON Coilovers, this Stage 3 kit comes with Tubular Upper Control Arms which provide caster correction and feature our patented Delta Joint PRO, which allows for up to 90-desgrees freedom of movement. The rear shocks are oriented shaft-up with unique triple-rate coil springs to achieve the most rear suspension travel and the best ride quality possible. This suspension system is designed to provide up to 11.5" of front suspension travel and 14" of rear suspension travel when used with 35X12.50 tires. It may be safely used with 37" and larger tires if using the optional up-travel limiters (sold separately).

2021-UP FORD BRONCO WITH SASQUATCH PACKAGE 2-3" LIFT STAGE 3 SUSPENSION SYSTEM WITH TUBULAR UPPER CONTROL ARMS

Vehicle Fitments:
