Ichiba Version I, Boltpattern: 5x100, Centerbore: 56.1, Threadtype: 12X1.25
Version I, Boltpattern: 5x100, Centerbore: 56.1, Threadtype: 12X1.25

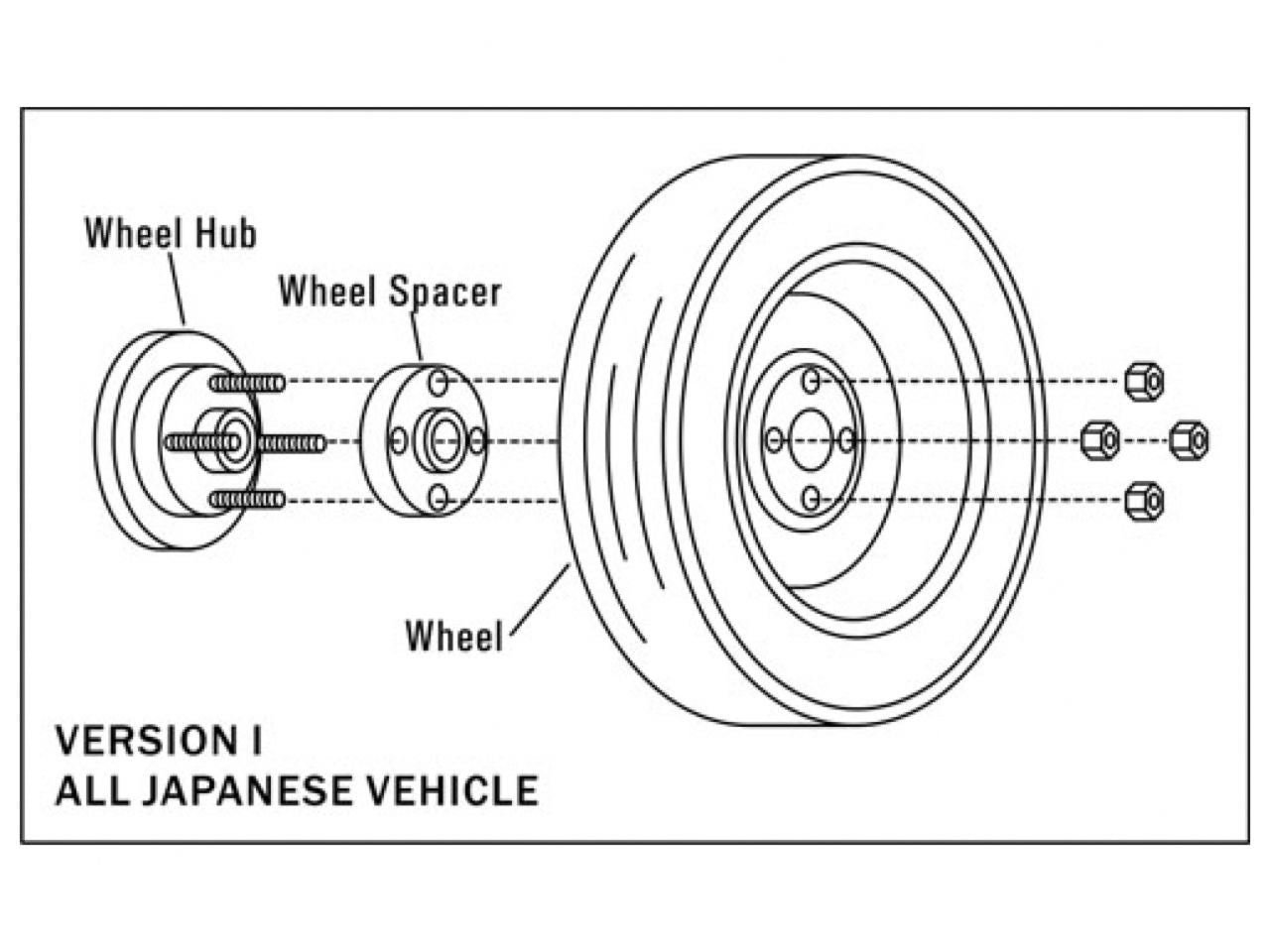

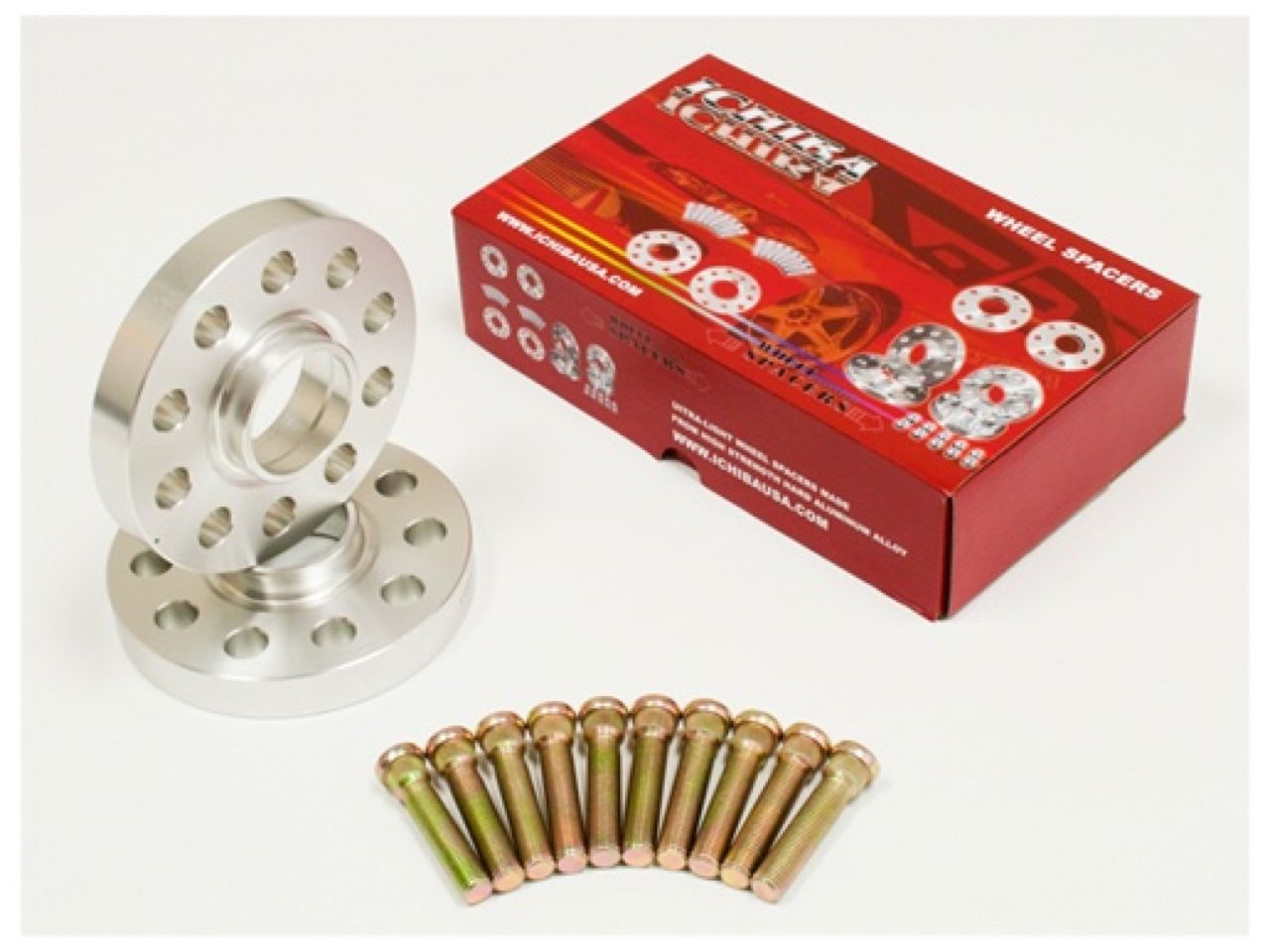

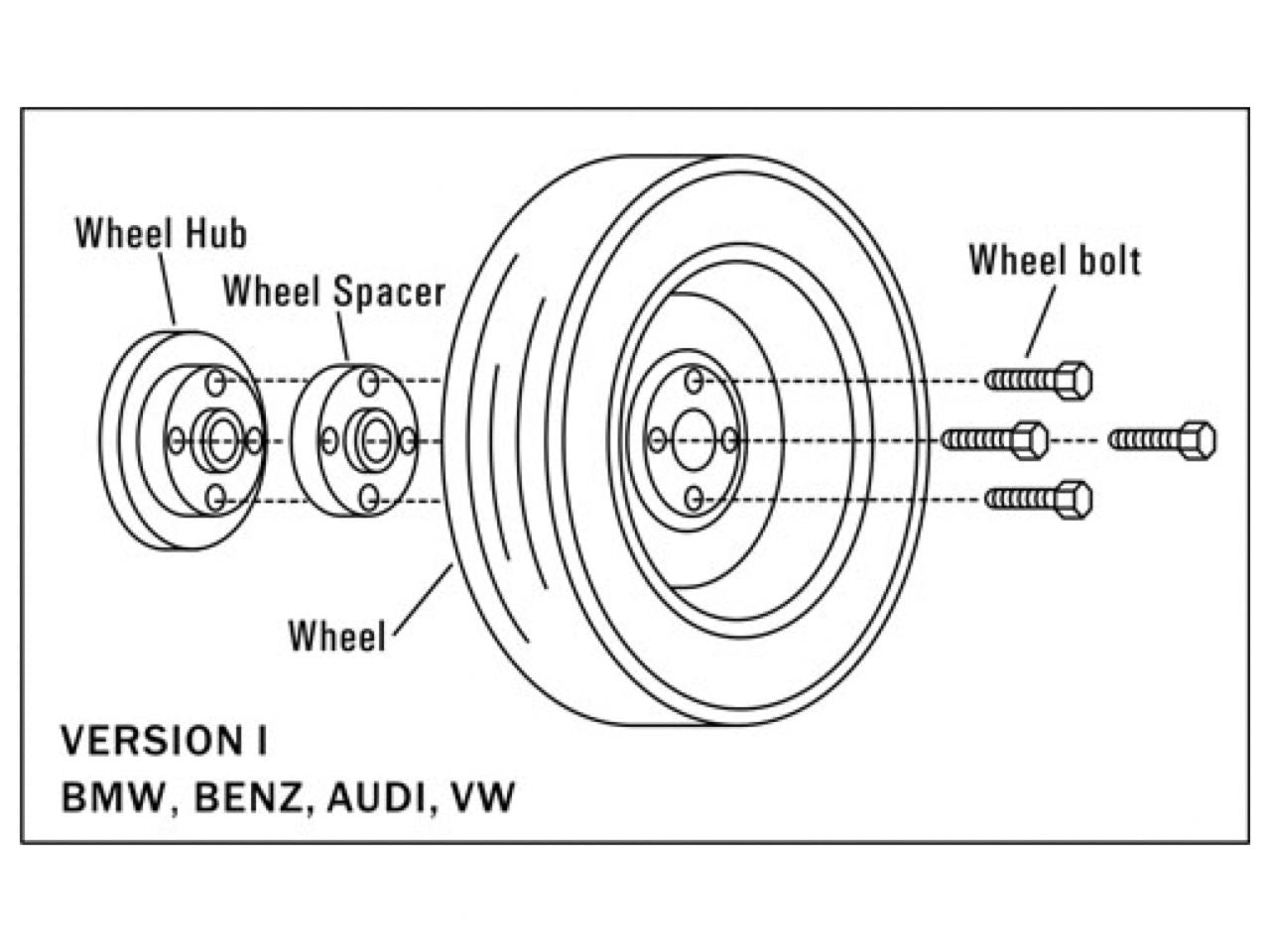

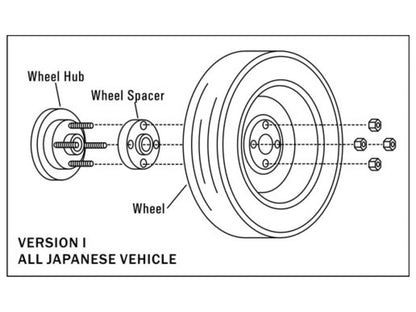

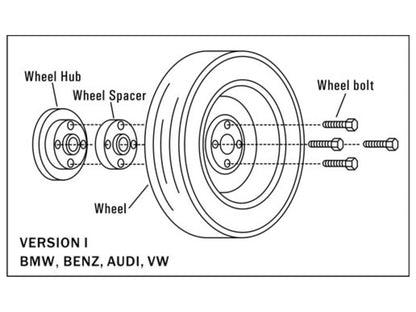

ICHIBA Version I wheel spacers are made from Aluminum/Magnesium alloy. They are incredibly strong and very lightweight. Each wheel spacers come with extended wheel studs. These are hubcentric spacers that is specifically made to each vehicle; will fitted on your vehicle's original hub perfectly without any gap. Wheel spacers move the wheel out from the hub, effectively widening the stance of the vehicle and lowering its roll center. This simple modification increases lateral stability, which in turn provides improved handling & greater safety.
- Bolt Pattern: 5x100
- Center Bore: 56.1MM
- Thread: 12x1.25
- Sold as one pair (2pcs)
- Come with extended wheel studs
HOW TO MEASURE!
The widest point of your tire and wheel combination is usually the outside diameter of the tire sidewall. Using a ruler with the straight edge flush with the face of the tire, measure the gap between the outer face of the tire to the inside lip of the fender as shown in the diagram. This will determine the thickness of the spacer you will need.
5MM = 0.197 INCH / 8MM = 0.313 INCH
10MM = 0.393 INCH / 12MM = 0.473 INCH
15MM = 0.590 INCH / 20MM = 0.787 INCH
25MM = 0.983 INCH / 30MM = 1.181 INCH
38MM = 1.496 INCH / 50MM = 1.968 INCH
Vehicle Fitments:
| Year | Make | Model | Submodel |
|---|---|---|---|
| 2006 | Saab | 9-2X | 2.5i |
| 2005 - 2006 | Saab | 9-2X | Aero |
| 2005 | Saab | 9-2X | Linear |
| 2013 - 2016 | Scion | FR-S | Base |
| 2003 | Subaru | Baja | Base |
| 2003 - 2006 | Subaru | Baja | Sport |
| 2004 - 2006 | Subaru | Baja | Turbo |
| 2015 | Subaru | BRZ | Aozora Edition, Series.Blue |
| 2013 - 2017 | Subaru | BRZ | Base, Sport-tech, Limited, Premium |
| 2016 | Subaru | BRZ | Series.HyperBlue |
| 2017 | Subaru | BRZ | Series.Yellow |
| 2008 | Subaru | Forester | 2.5 X, Anniversary Edition, 2.5 XT, 2.5 XS, Sports 2.5 XT, Sports 2.5 X, 2.5 XS Premium |
| 2014 | Subaru | Forester | 2.5i, 2.0XT Limited, 2.0XT Touring, 2.5i Touring, 2.0XT Premium, 2.5i Limited, 2.5i Convenience, 2.5i Premium |
| 1998 - 2002 | Subaru | Forester | L, S, Base |
| 2013 | Subaru | Forester | X Convenience |
| 2006 - 2008 | Subaru | Forester | X L.L. Bean Edition |
| 2009 - 2013 | Subaru | Forester | X Premium, X Limited, X Touring |
| 2003 - 2014 | Subaru | Forester | X, XS |
| 2005 | Subaru | Forester | XS L.L. Bean Edition |
| 2007 - 2014 | Subaru | Forester | XSL |
| 2004 - 2014 | Subaru | Forester | XT |
| 2006 - 2013 | Subaru | Forester | XT Limited |
| 2005 - 2013 | Subaru | Forester | XT Premium |
| 2010 - 2012 | Subaru | Forester | XT Sports |
| 2011 - 2013 | Subaru | Forester | XT Touring |
| 2008 | Subaru | Impreza | 2.0R |
| 2009 - 2010 | Subaru | Impreza | 2.5 GT |
| 2006 - 2011 | Subaru | Impreza | 2.5i |
| 2010 - 2011 | Subaru | Impreza | 2.5i Premium |
| 1993 | Subaru | Impreza | 4x4 |
| 1993 - 2013 | Subaru | Impreza | Base |
| 1996 - 1997 | Subaru | Impreza | Brighton |
| 2013 | Subaru | Impreza | I Sport, i |
| 1993 - 2001 | Subaru | Impreza | L |
| 1995 | Subaru | Impreza | L 4x4 |
| 1993 - 1994 | Subaru | Impreza | LS |
| 1995 - 1996 | Subaru | Impreza | LX |
| 1995 - 2004 | Subaru | Impreza | Outback |
| 2005 - 2011 | Subaru | Impreza | Outback Sport |
| 2009 - 2012 | Subaru | Impreza | R |
| 1998 - 2005 | Subaru | Impreza | RS |
| 2008 - 2013 | Subaru | Impreza | Sport |
| 2012 - 2013 | Subaru | Impreza | Sport Limited, Sport Premium, Touring, Limited, Premium |
| 2002 - 2004 | Subaru | Impreza | TS |
| 2002 - 2013 | Subaru | Impreza | WRX |
| 2006 - 2013 | Subaru | Impreza | WRX Limited |
| 2009 - 2013 | Subaru | Impreza | WRX Premium |
| 2004 - 2013 | Subaru | Impreza | WRX STI |
| 2007 - 2013 | Subaru | Impreza | WRX STI Limited |
| 2010 | Subaru | Impreza | WRX STI Special Edition, WRX GT, 2.5i Limited, WRX SE |
| 2006 - 2007 | Subaru | Impreza | WRX TR |
| 2011 | Subaru | Impreza | XV |
| 2008 | Subaru | Legacy | 2.0, 3.0 |
| 2013 - 2014 | Subaru | Legacy | 2.5i Convenience |
| 2006 - 2014 | Subaru | Legacy | 2.5i Limited, 2.5i |
| 2007 - 2009 | Subaru | Legacy | 2.5i Special Edition |
| 2009 - 2013 | Subaru | Legacy | 2.5i Touring |
| 2008 - 2009 | Subaru | Legacy | 3.0 R Limited |
| 2009 | Subaru | Legacy | 3.0 R, 2.0R, 3.0 R Premier |
| 2010 - 2013 | Subaru | Legacy | 3.6R |
| 2010 - 2014 | Subaru | Legacy | 3.6R Limited, 2.5i Premium |
| 2010 - 2012 | Subaru | Legacy | 3.6R Premium, 2.5GT |
| 1992 - 1994 | Subaru | Legacy | 4x4 |
| 1990 - 2014 | Subaru | Legacy | Base |
| 1995 - 2000 | Subaru | Legacy | Brighton |
| 1994 - 2013 | Subaru | Legacy | GT |
| 1998 - 2009 | Subaru | Legacy | GT Limited |
| 2006 - 2009 | Subaru | Legacy | GT spec.B |
| 2005 | Subaru | Legacy | i |
| 1990 - 2004 | Subaru | Legacy | L |
| 2004 | Subaru | Legacy | L 35th Anniversary |
| 1992 - 1993 | Subaru | Legacy | L 4x4, LS 4x4 |
| 2003 | Subaru | Legacy | L SE |
| 2005 - 2008 | Subaru | Legacy | Limited |
| 1990 - 1996 | Subaru | Legacy | LS |
| 1991 - 1997 | Subaru | Legacy | LSi |
| 1995 - 1999 | Subaru | Legacy | Outback |
| 1997 - 1999 | Subaru | Legacy | Outback Limited |
| 1994 | Subaru | Legacy | Outdoor, Sun Sport, Alpine Sport |
| 1995 - 1998 | Subaru | Legacy | Postal |
| 2014 | Subaru | Legacy | R, 2.5i Sport |
| 1991 - 2014 | Subaru | Legacy | Sport |
| 1999 | Subaru | Legacy | SUS 30th Anniversary, Limited 30th Anniversary, L 30th Anniversary |
| 1994 - 2008 | Subaru | Legacy | Touring |
| 2007 | Subaru | Outback | 2.5i Basic |
| 2013 - 2014 | Subaru | Outback | 2.5i Convenience |
| 2006 - 2014 | Subaru | Outback | 2.5i Limited, 2.5i |
| 2010 - 2014 | Subaru | Outback | 2.5i Premium, 3.6R Limited, 3.6R |
| 2010 | Subaru | Outback | 2.5i Sport |
| 2012 - 2014 | Subaru | Outback | 2.5i Touring |
| 2009 | Subaru | Outback | 3.0 R Premier, 3.0 R Limited, 2.5i Special Edition |
| 2010 - 2012 | Subaru | Outback | 3.6R Premium |
| 2000 - 2013 | Subaru | Outback | Base |
| 2002 - 2004 | Subaru | Outback | H6 |
| 2004 | Subaru | Outback | H6 VDC, H6 35th Anniversary Edition |
| 2005 | Subaru | Outback | i, VDC Limited |
| 2001 - 2004 | Subaru | Outback | L.L. Bean |
| 2000 - 2014 | Subaru | Outback | Limited |
| 2008 | Subaru | Outback | Premier, 2.5i Limited L.L. Bean Edition, 2.5i L.L. Bean Edition, 3.0 R, Touring, 2.5 XT |
| 2005 - 2006 | Subaru | Outback | R |
| 2005 - 2008 | Subaru | Outback | R L.L. Bean Edition, XT |
| 2006 | Subaru | Outback | R VDC Limited |
| 2001 - 2003 | Subaru | Outback | VDC |
| 2005 - 2009 | Subaru | Outback | XT Limited |
| 2008 - 2013 | Subaru | Tribeca | Limited, Base |
| 2009 - 2013 | Subaru | Tribeca | Premier |
| 2008 | Subaru | Tribeca | Premiere |
| 2010 - 2012 | Subaru | Tribeca | Premium, Touring |
| 2017 | Toyota | 86 | Base, Special Edition |
Ichiba Version I, Boltpattern: 5x100, Centerbore: 56.1, Threadtype: 12X1.25
Sale price$94.50 USD
Regular price$105.00 USD
