Mishimoto Hyundai Veloster Turbo Direct Fit Catch Can, PCV Side, 2019+

Nothing says fun quite like the Hyundai Veloster. It is practicality and the right amount of zip all wrapped up in the fusion of hot-hatch and coupe. Couple those with the Gamma 1.6T powering the front wheels and you have the complete package. Blow-by, however, has a tendency to put a damper on the fun. With the lack of detergent-rich fuel washing over the valves, carbon now has the perfect environment to quell the performance of that punchy engine.
The Mishimoto Hyundai Veloster Turbo Direct-Fit Catch can is here to keep the fun in your Veloster. By mounting our 2-port compact catch can in line with the Gammas PCV system, the blow-by is trapped before it has the chance to make it to the valves. Our kit includes a robust, application-specific bracket to ensure a sturdy mounting point for your can, along with pre-molded hoses to ensure a simplified installation.
- Direct fit for the 2019+ Hyundai Veloster Turbo
- Single can mounts in line with the PCV system to separate oil from air using a 50-micron bronze filter
- Helps reduce carbon buildup on intake valves
- Patent pending billet 6061 aluminum can sealed with Viton" O-rings
- Includes PCV adapter for alternate installation option
- Robust, application-specific bracket mounts the can in a serviceable location
- Includes pre-molded hoses for simplified installation
- Defends intake system and essential components from oil blow-by
- CNC-machined aluminum barbed fittings ensure a sturdy connection between lines and can
- Catch can has a 3 oz. capacity for longer servicing intervals

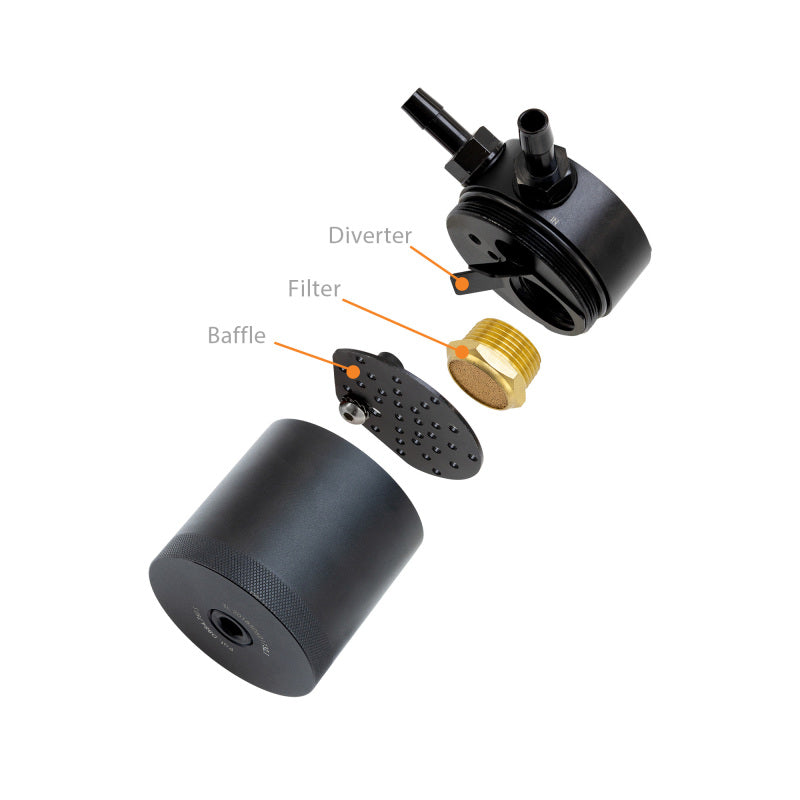

- Internal air diverter increases air turbulence to improve oil separation
- Helps maintain proper octane levels to reduce potential detonation
- Filter and can are fully serviceable
Specs
- Overall Height 3.8"
- Overall Diameter 2.5"
- Inlet 3/8"
- Outlet 1/2"
- Drain Plug Thread Size 3/8" NPT
- Capacity 3 fl oz.

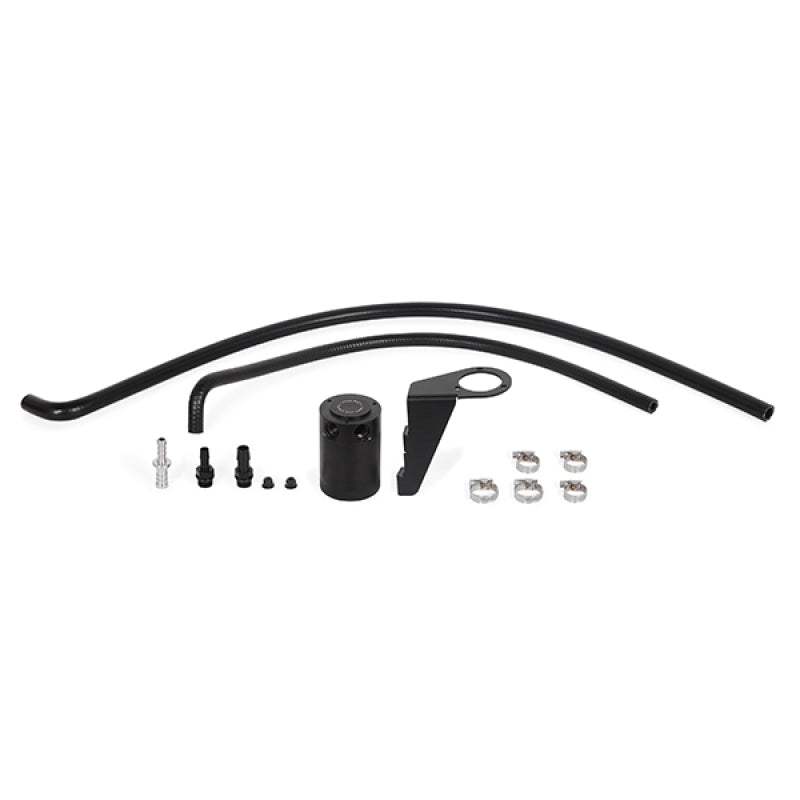

Purchase Includes
(1) Compact Oil Catch Can
(1) Application-Specific Mounting Bracket
(2) Direct-Fit Hoses
(1) 3/8" Aluminum Barbed Fitting
(1) 1/2" Aluminum Barbed Fitting
(1) PCV Adapter Fitting
(5) Worm Gear Clamps
Mounting Hardware
Fits 2019+ Hyundai Veloster Turbo
Engine Codes Gamma 1.6T
Material 6061 Aluminum
Install Torque Specs
22 in-lbs (2.5N*M) recommended for all worm-gear clamps. These clamps have an operating range of 18-27 in-lbs 2-3N*M. Do not exceed the maximum torque rating of 27 in-lbs (3N*M).
Note
After installation, Mishimoto recommends checking the contents of the baffled catch cans every 1,000 miles until a baseline is established. Oil blow-by accumulation will vary with ambient temperatures and driving conditions. It is important that the contents of the can do not rise above the internal baffle.
Baffled True.
Vehicle Fitments:
Year | Make | Model | Submodel |
---|---|---|---|
2020 | Hyundai | Veloster | Preferred, Luxury |
2019 - 2020 | Hyundai | Veloster | Turbo Ultimate, Premium, Base, Turbo R-Spec, Turbo |
