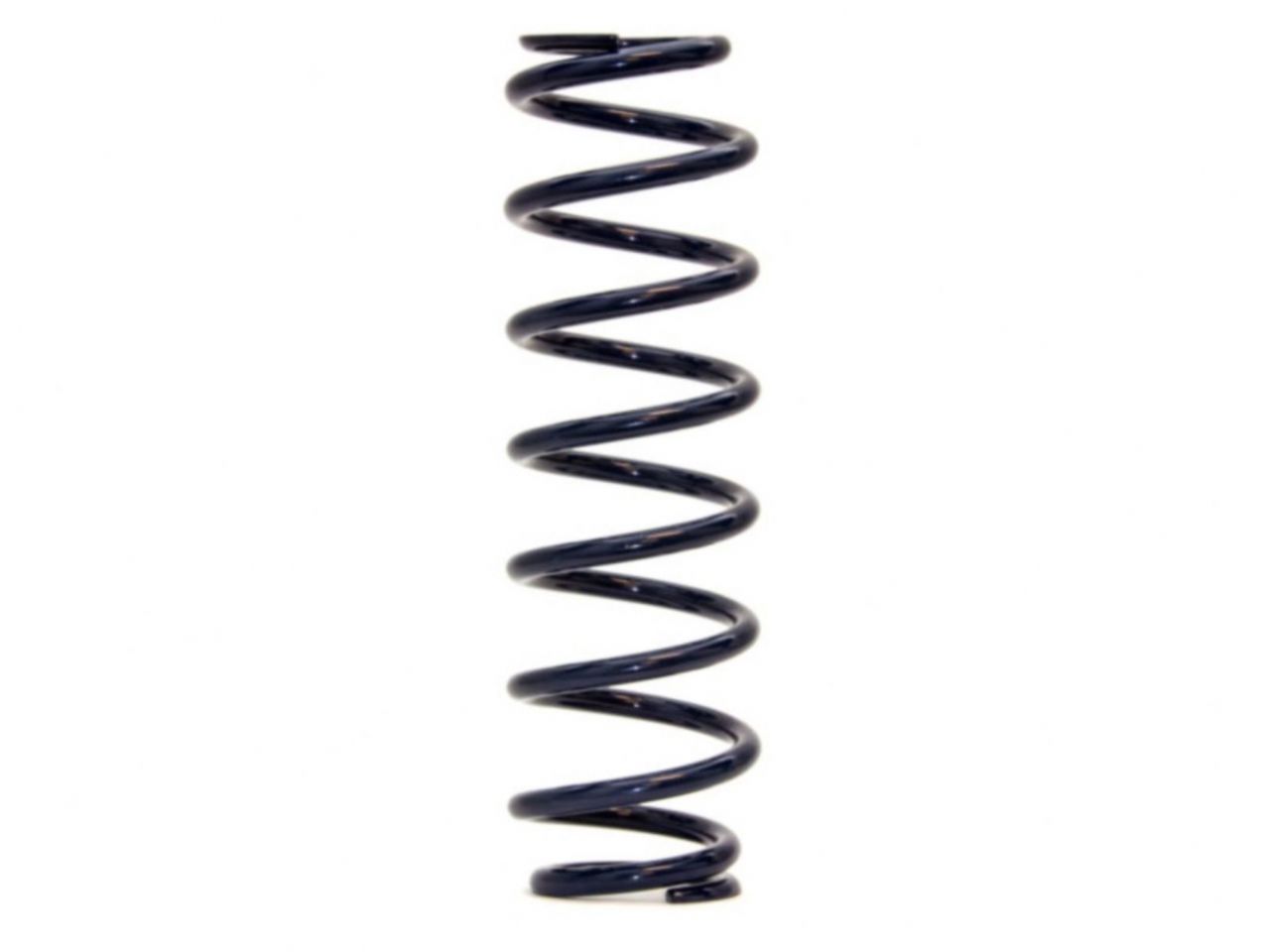

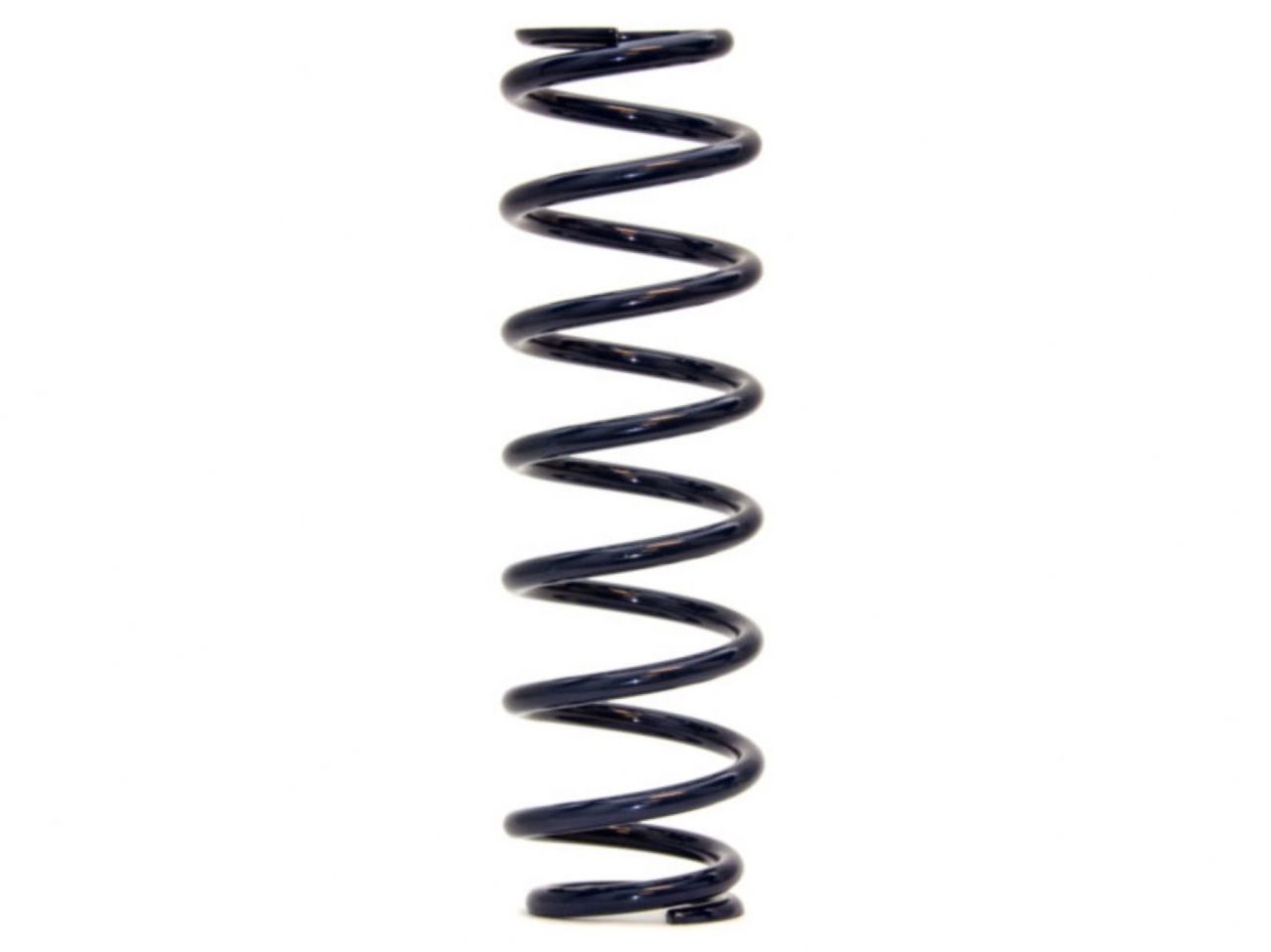

Hyperco 2.5" I.d. Springs/8 " Free Length
Coil-Over Springs are high-performance, aftermarket suspension springs primarily used in Motorsports and Motor Racing. Hyperco’s coil-over springs, also known as Hypercoils™, offer a wide range of free lengths and rates which provide the suspension designer latitude in creating a motion ratio for the suspension system that will permit an optimized damper or spring assembly to control a wide range of wheel travel.
Optimum Body Diameter (OBD)
Optimum Body Diameter is the standard spring design for Hyperco coil-over springs. Featuring a unique design concept that adjusts the body diameter of the spring relative to the end coils, an OBD spring enables Hyperco to take full advantage of our ultra-high tensile spring materials by optimizing the applied stress through adjusting the spring’s body diameter.
Key Benefits of Hypercoils OBD/UHT Coil-Over Springs
More usable deflection
Less weight than standard suspension springs
2% rate linearity tolerance from 20% to 60% of deflection
4% rate linearity tolerance from 61% to 80% of deflection
More resistant to bowing than competitor’s springs
Designed to fit all standard hardware
Maintain free length and rate throughout a near infinite operational life
BASIC SPECIFICATION:
Free length range: 8"
Spring rates: 85#/in to 1300#/in
Material: High tensile chrome silicone
Finish: Hyperco dark blue powder coat
Spring Design(s): Optimum Body Diameter (OBD)
