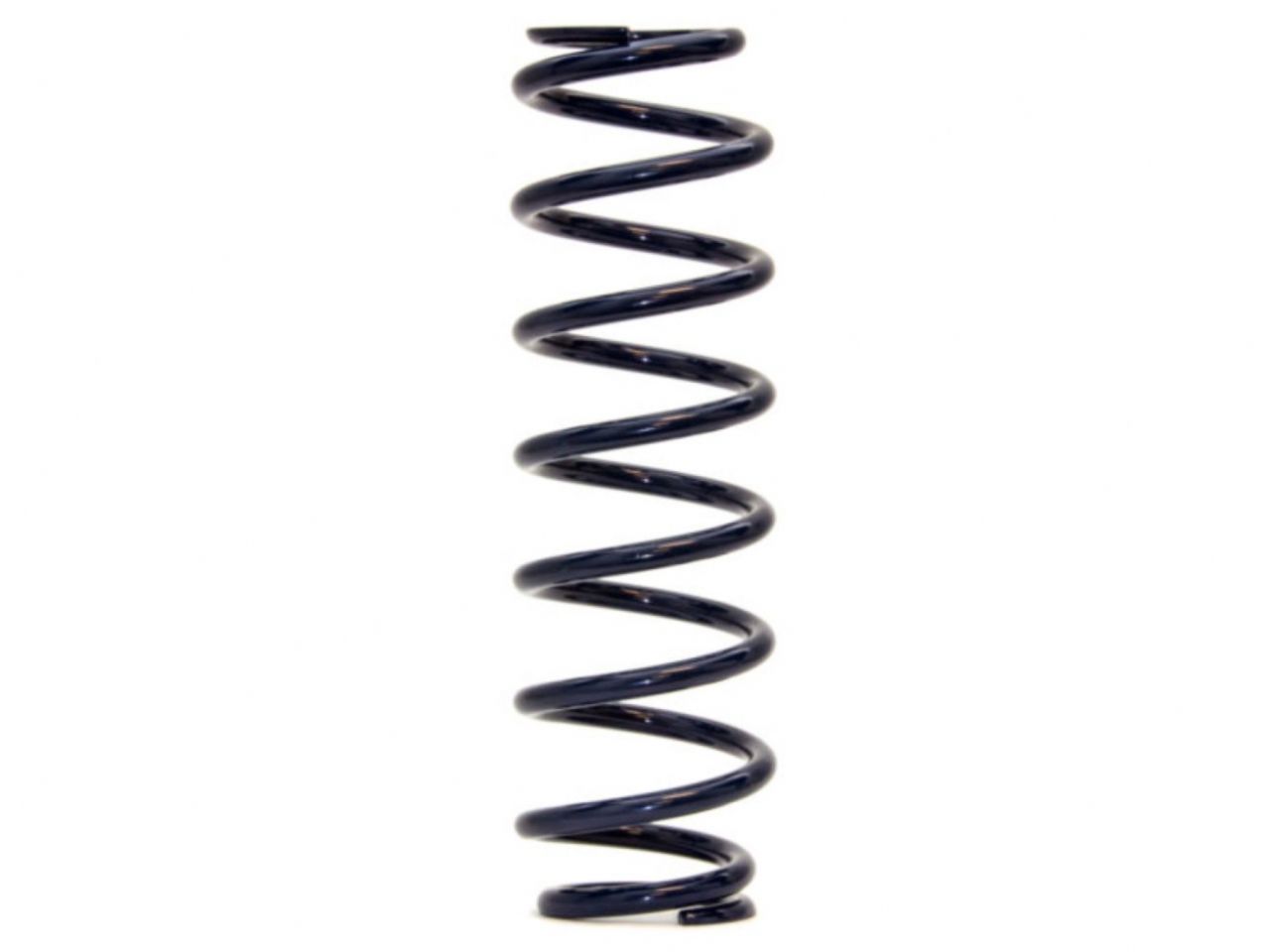

Hyperco 2.5" I.d. Springs/16 " Free Length Ultra High Travel
![](http://frsport.com/cdn/shop/files/we-ship-worldwide_3.webp?v=1709782563&width=300)
Coil-Over Springs are high-performance, aftermarket suspension springs primarily used in Motorsports and Motor Racing. Hyperco’s coil-over springs, also known as Hypercoils™, offer a wide range of free lengths and rates which provide the suspension designer latitude in creating a motion ratio for the suspension system that will permit an optimized damper or spring assembly to control a wide range of wheel travel.
Ultra High Travel (UHT)
Our Ultra High Travel springs are designed specifically for light rate / high travel coil-over applications, such as dirt and pavement racing. The UHT design meets the requirements of soft spring and big bar set-ups, and remains consistent in free length and installed height. The Ultra High Travel design features a larger “body bulge” over Hyperco’s standard OBD design, which allows for additional deflection, rate linearity, and resistance to bowing.
BASIC SPECIFICATION:
Free length range: 16"
Spring rates: 85#/in to 1300#/in
Material: High tensile chrome silicone
Finish: Hyperco dark blue powder coat
Spring Design(s): Ultra High Travel (UHT)
