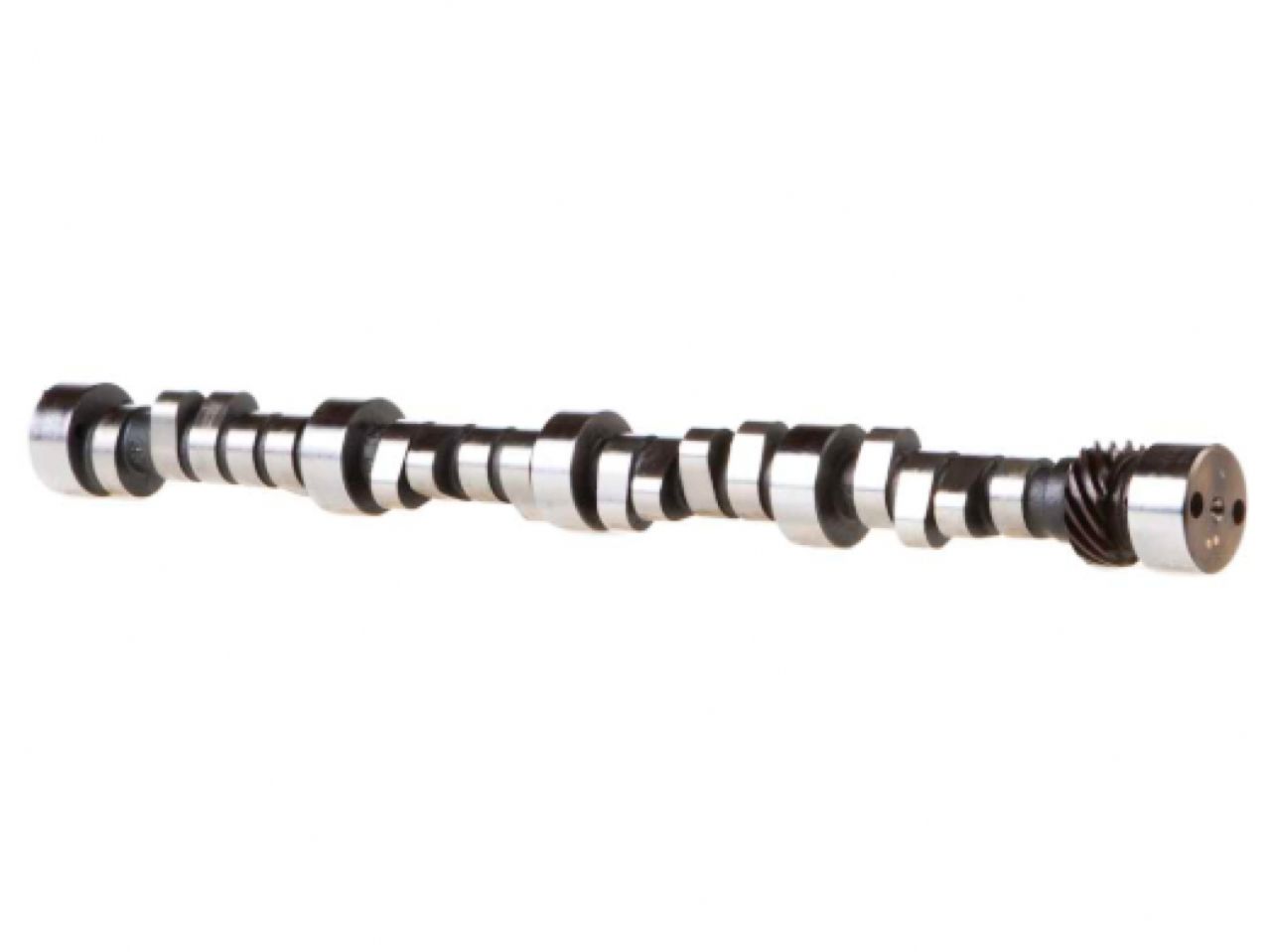

Melling Hyd.Retro Fit Roller Cam

Class I camshaft (200°-215°). Good idle quality. Low rpm torque and mid range performance. Will work with stock or slightly modified engine. Manual or auto transmission. Melling offers a full line of high performance camshafts for domestic cars, light trucks, import vehicles, marine and high performance engines. Melling offers specific high performance camshaft choices for street, RV, strip and circle track racing applications. Melling camshafts supply the performance to suit your horsepower and torque requirements wherever and whenever you want it. Melling high performance camshafts are developed, engineered, tested and manufactured with the highest standards of quality and materials.

Specifications

Advertised Exhaust Duration: 274 deg

Advertised Intake Duration: 265 deg

Basic Operating RPM Range: 2500 RPM

Cam Type: Hydraulic Roller

Computer Controlled Compatible: No

Exhaust Duration at .050 inch Lift: 214 deg

Exhaust Valve Lift: 0.490 in

Exhaust Valve Lift with Factory Rocker Arm Ratio: 1.50 in

Intake Duration at .050 Inch Lift: 206 deg

Intake Valve Lift: 0.470 in

Intake Valve Lift with Factory Rocker Arm Ratio: 1.50 in

Lifter Type: Hydraulic Roller

Lobe Separation: 112 deg
