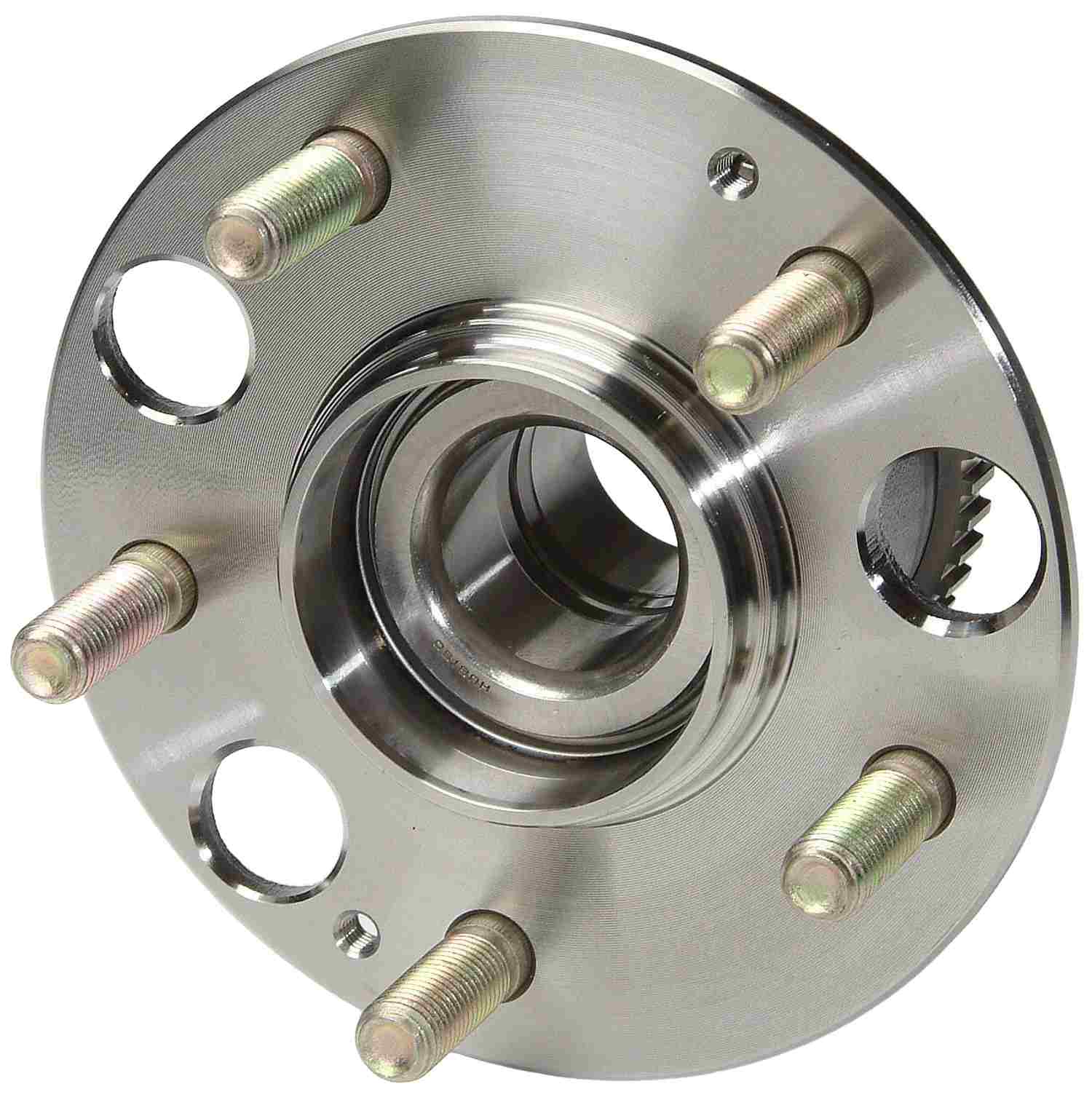

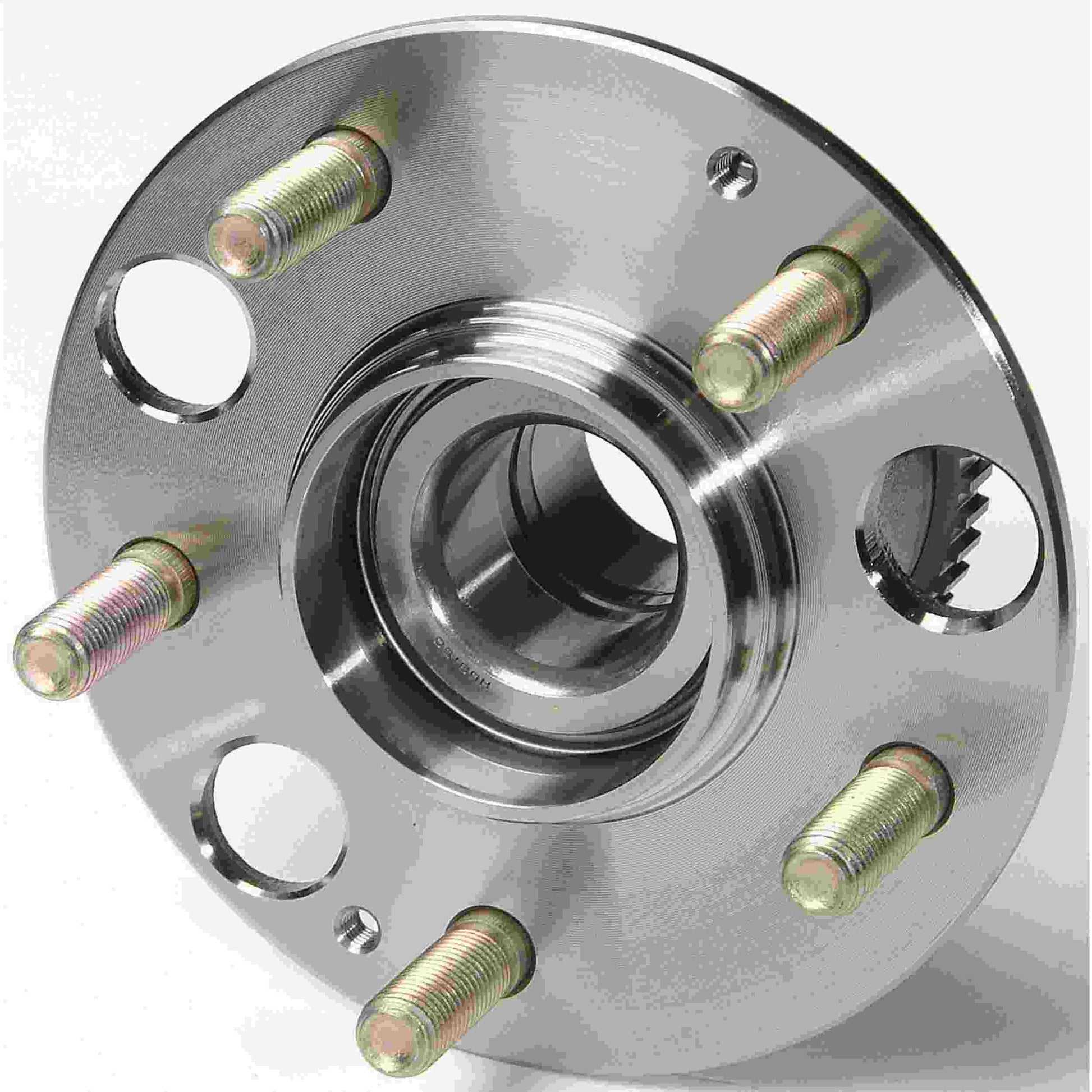

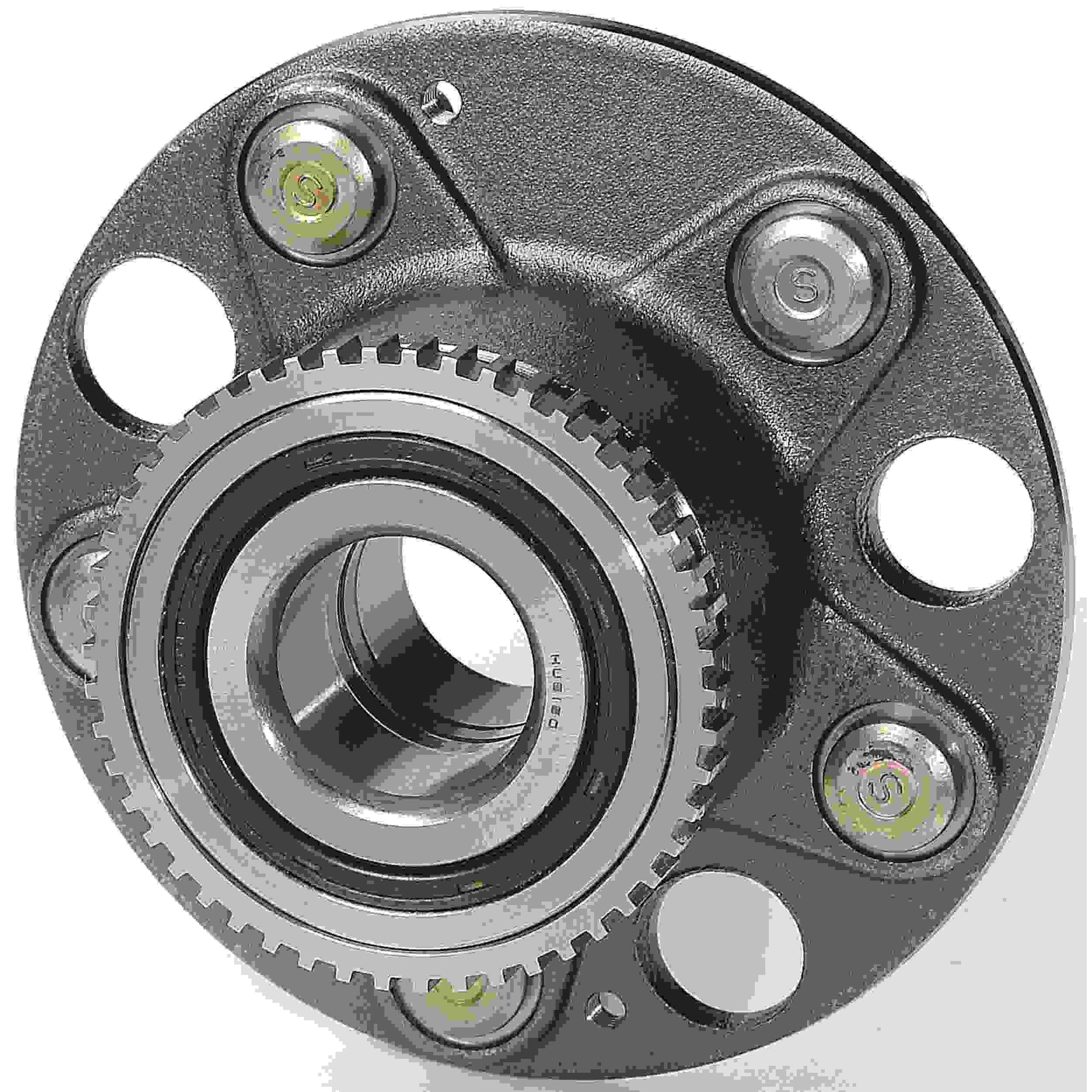

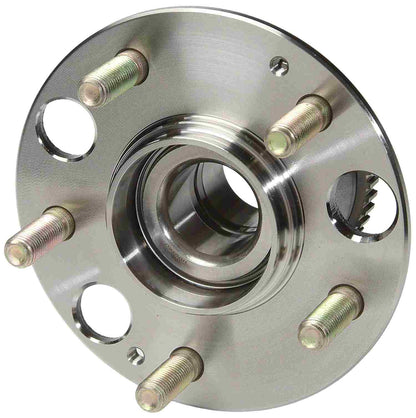

Moog Hub Assembly

MOOG® hub assemblies are performance proven, quality tested and are available for a broad range of foreign and domestic vehicles. Their application-specific design enhancements provide longer life, smoother operation and optimum ABS performance.

Features:

Precision Matched Components: Rigorously controlled manufacturing processes ensure exact matching of bearing raceways and rolling elements to consistently deliver superior performance and minimize noise and vibration.

Engineered to overcome problems and deliver smooth, reliable performance.

MOOG® hub assemblies are performance proven, quality tested and are available for a broad range of foreign and domestic vehicles.

Application specific design

Specifications:

• Flange Diameter (A): 146.0
• Bolt Circle Diameter (B): 4.567
• Bolt Circle Diameter Metric (B): 114.3
• Bolt Size (C): M12X1.5
• Wheel Pilot Diameter (D): 64.1
• Brake Pilot Diameter (E): 70.1
• Flange Offset (F): 61.8
• Hub Pilot Diameter (G): 73.0
• Wheel Stud Quantity: 5
• ABS Sensor: Sensor
• Location: Rear Wheel
• Bearing OD (Inch): 11.535
• Bearing Width (Inch): 3.780
• Inner Race Width (Inch): 2.284
• Outter Race Width (Inch): 2.449
• Bearing Bore (Inch): 1.339
• Inner Race Bore (Inch): 1.339
• Bearing OD (mm): 146.5
• Bearing Width (mm): 96.0
• Inner Race Width (mm): 58.0
• Outter Race Width (mm): 62.0
• Bearing Bore (mm): 34.0
• Inner Race Bore (mm): 34.0

Vehicle Fitments:
