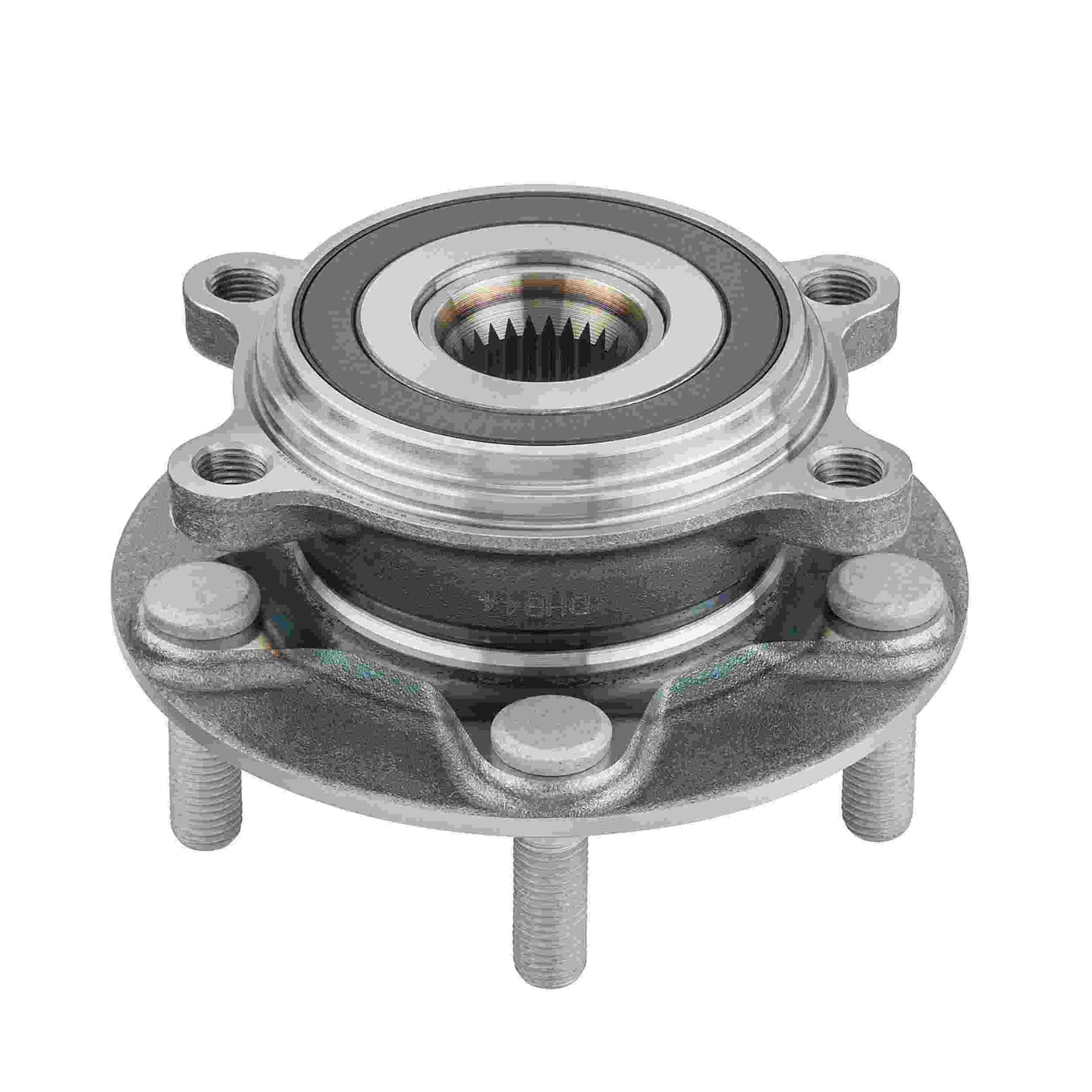

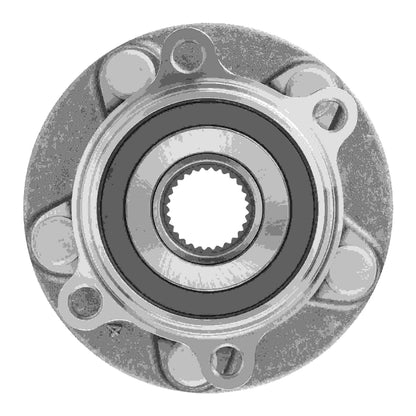

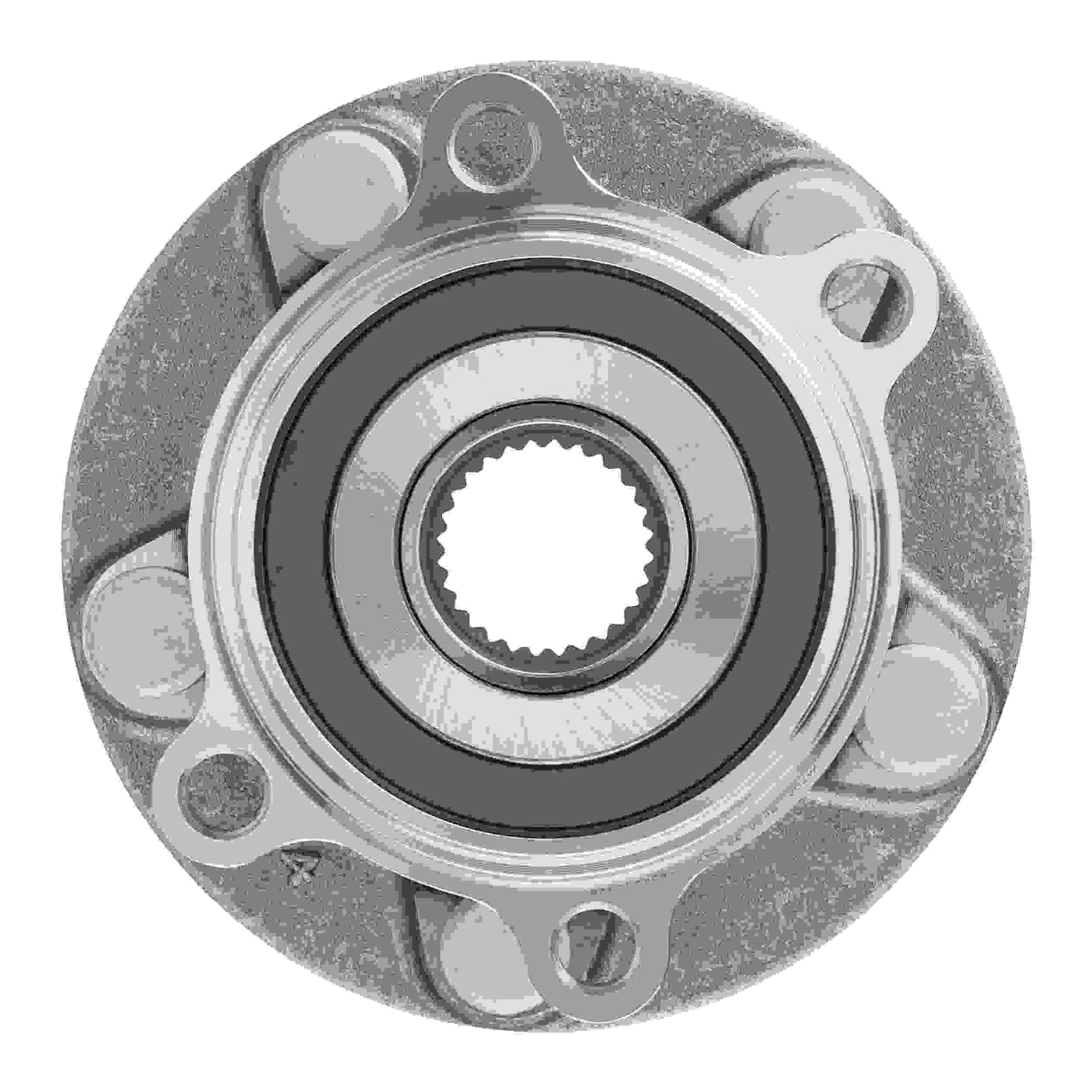

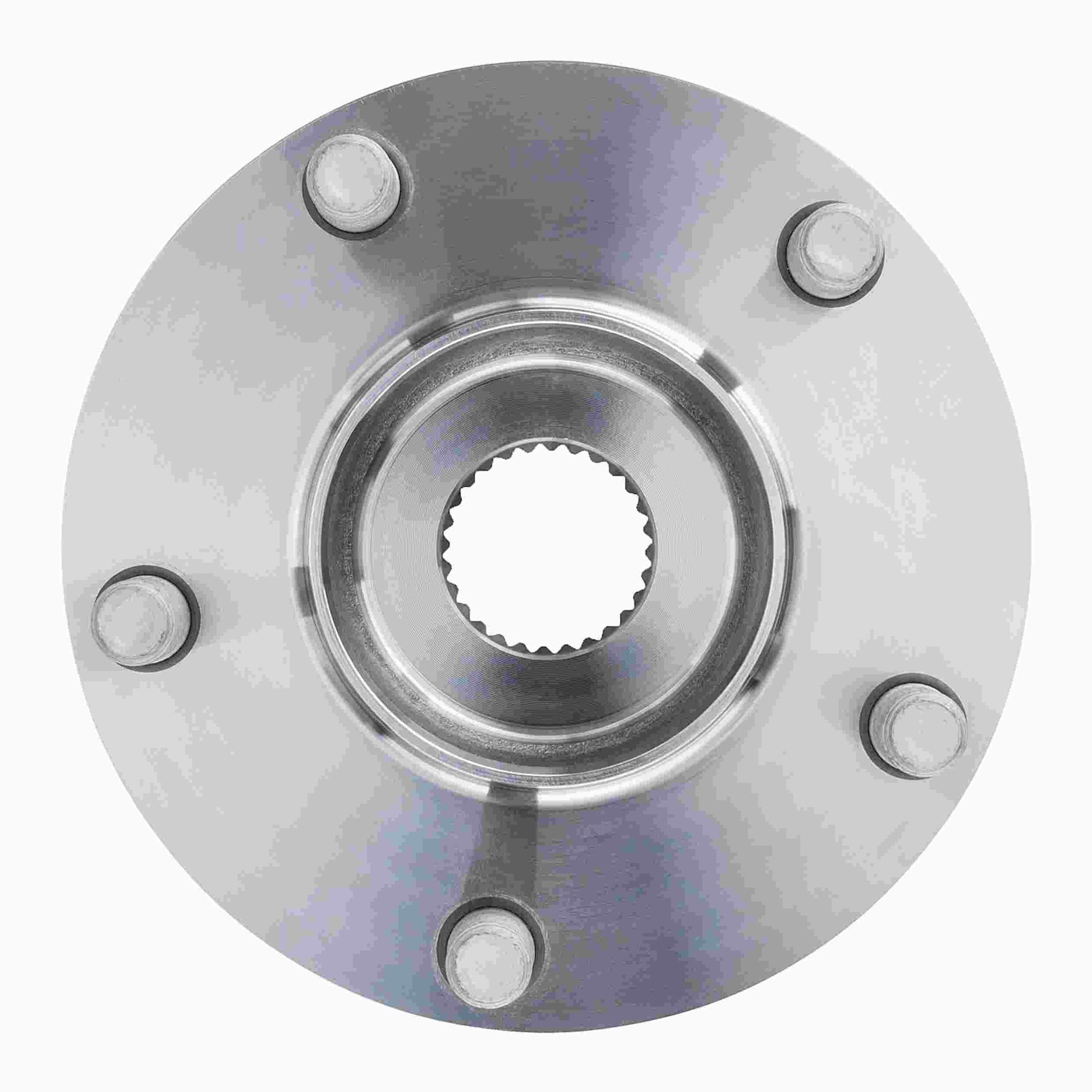

Moog Hub Assembly

MOOG® hub assemblies are performance proven, quality tested and are available for a broad range of foreign and domestic vehicles. Their application-specific design enhancements provide longer life, smoother operation and optimum ABS performance.

•  Precision Matched Components: Rigorously controlled manufacturing processes ensure exact matching of bearing raceways and rolling elements to consistently deliver superior performance and minimize noise and vibration.
• Engineered to overcome problems and deliver smooth, reliable performance.
• MOOG® hub assemblies are performance proven, quality tested and are available for a broad range of foreign and domestic vehicles.
•  Application specific design

Specifications

Hub Assemblies

• Flange Bolt Hole Quantity: 4
• Flange Diameter (A): 138.6
• Bolt Circle Diameter (B): 4.724
• Bolt Circle Diameter Metric (B): 114.5
• Bolt Size (C): M12x1.5
• Wheel Pilot Diameter (D): 66.9
• Brake Pilot Diameter (E): 67.9
• Flange Offset (F): 42.7
• Hub Pilot Diameter (G): 90.8
• Bolt Hole MET (I): M12x1.25
• Wheel Stud Quantity: 5
• Number of Splines: 28
• Flange Shape (K): RECTANGLE
• ABS Sensor: Encoder
• Location: Front Wheel
