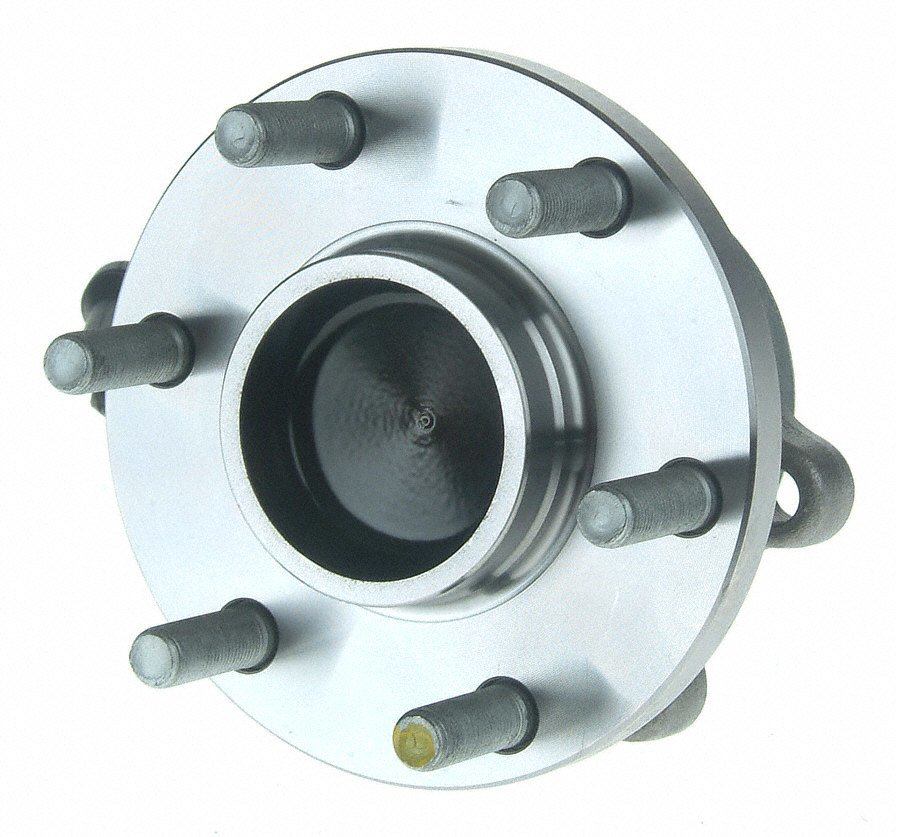

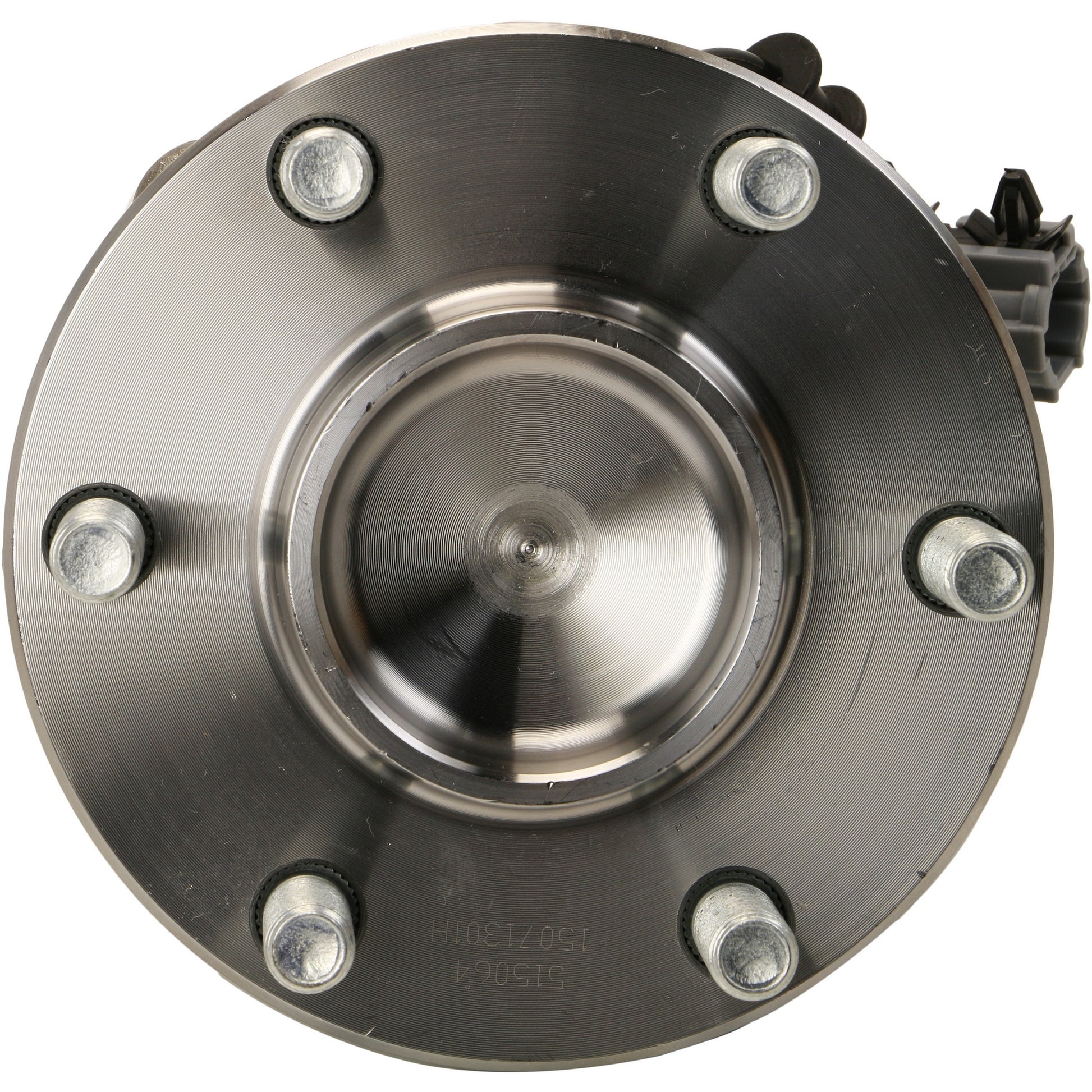

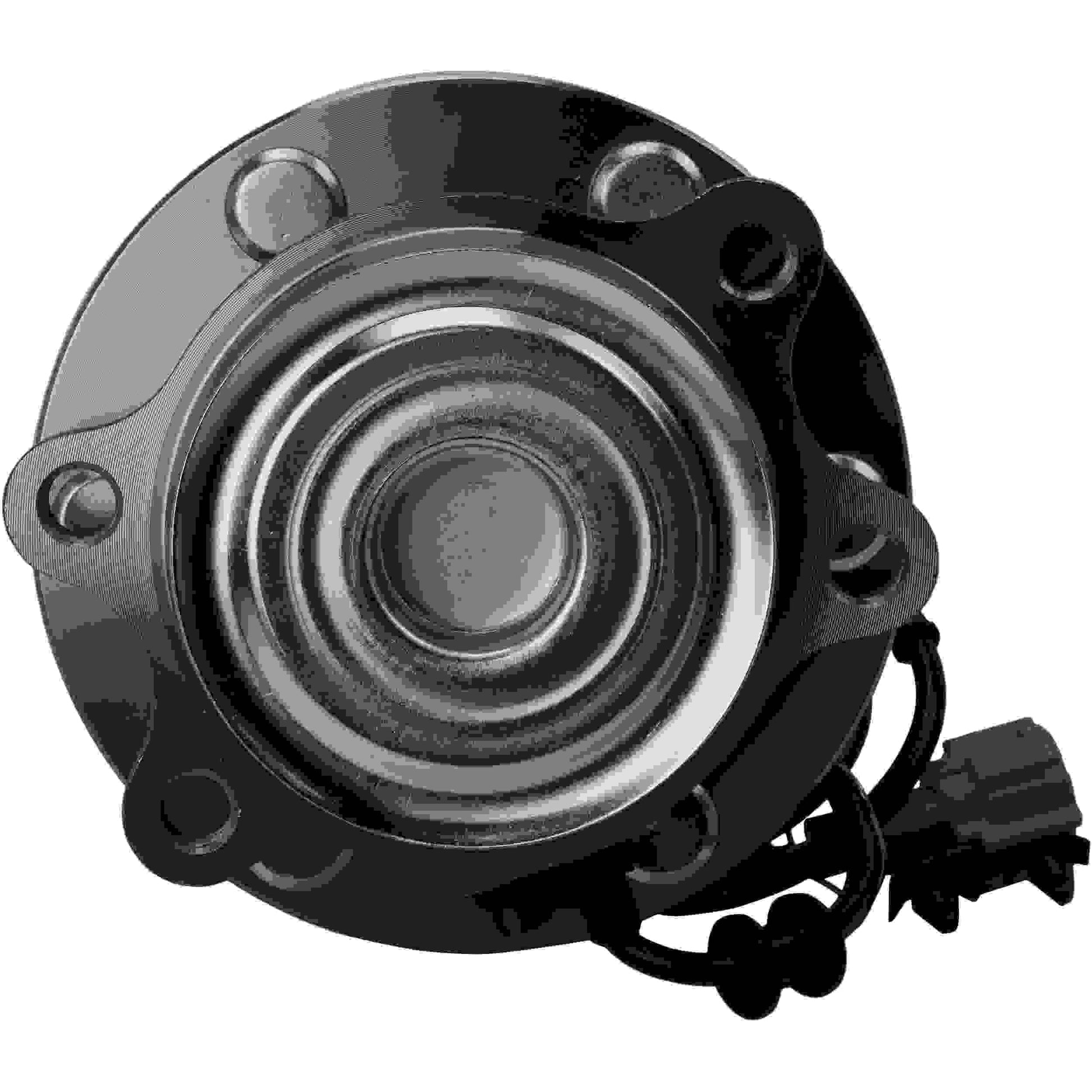

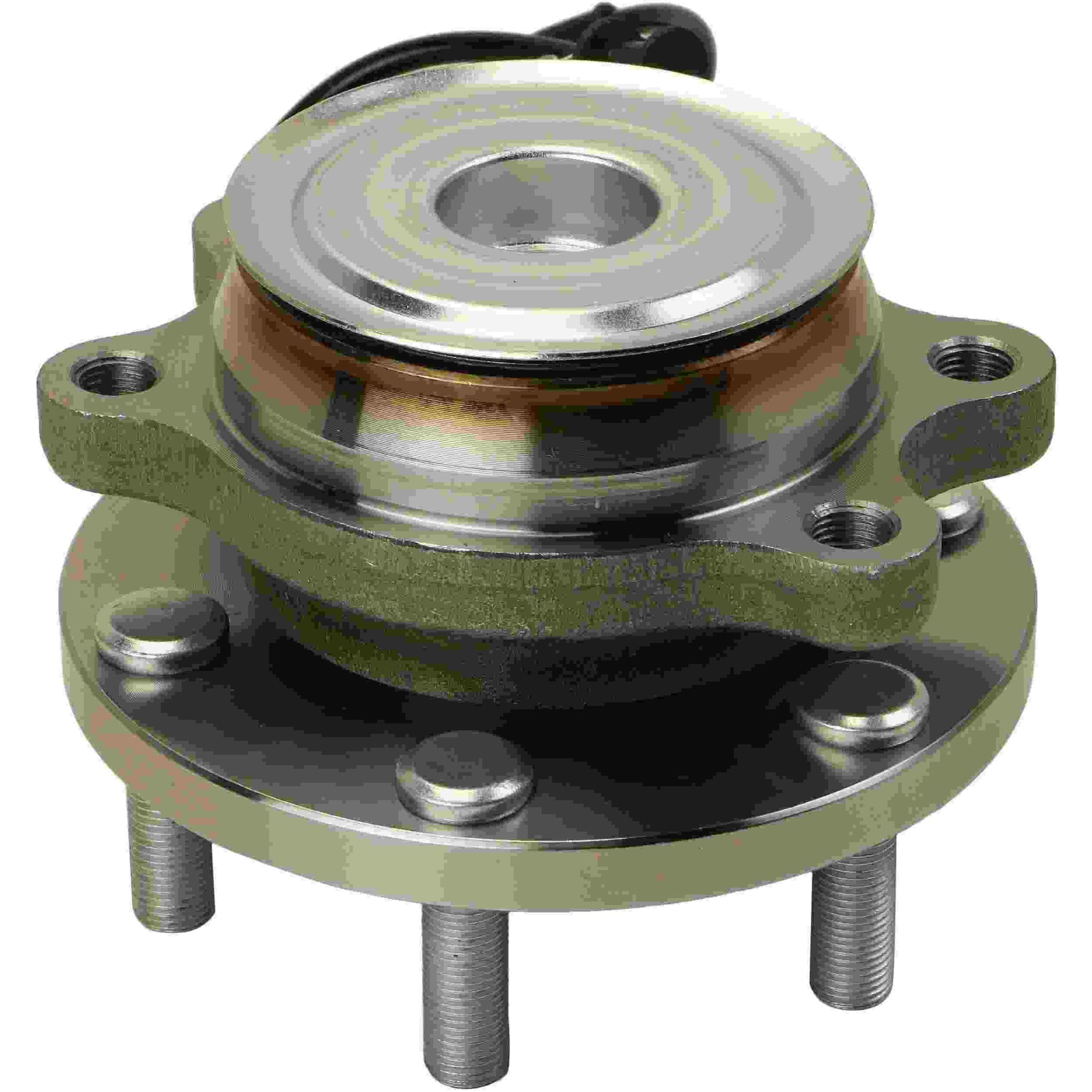

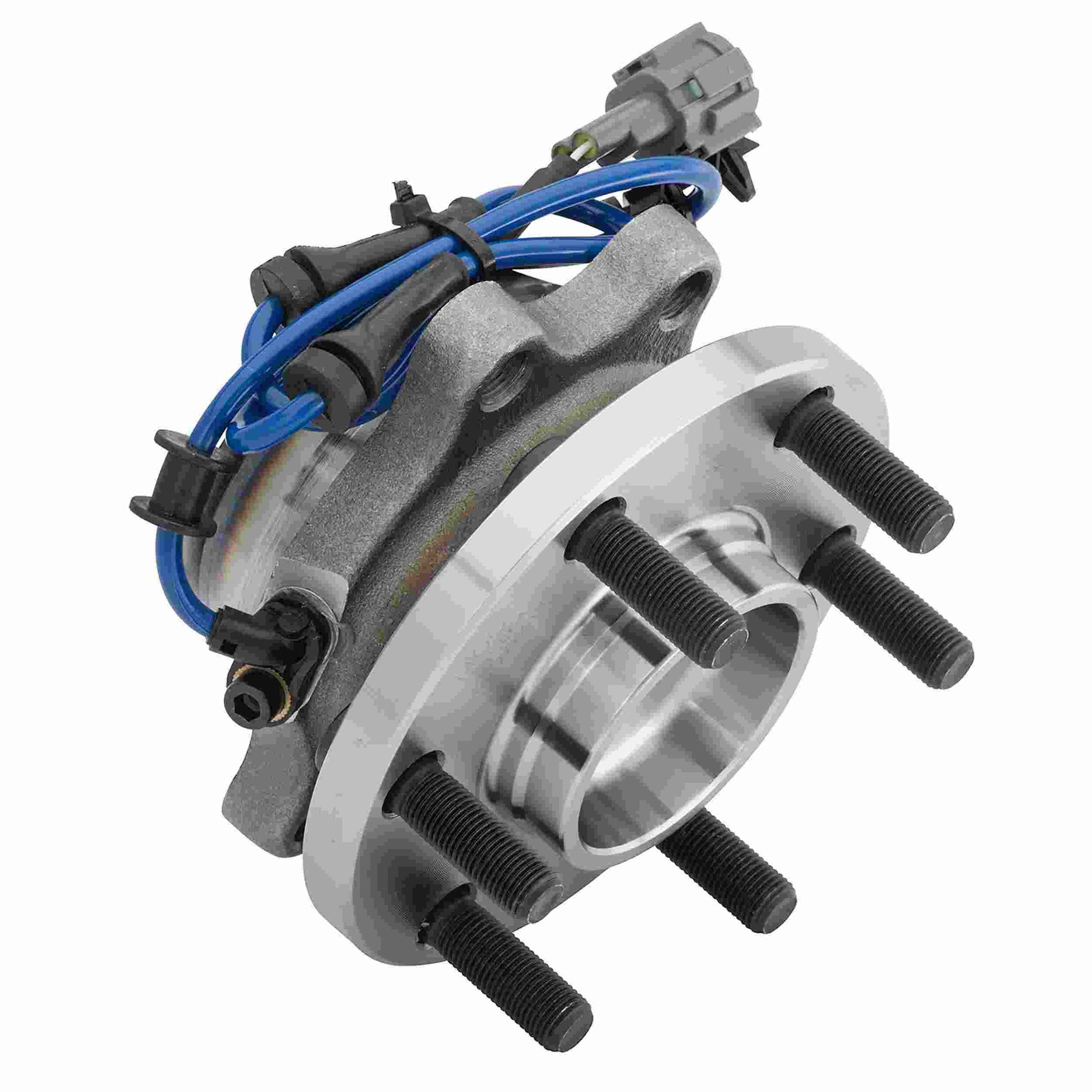

Moog Hub Assembly

MOOG® hub assemblies are performance proven, quality tested and are available for a broad range of foreign and domestic vehicles. Their application-specific design enhancements provide longer life, smoother operation and optimum ABS performance.

Features:

• Innovative roll form design ensures consistent and optimal preload.
• Wheel Stud Bolts: Wheel studs feature a protective coating that helps prevent rust and corrosion, allowing easier removal and proper torquing of the wheel nut.

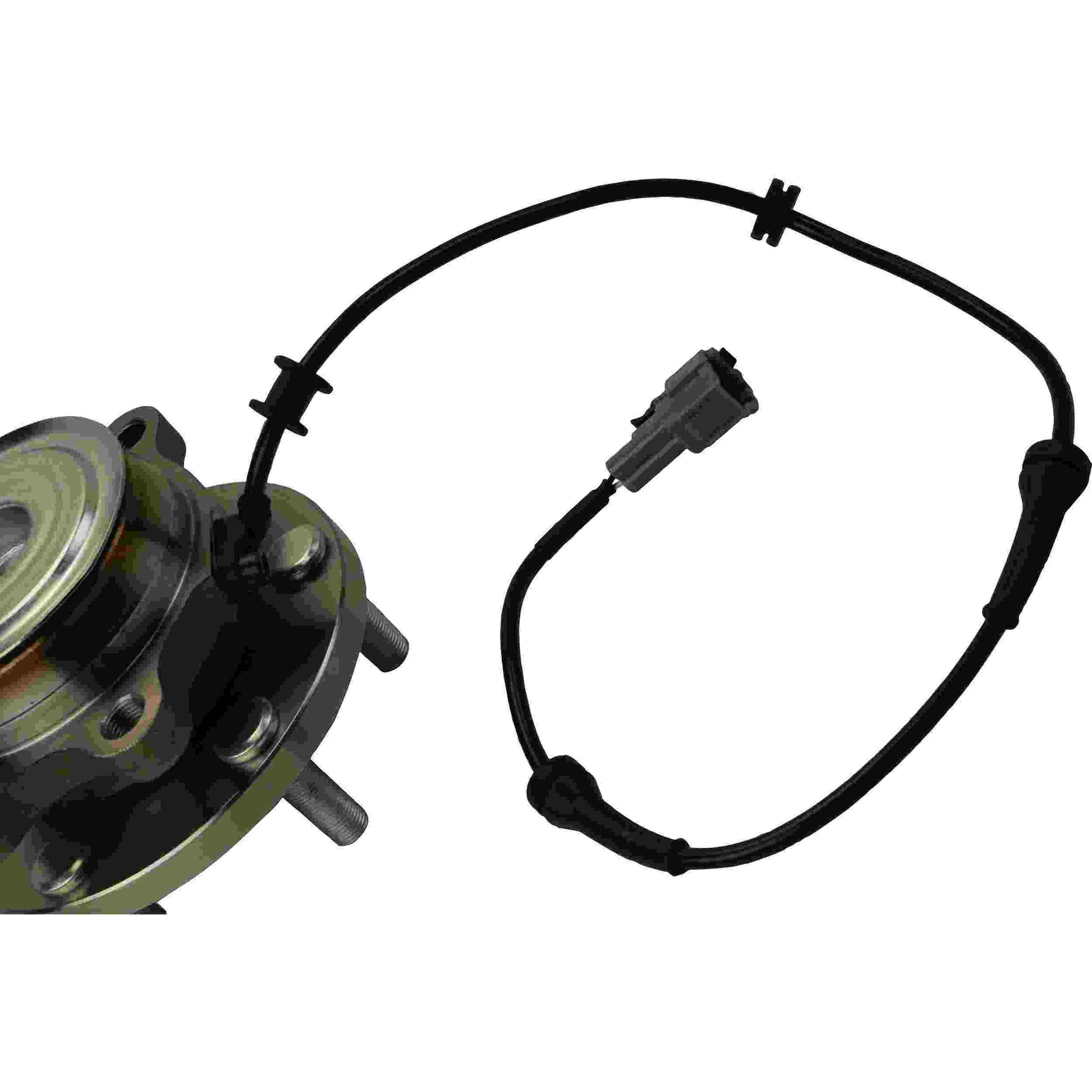

• MOOG® Abrasion-Resistant ABS Cord: Manufactured from a blended material that provides superior ABS protection, increases abrasion resistance and protects against adverse conditions.
• Engineered to overcome problems and deliver smooth, reliable performance.

 Hub Assemblies Specification:

• Flange Bolt Hole Quantity:4
• Flange Diameter (A): 140.0
• Bolt Circle Diameter (B): 4.500
• Bolt Circle Diameter Metric (B): 114.3
• Bolt Size (C): M12X1.25
• Wheel Pilot Diameter (D): 65.9
• Brake Pilot Diameter (E):67.9
• Flange Offset (F): 46.1
• Hub Pilot Diameter (G): 93.0
• Wheel Stud Quantity: 6
• Flange Shape (K): MODIFIED

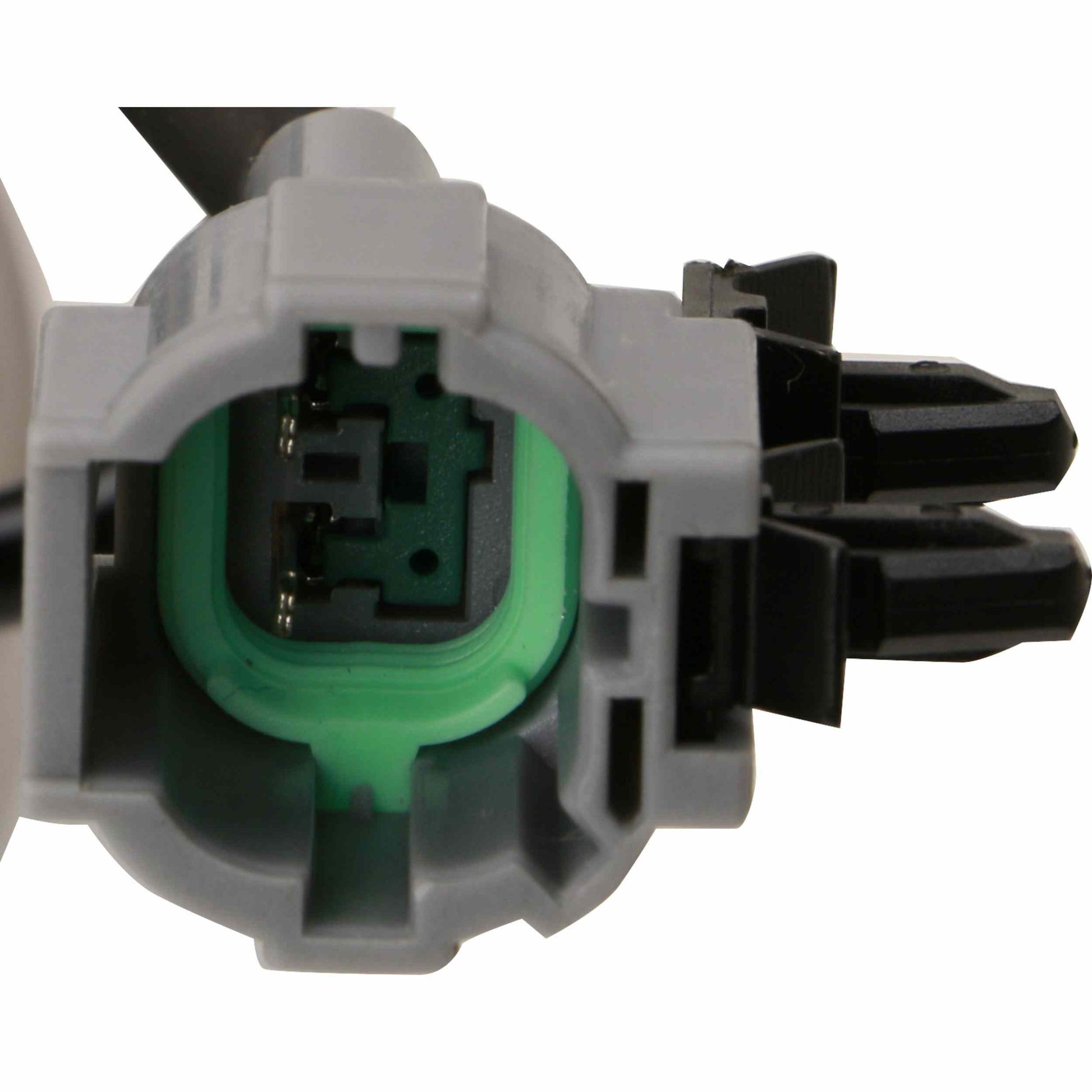

• ABS Sensor: Cable
• Location: Front Wheel
