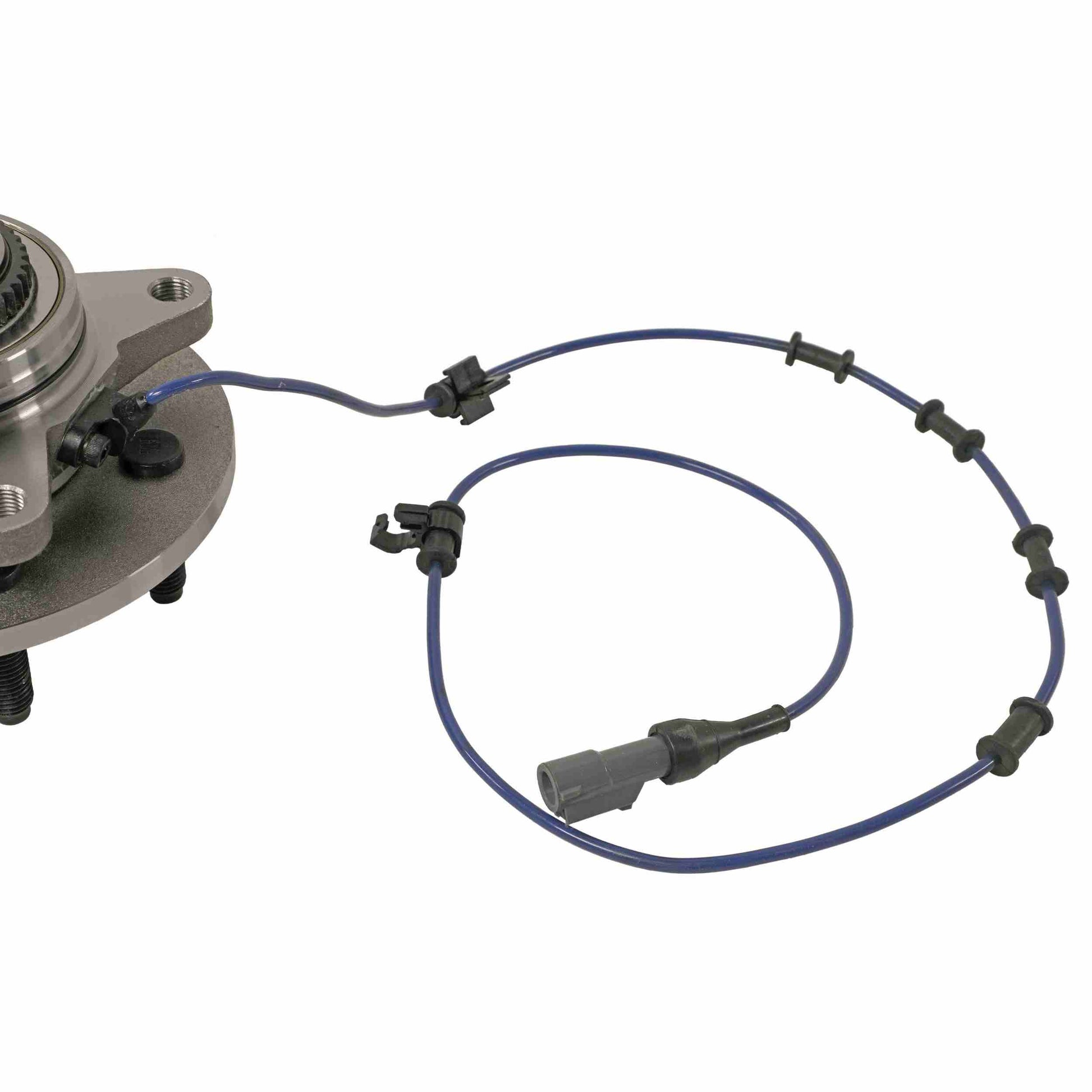

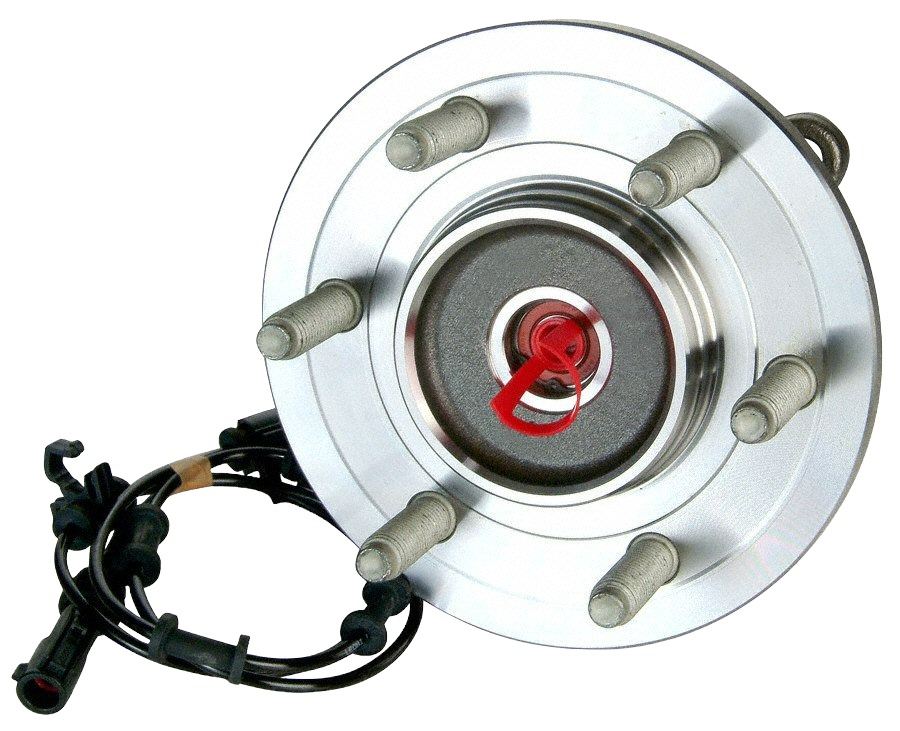

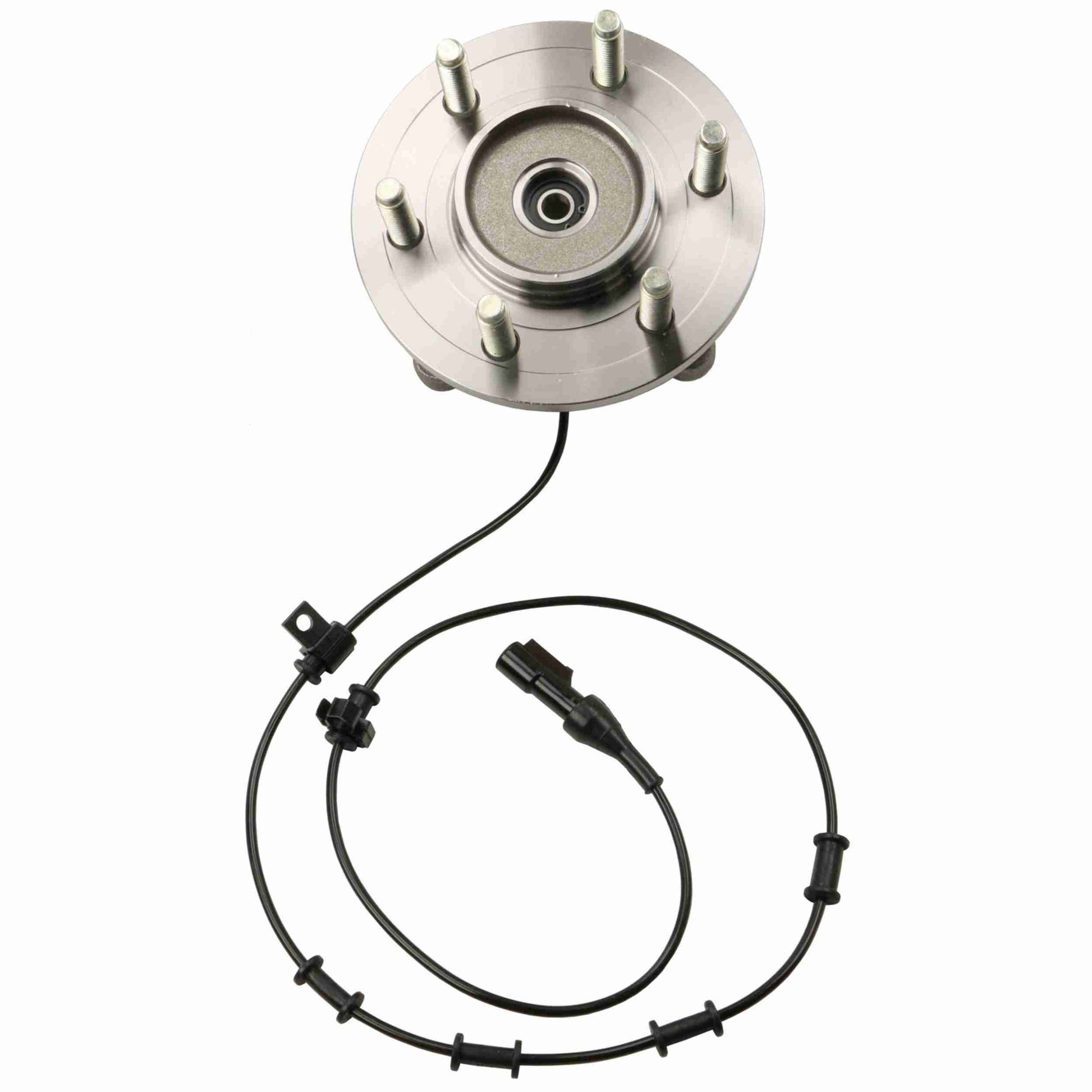

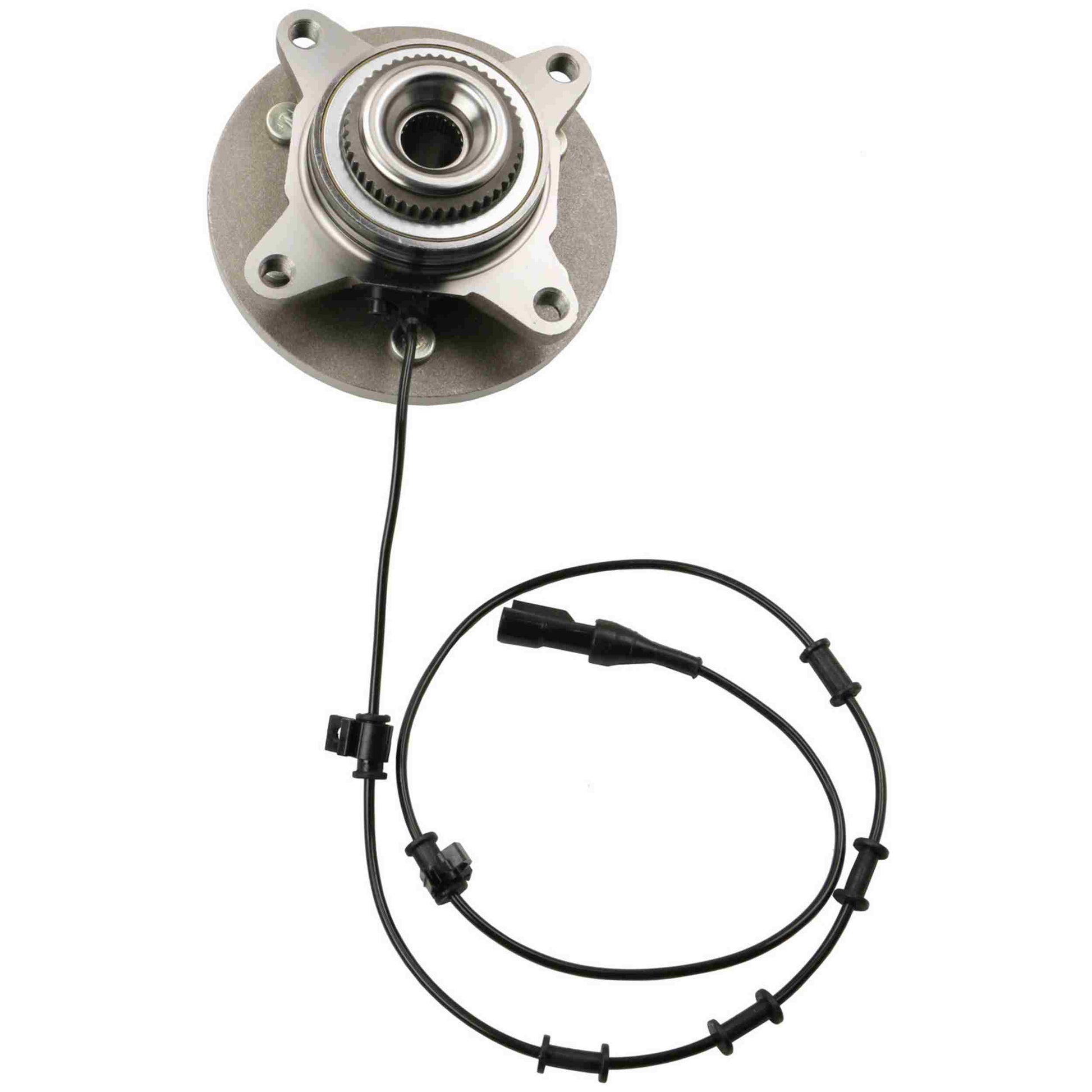

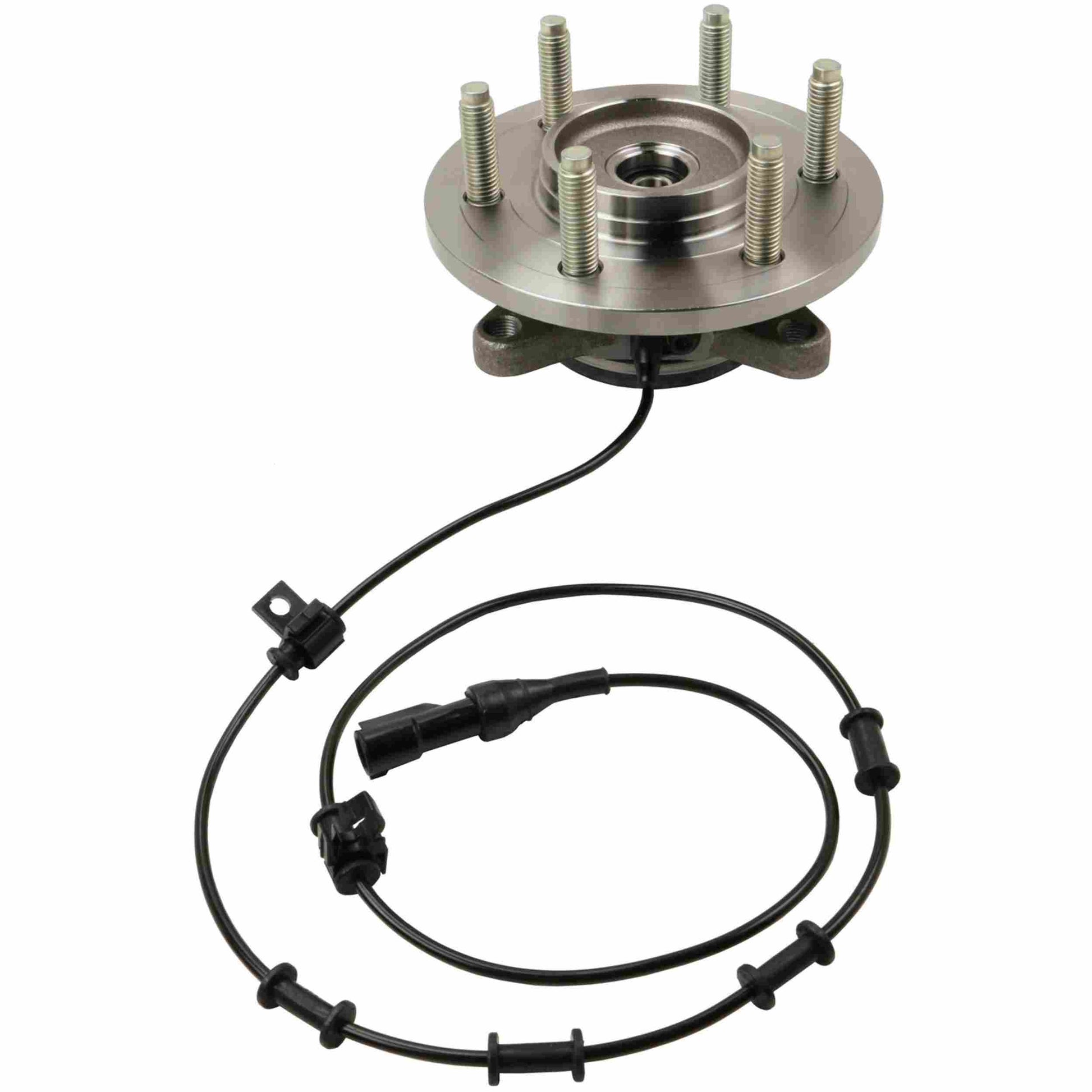

Moog Hub Assembly

MOOG® hub assemblies are performance proven, quality tested and are available for a broad range of foreign and domestic vehicles. Their application-specific design enhancements provide longer life, smoother operation and optimum ABS performance.

Features:

•  Innovative roll form design ensures consistent and optimal preload.
• Wheel Stud Bolts: Wheel studs feature a protective coating that helps prevent rust and corrosion, allowing easier removal and proper torquing of the wheel nut.

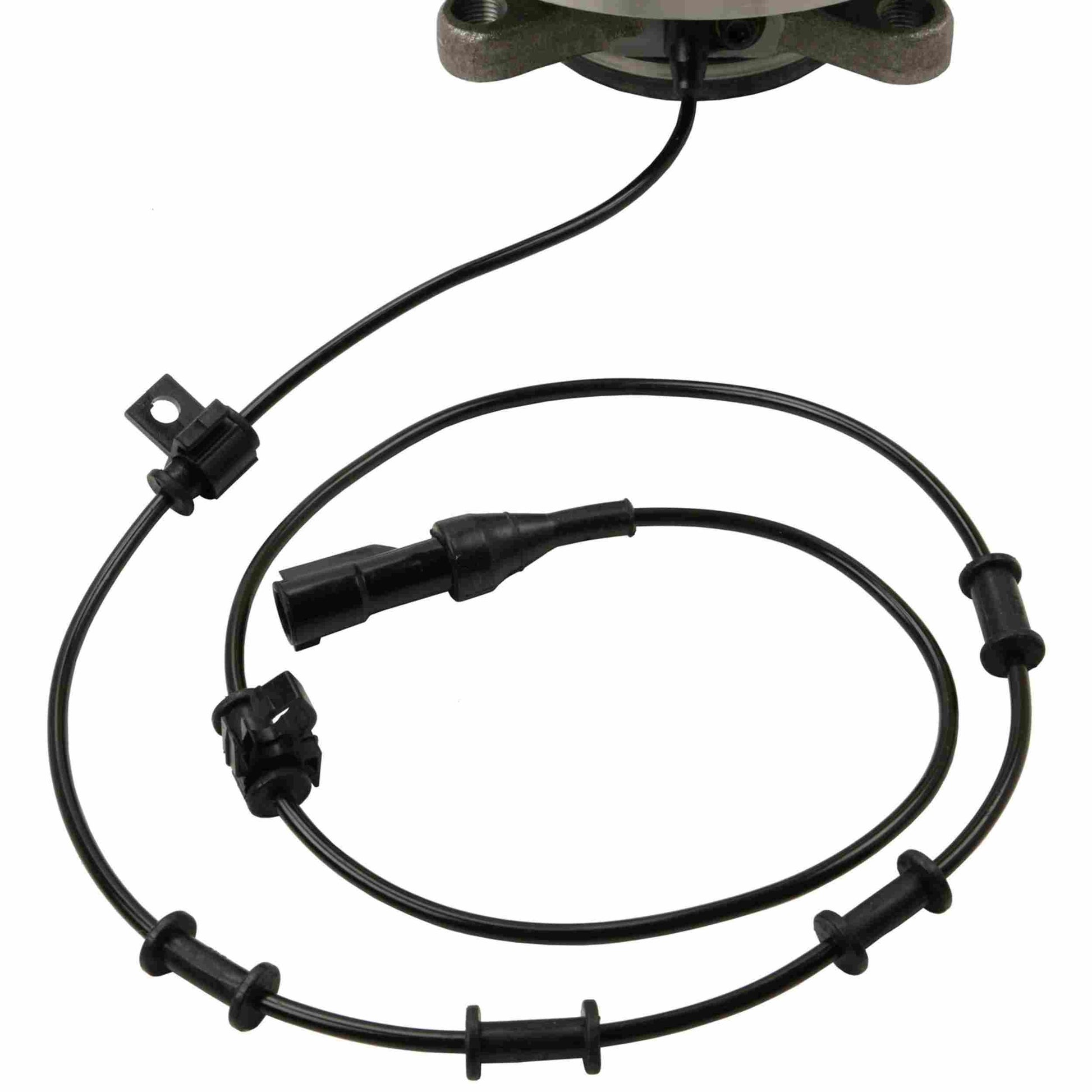

• MOOG® Abrasion-Resistant ABS Cord: Manufactured from a blended material that provides superior ABS protection, increases abrasion resistance and protects against adverse conditions.
•  Engineered to overcome problems and deliver smooth, reliable performance.

Specification:

• Flange Bolt Hole Quantity: 4
• Flange Diameter (A): 183.0
• Bolt Circle Diameter (B):5.275
• Bolt Circle Diameter Metric (B): 135.0
• Bolt Size (C): M14x2.0
• Wheel Pilot Diameter (D): 86.8
• Brake Pilot Diameter (E): 90.0
• Flange Offset (F): 45.6
• Hub Pilot Diameter (G): 99.3
• Bolt Hole MET (I): M14x1.5
• Wheel Stud Quantity: 6
• Number of Splines: 45
• Flange Shape (K):SQUARE
• ABS Sensor: Cable
• Location: Front Wheel
