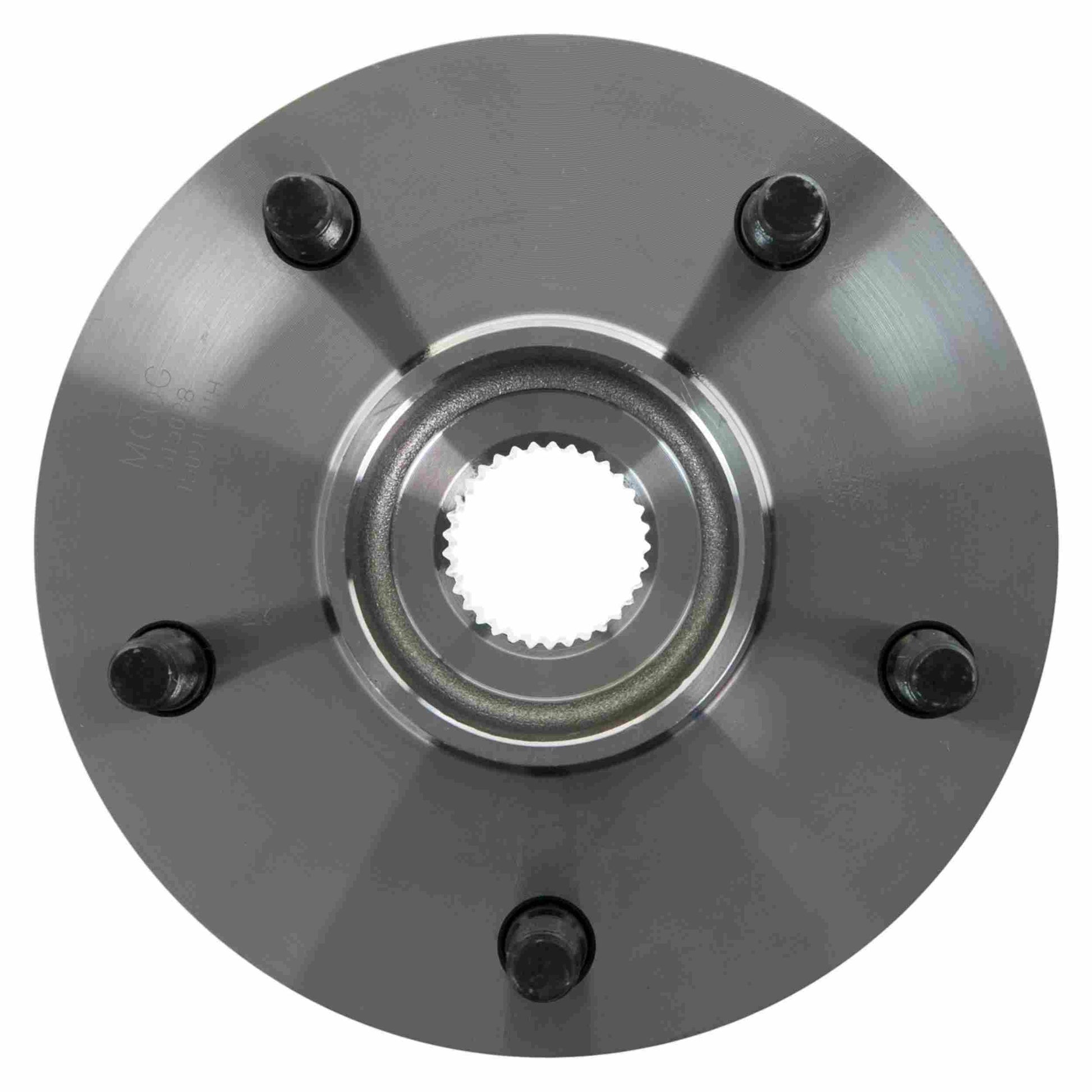

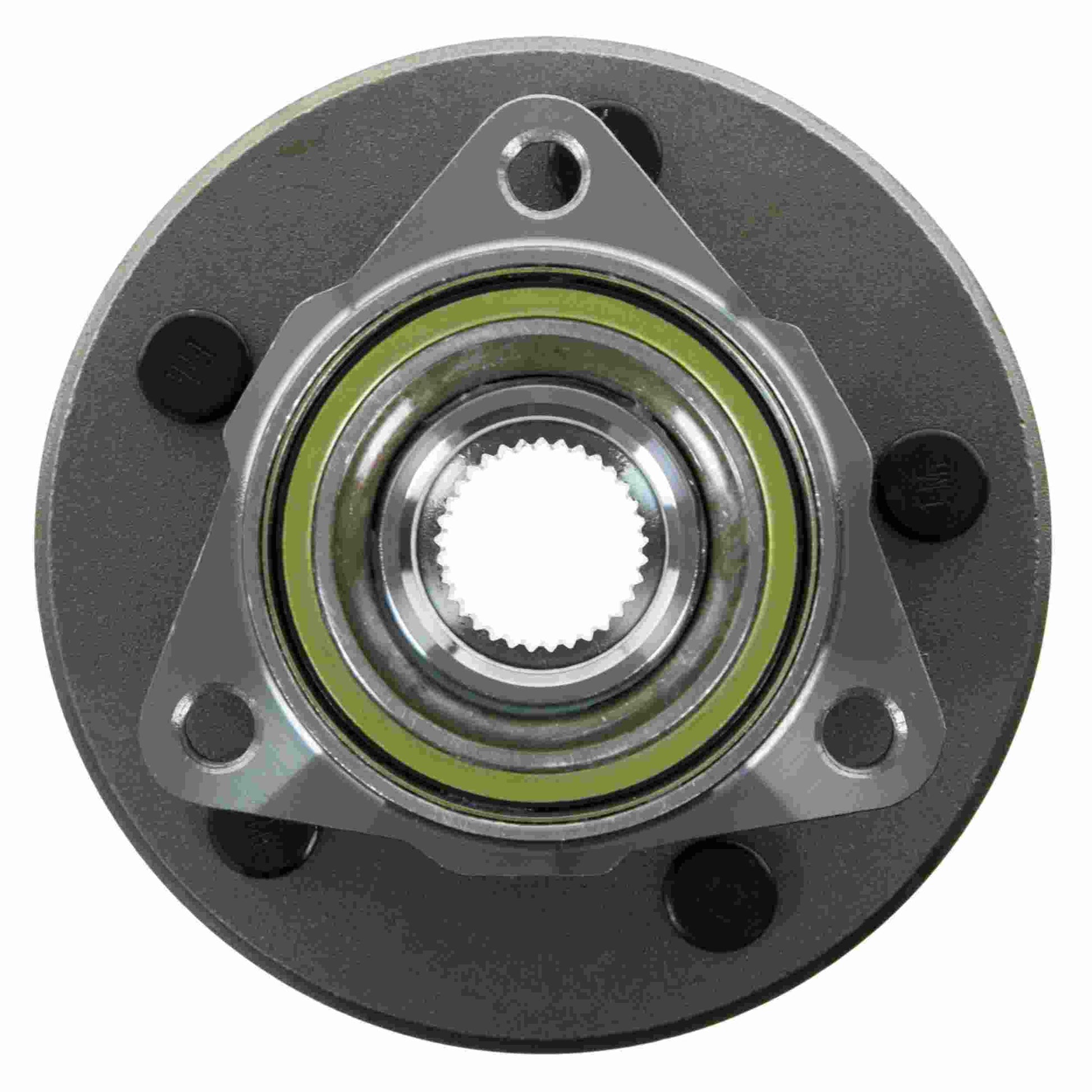

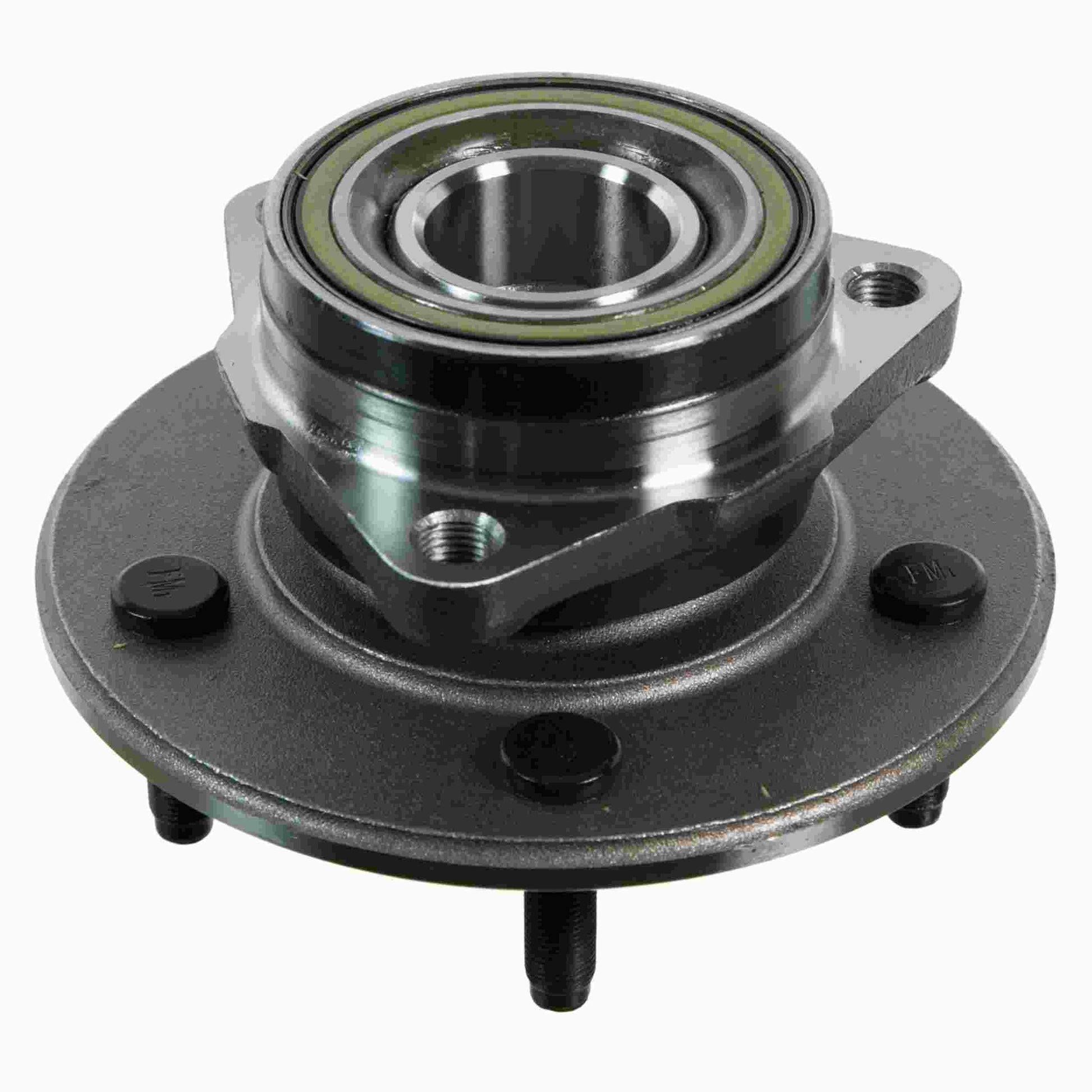

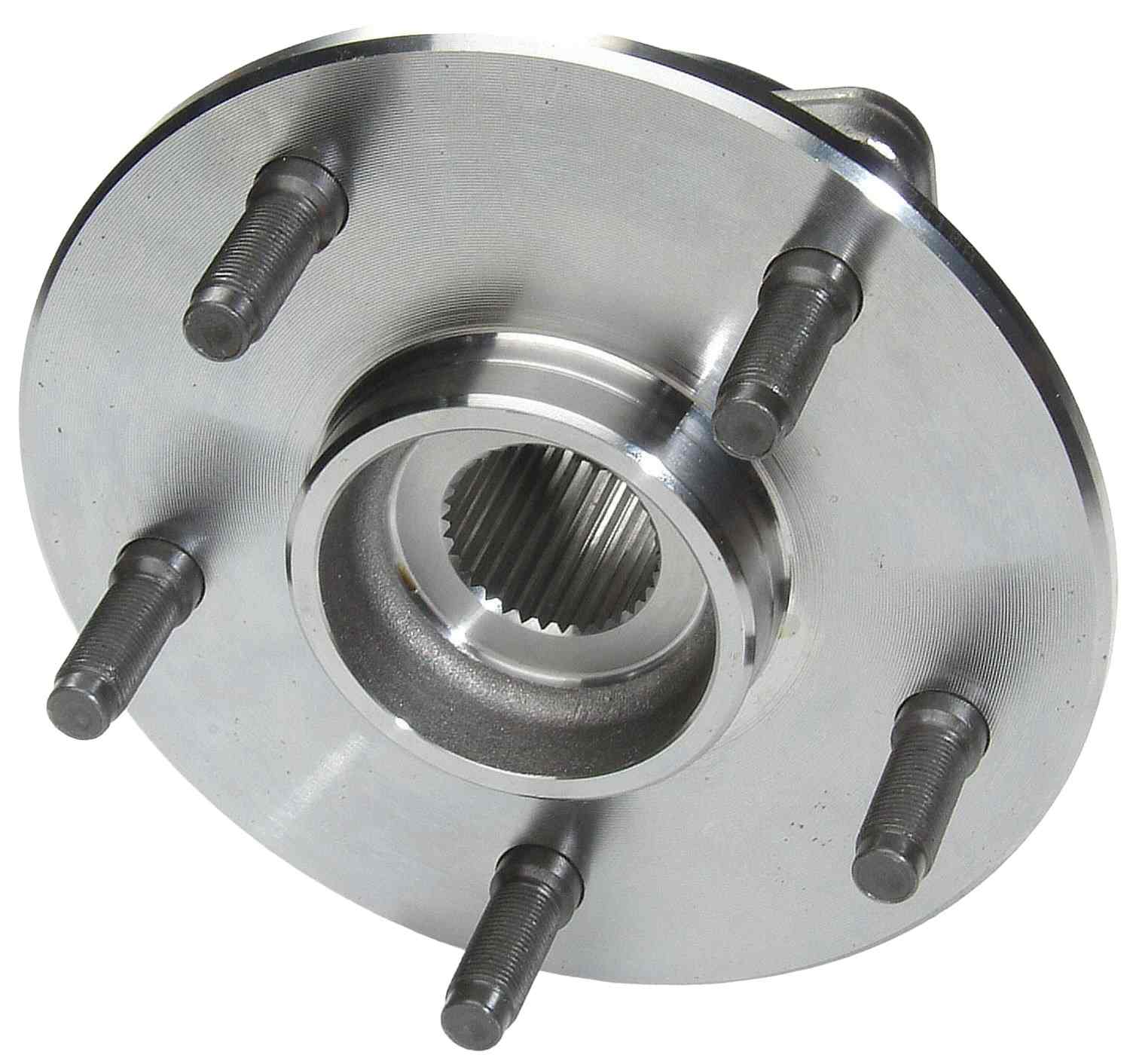

Moog Hub Assembly

MOOG® hub assemblies are performance proven, quality tested and are available for a broad range of foreign and domestic vehicles. Their application-specific design enhancements provide longer life, smoother operation and optimum ABS performance.

Features:

• Wheel Stud Bolts: Wheel studs feature a protective coating that helps prevent rust and corrosion, allowing easier removal and proper torquing of the wheel nut.
• Engineered to overcome problems and deliver smooth, reliable performance.
•  MOOG® hub assemblies are performance proven, quality tested and are available for a broad range of foreign and domestic vehicles.
• Application specific design

Specification:

• Flange Bolt Hole Quantity: 3
• Flange Diameter (A): 183.0
• Bolt Circle Diameter Metric (B): 139.7
• Bolt Size (C): 1/2-20
• Wheel Pilot Diameter (D): 77.6
• Brake Pilot Diameter (E): 79.3
• Flange Offset (F): 50.8
• Hub Pilot Diameter (G): 99.3
• Bolt Hole MET (I): M14x1.5
• Wheel Stud Quantity: 5
• Number of Splines: 33
• ABS Sensor: No
• Location: Front Wheel

Vehicle Fitments:
