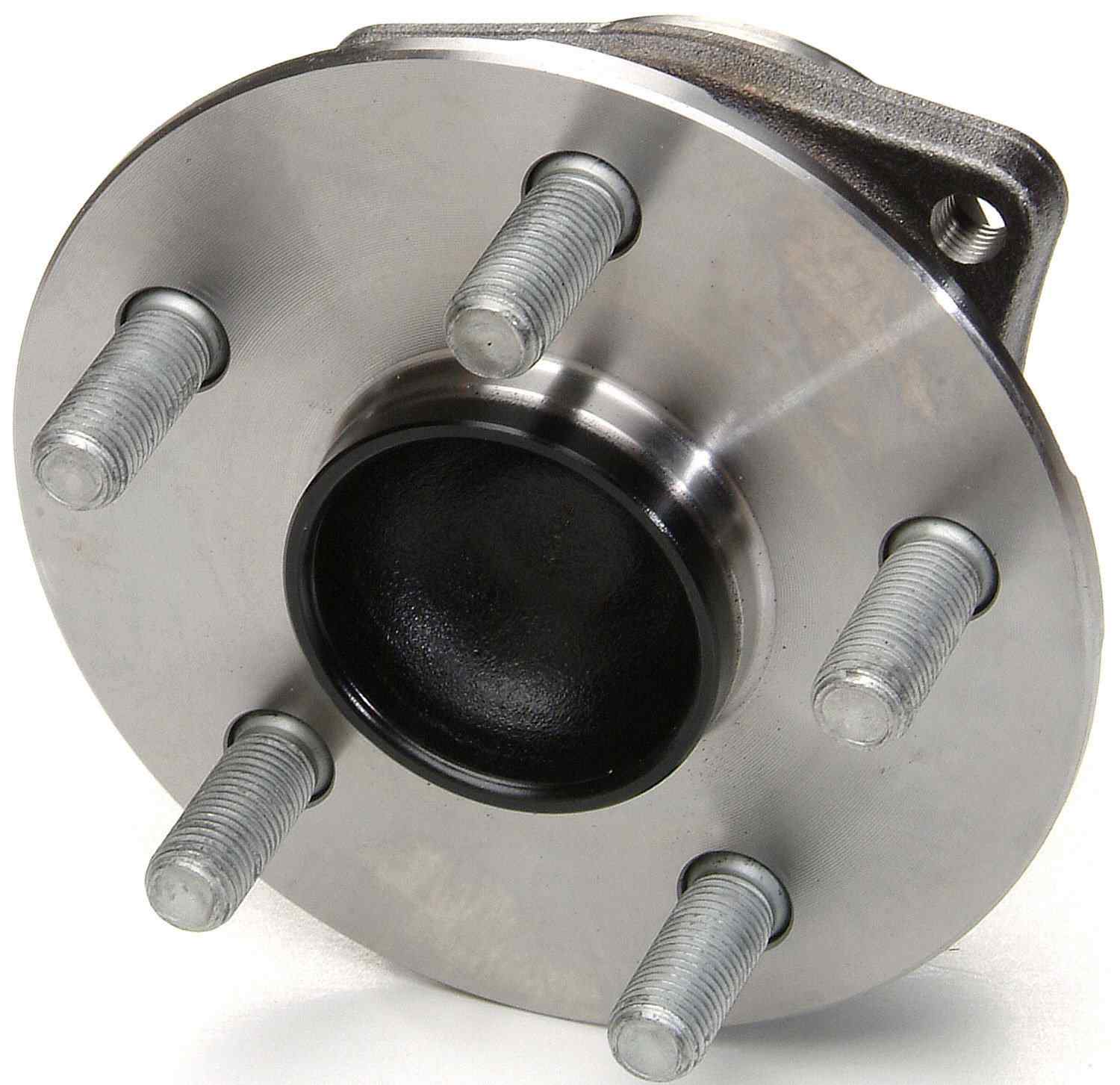

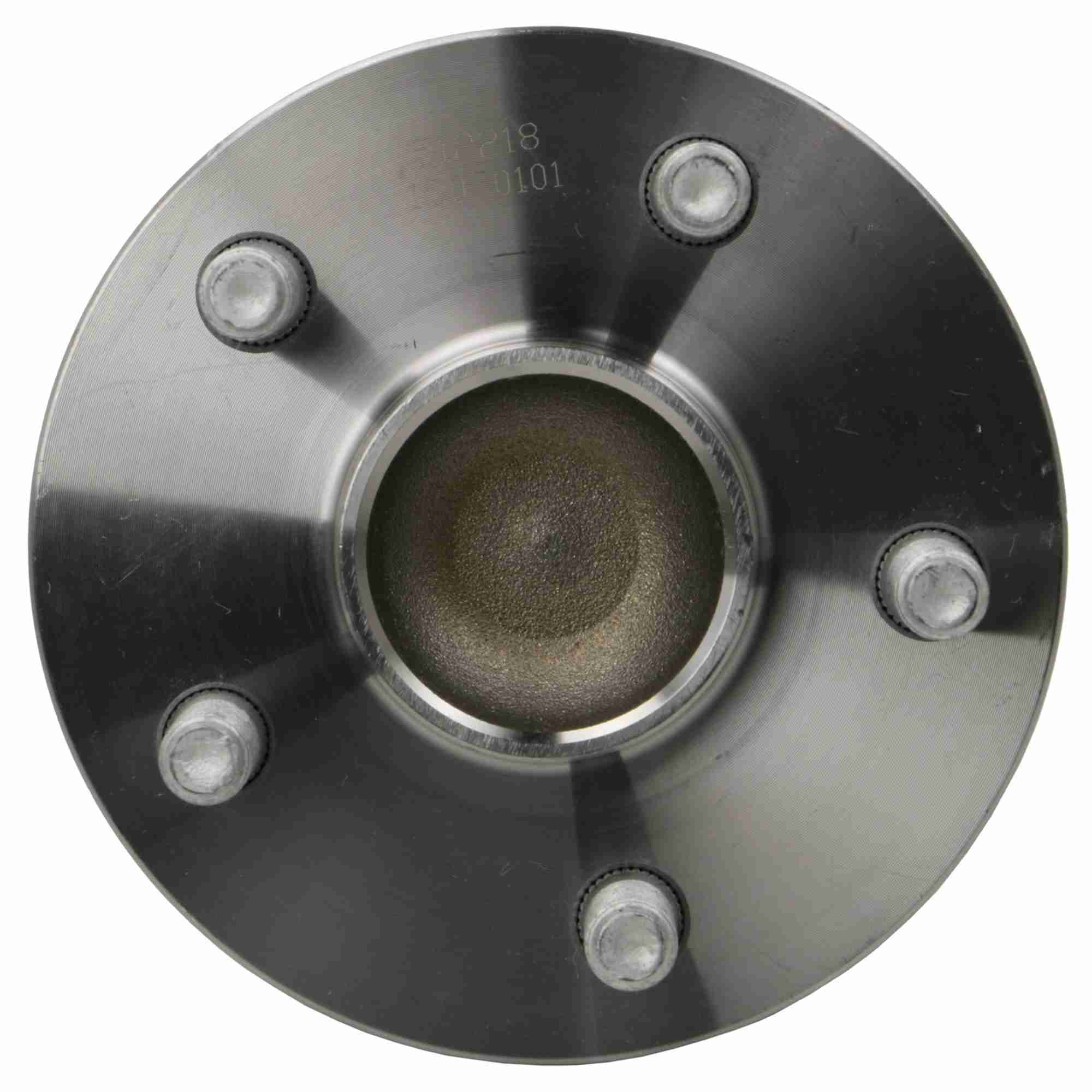

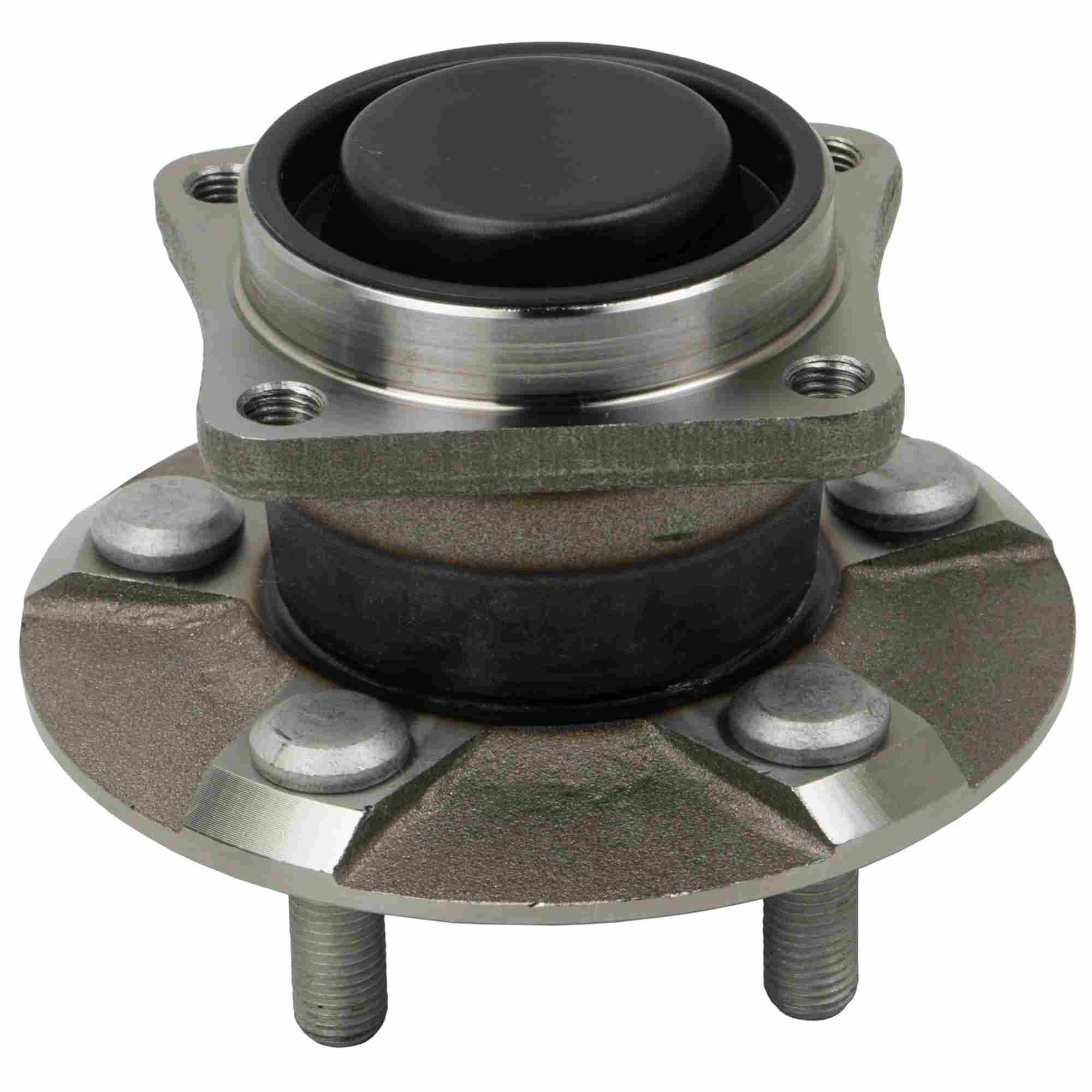

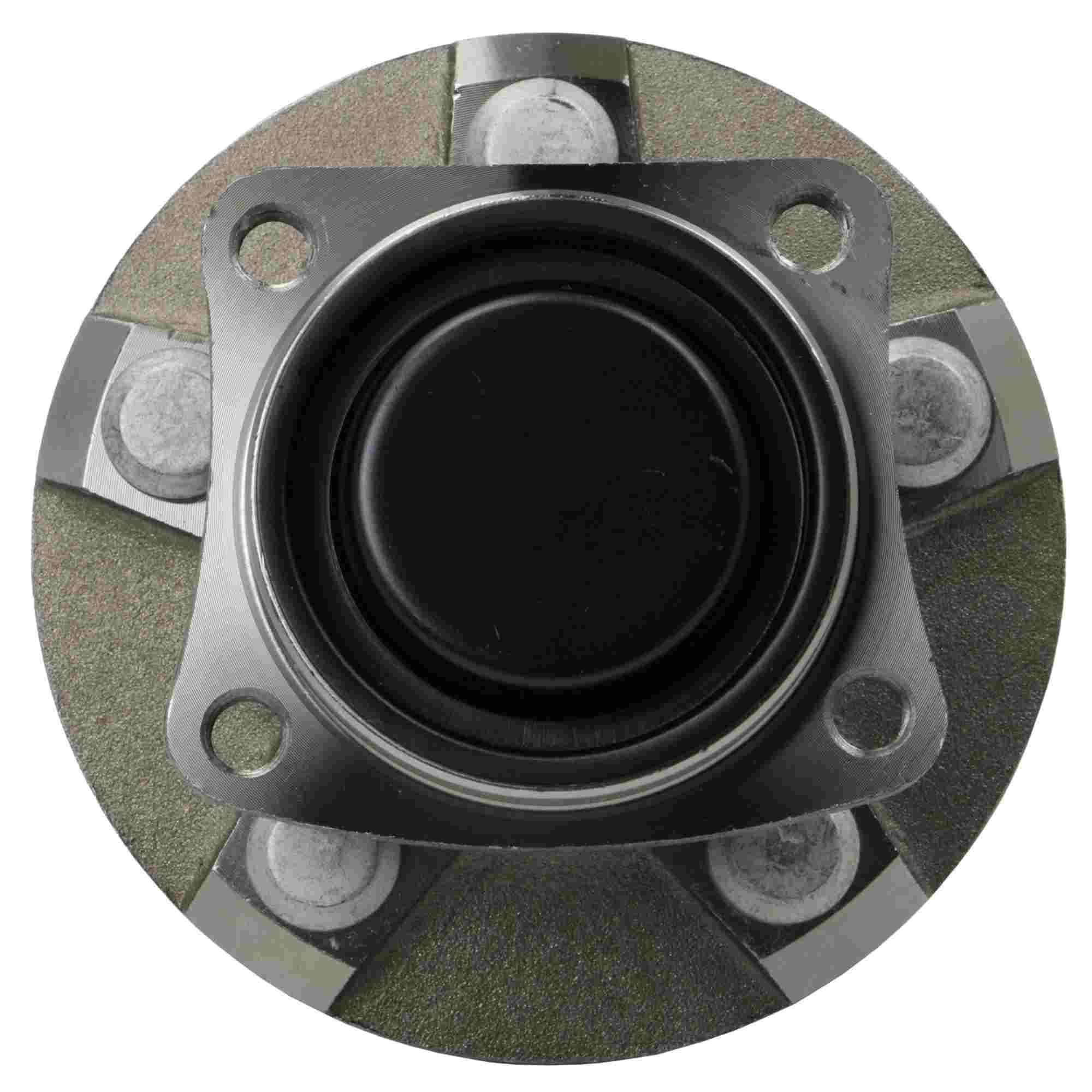

Moog Hub Assembly

MOOG® hub assemblies are performance proven, quality tested and are available for a broad range of foreign and domestic vehicles. Their application-specific design enhancements provide longer life, smoother operation and optimum ABS performance.

 Features:

• Innovative roll form design ensures consistent and optimal preload.
• Precision Matched Components: Rigorously controlled manufacturing processes ensure exact matching of bearing raceways and rolling elements to consistently deliver superior performance and minimize noise and vibration.
• Engineered to overcome problems and deliver smooth, reliable performance.
• MOOG® hub assemblies are performance proven, quality tested and are available for a broad range of foreign and domestic vehicles.

 Hub Assemblies Specification:

• Flange Bolt Hole Quantity:4
• Flange Diameter (A):135.0
• Bolt Circle Diameter (B):3.940
• Bolt Circle Diameter Metric (B): 100.0
• Bolt Size (C): M12X1.5
• Wheel Pilot Diameter (D): 54.0
• Brake Pilot Diameter (E): 55.0
• Flange Offset (F): 54.5
• Hub Pilot Diameter (G): 74.0:
• Bolt Hole MET (I): M10x1.25
• Wheel Stud Quantity: 5
• Flange Shape (K):RECTANGULAR
• ABS Sensor: No
• Location: Rear Wheel

Vehicle Fitments:
