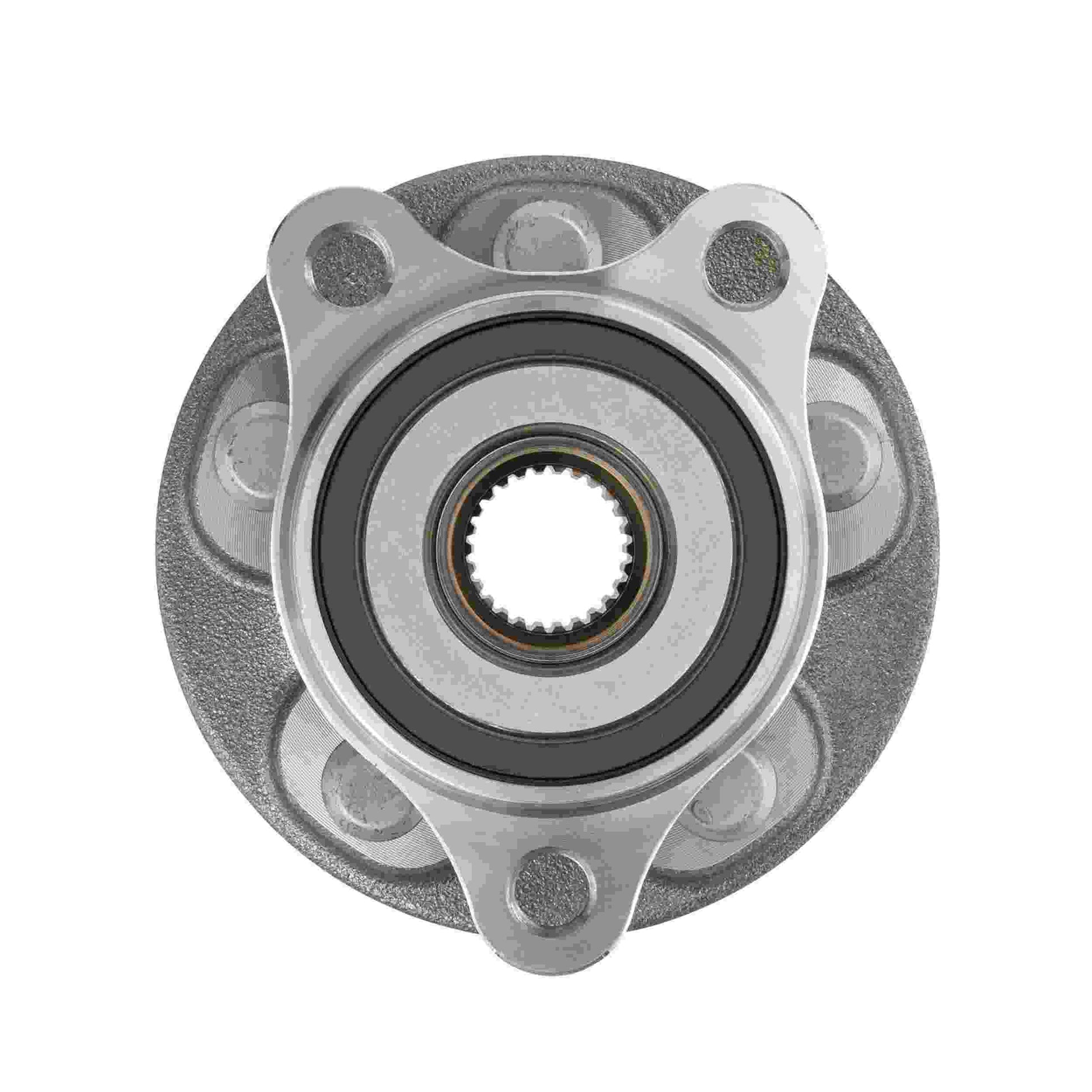

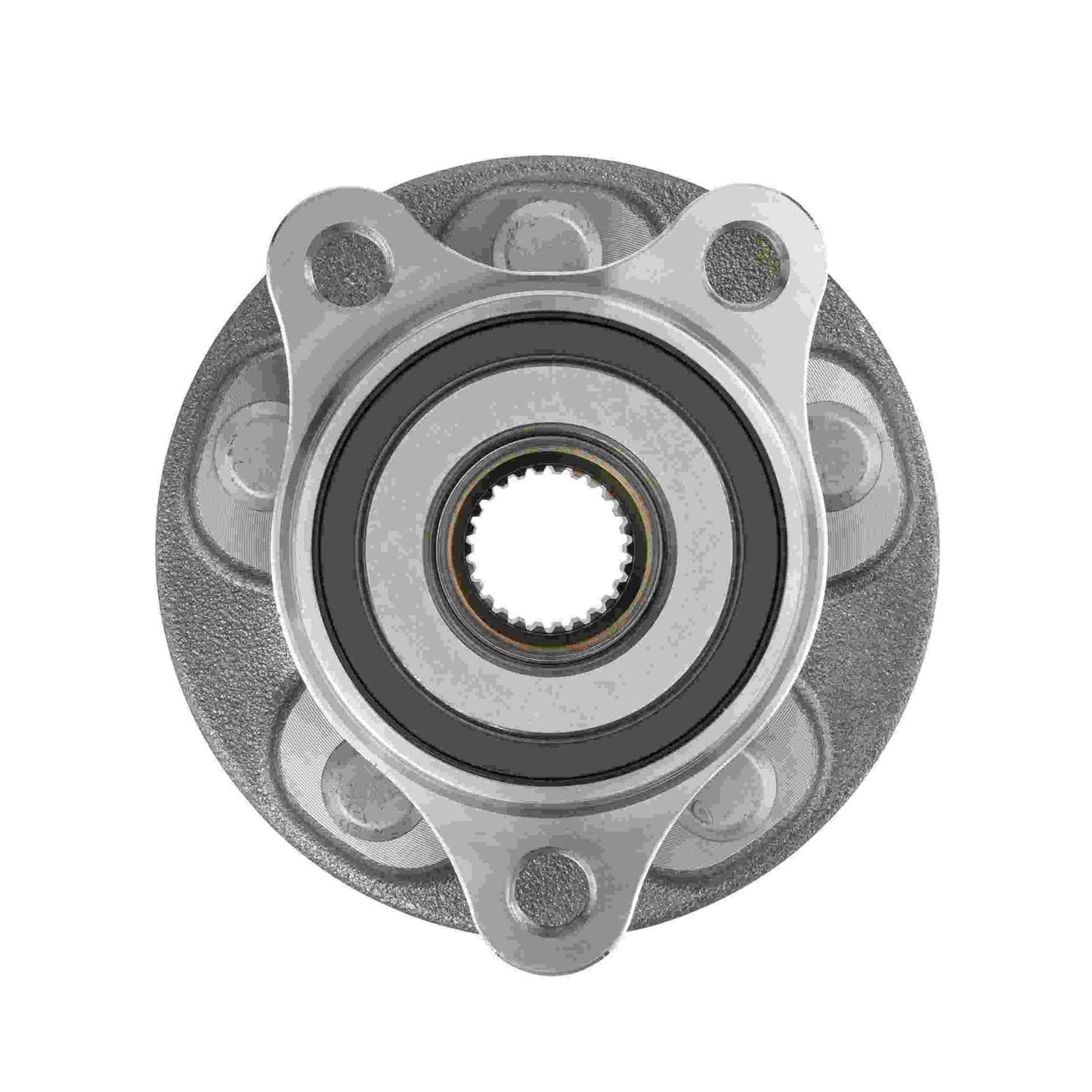

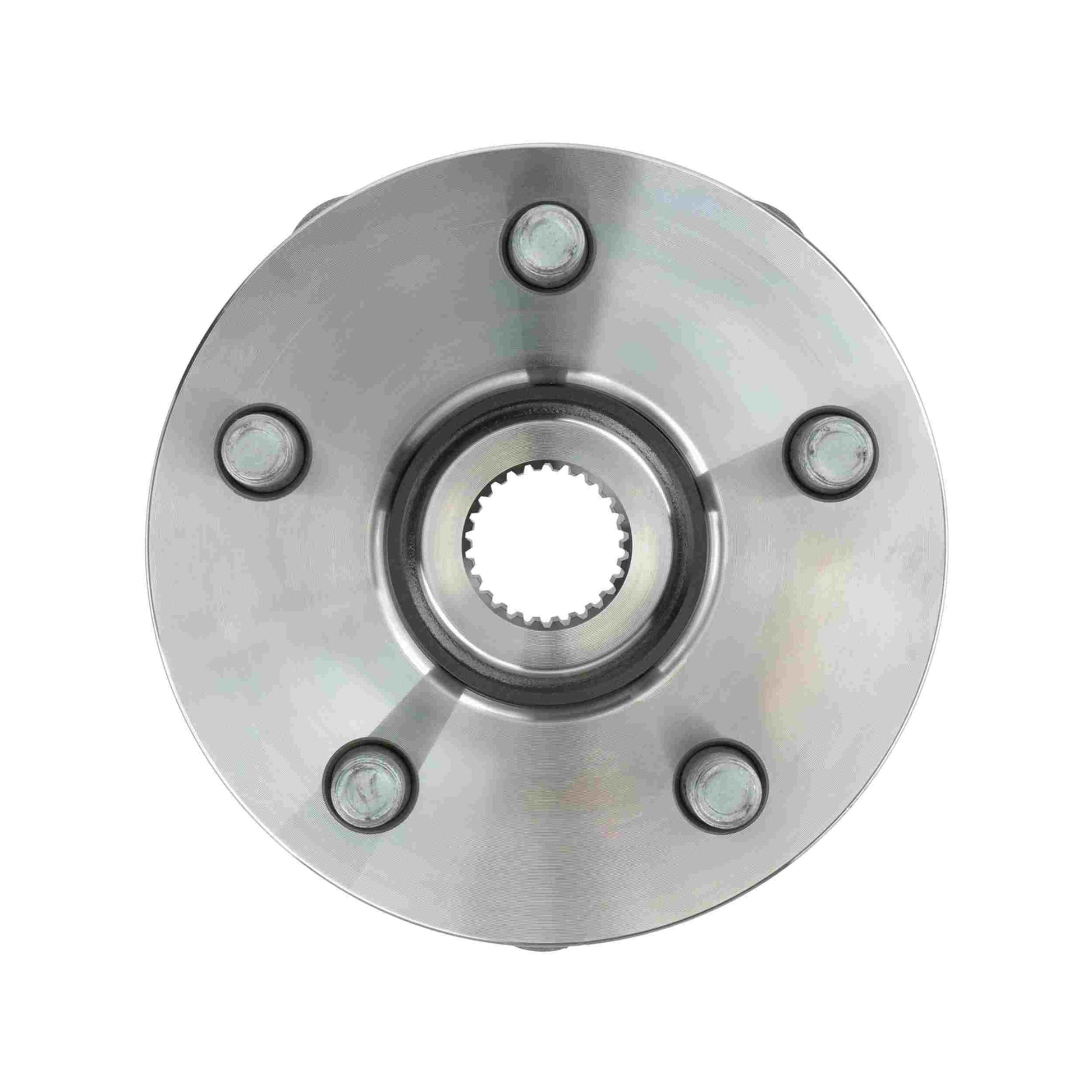

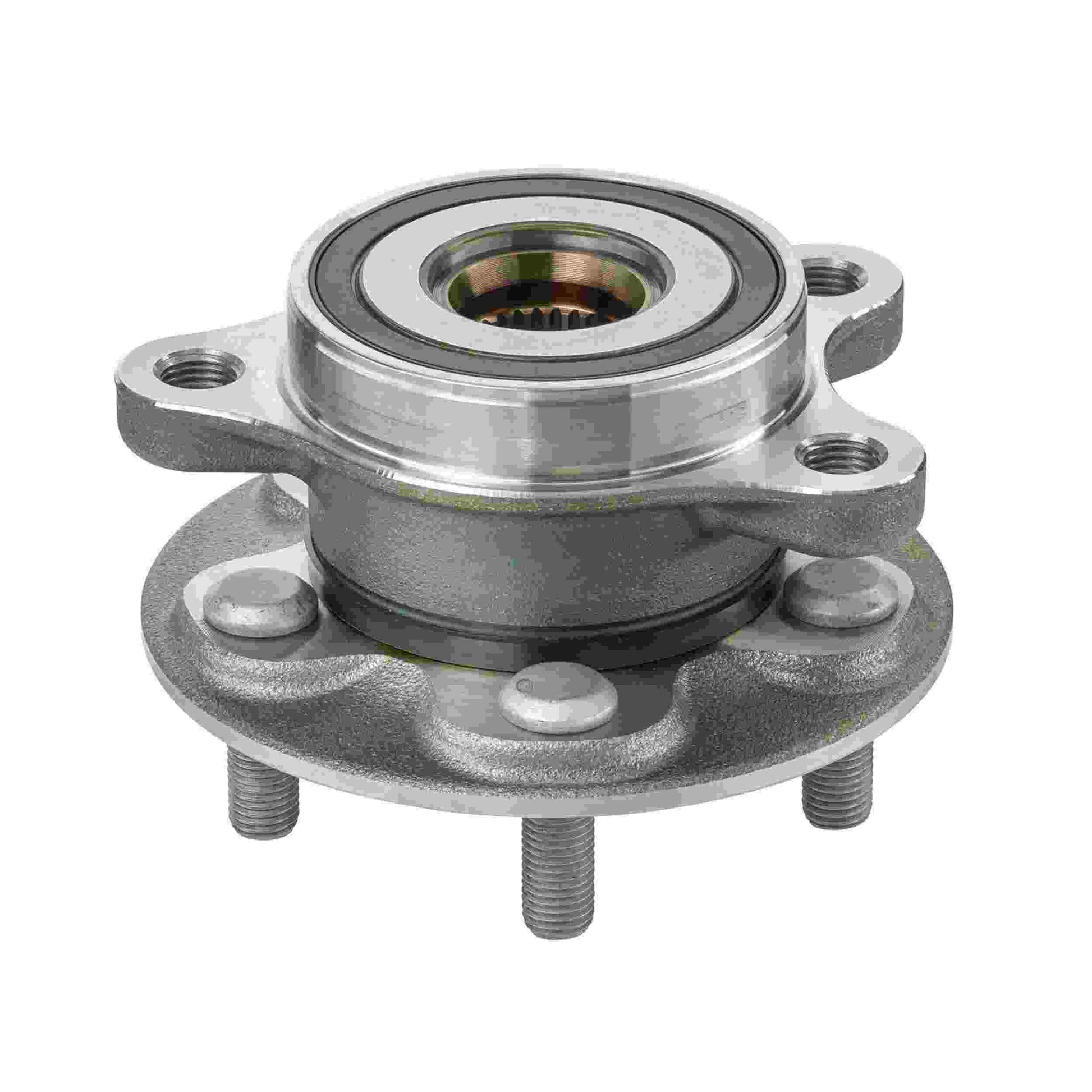

Moog Hub Assembly
MOOG hub assemblies are performance proven, quality tested and are available for a broad range of foreign and domestic vehicles. Their application-specific design enhancements provide longer life, smoother operation and optimum ABS performance.
Precision Matched Components: Rigorously controlled manufacturing processes ensure exact matching of bearing raceways and rolling elements to consistently deliver superior performance and minimize noise and vibration.
Engineered to overcome problems and deliver smooth, reliable performance.
MOOG hub assemblies are performance proven, quality tested and are available for a broad range of foreign and domestic vehicles.
Application specific design
Specifications
Hub Assemblies
Bolt Quantity:
3
Flange Diameter:
134.9
Bolt Circle Diameter Metric:
100.2
Bolt Size:
M12x1.5
Wheel Pilot Diameter:
53.9
Brake Pilot Diameter:
54.9
Flange Offset:
47.5
Hub Pilot Diameter:
84.9
Bolt Hole MET:
M14x1.5
Bolt Hole Quantity:
5
Number of Splines:
26
ABS Sensor:
Encoder
PASSENGER CAR & LIGHT TRUCK
|
Vehicle Fitments:
| Year | Make | Model | Submodel |
|---|---|---|---|
| 2019 - 2021 | Toyota | Corolla | Base |
| 2019 | Toyota | Corolla | CE, LE Eco, SE Plus |
| 2020 - 2022 | Toyota | Corolla | Hybrid LE, SE Nightshade |
| 2019 - 2022 | Toyota | Corolla | LE, SE, L, XLE, XSE |
| 2021 - 2022 | Toyota | Corolla | SE Apex, XSE Apex |
| 2021 | Toyota | Prius | 2020 Edition |
| 2016 - 2021 | Toyota | Prius | Base, Technology, Premium |
| 2017 - 2018 | Toyota | Prius | One |
| 2016 - 2018 | Toyota | Prius | Three Touring, Two Eco, Four, Touring, Two, Three, Four Touring |
| 2019 - 2022 | Toyota | Prius | XLE, LE, L Eco, Limited |
| 2019 - 2022 | Toyota | Prius AWD-e | LE, XLE |
| 2017 - 2019 | Toyota | Prius Prime | Advanced, Plus, Premium |
| 2018 - 2021 | Toyota | Prius Prime | Base |
| 2020 - 2022 | Toyota | Prius Prime | LE, XLE, Limited |
Moog Hub Assembly
Sale price$546.70 USD
Regular price$822.51 USD
