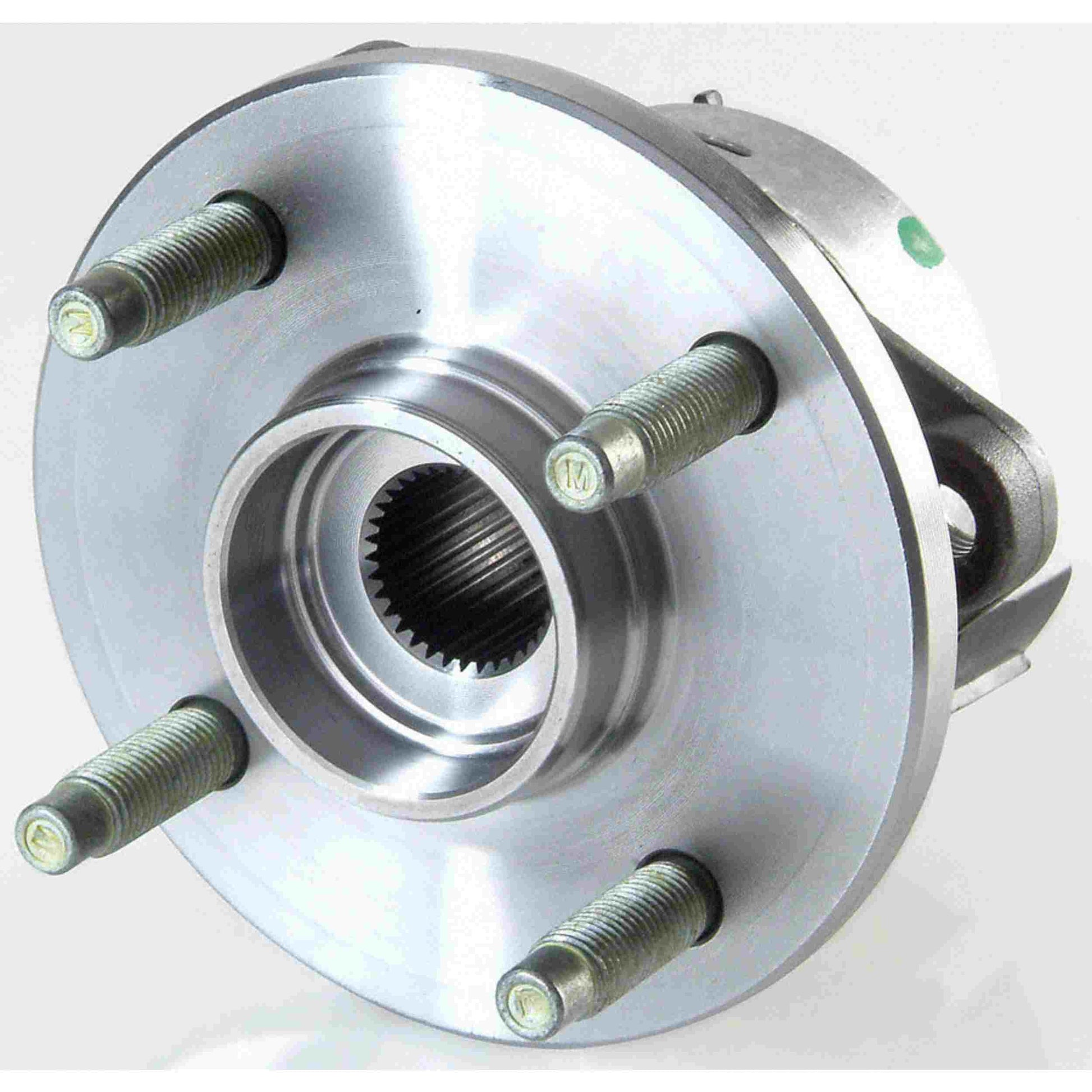

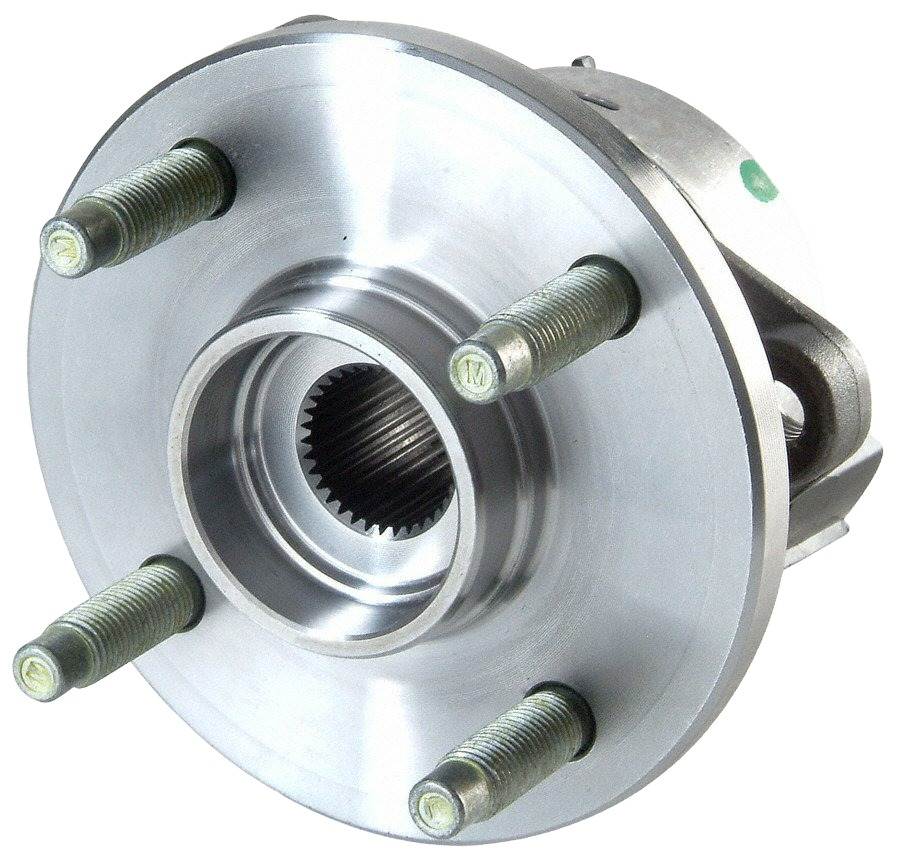

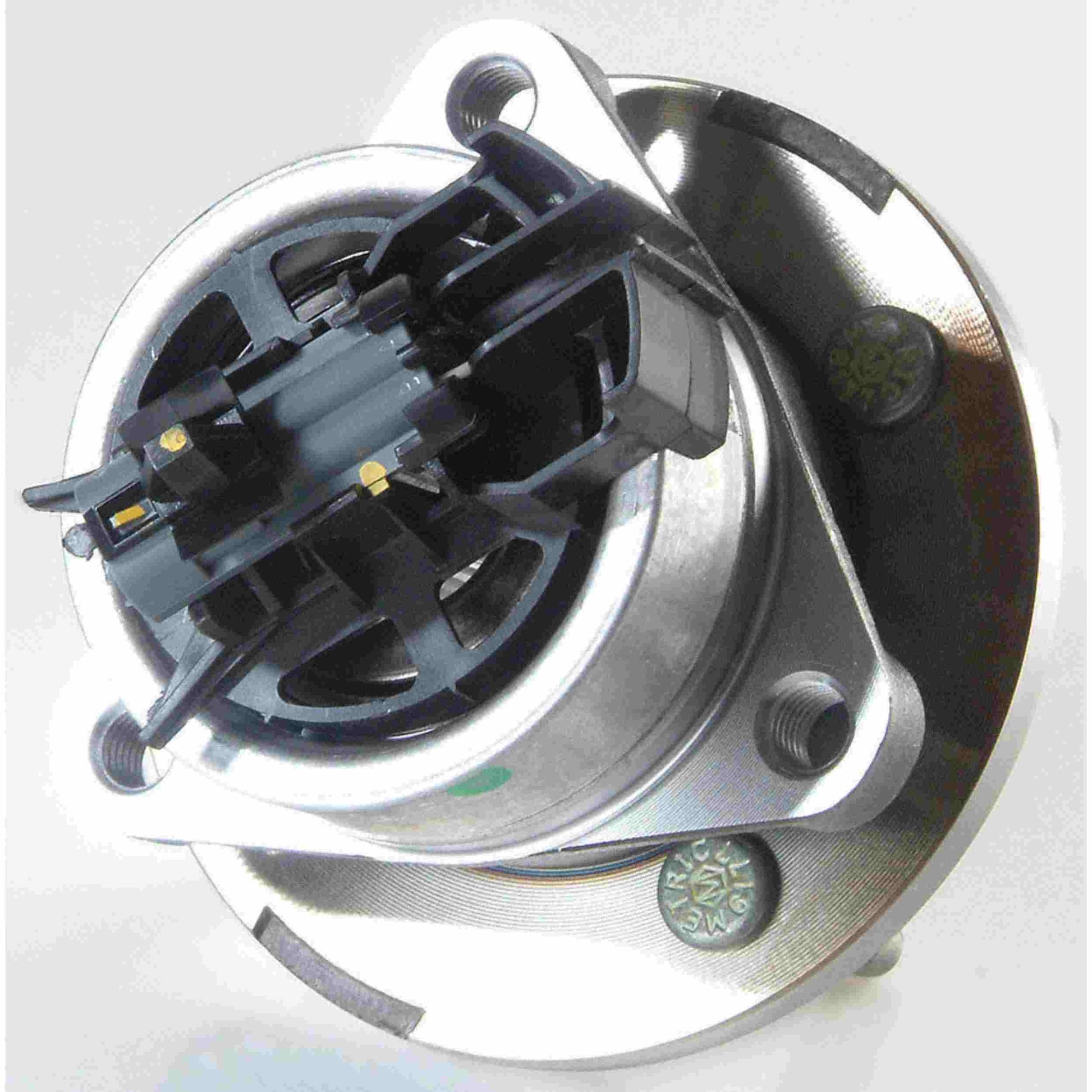

Moog Hub Assembly

MOOG® hub assemblies are performance proven, quality tested and are available for a broad range of foreign and domestic vehicles. Their application-specific design enhancements provide longer life, smoother operation and optimum ABS performance.

• Innovative roll form design ensures consistent and optimal preload.
• Precision Matched Components: Rigorously controlled manufacturing processes ensure exact matching of bearing raceways and rolling elements to consistently deliver superior performance and minimize noise and vibration.
• Engineered to overcome problems and deliver smooth, reliable performance.
• MOOG® hub assemblies are performance proven, quality tested and are available for a broad range of foreign and domestic vehicles.

Specifications

Flange Bolt Hole Quantity: 3

Flange Diameter (A): 131.8

Bolt Circle Diameter (B): 3.937

Bolt Circle Diameter Metric (B): 100.0

Bolt Size (C): M12x1.5

Wheel Pilot Diameter (D): 56.5

Brake Pilot Diameter (E): 60.0

Flange Offset (F): 39.0

Hub Pilot Diameter (G):85.0

Bolt Hole MET (I): M12x1.75

Wheel Stud Quantity: 4

Number of Splines: 33

Flange Shape (K): Modified

ABS Sensor: Cable

Location: Front Wheel
