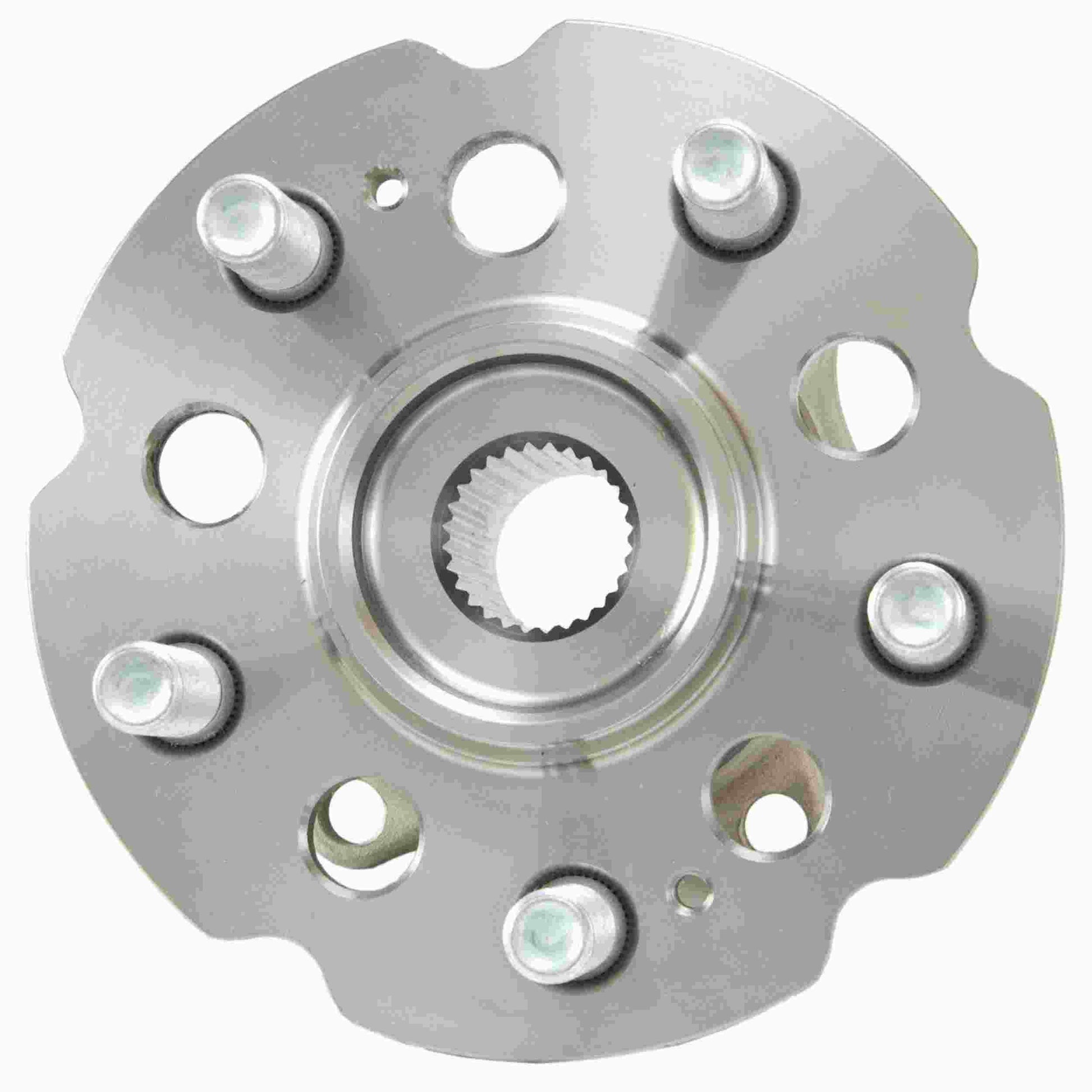

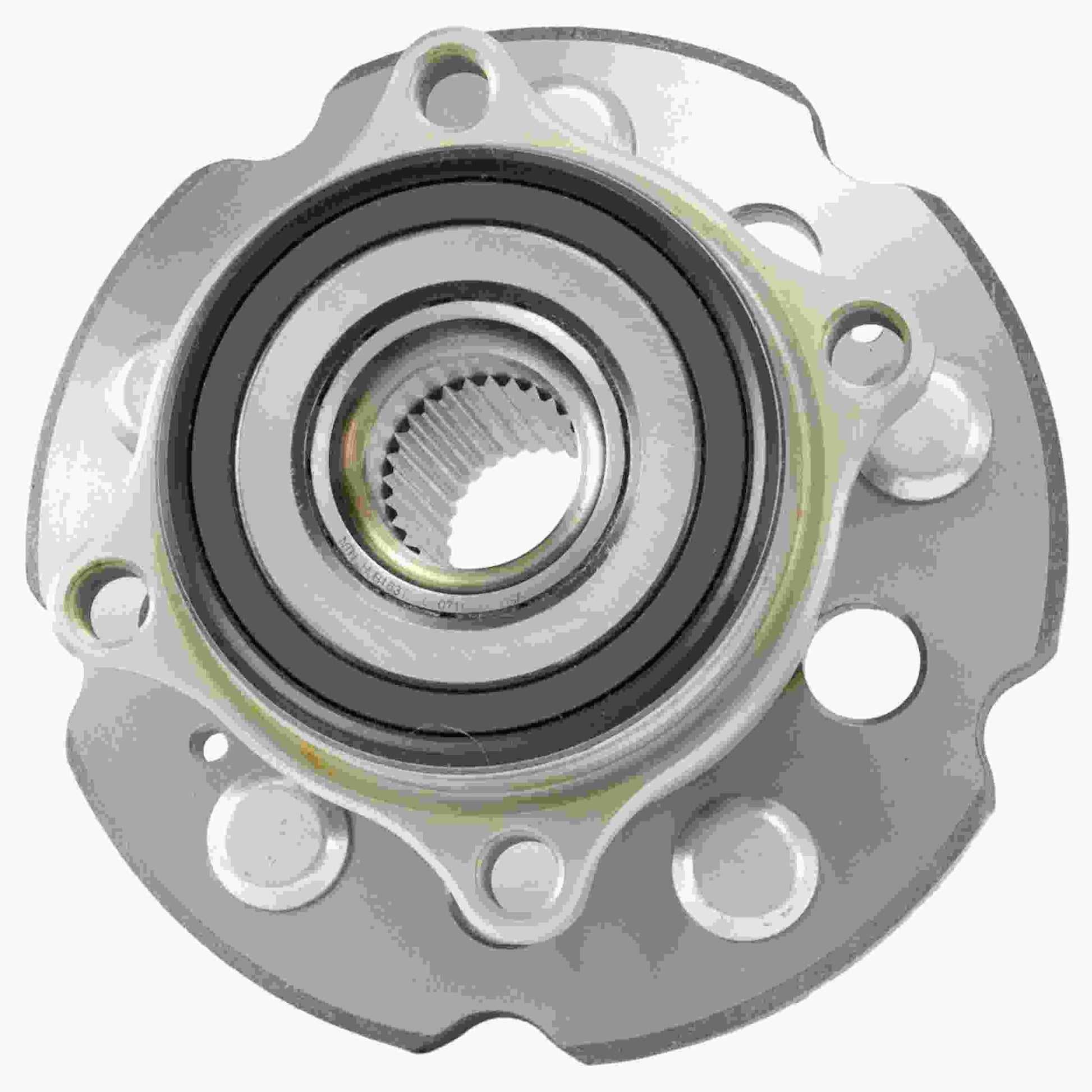

Moog Hub Assembly
Hub Assembly
MOOG® hub assemblies are performance proven, quality tested and are available for a broad range of foreign and domestic vehicles. Their application-specific design enhancements provide longer life, smoother operation and optimum ABS performance.
- Precision Matched Components: Rigorously controlled manufacturing processes ensure exact matching of bearing raceways and rolling elements to consistently deliver superior performance and minimize noise and vibration.
- Engineered to overcome problems and deliver smooth, reliable performance.
- MOOG® hub assemblies are performance proven, quality tested and are available for a broad range of foreign and domestic vehicles.
- Application specific design
Specifications
Hub Assemblies
Flange Bolt Hole Quantity: 4
Flange Diameter (A): 160.0
Bolt Circle Diameter (B): 4.724
Bolt Circle Diameter Metric (B): 120.0
Bolt Size (C): M14x1.5
Wheel Pilot Diameter (D): 64.0
Brake Pilot Diameter (E): 70.0
Flange Offset (F): 62.2
Hub Pilot Diameter (G): 89.2
Bolt Hole MET (I): M12x1.25
Wheel Stud Quantity: 5
Number of Splines: 28
Flange Shape (K): MODIFIED
ABS Sensor: Encoder
Location: Rear Wheel
Vehicle Fitments:
| Year | Make | Model | Submodel |
|---|---|---|---|
| 2007 - 2013 | Acura | MDX | Base |
| 2010 - 2013 | Acura | ZDX | Base |
| 2009 - 2015 | Honda | Pilot | EX-L, EX, LX, Touring |
| 2009 - 2011 | Honda | Pilot | EXL |
| 2015 | Honda | Pilot | SE |
Moog Hub Assembly
Sale price$113.93 USD
