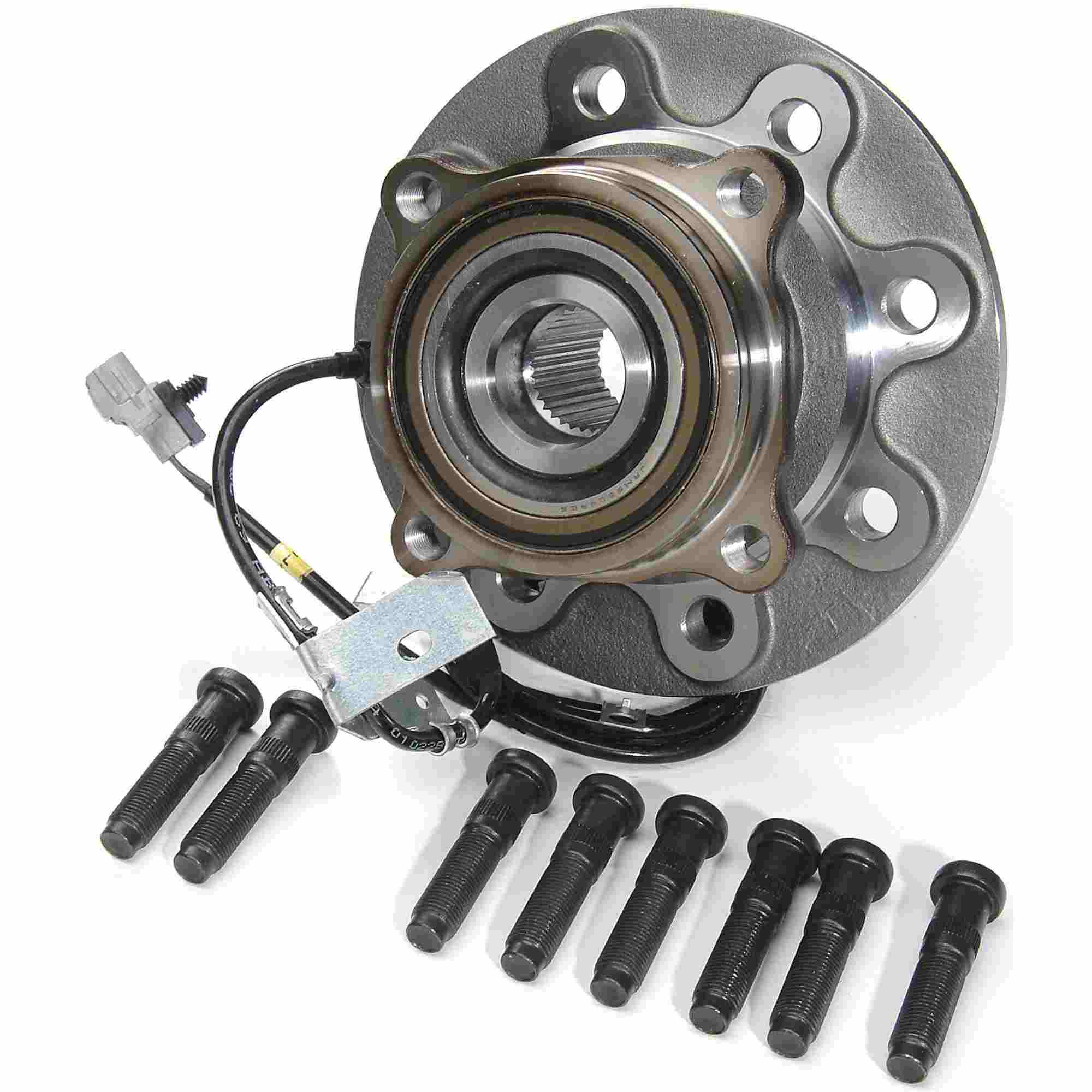

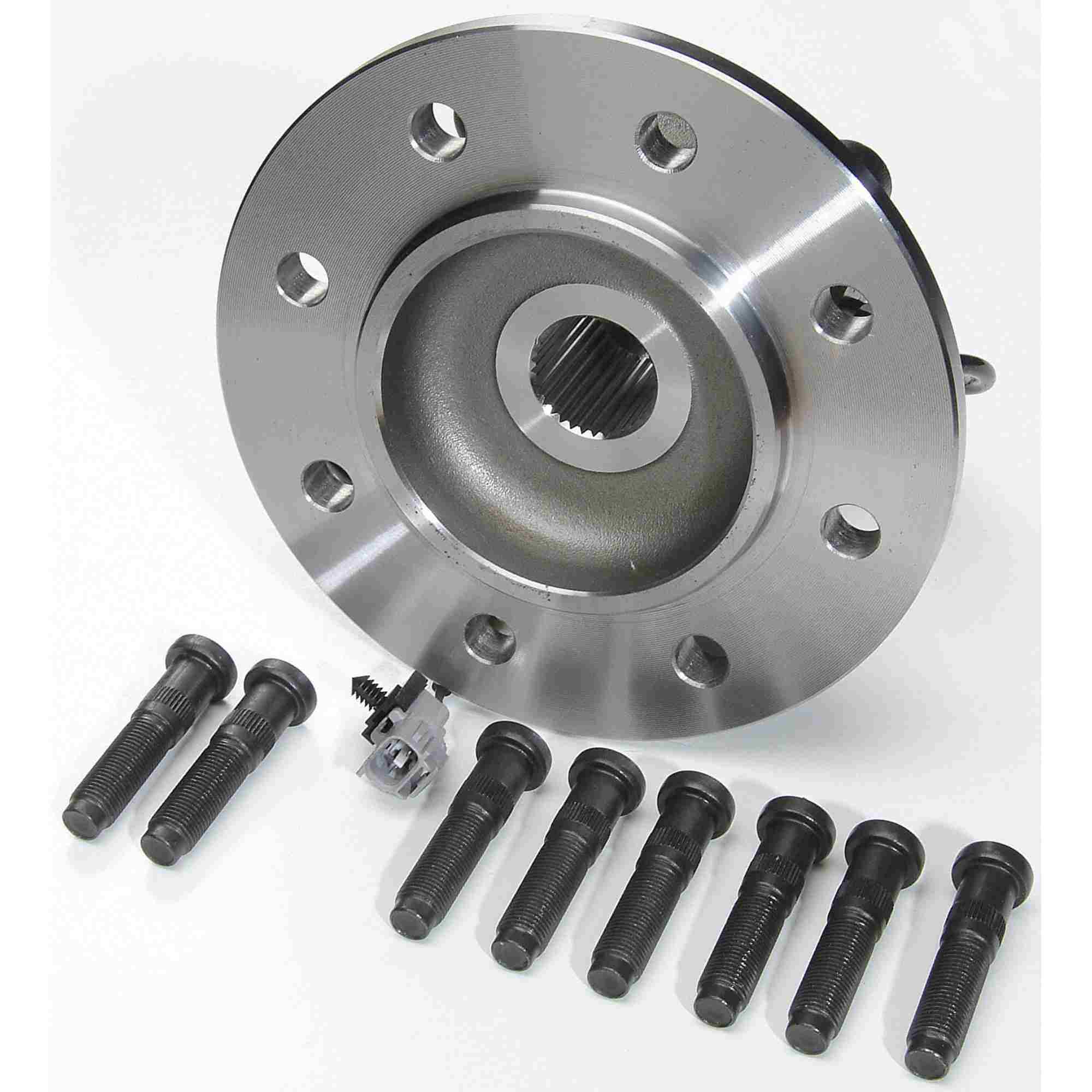

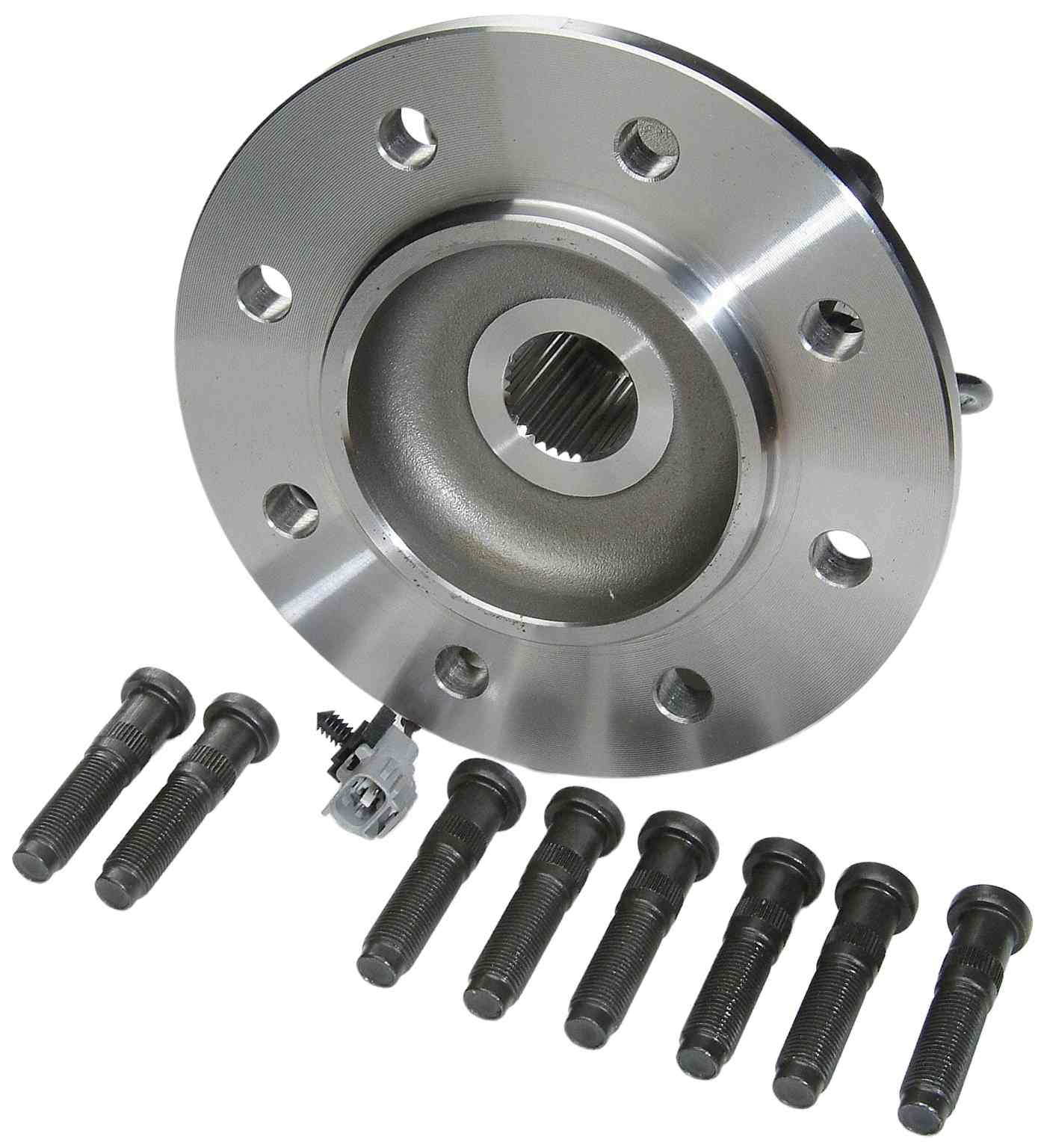

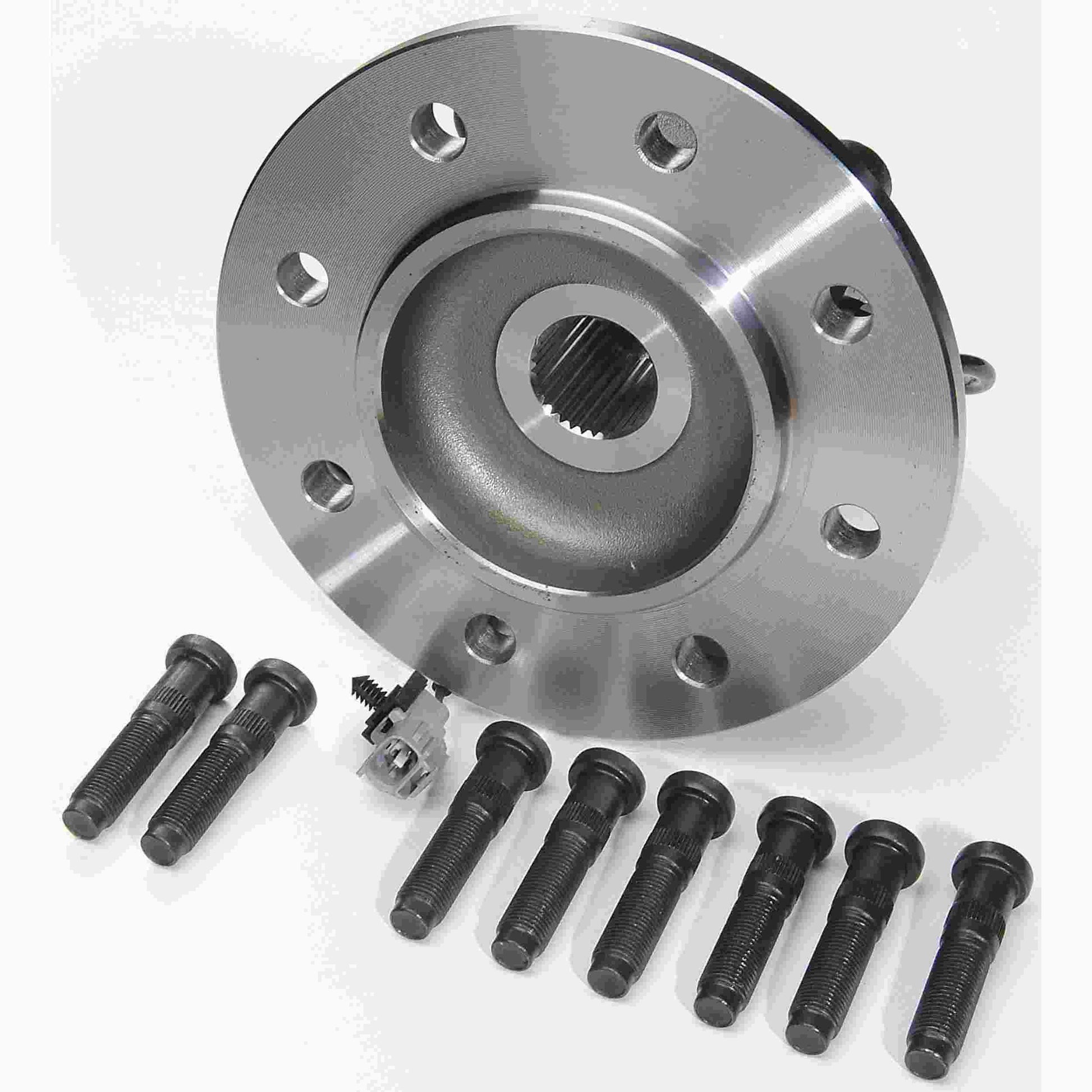

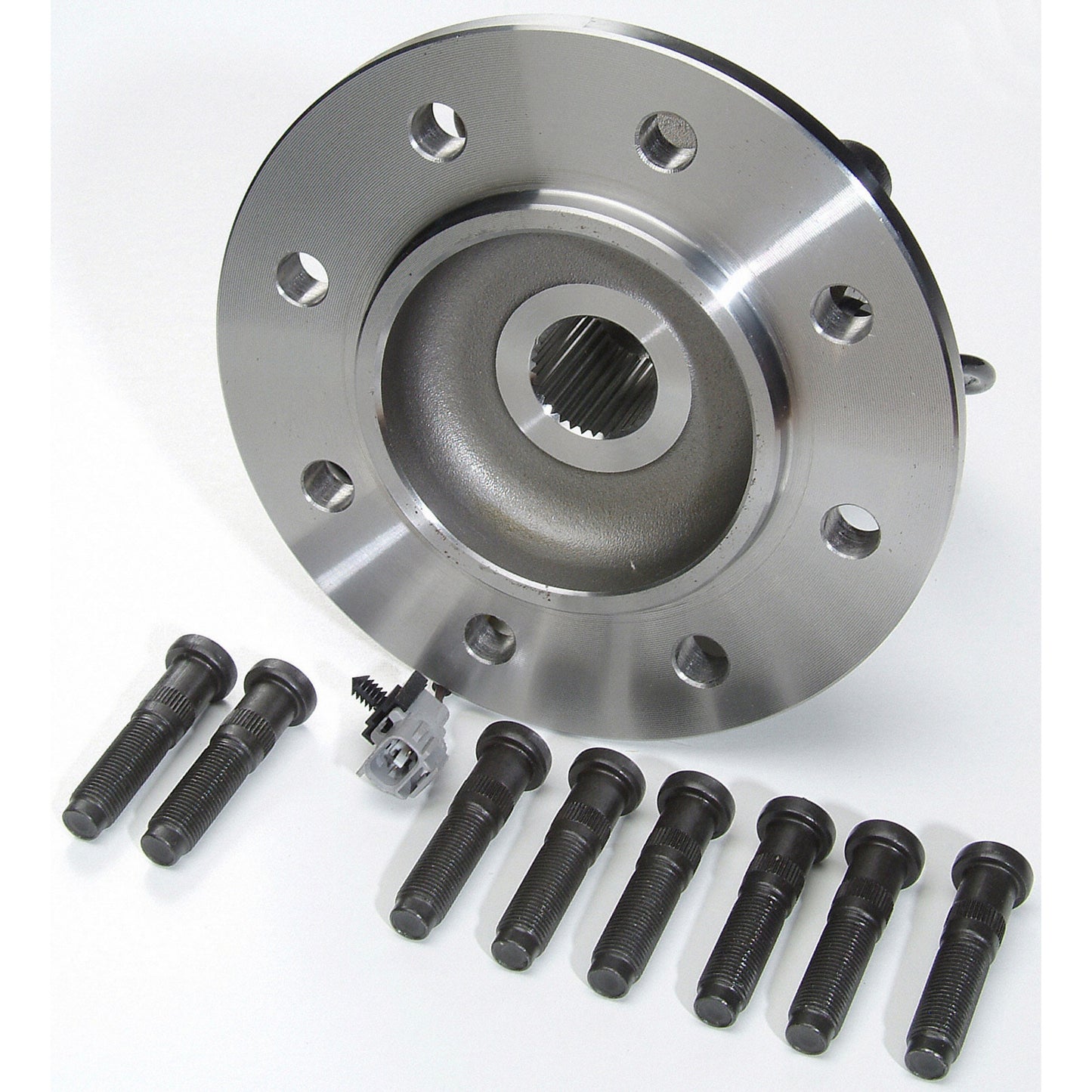

Moog Hub Assembly

MOOG® hub assemblies are performance proven, quality tested and are available for a broad range of foreign and domestic vehicles. Their application-specific design enhancements provide longer life, smoother operation and optimum ABS performance.

Features:

MOOG® hub assemblies are performance proven, quality tested and are available for a broad range of foreign and domestic vehicles.

Engineered to overcome problems and deliver smooth, reliable performance.

MOOG® is the official steering and suspension of NASCAR®

Application specific design

Specifications:

• Flange Bolt Hole Quantity: 4
• Flange Diameter (A): 8.420
• Bolt Circle Diameter (B): 6.500
• Bolt Circle Diameter Metric (B):165.1
• Bolt Size (C):15.3
• Wheel Pilot Diameter (D):4.770
• Brake Pilot Diameter (E): 4.770
• Flange Offset (F): 2.965
• Hub Pilot Diameter (G):4.484
• Bolt Hole MET (I): M14X1.5
• Wheel Stud Quantity: 8
• Number of Splines: 33
• Flange Shape (K): MODIFIED CIRCLE
• ABS Sensor: Cable
• Location: Front Wheel
