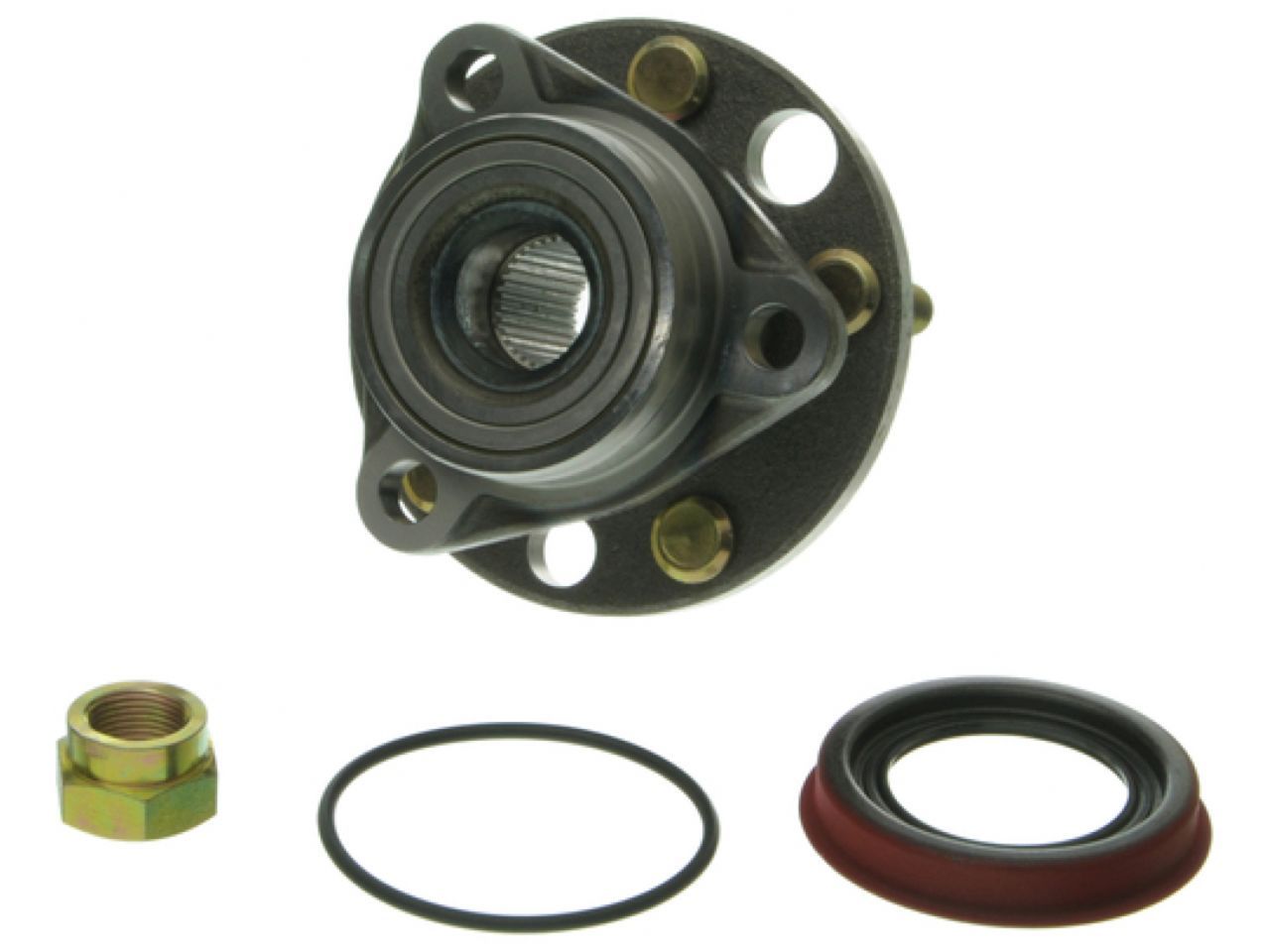

Moog Hub Assembly
MOOG® hub assemblies are performance proven, quality tested and are available for a broad range of foreign and domestic vehicles. Their application-specific design enhancements provide longer life, smoother operation and optimum ABS performance.
Features:
Wheel Stud Bolts: Wheel studs feature a protective coating that helps prevent rust and corrosion, allowing easier removal and proper torquing of the wheel nut.
Precision Matched Components: Rigorously controlled manufacturing processes ensure exact matching of bearing raceways and rolling elements to consistently deliver superior performance and minimize noise and vibration.
Engineered to overcome problems and deliver smooth, reliable performance.
MOOG® hub assemblies are performance proven, quality tested and are available for a broad range of foreign and domestic vehicles.
Specifications:
- Flange Bolt Hole Quantity: 3
- Flange Diameter (A): 125.0
- Bolt Circle Diameter (B): 3.937
- Bolt Circle Diameter Metric (B):100.0
- Bolt Size (C): 100.0
- Wheel Pilot Diameter (D):57.0
- Brake Pilot Diameter (E): 58.3
- Flange Offset (F): 44.3
- Hub Pilot Diameter (G):73.5
- Bolt Hole MET (I): 13
- Wheel Stud Quantity: 5
- Number of Splines: 33
- Flange Shape (K): MODIFIED TRIANGLE
- ABS Sensor: No
- Location: Front Wheel
- Bearing OD (Inch): 9.842
- Bearing Width (Inch): 3.819
- Inner Race Radius (Inch): 0.140
- Inner Race Width (Inch): 3.819
- Outter Race OD (Inch): 4.921
- Outter Race Width (Inch): 3.819
- Bearing OD (mm): 125.0
- Bearing Width (mm): 97.0
- Inner Race Radius (mm): 3.6
- Inner Race Width (mm): 97.0
- Outter Race OD (mm): 125.0
- Outter Race Width (mm): 97.0
