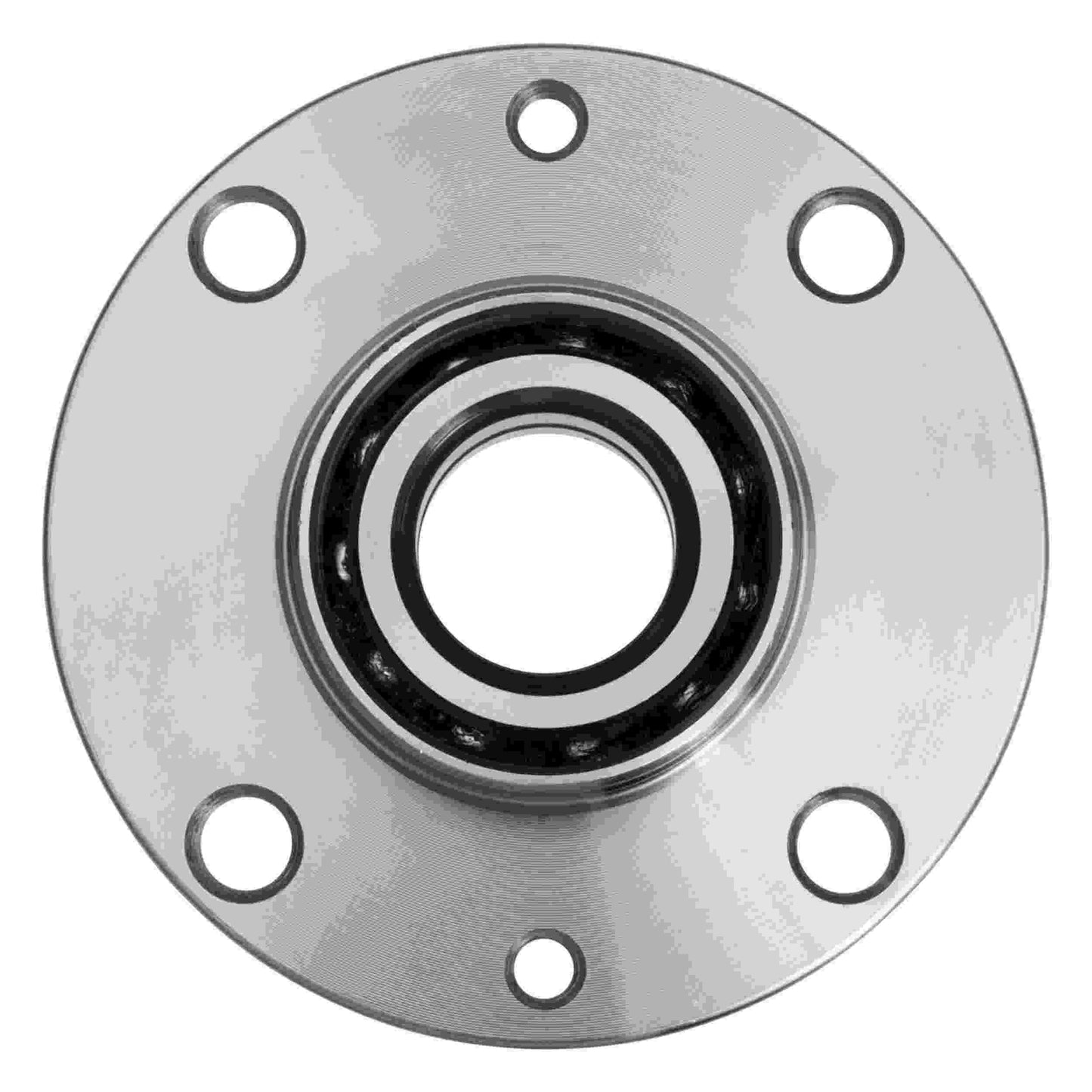

Moog Hub Assembly

MOOG® hub assemblies are performance proven, quality tested and are available for a broad range of foreign and domestic vehicles. Their application-specific design enhancements provide longer life, smoother operation and optimum ABS performance.

• Precision Matched Components: Rigorously controlled manufacturing processes ensure exact matching of bearing raceways and rolling elements to consistently deliver superior performance and minimize noise and vibration.
•  Engineered to overcome problems and deliver smooth, reliable performance.
• MOOG® hub assemblies are performance proven, quality tested and are available for a broad range of foreign and domestic vehicles.
• Application specific design

Specifications

Hub Assemblies

• Flange Diameter (A): 116.6
• Bolt Circle Diameter Metric (B): 98.0
• Bolt Size (C): M12x1.25
• Wheel Pilot Diameter (D): 57.9
• Brake Pilot Diameter (E): 59.0
• Flange Offset (F): 43.0
• Hub Pilot Diameter (G): 68.6
• Wheel Stud Quantity:4
• ABS Sensor: Encoder

Vehicle Fitments:
