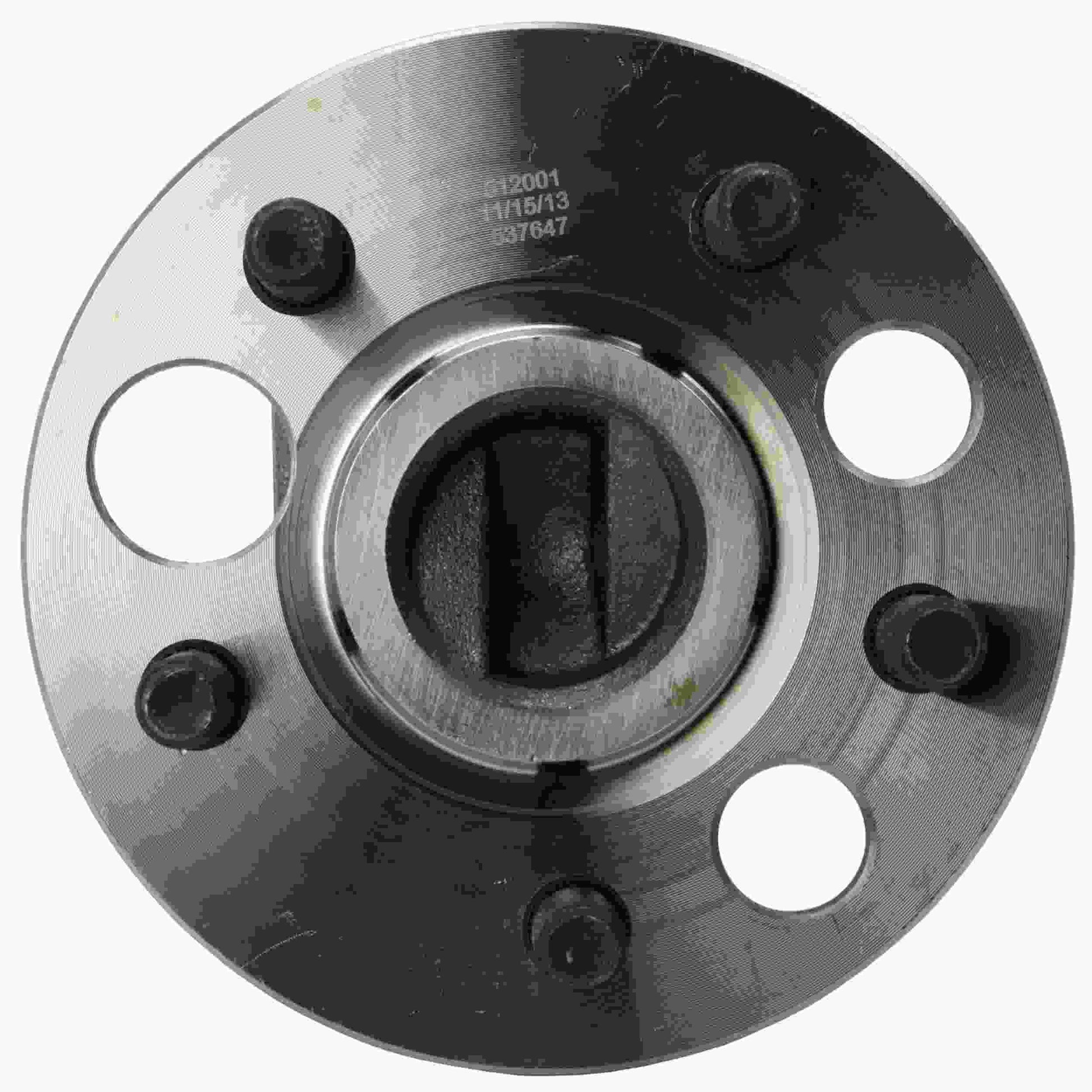

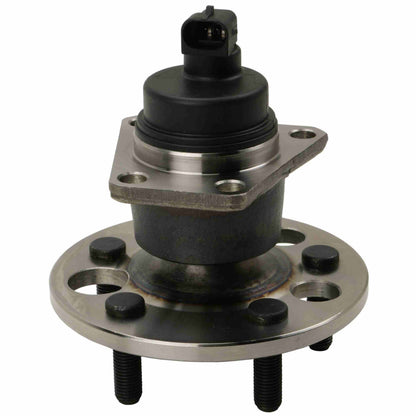

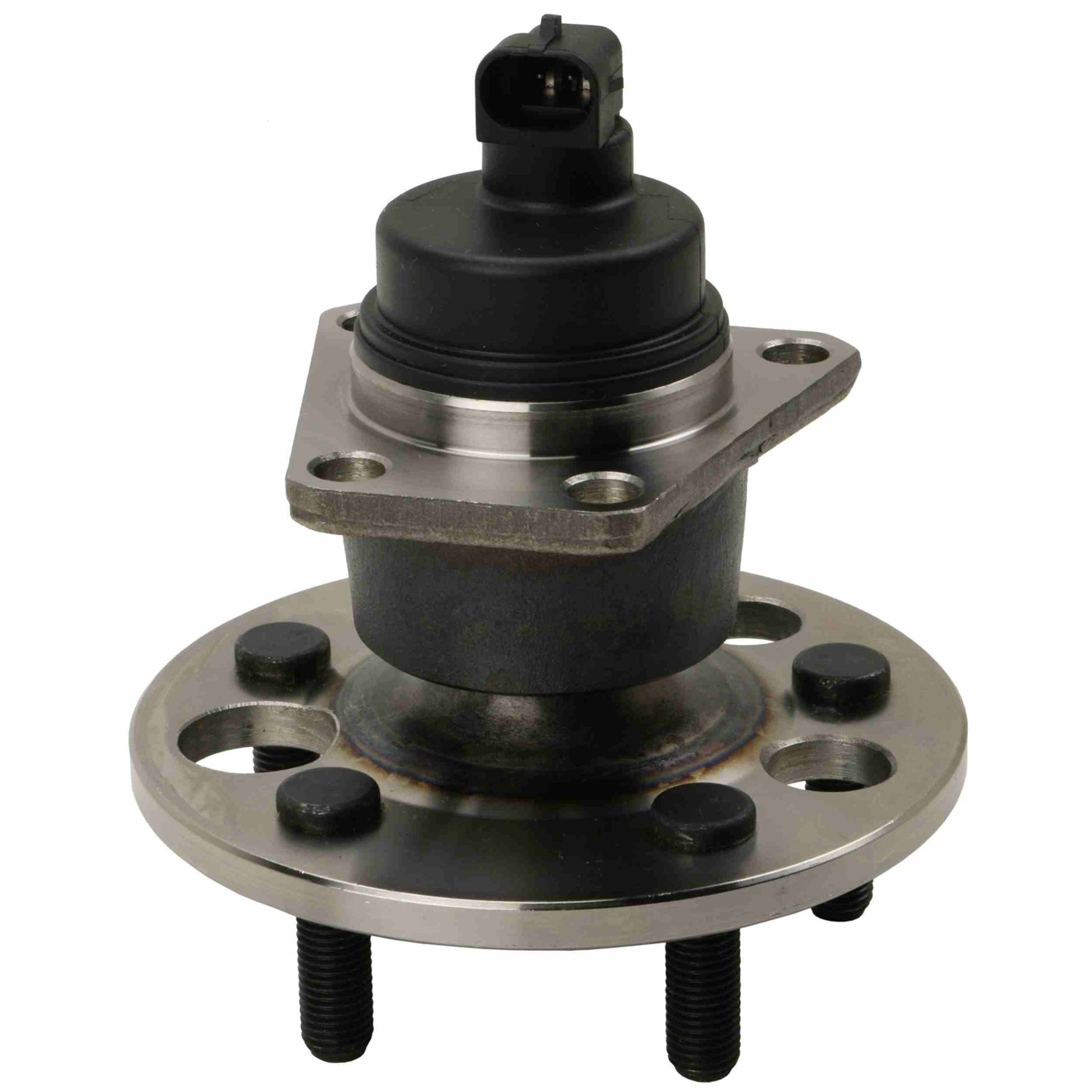

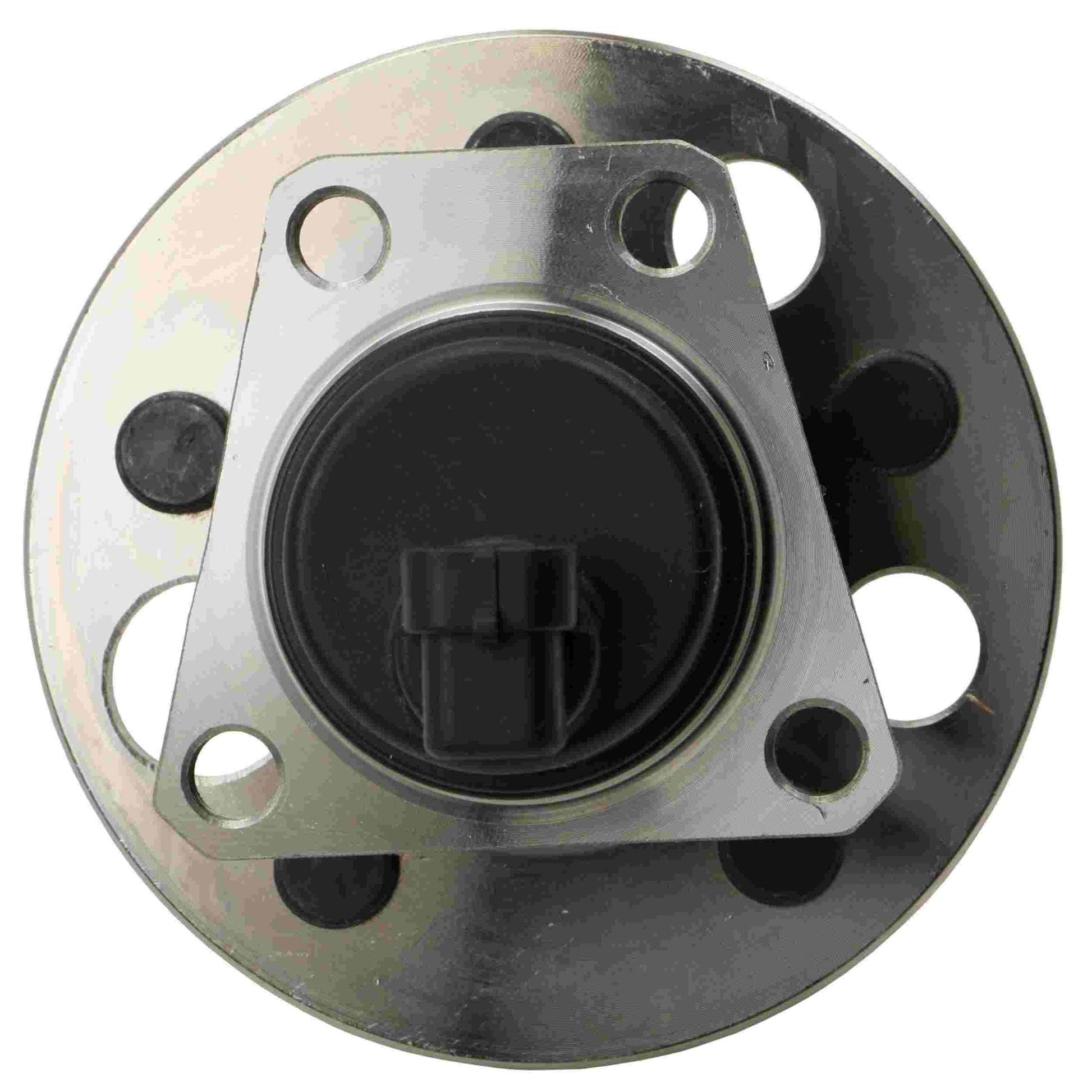

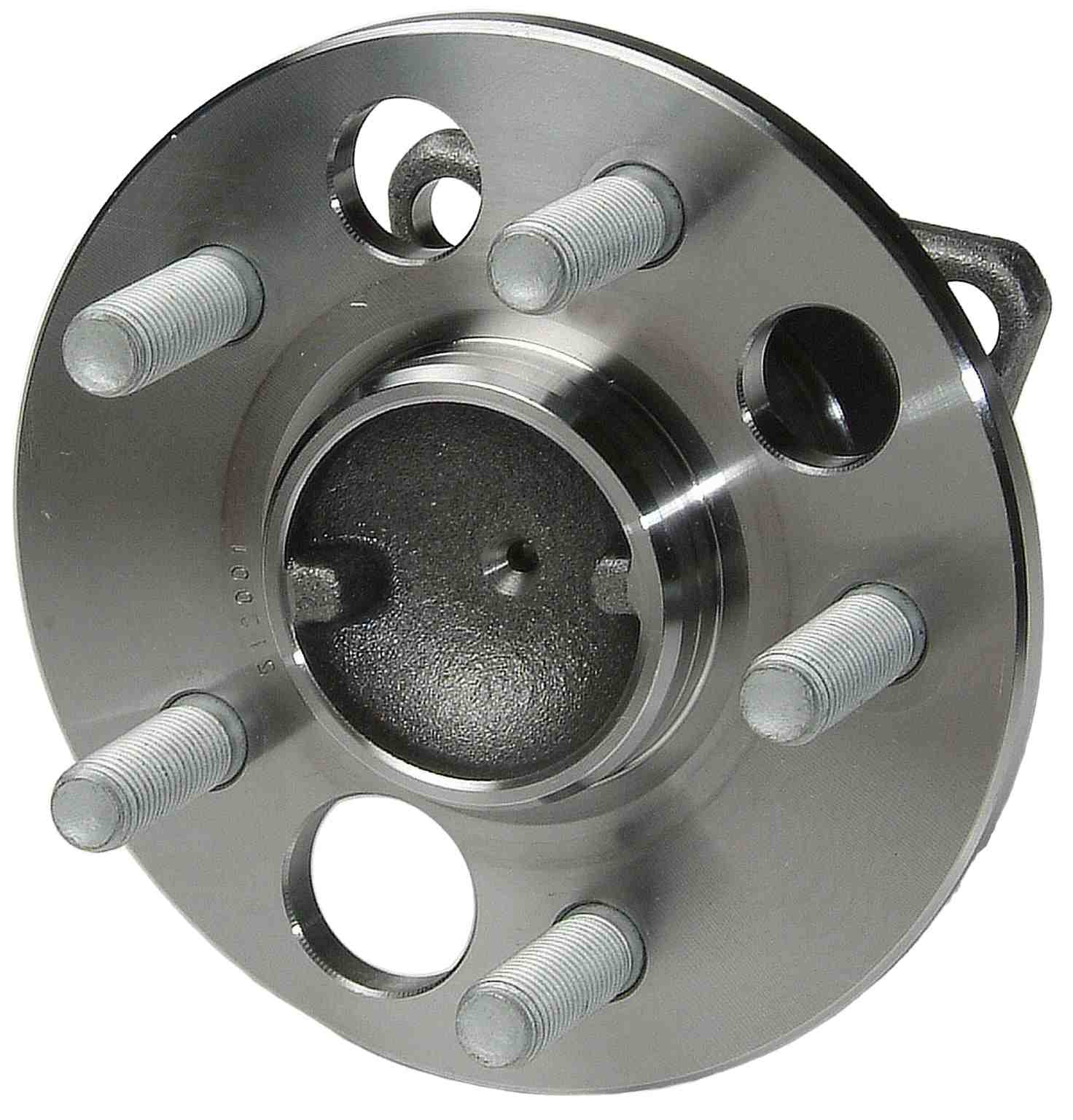

Moog Hub Assembly
MOOG hub assemblies are performance proven, quality tested and are available for a broad range of foreign and domestic vehicles. Their application-specific design enhancements provide longer life, smoother operation and optimum ABS performance.
Precision Matched Components: Rigorously controlled manufacturing processes ensure exact matching of bearing raceways and rolling elements to consistently deliver superior performance and minimize noise and vibration.
Engineered to overcome problems and deliver smooth, reliable performance.
MOOG hub assemblies are performance proven, quality tested and are available for a broad range of foreign and domestic vehicles.
Application specific design
Specifications
Hub Assemblies
Bolt Quantity: 4
Flange Diameter (A): 138.0
Bolt Circle Diameter (B): 3.940
Bolt Circle Diameter Metric (B): 100.0
Bolt Size (C): M12X1.5
Wheel Pilot Diameter (D): 57.0
Brake Pilot Diameter (E): 57.5
Flange Offset (F): 64.8
Hub Pilot Diameter (G): 60.9
Bolt Hole MET (I): 10
Bolt Hole Quantity: 5
Flange Shape (K): OFFSET TRAPEZOID

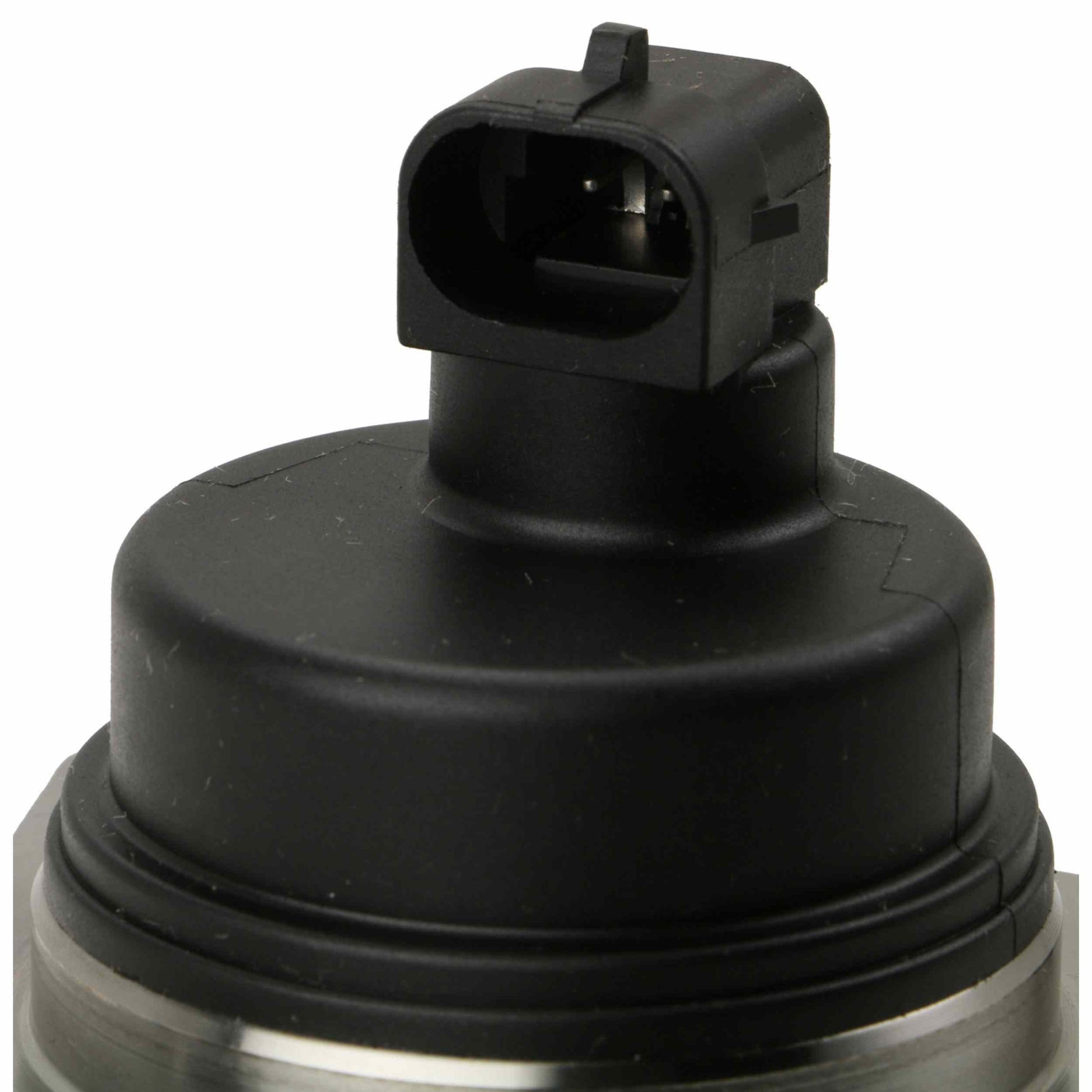

ABS Sensor: Sensor
Location: Rear Wheel
Bearing OD (Inch): 10.866
Bearing Width (Inch): 6.261
Inner Race Radius (Inch): 0.140
Inner Race Width (Inch): 6.261
Outter Race OD (Inch): 5.433
Outter Race Width (Inch): 6.261
Bearing OD (mm): 138.0
Bearing Width (mm): 159.0
Inner Race Radius (mm): 3.6
Inner Race Width (mm): 159.0
Outter Race OD (mm): 138.0
Outter Race Width (mm): 159.0
PASSENGER CAR & LIGHT TRUCK
|
|
|
|
|
|
|
|
|
|||||||||
| Buick | Skylark | 1998-1991 | Rear | 2 | |||||||||||||
| Chevrolet | Beretta | 1996-1992 | Rear | 2 | |||||||||||||
| Chevrolet | Cavalier | 2005-1992 | Rear | 2 | |||||||||||||
| Chevrolet | Corsica | 1996-1992 | Rear | 2 | |||||||||||||
| Oldsmobile | Achieva | 1998-1992 | Rear | 2 | |||||||||||||
| Pontiac | Grand Am | 1998-1991 | Rear | 2 | |||||||||||||
| Pontiac | Sunbird | 1994-1992 | Rear | 2 | |||||||||||||
| Pontiac | Sunfire | 2005-1995 | Rear | 2 |
Vehicle Fitments:
| Year | Make | Model | Submodel |
|---|---|---|---|
| 1991 | Buick | Skylark | Base, Luxury Edition |
| 1991 - 1998 | Buick | Skylark | Custom |
| 1991 - 1997 | Buick | Skylark | Gran Sport |
| 1993 - 1997 | Buick | Skylark | Limited |
| 1996 | Buick | Skylark | Olympic Gold Edition |
| 1992 - 1996 | Chevrolet | Beretta | Base |
| 1992 - 1993 | Chevrolet | Beretta | GT, GTZ |
| 1994 - 1996 | Chevrolet | Beretta | Z26 |
| 1992 - 2005 | Chevrolet | Cavalier | Base |
| 1995 - 2005 | Chevrolet | Cavalier | LS |
| 2002 - 2005 | Chevrolet | Cavalier | LS Sport |
| 1992 - 1999 | Chevrolet | Cavalier | RS |
| 1992 - 1994 | Chevrolet | Cavalier | VL |
| 1992 - 2002 | Chevrolet | Cavalier | Z24 |
| 1994 - 1996 | Chevrolet | Corsica | Base |
| 1992 - 1993 | Chevrolet | Corsica | LT |
| 1992 | Chevrolet | Corsica | LTZ |
| 1992 - 1998 | Oldsmobile | Achieva | S |
| 1992 - 1997 | Oldsmobile | Achieva | SC, SL |
| 1992 - 1993 | Oldsmobile | Achieva | SCX |
| 1992 - 1998 | Pontiac | Grand Am | GT |
| 1991 - 1998 | Pontiac | Grand Am | SE |
| 1991 | Pontiac | Grand Am | Value Leader, LE |
| 1992 - 1994 | Pontiac | Sunbird | GT, SE |
| 1994 | Pontiac | Sunbird | LE |
| 1992 - 1993 | Pontiac | Sunbird | LE Value Leader |
| 1997 - 2005 | Pontiac | Sunfire | Base |
| 1995 - 2003 | Pontiac | Sunfire | GT |
| 2000 | Pontiac | Sunfire | GT Milenio |
| 1995 - 2004 | Pontiac | Sunfire | SE |
Moog Hub Assembly
Sale price$122.56 USD
