Hotchkis 59-64 Chevy Bel Air/Caprice/Impala Tubular Lower Control Arms

Applications: 59-64 Chevrolet Bel Air 59-64 Chevrolet Biscayne 59-64 Chevrolet Caprice and 59-64 Chevrolet Impala.

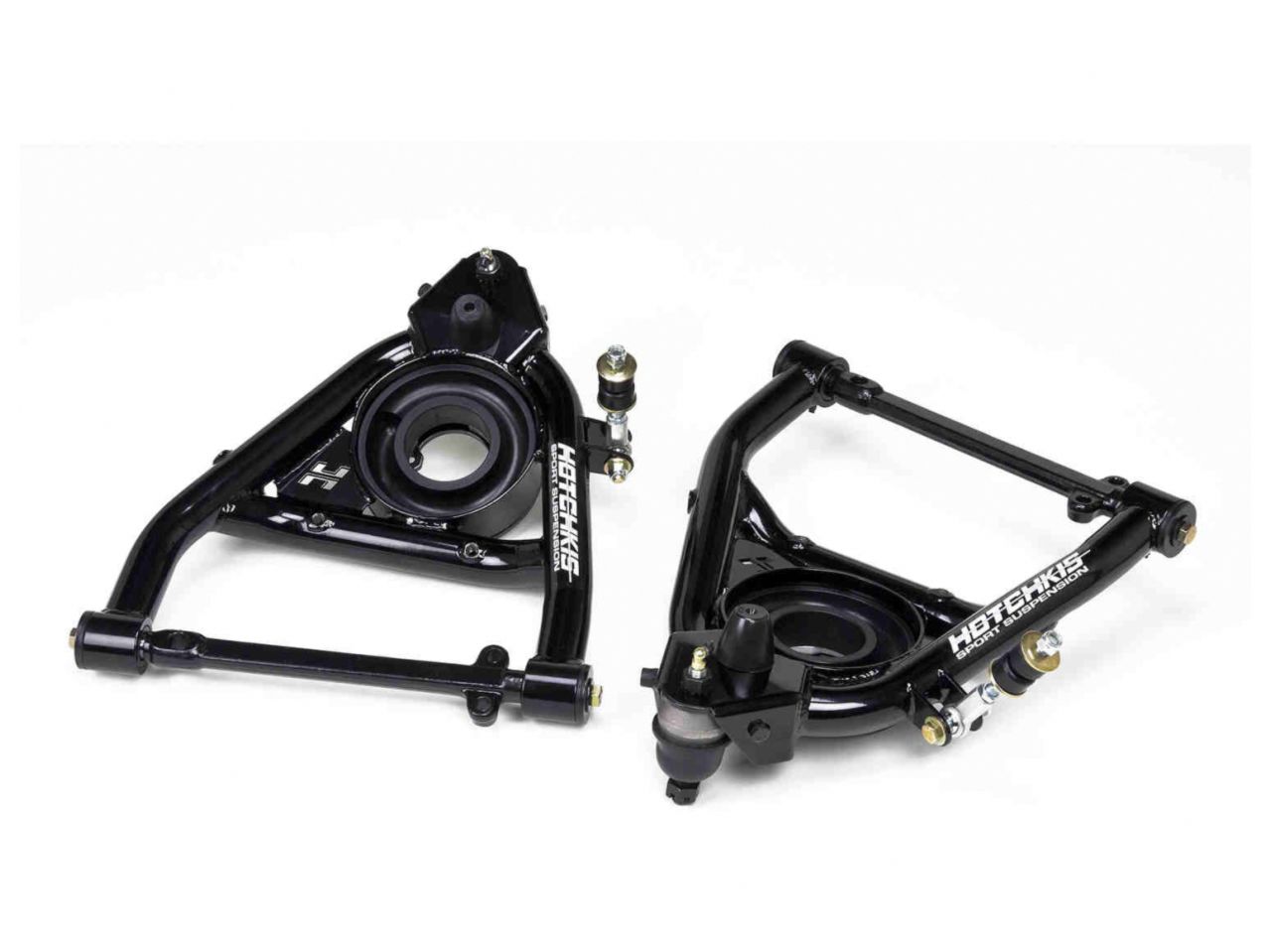

Hotchkis Sport Suspension 1113L Lower A-Arms for 1959-1964 Chevrolet Bel Air Biscayne Caprice and Impala. Gain up to +7 degrees of caster when combined with Hotchkis Sport Suspension 1113U upper a-arms. Compatible with air bag systems like Hotchkis Sport Suspension 1113L-AB kit. Features 100% TIG welded 1.5 tubular steel construction with CNC machined inset spring cup. Includes precision aluminum ride height adjustment shims polyurethane coil spring isolators OE style cross shafts high articulation end links heavy duty ball joints easy to lubricate Delrin bushings and gloss black powder coat finish with Laser cut Hotchkis logo. Other Benefits include CAD designed and analyzed by FEA software for maximum strength and efficiency. Increased structural rigidity due to CNC machined inset spring cup. Aluminum shims allow - ride height adjustment. Additional shims available for purchase separately. Delrin bushings allow smooth operation with minimal deflection through travel range. Install Hotchkis Sport Suspension's Tubular Lower A-Arms on your 1959-1964 Chevrolet Impala for vastly improved handling and control thanks to revised suspension geometry. These TIG welded bolt-on arms have repositioned ball joints that increase caster up to +7 degrees when combined with the 1113U upper a-arms resulting in enhanced stability and traction. Adjustable spring pockets offer minor ride height adjustment when using standard coil springs. For cars running air suspension the a-arms are easily converted to bags using the optional 1113L-AB mounting kit. Finished in gloss black powder coat the arms are ready to install and are complete with ball joints bump stops ride height shims polyurethane coil spring locators and greasable Delrin bushings. These a-arms are a must have for any tricked out Impala or Biscayne. Fits the following applications 59-64 Chevrolet BEL AIR 59-64 Chevrolet BISCAYNE 59-64 Chevrolet Caprice and 59-64 Chevrolet IMPALA.
