Hotchkis 67-69 Chevy Camaro / Pontiace Firebird / 68-74 Chevy Nova Tub

SKU: 09DE5 | MPN:  1107
In stock
Sale price$1,005.26 USD Regular price$1,055.54 USD
Save $50.28

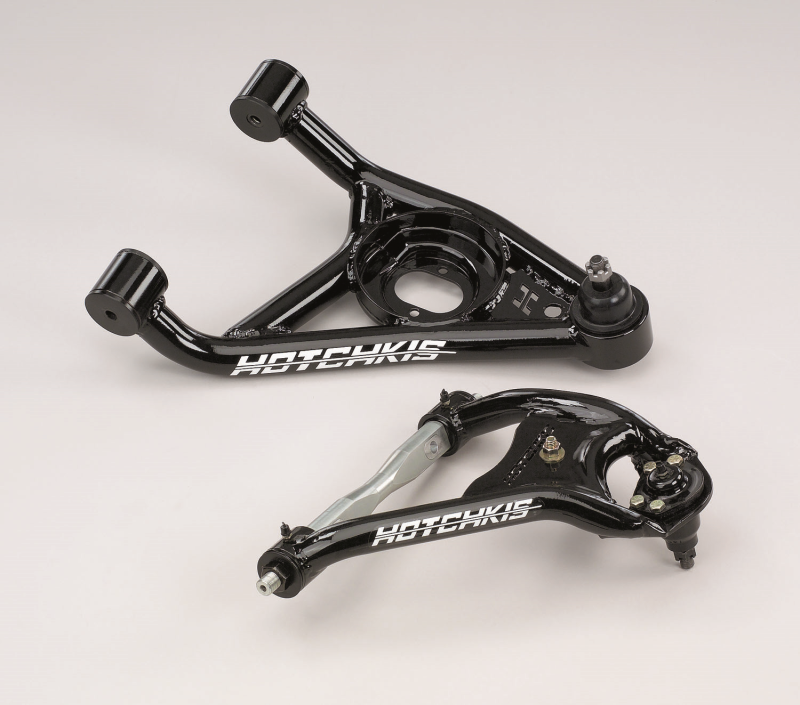

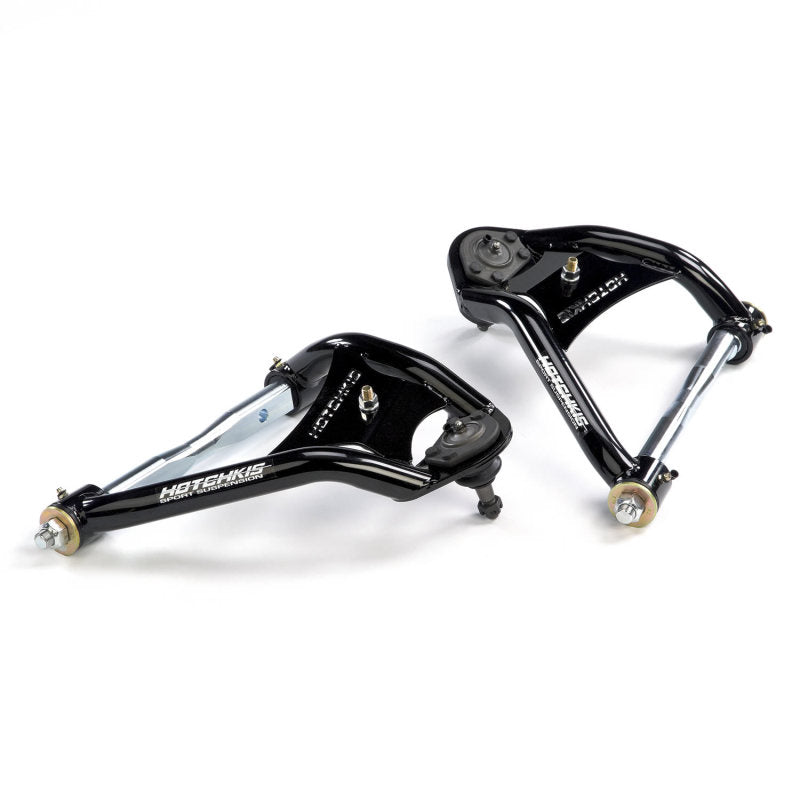

Hotchkis Sport Suspension 1107 1967-1969 F-Body / 68-74 X-Body Tubular Upper A-Arms. Install the Hotchkis Tubular Upper A-Arms on your 67-69 Camaro or Firebird and gain vastly increased handling and control. These TIG-welded bolt-on arms offer increased camber and caster adjustment over stock for ultimate performance. Smooth operating Delrin bushings allow the Arms to move through their travel easily. Finished in gloss black powder coat the Arms are ready to install and are complete with ball joints offset cross-shafts offset caster inserts Delrin bushings and droop stops. Exceptional handling performance when combined with the Hotchkis Performance Tubular Camaro/Firebird Lower A-Arms. when combined with the Hotchkis Performance Tubular Camaro/Firebird Lower A-Arms. Features: 100% TIG-welded 1.25 in. Tubular Steel Construction. Silver zinc plated 4130 Chromoly Offset Billet Cross-shaft. Easy to lubricate Delrin bushings. Upper ball joints and polyurethane droop stops installed. Laser Cut Hotchkis Logo. Gloss Black Powder Coat finish. Benefits: Offset Cross-Shaft allows increased static negative camber without a large alignment shim stack. Great for header clearance issues. Built in caster to allow for increased (beyond stock) positive caster settings which improve high speed stability and camber gain during turning thereby increasing front tire traction. Smooth operating Delrin bushings allow minimal deflection through travel range.

Features and Benefits:

  • Improved Suspension Geometry
  • Increased Caster
  • Added Camber Adjustability
  • Streamlined Appearance
  • Added Strength
  • 100 Percent TIG-welded Construction
  • Gloss Black Powder Coated Finish


Vehicle Fitments:

Year Make Model Submodel
1973 - 1974 Buick Apollo Base
1967 - 1969 Chevrolet Camaro Base, Z28, SS, RS
1968 Chevrolet Chevy II Nova
1969 - 1974 Chevrolet Nova Base
1973 - 1974 Chevrolet Nova Custom
1973 - 1974 Oldsmobile Omega Base
1967 Pontiac Firebird 326
1968 - 1969 Pontiac Firebird 350
1969 Pontiac Firebird 350 HO, Trans Am
1967 - 1969 Pontiac Firebird Base, Sprint, 400
1967 - 1968 Pontiac Firebird HO
1971 - 1974 Pontiac Ventura Base
1973 - 1974 Pontiac Ventura Custom
1974 Pontiac Ventura GTO
