Holley EFI

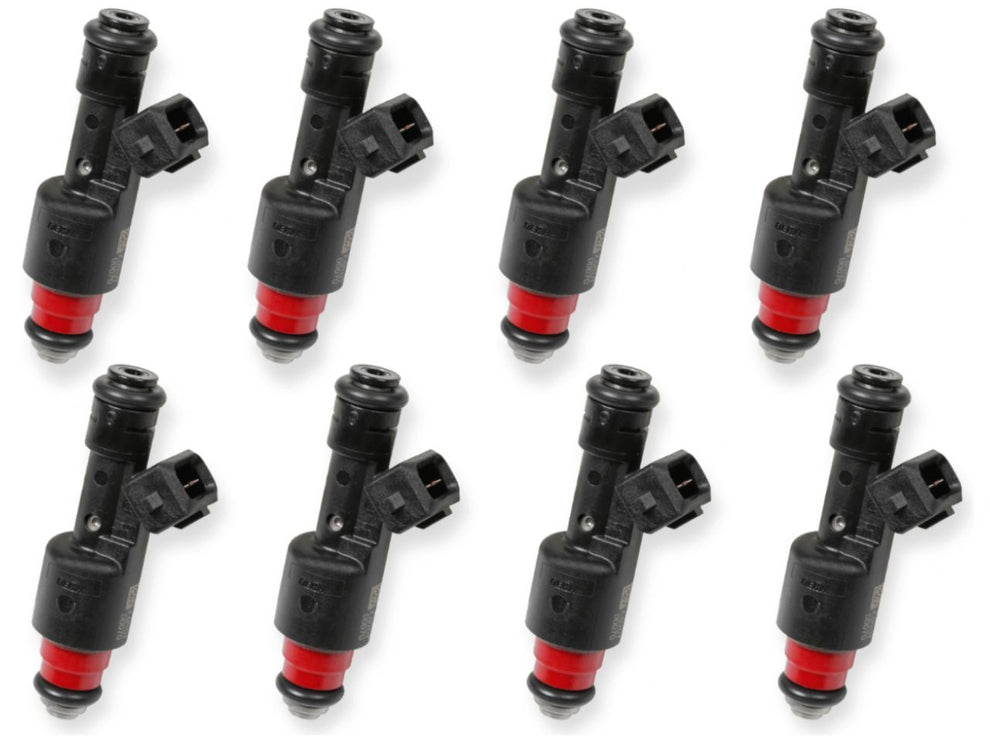

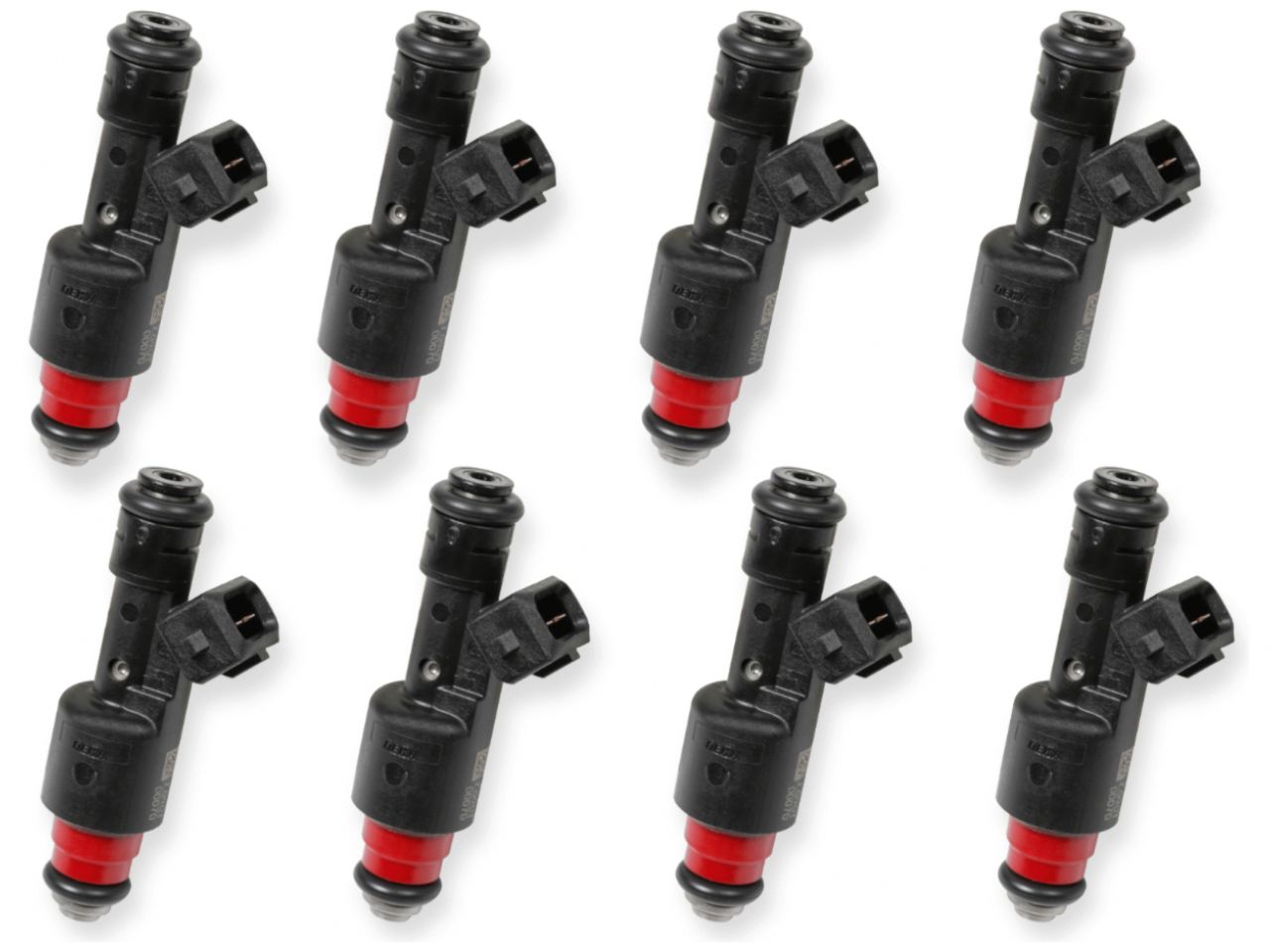

Holley Kit, Fuel Injector 220Pph, 8 Pack

Holley Kit, Fuel Injector 220Pph, 8 Pack

sku: 1D5X4 | mpn: 522-228
$2,249.93
$2,249.93 $2,249.93
Sale Sold out
Shipping calculated at checkout.

Out of stock

Emissions

This is not an emissions item.
  • Ships Worldwide
  • Easy Returns
  • Fast Shipping
Holley EFI 220 lb/hr Fuel Injectors feature a precision lapped disc valve, high-quality brass windings, and high-temp O-rings. These injectors provide excellent linearity with no discernible "bounce" at low pulse widths as commonly found in other injectors. The Holley EFI Fuel Injectors provide precision fuel delivery you can depend on.

Features:

  • Set of 8
  • Minitimer Connectors (EV1/Bosch Style)
  • Low impedance (2.27 Ohms) for use with peak and hold drivers
  • Rated injector flow: 220 lb/hr @ 43.5 PSI
  • Supports over 3000 horsepower
  • 4 Hole Orifice - Pencil cone spray pattern
  • Maximum recommended fuel pressure: 75 PSI
  • Injector Off Time provided in the Holley EFI software

Specs :

  • Body Length : 75mm
  • Body Style : EV1
  • Brand : Holley EFI
  • Connector Series : EV1 - Jetronic - (Bosch Style)
  • Impedance : Low 2.27 Ohms
  • O-Ring to O-Ring : 60.44mm
  • Product Type : Fuel Injectors
  • Rated Injector Flow : 220 lb/hr
  • Part Number : 522-228
