Holley Intake Elbow, 4150 Flange
EFI Throttle Body Intake Elbow
EFI Throttle Body Intake Elbow 4150 - Fits GM LS & Ford 5.0L Throttle

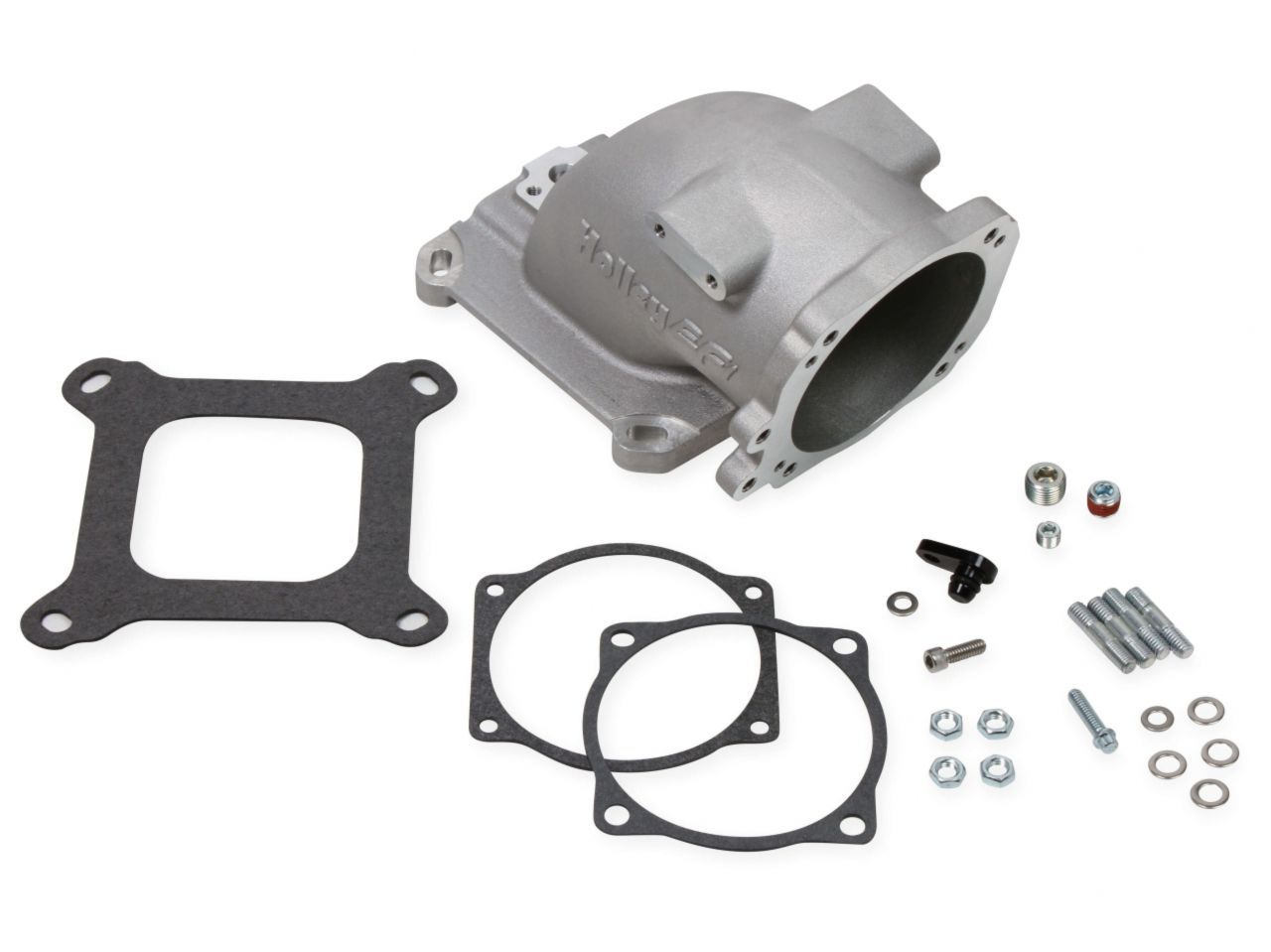

This cast EFI intake elbow allows the use of GM LS or Ford 5.0L throttle bodies on any intake manifold w/ the 4150 mounting flange. Slotted mounting holes & dual throttle cable mounting bracket bosses allow the elbow & throttle body to be mounted forward, sideways, or rearward. Features (4) vacuum ports, MAP sensor port, machined / port matched to 4150 gasket, and 100° throttle body angle for extra hood clearance. Includes MAP sensor port cover, gaskets & hardware.
Features:
- Dual Throttle Body Bolt Pattern - Fits GM LS & Ford 5.0L Throttle Bodies
- 105mm Throttle Body Opening - 100° Mounting Angle
- Fits Intakes w/ 4150 Flange
- Slotted Mounting Holes Allow Forward, Sideways or Rearward Throttle Body Mounting
- LS3 Style MAP Sensor Mounting
- (4) Vacuum Ports - (1) Each 1/4" NPT & 3/8" NPT & (2) 1/8" NPT w/ Indirect Baffled Signal
- (2) Throttle Linkage Mounting Bosses
- Sand Cast w/ Satin Finish
- Overall Height 5.12"
Specification
| Construction | Cast |
|---|---|
| Emission Code | 3 |
| Finish | Satin |
| Fuel System Type | EFI |
| Height | 5.12" |
| Product Type | Intake Elbow |
| Throttle Bore | 105mm |
Holley Intake Elbow, 4150 Flange
Sale price$251.80 USD
