Holley Single Plane EFI LS Intake Manifold - GM LS3/L92
Holley Single Plane EFI LS Intake Manifold - GM LS3/L92
sku: 1D5GG | mpn: 300-136
Regular price
$590.34
Regular price
Sale price
$590.34
Shipping calculated at checkout.
16 in stock
Emissions
This is not an emissions item.
Quantity
Couldn't load pickup availability
- Ships Worldwide
- Easy Returns
- Fast Shipping

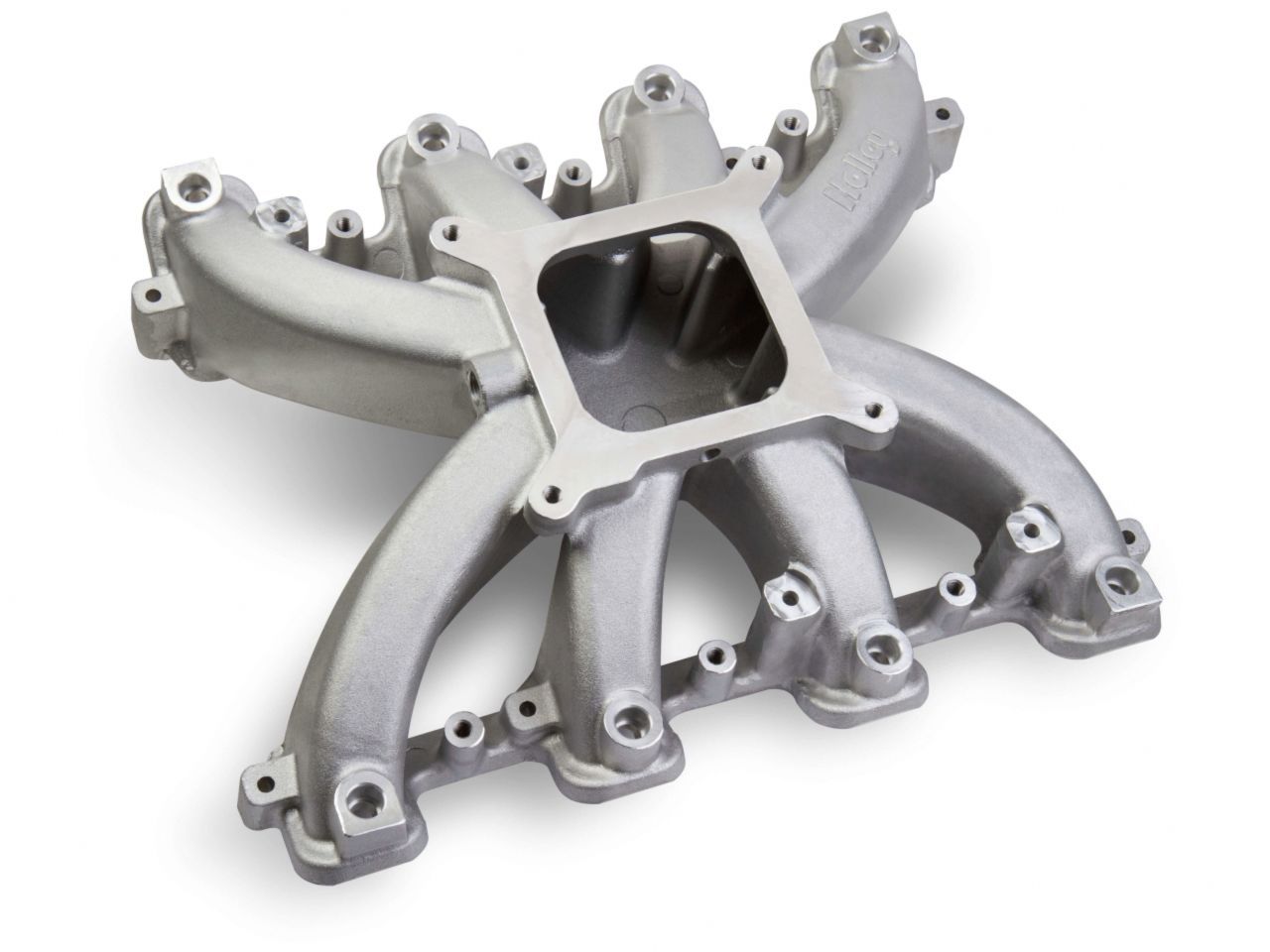

Single Plane EFI LS Intake Manifold. Fits all GM LS Gen III engines equipped with LS3/L92 style rectangular port cylinder heads
Features:
- 2500-7000 RPM power band
- 4150 Square bore flange
- Optimized runner layout and constant cross sectional area - broad torque curve, best vehicle performance from 2500-7000 RPM
- Minimum carb flange height - fit in vehicles with minimum hood modifications
- Cast aluminum construction - great manifold for centrifugal blower, turbocharged or NOS mild power adder applications
- Efficient casting design - lightweight, consistent wall thicknesses, improved casting quality
- Weight - 11.5 lbs.

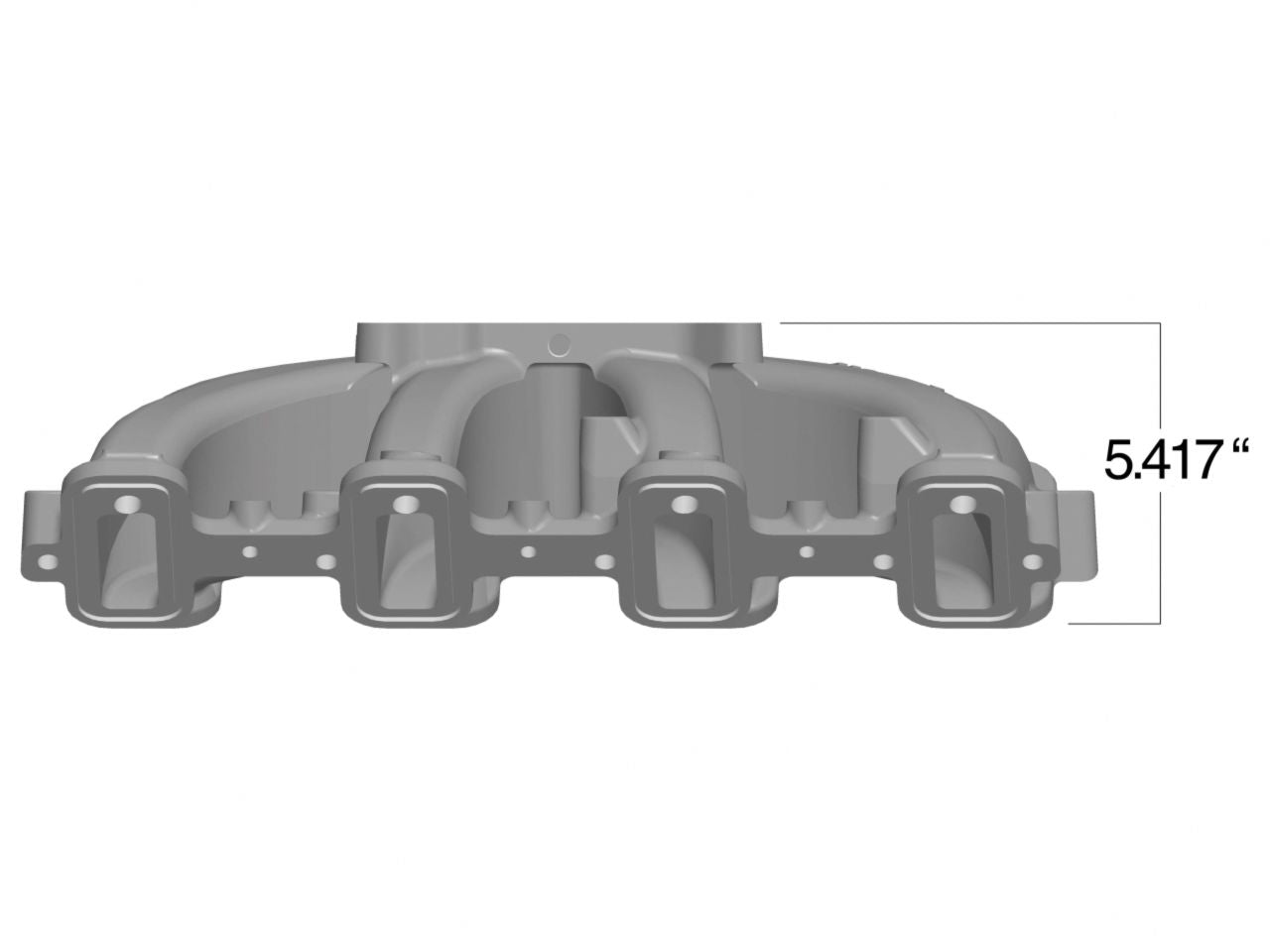

- Height (front) - 5.417" to the lifter valley cover flange at the engine block front flange and bellhousing flange
- Port size - 2.50" height x 1.15" wide
- Includes Viton® O-ring intake to cylinder head gaskets - Viton® is a registered trademark of DuPont Performance Elastomers
- This manifold will not work with factory fuel rails and requires the use of Holley Fuel Rail Kit.
Specs
| Construction | Cast |
|---|---|
| Emission Code | 3 |
| Engine | GM LS3/L92 |
| Finish | Satin |
| Flange Style | 4150 Square Bore |
| Front Height | 5.417 inch |
| Fuel System Type | EFI |
| Manifold Type | Single Plane |
| Product Type | Manifold |
| Rear Height | 5.417 inch |
| RPM Power Band | 2500-7000 |
