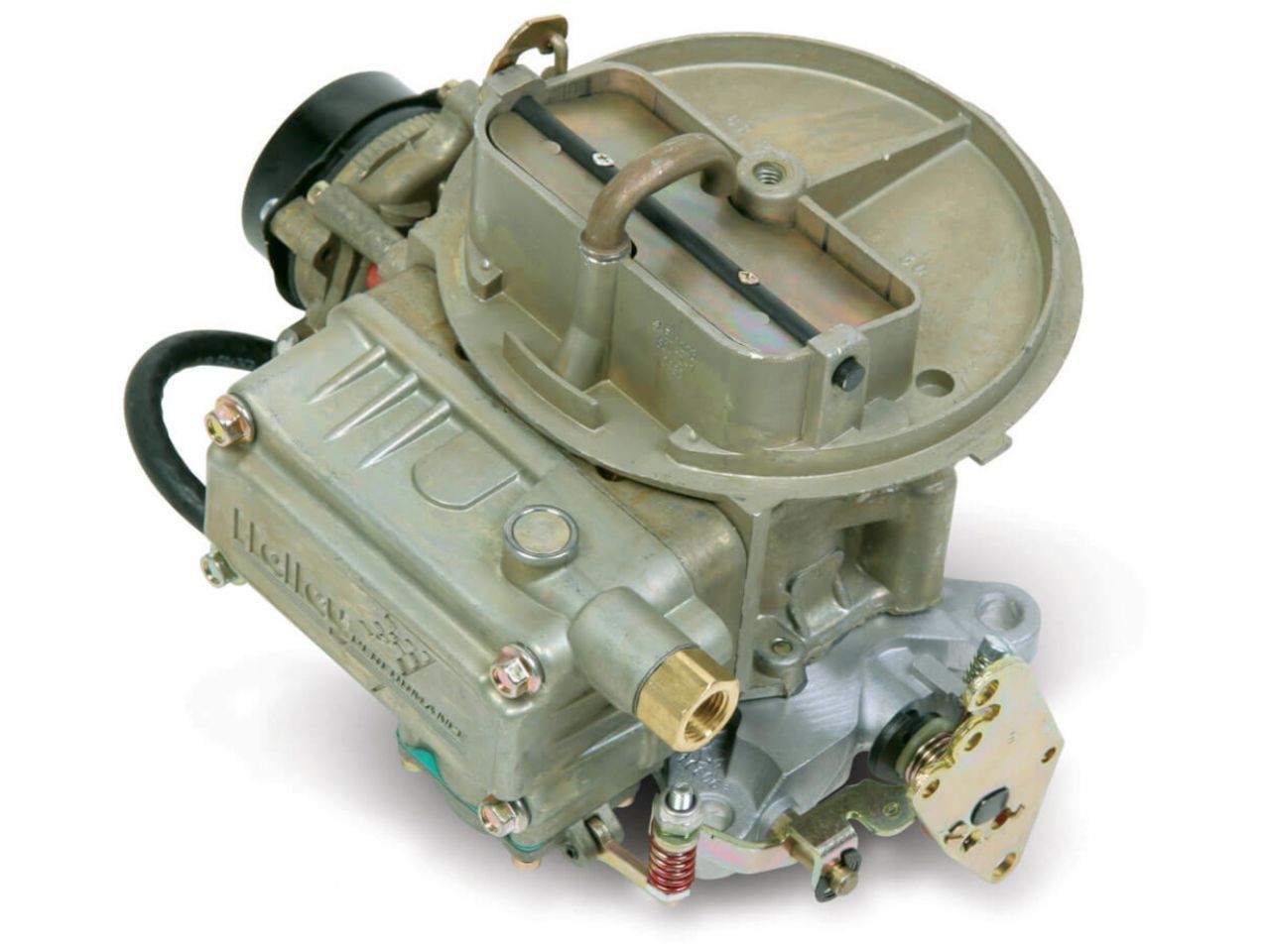

Holley 2300 500 CFM Universal Marine Carburetor
All Holley Marine Carburetors are designed to meet Coast Guard specifications. A marine carburetors fuel metering system is calibrated to compensate for unique engine loads found on boats. The J-style vent tubes direct fuel/fumes back into the carburetor for safe operation while on rough waters.
The Holley 0-80402-1 Marine carburetor is designed with a universal calibration good for small cubic inch marine engines where a 2300 model 2BBL with electric choke is required
Features:
- Gold Dichromate finish for corrosion resistance and classic Holley looks
- Universal Marine Calibration
- Factory preset electric choke for easy startups
- 30cc Accelerator pump for smooth starts
- Single feed fuel inlet for easy installation
- J-Style Vent Tubes
- Meets Coast Guard Specifications
- Power valve blow-out protection
- 100% wet-flow tested by Holley technicians to assure it arrives ready to run!
Specs
| Barrels | 2 |
|---|---|
| Booster | Down Leg |
| Brand | Holley |
| CFM | 500 |
| Choke | Electric |
| Emission Code | 3 |
| Finish | Gold Dichromate |
| Fuel | Gasoline |
| Fuel Inlet | Single |
| Marine Engine Size | Universal |
| Material | Zinc |
| Model | 2300 |
| Primary Main Jet | 75 |
| Primary Power Valve | 4.5 |
| Primary Pump Nozzle Size | 28 |
| Product Type | Carburetor |
| Secondaries | None |
| Supercharged Application | No |
| Throttle Bore | 1.750 inch |
| Part Number | 0-80402-1 |
Holley 2300 500 CFM Universal Marine Carburetor
Sale price$909.94 USD
