HKS Bolt On Turbo Kit 86/brz GtIII- RS
HKS Bolt On Turbo Kit 86/brz GtIII- RS
Shipping calculated at checkout.
To United StatesChange
Final options and totals are confirmed at checkout.
Low stock: 10 left
Shipping & returns
Shipping details
In-stock orders are processed within 48 hours; transit time is additional.
International orders include export processing and customs clearance. Duties, taxes and brokerage are extra; final freight charges may change after remeasurement.
Read the shipping policyReturns
Need help with a return? Request authorization within 30 days of delivery for eligible unused, uninstalled items. See details for exclusions and applicable fees.
Read the full return policyReturn details & how to start
Request return authorization (RMA) within 30 days of delivery for eligible items. Keep items unused and uninstalled, with original packaging and accessories. Electronics, liquids, special orders and other categories are excluded.
Email sales@frsport.com with RETURN and your order number in the subject to request an RMA. Please wait for return authorization before sending your item back.
Wrong part/size or change of mind: a 20% return processing fee applies, plus applicable shipping costs.
Original shipping is non-refundable. For orders shipped free, the actual outbound shipping cost is deducted from the refund. Return shipping is prepaid by the customer.
After payment capture, cancellations and refunds generally incur a 5% processing fee, except for our error, confirmed defects or confirmed carrier loss. The 5% and 20% fees do not stack; only the greater applicable fee applies. Store credit waives the 5% fee, but applicable return fees remain.
Missing, incorrect or transit-damaged items: report within 3 business days of receipt with photos of the product and packaging.
For defective items, contact us for help with the manufacturer's warranty process. The manufacturer decides the claim.
Specifications
Product details shared across all variants.
- Product type
- Turbocharger Kit
- Category
- Motor Vehicle Engine Parts
- Item condition
- New
- Manufacturer type
- Aftermarket
- Shipping dimensions (L × W × H)
- Shipping weight
- 519.22 lb
Billable shipping weight; may include dimensional weight.

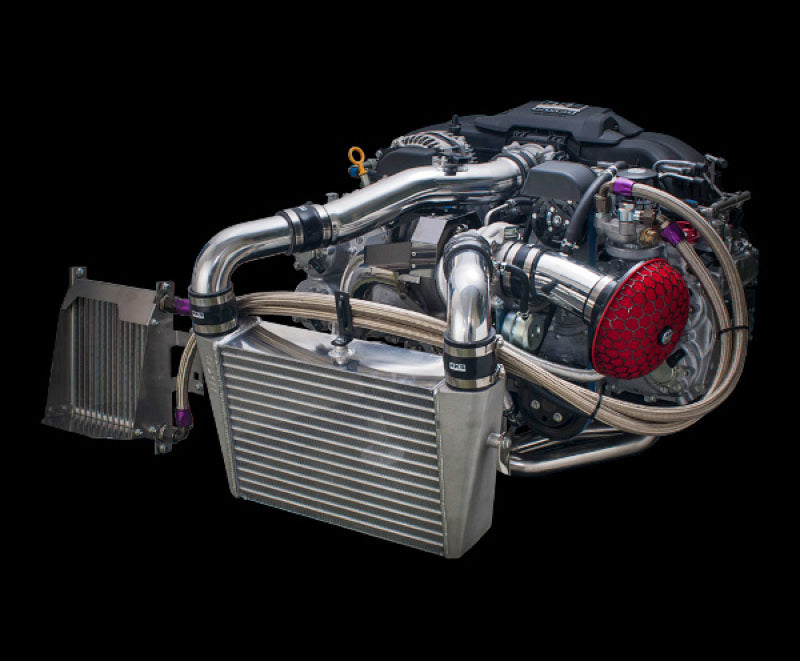

HKS has released a long-waited Bolt-on Turbo Kit with GTIII-RS turbine for 86/BRZ.
GTIII-RS turbine that is the best match with 2L engine, special designed turbo housing, and other special parts are made by HKS special turbo technology.
This kit is available from a stock to tuned engine.
The engine output will reach 450ps when this kit is installed to a tuned engine.
KIT PARTS

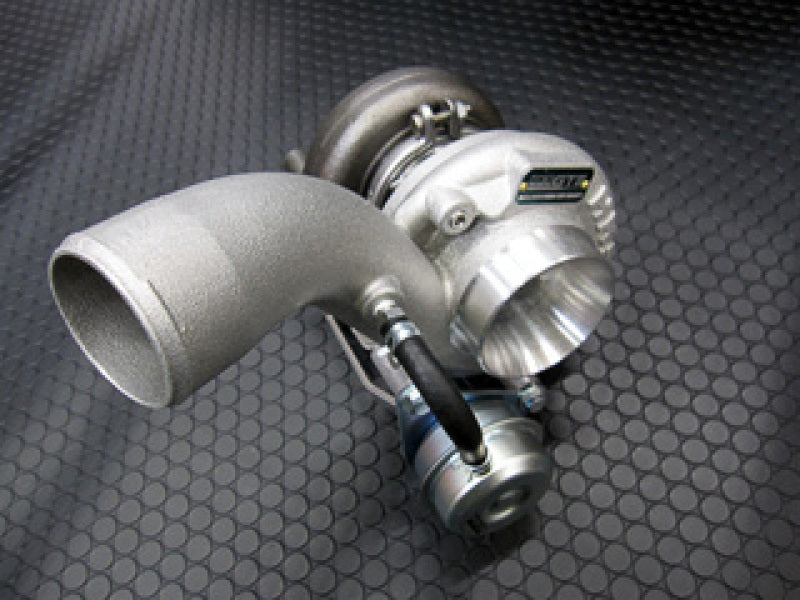

- GTIII-RS Turbocharger Assy with an actuator.
- Oil & Water Piping Parts
- Air Cleaner, Suction Pipe
- Front-mounted Intercooler, Piping
- Exhaust Manifold,
- For 11001-KT001, CATless Extension
- For 11001-AT005, Extension with CAT
- Insulator Cover, Insulator Sheet
- Gaskets, Brackets, Bolts, etc.

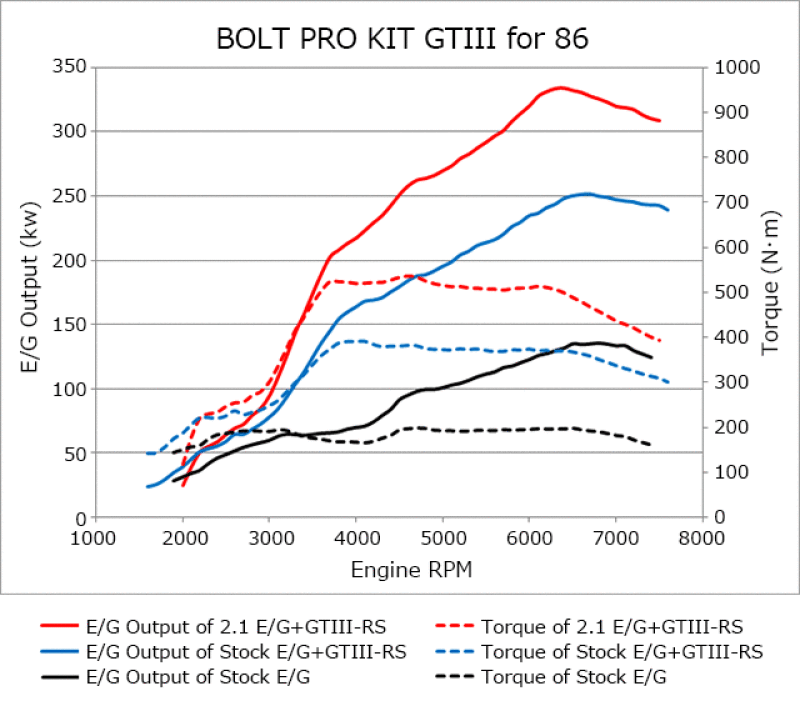

MAX ENGINE OUTPUT
2.1L E/G + GTIII-RS : 334kw(454ps)/6400rpm
Stock E/G+ GTIII-RS : 251kw(342ps)/6600rpm
NA Stock : 136kw(185ps)/6800rpm
MAX TORQUE
2.1L E/G + GTIII-RS : 536N?m(55kgf?m)/4600rpm
Stock E/G+ GTIII-RS : 391N?m(40kgf?m)/4100rpm
NA Stock : 199N?m(20kgf?m)/4100rpm
Stock Engine Test Vehicle Spec.
- LEGAMAX SPORTS
- FLASH EDITOR
- EVC6 IR
- I/J 440cc
- LA CLUTCH
2.1L Engine Test Vehicle Spec.
- 2.1L Piston, Con'rod, Crankshaft, Camshaft, Gasket
- SUPER FIRE RACING M45HL
- Hi-POWER Muffler
- Prototype Front Pipe, Prototype CATless Center Pipe
- Reinforced fuel parts
- FLASH EDITOR
- EVC6 IR
| Vehicle | Model | Engine | Model Year | Turbine Size | Boost Pressure | Code No. | Price | Remarks |
|---|---|---|---|---|---|---|---|---|
| 86 | ZN6 | FA20 | 12/04-16/07 | GTIII-RS | - | 11001-KT001 | CATless Extension, Compatibility with the late model is confirmed only with JDM model. |
Vehicle Fitments:
| Year | Make | Model | Submodel |
|---|---|---|---|
| 2013 - 2016 | Scion | FR-S | Base |
| 2015 | Subaru | BRZ | Aozora Edition, Series.Blue |
| 2016 | Subaru | BRZ | Series.HyperBlue |
| 2017 | Subaru | BRZ | Series.Yellow |
| 2013 - 2017 | Subaru | BRZ | Sport-tech, Limited, Base, Premium |
| 2017 | Toyota | 86 | Base, Special Edition |
